zerocoolwizard Posted July 28, 2011 Share Posted July 28, 2011 CPU - E5700 Dual Core (3Ghz) Mobo - G31M-ES2L 2.4ver Mem - 4gb DDR2 Corsair Video - Asus NVidia GS8400 (0x06e4-0x10de) DVD/CD Burner Asus Bluetooth USB-BT21 Dongle Asus WL-138g V2 PCI wireless card --------------------------------------------------------------------------- What you need: Lion GM (11A511) Image or app..... i used it to create Bootable DVD Hackboot-v6.2 cd image [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] 3.7.3 post installation utility Kext Wizard (since Kext Utility as well as kext Helper b7 didn't work for me) DSDT Auto-Patcher AtherosL1cEthernet.kext ..... AzaliaAudio.pkg ..... All files download - link here..... http://www.mediafire.com/?71gobhoko4div2q ------------------------------------------------------------------------------ Step 1. Let's make Boot DVD out of Image you downloaded or if you downloaded bootable DVD already than skip this..... This is pretty easy. * Download Mac OS X Lion GM (11A511) * From the Mac OS X Finder, locate the Mac OS X Installation file that was downloaded, right-click, and “Show Package Contents” * Find and open the “SharedSupport” folder and locate a disc image file called “InstallESD.dmg” * Copy “InstallESD.dmg” to your Mac OS X Desktop, this is the Lion disk image and what you’re going to create the bootable DVD from * Now launch Disk Utility (/Applications/Utilities/), pop in a blank DVD, select the “InstallESD.DMG” file, and click on “Burn” For people that like pictures please follow this link.... http://www.technobuzz.net/guide-to-create-...n-bootable-dvd/ or http://olarila.com/forum/viewtopic.php?f=17&t=178 Step 2. Download and burn Hackboot-v6.2 cd image (you can do this in windows environment also) Step 3. Bios on my Mobo is default nothing special to mention..... So Boot Computer with Hackboot CD once in GUI eject cd and insert Lion BootDVD we created earlier on.....press F5 Key on keyboard to continue......Comp will do it's thing and bring you into Lion Welcome screen..... continue..... Make sure you format HDD with GUID Partition Table Option..... Continue choose HDD that we just formated .... choose you options..... Press install wait for install to finish .....Reboot with Hackboot CD in just this time when you get to GUI screen choose HDD you Installed you Lion on and press Enter..... You will be presented with welcome screen for lion..... Input details and finish initial setup....... Once in Desktop environment you can eject HackBoot CD...... Step 4. Copy [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] 3.7.3 post installation utility Kext Wizard (since Kext Utility as well as kext Helper b7 didn't work for me) DSDT Auto-Patcher AtherosL1cEthernet.kext AzaliaAudio.pkg onto USB Stick and plug it in...... Copy all these files on your Desktop Step 5. Run DSDT Auto-Patcher and create your own DSDT.aml file and leave it on the Desktop Run [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] in DSDT support mode.....nothing else checked......Reboot when it is finished....This will now do it's thing and your Comp is fully Bootable from HDD.... Using this method enabled my GS8400 Card to full QE-CI 1080P all resolutions unlocked via DVI-HDMI... my monitor is connected tith DVI-HDMI Cable...... when back into desktop environment Copy DSDT.aml file that was on desktop to your HDD (just click HDD and paste it there so it is not on Desktop any more)...... Step 6. Run AzaliaAudio.pkg and Reboot this will bring your audio to full HD Audio in your settings panel and your audio will work fully Step 7. Run Kext Wizard and install AtherosL1cEthernet.kext to enable your LAN connection.....Reboot Asus Bluetooth USB-BT21 Dongle worked Out of the box Asus WL-138g V2 PCI wireless card worked Out of the box And that is it folks.....Simple as that, now you have fully functional Lion install ....Cheers Little Snitch 2.4 out and compatible with Lion..........until next time.....Live long and prosper... Link to comment https://www.insanelymac.com/forum/topic/263915-ga-g31m-es2l-firmware-24ver-full-lion-gm-11a511-install/ Share on other sites More sharing options...

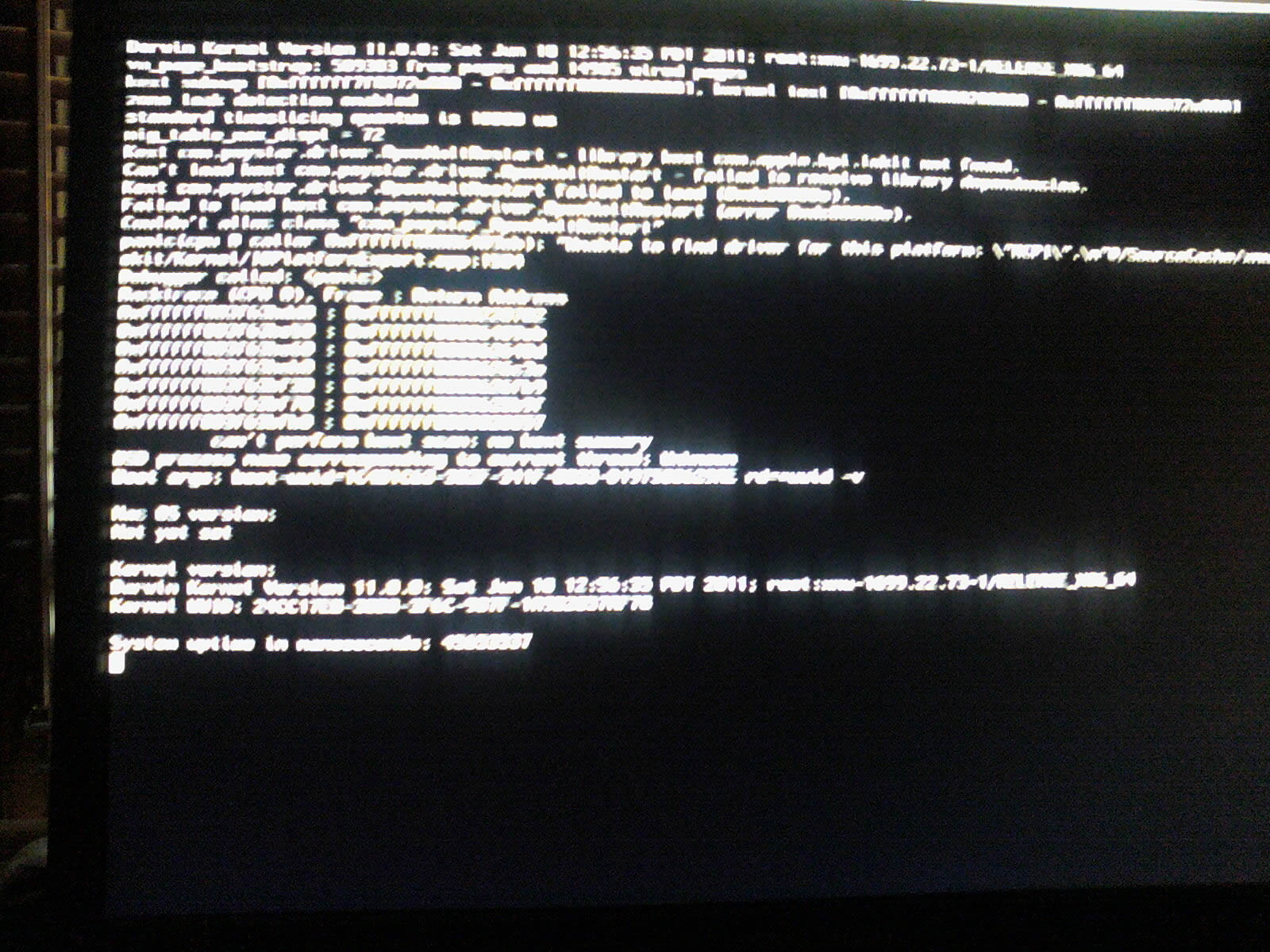

natgab Posted July 31, 2011 Share Posted July 31, 2011 Hey zerocoolwizard, I am having trouble with the install: I was able to make HackBootv6.2CD, loads fine and give me the GUI. Sees my 10.6 & Win7 HDs, empty Lion HD and OS X DVD. When I swap out the Hackboot and load the Lion DVD, I get the error screen below. I also do not get anything if i press F5 when swapping out CD for DVD. Is it supposed to just refresh the list in Chameleon? Am I using the wrong Lion image, the actual download is labeled "Mac OS X 10.7 Lion GM 11A511 Bootable". It came with instruction on how to make a USB version, is there a difference for DVD version? tech info in my signature TIA EDIT: 10.6, Win7 & 10.7 will all be on separate physical HDs Link to comment https://www.insanelymac.com/forum/topic/263915-ga-g31m-es2l-firmware-24ver-full-lion-gm-11a511-install/#findComment-1726985 Share on other sites More sharing options...
zerocoolwizard Posted August 13, 2011 Author Share Posted August 13, 2011 Hey zerocoolwizard, I am having trouble with the install: I was able to make HackBootv6.2CD, loads fine and give me the GUI. Sees my 10.6 & Win7 HDs, empty Lion HD and OS X DVD. When I swap out the Hackboot and load the Lion DVD, I get the error screen below. I also do not get anything if i press F5 when swapping out CD for DVD. Is it supposed to just refresh the list in Chameleon? Am I using the wrong Lion image, the actual download is labeled "Mac OS X 10.7 Lion GM 11A511 Bootable". It came with instruction on how to make a USB version, is there a difference for DVD version? tech info in my signature TIA EDIT: 10.6, Win7 & 10.7 will all be on separate physical HDs I never tested it on G41M-ES2L but it is a difference between usb install and DVD instal i find that DVD works better....just follow the instructions posted in my first post..... So far tested 100% boards are as follows...... G41M-ES2H firm...1.4 link for it is ... http://www.insanelymac.com/forum/index.php...p;#entry1725006 .....G31M-ES2L 2.4ver link ..... http://www.insanelymac.com/forum/index.php...p;#entry1724988 and G41MT-D3 REV1.3..... LINK FOR IT WILL BE POSTED SOON Hope this helps......Cheers Link to comment https://www.insanelymac.com/forum/topic/263915-ga-g31m-es2l-firmware-24ver-full-lion-gm-11a511-install/#findComment-1734019 Share on other sites More sharing options...
