intommy

GA-P35-DS3 rev 2.1 some problem solved(edit)

9 posts in this topic

Recommended Posts

Hi all, and hope, hi Mald0n :unsure: (u are god!)



Have fresh install Lion 10.7 DP4 and got some problem...



after any restart i got screen about Bios reset, and i click only on Last Known Good Configuration and PC will restart, restart and works... till next reset - same, so? i restart PC twice :unsure: (not big deal^^)



My configurations:



GA-P35-DS3 rev 2.1

CPU intel Q6600 Core2quad 2,4GHz

VGA Bliss 8600GTS PCX 512MB / now: Gainward GTS450 1GB DDR5 1510

4GB DDR2 (4x1GB Corsair, Part Number: CM2X1024-6400C4DHX)

HDD SATA SAMSUNG HD502HJ 500GB, 165MB cache



com.apple.Boot.plist

<plist version="1.0">
<dict>
<key>GenerateCStates</key>
<string>Yes</string>
<key>GeneratePStates</key>
<string>Yes</string>
<key>GraphicsEnabler</key>
<string>Yes</string>
<key>Kernel</key>
<string>mach_kernel</string>
<key>Kernel Flags</key>
<string>arch=i386</string>
<key>Theme</key>
<string>Default</string>
<key>Timeout</key>
<string>3</string>
	<key>Quiet Boot</key>
	<string>Yes</string>
</dict>
</plist>



In Boot.list maybe mission 64bit?





my kextstat

Index Refs Address	Size	   Wired	  Name (Version) <Linked Against>
1   49 0x47970000 0x5d48	 0x5d48	 com.apple.kpi.bsd (11.0.0)
2	6 0x7bb2800  0x35c	  0x35c	  com.apple.kpi.dsep (11.0.0)
3   69 0x47976000 0x1ab7c	0x1ab7c	com.apple.kpi.iokit (11.0.0)
4   73 0x47991000 0x8e60	 0x8e60	 com.apple.kpi.libkern (11.0.0)
5   63 0x7bb4000  0x7f0	  0x7f0	  com.apple.kpi.mach (11.0.0)
6   27 0x4799a000 0x4274	 0x4274	 com.apple.kpi.private (11.0.0)
7   43 0x47964000 0x2924	 0x2924	 com.apple.kpi.unsupported (11.0.0)
8	0 0x4799f000 0x25f38	0x25f38	com.apple.kernel.6.0 (7.9.9)
9	0 0x479c5000 0x25f38	0x25f38	com.apple.kernel.bsd (7.9.9)
  10	0 0x479eb000 0x25f38	0x25f38	com.apple.kernel.iokit (7.9.9)
  11	0 0x47a11000 0x25f38	0x25f38	com.apple.kernel.libkern (7.9.9)
  12	0 0x47a37000 0x25f38	0x25f38	com.apple.kernel.mach (7.9.9)
  13   12 0x563c2000 0x7000	 0x6000	 com.apple.iokit.IOACPIFamily (1.4) <7 6 4 3>
  14   18 0x56403000 0x1d000	0x1c000	com.apple.iokit.IOPCIFamily (2.6.4) <7 6 5 4 3>
  15	1 0x5655c000 0x55000	0x54000	com.apple.driver.AppleACPIPlatform (1.4) <14 13 7 6 5 4 3 1>
  16	0 0x565b1000 0x4000	 0x3000	 org.tgwbd.driver.NullCPUPowerManagement (1.0.0d2) <7 4 3>
  17	0 0x5661e000 0x2a000	0x29000	com.apple.driver.AppleIntelCPUPowerManagement (159.0.0) <7 6 5 4 3 1>
  18	1 0x56648000 0xd000	 0xc000	 com.apple.driver.AppleKeyStore (28.18) <7 6 5 4 3 1>
  19	3 0x56667000 0x24000	0x23000	com.apple.iokit.IOStorageFamily (1.7) <7 6 5 4 3 1>
  20	0 0x56755000 0x17000	0x16000	com.apple.driver.DiskImages (326) <19 7 6 5 4 3 1>
  21	0 0x56803000 0xa000	 0x9000	 com.apple.nke.applicationfirewall (3.0.30) <7 6 5 4 3 1>
  22	2 0x5680d000 0x4000	 0x3000	 com.apple.kext.AppleMatch (1.0.0d1) <4 1>
  23	1 0x56811000 0x11000	0x10000	com.apple.security.sandbox (165) <22 7 6 5 4 3 2 1>
  24	0 0x56822000 0x7000	 0x6000	 com.apple.security.quarantine (1) <23 22 7 6 5 4 2 1>
  25	0 0x56829000 0x4000	 0x3000	 com.apple.security.TMSafetyNet (7) <7 6 5 4 2 1>
  26	0 0x5685d000 0x4000	 0x3000	 com.apple.driver.AppleAPIC (1.5) <4 3>
  27	0 0x56861000 0x5000	 0x4000	 com.apple.driver.AppleSMBIOS (1.7) <7 4 3>
  28	0 0x56905000 0x4000	 0x3000	 com.apple.driver.AppleHPET (1.6) <13 7 5 4 3>
  29	0 0x56909000 0x9000	 0x8000	 com.apple.driver.AppleRTC (1.4) <13 5 4 3 1>
  30	2 0x56951000 0x64000	0x63000	com.apple.iokit.IOHIDFamily (1.7.0) <18 7 6 5 4 3 2 1>
  31	0 0x5654d000 0x6000	 0x5000	 com.apple.driver.AppleACPIButtons (1.4) <30 15 13 7 6 5 4 3 1>
  32	1 0x56553000 0x4000	 0x3000	 com.apple.driver.AppleEFIRuntime (1.5.0) <7 6 5 4 3>
  33	8 0x5d6eb000 0x4a000	0x49000	com.apple.iokit.IOUSBFamily (4.4.0) <14 7 5 4 3 1>
  34	0 0x5d735000 0x14000	0x13000	com.apple.driver.AppleUSBUHCI (4.4.0) <33 14 7 5 4 3 1>
  35	2 0x5d749000 0xa000	 0x9000	 com.apple.iokit.IOAHCIFamily (2.0.6) <5 4 3 1>
  36	0 0x5d753000 0x1a000	0x19000	com.apple.driver.AppleAHCIPort (2.1.8) <35 14 5 4 3 1>
  37	0 0x5d76d000 0x7000	 0x6000	 org.netkas.FakeSMC (3.1.0) <13 7 5 4 3>
  38	0 0x5d774000 0x1f000	0x1e000	com.apple.driver.AppleUSBEHCI (4.4.0) <33 14 7 5 4 3 1>
  39	2 0x5d79e000 0x25000	0x24000	com.apple.iokit.IONetworkingFamily (2.0) <7 6 5 4 3 1>
  40	0 0x5d7c3000 0x2f000	0x2e000	com.lnx2mac.driver.RealtekRTL81xx (0.0.67) <39 14 5 4 3 1>
  41	0 0x5d7f2000 0x8000	 0x7000	 com.apple.driver.AppleEFINVRAM (1.5.0) <32 7 5 4 3>
  42	0 0x565f9000 0x3000	 0x2000	 com.apple.iokit.IOUSBUserClient (4.4.0) <33 7 5 4 3 1>
  43	0 0x5d935000 0x1b000	0x1a000	com.apple.iokit.IOAHCIBlockStorage (2.0.0) <35 19 5 4 3 1>
  44	0 0x5d950000 0x6000	 0x5000	 com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) <7 6 4 3 2 1>
  45	0 0x5d985000 0x15000	0x14000	com.apple.driver.AppleUSBHub (4.4.0) <33 5 4 3 1>
  46	0 0x5d9e6000 0x8000	 0x7000	 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0d1) <6 4 3 2 1>
  47	0 0x5d9ee000 0xb000	 0xa000	 com.apple.BootCache (32) <7 6 5 4 3 1>
  48	0 0x5d9fb000 0x4000	 0x3000	 com.apple.driver.XsanFilter (403) <19 5 4 3 1>
  49	0 0x5da85000 0x6000	 0x5000	 com.apple.driver.AppleUSBComposite (3.9.0) <33 4 3 1>
  50	0 0x5da93000 0x8000	 0x7000	 com.apple.iokit.IOUSBHIDDriver (4.4.0) <33 30 5 4 3 1>
  51	2 0x5dae5000 0x6f000	0x6e000	com.apple.iokit.IOBluetoothFamily (2.5f13) <7 5 4 3 1>
  52	1 0x5db54000 0xe000	 0xd000	 com.apple.driver.AppleUSBBluetoothHCIController (2.5f13) <51 33 7 5 4 3>
  53	0 0x5db68000 0x5000	 0x4000	 com.apple.driver.CSRUSBBluetoothHCIController (2.5f13) <52 51 33 5 4 3>
  55	0 0x5dff5000 0x4000	 0x3000	 com.apple.driver.AppleLPC (1.5.1) <14 5 4 3>
  56	0 0x5e17d000 0x3000	 0x2000	 com.apple.driver.AppleSMBusPCI (1.0.10d0) <14 5 4 3>
  57	1 0x5e1ec000 0x11000	0x10000	com.apple.driver.IOPlatformPluginFamily (4.7.0b0) <13 7 6 5 4 3>
  58	2 0x5e1fd000 0xc000	 0xb000	 com.apple.driver.AppleSMC (3.1.1d2) <13 7 5 4 3>
  59	0 0x5e210000 0x14000	0x13000	com.apple.driver.ACPI_SMC_PlatformPlugin (4.7.0b0) <58 57 14 13 7 6 5 4 3>
  60	2 0x56495000 0xa000	 0x9000	 com.apple.iokit.IOHDAFamily (2.1.1f10) <5 4 3 1>
  61	8 0x5668b000 0x30000	0x2f000	com.apple.iokit.IOGraphicsFamily (2.3) <14 7 5 4 3>
  62	1 0x564c7000 0x1a000	0x19000	com.apple.driver.AppleHDAController (2.1.1f10) <61 60 14 6 5 4 3 1>
  63	0 0x56395000 0x7000	 0x6000	 com.apple.driver.AppleMCEDriver (1.1.9) <13 5 4 3>
  64	2 0x563a5000 0x5000	 0x4000	 com.apple.kext.OSvKernDSPLib (1.3) <5 4>
  65	4 0x566bb000 0x26000	0x25000	com.apple.iokit.IOAudioFamily (1.8.3fc11) <64 5 4 3 1>
  66	0 0x563c9000 0x6000	 0x5000	 com.apple.driver.AudioIPCDriver (1.2.0) <65 5 4 3 1>
  67	3 0x56475000 0x11000	0x10000	com.apple.iokit.IONDRVSupport (2.3) <61 14 7 5 4 3>
  68	2 0x5ec57000 0x2ff000   0x2fe000   com.apple.NVDAResman (7.0.0) <67 61 14 5 4 3 1>
  69	0 0x5f2e4000 0x335000   0x334000   com.apple.nvidia.nv50hal (7.0.0) <68 4 3>
  70	0 0x564fb000 0x2b000	0x2a000	com.apple.iokit.IOSCSIArchitectureModelFamily (3.0.0) <5 4 3 1>
  71	1 0x56381000 0x4000	 0x3000	 com.apple.iokit.IOSMBusFamily (1.1) <5 4 3>
  72	0 0x564e1000 0xd000	 0xc000	 com.apple.driver.AppleSMBusController (1.0.10d0) <71 14 13 5 4 3>
  73	1 0x5d644000 0xa4000	0xa3000	com.apple.driver.DspFuncLib (2.1.1f10) <65 64 5 4 3 1>
  74	0 0x5e5ac000 0xc4000	0xc3000	com.apple.driver.AppleHDA (2.1.1f10) <73 67 65 62 61 60 6 5 4 3 1>
  75	0 0x5e42b000 0xde000	0xdd000	com.apple.GeForce (7.0.0) <68 67 61 14 7 6 5 4 3 1>
  76	0 0x56364000 0x7000	 0x6000	 com.apple.Dont_Steal_Mac_OS_X (7.0.0) <58 7 4 3 1>
  82	1 0x563e0000 0xc000	 0xb000	 com.apple.iokit.IOSerialFamily (10.0.5) <7 6 5 4 3 1>
  83	0 0x56442000 0xd000	 0xc000	 com.apple.iokit.IOBluetoothSerialManager (2.5f13) <82 7 5 4 3 1>
  84	0 0x5645c000 0x10000	0xf000	 com.apple.iokit.IOSurface (80.0) <7 5 4 3 1>
  85	0 0x563aa000 0x8000	 0x7000	 com.apple.iokit.IOUserEthernet (1.0.0d1) <39 6 5 4 3 1>
  86	0 0x56486000 0xd000	 0xc000	 com.apple.driver.AppleMCCSControl (1.0.23) <61 14 7 5 4 3 1>
  87	0 0x5632e000 0x6000	 0x5000	 com.apple.driver.AudioAUUC (1.58) <65 61 14 13 7 5 4 3 1>
  88	0 0x5638c000 0x7000	 0x6000	 com.apple.driver.AppleUpstreamUserClient (3.5.8) <61 14 13 7 5 4 3 1>
  89	1 0x56349000 0x5000	 0x4000	 com.apple.kext.triggers (1.0) <7 6 5 4 3 1>
  90	0 0x563d4000 0xb000	 0xa000	 com.apple.filesystems.autofs (3.0) <89 7 6 5 4 3 1>
  91	0 0x564b7000 0x7000	 0x6000	 com.apple.driver.AppleHWSensor (1.9.4d0) <5 4 3>



So? i forgot set somethin, or have any other problem here? i am glad if u, guys, check it and help me :)



Attachments: my DSDT

dsdt.aml.zip

Share this post


Link to post
Share on other sites

strange, now pc booting without that .. have no idea... how? but works :rolleyes:



anyway.. can u check my dsdt and kext?

Share this post


Link to post
Share on other sites

remove NullCPUPowerManagement



add in boot.plist

<key>GeneratePStates</key>
<string>Yes</string>
<key>GenerateCStates</key>
<string>Yes</string>

Share this post


Link to post
Share on other sites
....



add in boot.plist

<key>GeneratePStates</key>
<string>Yes</string>
<key>GenerateCStates</key>
<string>Yes</string>

Thanks Mald0n for answer. About P/CStates this actually have in bootlist.



Have one more question, friend give me yesterday Gainward GTS450 1GB DDR5 1510, in 10.6.7. SL i see correct model, but max resolution only 1280x80, in 10.7. DP4.. unknown card, 0 MB



Any suggestion?







remove NullCPUPowerManagement



...





where i found it? (sry for stupid ask)

Share this post


Link to post
Share on other sites
Have one more question, friend give me yesterday Gainward GTS450 1GB DDR5 1510, in 10.6.7. SL i see correct model, but max resolution only 1280x80, in 10.7. DP4.. unknown card, 0 MB



Wait for Final Lion



where i found it? (sry for stupid ask)



in Extra/Extensions or System/LIbrary/Extensions or Extensions.mkext

Share this post


Link to post
Share on other sites

About graphics.. today i install Developer Preview 4 UPDATE (11A494a)



so?

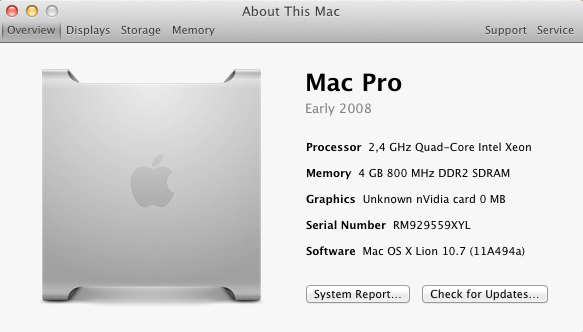

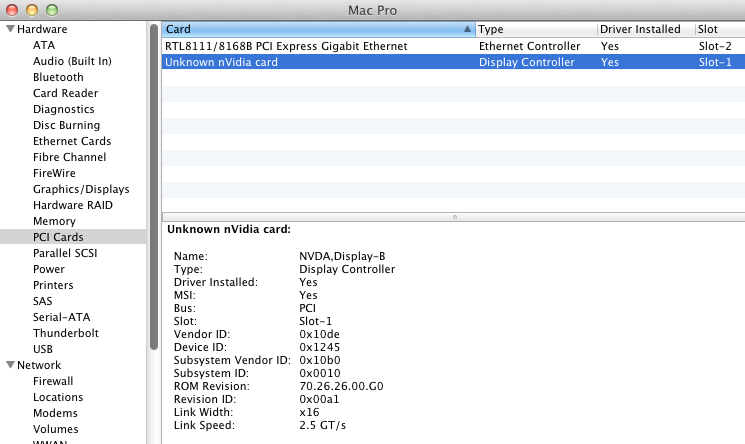

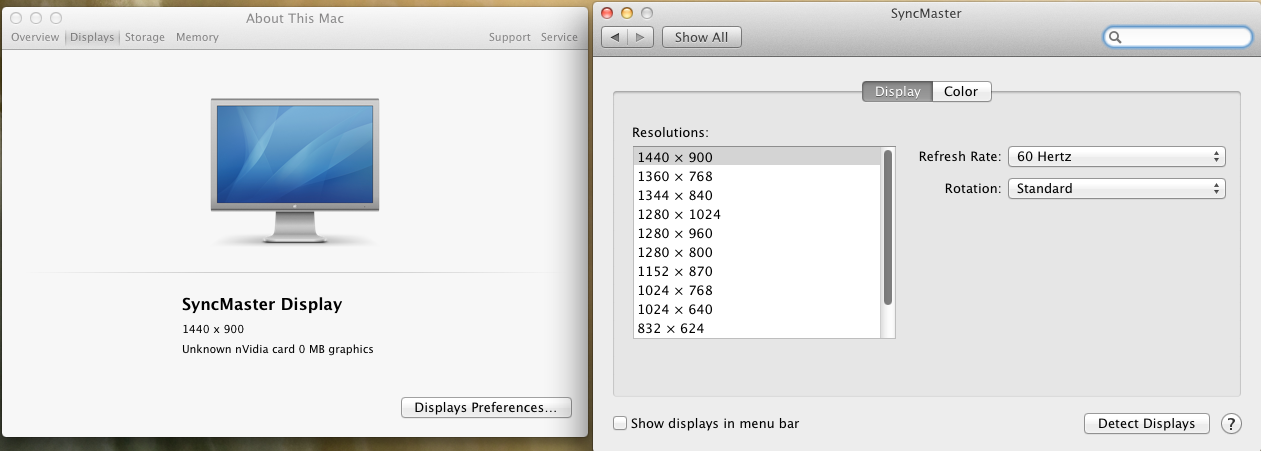

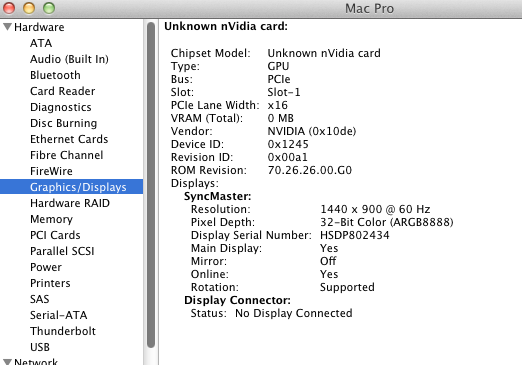

resolution now works 1440x900, graphics card still see like unknown model, but in start with -v i see correct info about graphics card



but?



see like graphics card is working...

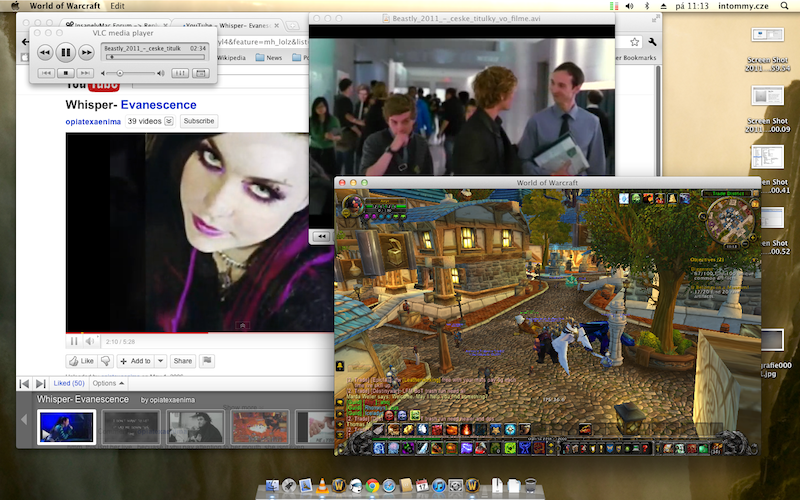

video, gaming, youtube :rolleyes:.. but not sure about full works.. in World of Warcraft i need set lowest detail, but no worse, game "just" works :D

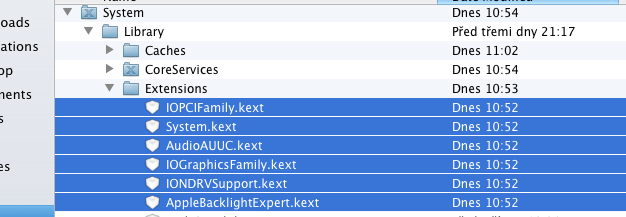

this 6 new kext or replaced in update..





And new kextstat after update:



kextstat

Index Refs Address	Size	   Wired	  Name (Version) <Linked Against>
1   54 0x4787a000 0x5d48	 0x5d48	 com.apple.kpi.bsd (11.0.0)
2	6 0x7ac9800  0x35c	  0x35c	  com.apple.kpi.dsep (11.0.0)
3   73 0x47880000 0x1ab7c	0x1ab7c	com.apple.kpi.iokit (11.0.0)
4   77 0x4789b000 0x8e60	 0x8e60	 com.apple.kpi.libkern (11.0.0)
5   68 0x7acb800  0x7f0	  0x7f0	  com.apple.kpi.mach (11.0.0)
6   28 0x478a4000 0x4274	 0x4274	 com.apple.kpi.private (11.0.0)
7   44 0x4786e000 0x2924	 0x2924	 com.apple.kpi.unsupported (11.0.0)
8	0 0x478a9000 0x25f38	0x25f38	com.apple.kernel.6.0 (7.9.9)
9	0 0x478cf000 0x25f38	0x25f38	com.apple.kernel.bsd (7.9.9)
  10	0 0x478f5000 0x25f38	0x25f38	com.apple.kernel.iokit (7.9.9)
  11	0 0x4791b000 0x25f38	0x25f38	com.apple.kernel.libkern (7.9.9)
  12	0 0x47941000 0x25f38	0x25f38	com.apple.kernel.mach (7.9.9)
  13   12 0x562ad000 0x7000	 0x6000	 com.apple.iokit.IOACPIFamily (1.4) <7 6 4 3>
  14   18 0x562ee000 0x1d000	0x1c000	com.apple.iokit.IOPCIFamily (2.6.5) <7 6 5 4 3>
  15	1 0x5644a000 0x55000	0x54000	com.apple.driver.AppleACPIPlatform (1.4) <14 13 7 6 5 4 3 1>
  16	0 0x5650e000 0x2a000	0x29000	com.apple.driver.AppleIntelCPUPowerManagement (159.0.0) <7 6 5 4 3 1>
  17	1 0x56538000 0xd000	 0xc000	 com.apple.driver.AppleKeyStore (28.18) <7 6 5 4 3 1>
  18	3 0x56560000 0x24000	0x23000	com.apple.iokit.IOStorageFamily (1.7) <7 6 5 4 3 1>
  19	0 0x5664e000 0x17000	0x16000	com.apple.driver.DiskImages (326) <18 7 6 5 4 3 1>
  20	0 0x566e7000 0xa000	 0x9000	 com.apple.nke.applicationfirewall (3.0.30) <7 6 5 4 3 1>
  21	2 0x566f1000 0x4000	 0x3000	 com.apple.kext.AppleMatch (1.0.0d1) <4 1>
  22	1 0x566f5000 0x11000	0x10000	com.apple.security.sandbox (165) <21 7 6 5 4 3 2 1>
  23	0 0x56706000 0x7000	 0x6000	 com.apple.security.quarantine (1) <22 21 7 6 5 4 2 1>
  24	0 0x5670d000 0x4000	 0x3000	 com.apple.security.TMSafetyNet (7) <7 6 5 4 2 1>
  25	0 0x56711000 0x4000	 0x3000	 com.apple.driver.AppleIntelCPUPowerManagementClient (159.0.0) <7 6 5 4 3 1>
  26	0 0x5674d000 0x4000	 0x3000	 com.apple.driver.AppleAPIC (1.5) <4 3>
  27	0 0x56751000 0x5000	 0x4000	 com.apple.driver.AppleSMBIOS (1.7) <7 4 3>
  28	0 0x5d82c000 0x4000	 0x3000	 com.apple.driver.AppleHPET (1.6) <13 7 5 4 3>
  29	0 0x5d830000 0x9000	 0x8000	 com.apple.driver.AppleRTC (1.4) <13 5 4 3 1>
  30	2 0x5d878000 0x64000	0x63000	com.apple.iokit.IOHIDFamily (1.7.0) <17 7 6 5 4 3 2 1>
  31	0 0x5643b000 0x6000	 0x5000	 com.apple.driver.AppleACPIButtons (1.4) <30 15 13 7 6 5 4 3 1>
  32	1 0x56441000 0x4000	 0x3000	 com.apple.driver.AppleEFIRuntime (1.5.0) <7 6 5 4 3>
  33	8 0x5d9c7000 0x4a000	0x49000	com.apple.iokit.IOUSBFamily (4.4.0) <14 7 5 4 3 1>
  34	0 0x5da11000 0x14000	0x13000	com.apple.driver.AppleUSBUHCI (4.4.0) <33 14 7 5 4 3 1>
  35	0 0x5da25000 0x7000	 0x6000	 org.netkas.FakeSMC (3.1.0) <13 7 5 4 3>
  36	2 0x5da30000 0xa000	 0x9000	 com.apple.iokit.IOAHCIFamily (2.0.6) <5 4 3 1>
  37	0 0x5da3a000 0x1a000	0x19000	com.apple.driver.AppleAHCIPort (2.1.8) <36 14 5 4 3 1>
  38	0 0x5da54000 0x1f000	0x1e000	com.apple.driver.AppleUSBEHCI (4.4.0) <33 14 7 5 4 3 1>
  39	4 0x5da7e000 0x25000	0x24000	com.apple.iokit.IONetworkingFamily (2.0) <7 6 5 4 3 1>
  40	0 0x5daa3000 0x2f000	0x2e000	com.lnx2mac.driver.RealtekRTL81xx (0.0.67) <39 14 5 4 3 1>
  41	0 0x5dade000 0x8000	 0x7000	 com.apple.driver.AppleEFINVRAM (1.5.0) <32 7 5 4 3>
  42	0 0x567fd000 0x3000	 0x2000	 com.apple.iokit.IOUSBUserClient (4.4.0) <33 7 5 4 3 1>
  43	0 0x5dc0d000 0x6000	 0x5000	 com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) <7 6 4 3 2 1>
  44	0 0x5dc13000 0x15000	0x14000	com.apple.driver.AppleUSBHub (4.4.0) <33 5 4 3 1>
  45	0 0x5dc4d000 0x8000	 0x7000	 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0d1) <6 4 3 2 1>
  46	0 0x5dc55000 0xb000	 0xa000	 com.apple.BootCache (32) <7 6 5 4 3 1>
  47	0 0x5dc81000 0x31000	0x30000	at.obdev.nke.LittleSnitch (2.3.20) <7 5 4 3 1>
  48	0 0x5dd2d000 0x1b000	0x1a000	com.apple.iokit.IOAHCIBlockStorage (2.0.0) <36 18 5 4 3 1>
  49	0 0x5dd8d000 0x4000	 0x3000	 com.apple.driver.XsanFilter (403) <18 5 4 3 1>
  50	0 0x5dd91000 0x6000	 0x5000	 com.apple.driver.AppleUSBComposite (3.9.0) <33 4 3 1>
  51	0 0x5dda5000 0x8000	 0x7000	 com.apple.iokit.IOUSBHIDDriver (4.4.0) <33 30 5 4 3 1>
  52	2 0x5ddf7000 0x6f000	0x6e000	com.apple.iokit.IOBluetoothFamily (2.5f14) <7 5 4 3 1>
  53	1 0x5de66000 0xe000	 0xd000	 com.apple.driver.AppleUSBBluetoothHCIController (2.5f14) <52 33 7 5 4 3>
  54	0 0x5de7a000 0x5000	 0x4000	 com.apple.driver.CSRUSBBluetoothHCIController (2.5f14) <53 52 33 5 4 3>
  56	0 0x5e25e000 0x4000	 0x3000	 com.apple.driver.AppleLPC (1.5.1) <14 5 4 3>
  57	0 0x5e262000 0x3000	 0x2000	 com.apple.driver.AppleSMBusPCI (1.0.10d0) <14 5 4 3>
  58	1 0x5e2de000 0x11000	0x10000	com.apple.driver.IOPlatformPluginFamily (4.7.0b2) <13 7 6 5 4 3>
  59	2 0x5e5bc000 0xc000	 0xb000	 com.apple.driver.AppleSMC (3.1.1d2) <13 7 5 4 3>
  60	0 0x5e5fc000 0x15000	0x14000	com.apple.driver.ACPI_SMC_PlatformPlugin (4.7.0b2) <59 58 14 13 7 6 5 4 3>
  61	2 0x56264000 0xa000	 0x9000	 com.apple.iokit.IOHDAFamily (2.1.1f11) <5 4 3 1>
  62	8 0x5d839000 0x32000	0x31000	com.apple.iokit.IOGraphicsFamily (2.3) <14 7 5 4 3>
  63	1 0x5d98e000 0x1a000	0x19000	com.apple.driver.AppleHDAController (2.1.1f11) <62 61 14 6 5 4 3 1>
  64	0 0x56257000 0x7000	 0x6000	 com.apple.driver.AppleMCEDriver (1.1.9) <13 5 4 3>
  65	2 0x5624e000 0x5000	 0x4000	 com.apple.kext.OSvKernDSPLib (1.3) <5 4>
  66	4 0x5d920000 0x26000	0x25000	com.apple.iokit.IOAudioFamily (1.8.3fc11) <65 5 4 3 1>
  67	0 0x56239000 0x6000	 0x5000	 com.apple.driver.AudioIPCDriver (1.2.0) <66 5 4 3 1>
  68	3 0x5654e000 0x11000	0x10000	com.apple.iokit.IONDRVSupport (2.3) <62 14 7 5 4 3>
  69	2 0x5f21b000 0x2ff000   0x2fe000   com.apple.NVDAResman (7.0.2) <68 62 14 5 4 3 1>
  70	0 0x5fa7f000 0x4ec000   0x4eb000   com.apple.nvidia.nvGF100hal (7.0.2) <69 4 3>
  71	1 0x561e5000 0x4000	 0x3000	 com.apple.iokit.IOSMBusFamily (1.1) <5 4 3>
  72	0 0x564fb000 0xd000	 0xc000	 com.apple.driver.AppleSMBusController (1.0.10d0) <71 14 13 5 4 3>
  73	0 0x5ddad000 0x2b000	0x2a000	com.apple.iokit.IOSCSIArchitectureModelFamily (3.0.0) <5 4 3 1>
  74	1 0x5e4f5000 0xa4000	0xa3000	com.apple.driver.DspFuncLib (2.1.1f11) <66 65 5 4 3 1>
  75	0 0x5e96f000 0xc5000	0xc4000	com.apple.driver.AppleHDA (2.1.1f11) <74 68 66 63 62 61 6 5 4 3 1>
  76	0 0x5e818000 0xde000	0xdd000	com.apple.GeForce (7.0.2) <69 68 62 14 7 6 5 4 3 1>
  78	0 0x5628e000 0x7000	 0x6000	 com.apple.Dont_Steal_Mac_OS_X (7.0.0) <59 7 4 3 1>
  81	1 0x56234000 0x5000	 0x4000	 com.apple.iokit.IOEthernetAVBController (1.0.0d5) <39 5 4 3 1>
  82	0 0x5642a000 0x8000	 0x7000	 com.apple.iokit.IOAVBFamily (1.0.0d22) <81 39 5 4 3 1>
  83	0 0x5641b000 0xd000	 0xc000	 com.apple.driver.AppleMCCSControl (1.0.24) <62 14 7 5 4 3 1>
  84	1 0x5662e000 0xc000	 0xb000	 com.apple.iokit.IOSerialFamily (10.0.5) <7 6 5 4 3 1>
  85	0 0x5661d000 0xd000	 0xc000	 com.apple.iokit.IOBluetoothSerialManager (2.5f14) <84 7 5 4 3 1>
  86	0 0x562e7000 0x7000	 0x6000	 com.apple.driver.AppleUpstreamUserClient (3.5.8) <62 14 13 7 5 4 3 1>
  87	0 0x5663a000 0x10000	0xf000	 com.apple.iokit.IOSurface (80.0) <7 5 4 3 1>
  88	0 0x562cc000 0x8000	 0x7000	 com.apple.iokit.IOUserEthernet (1.0.0d1) <39 6 5 4 3 1>
  89	0 0x5625e000 0x6000	 0x5000	 com.apple.driver.AudioAUUC (1.58) <66 62 14 13 7 5 4 3 1>
  90	0 0x5d8fc000 0xa000	 0x9000	 com.apple.driver.AppleAVBAudio (1.0.0d11) <5 4 3 1>
  91	1 0x562b4000 0x5000	 0x4000	 com.apple.kext.triggers (1.0) <7 6 5 4 3 1>
  92	0 0x565a5000 0xb000	 0xa000	 com.apple.filesystems.autofs (3.0) <91 7 6 5 4 3 1>
  93	0 0x5d6f7000 0x7000	 0x6000	 com.apple.driver.AppleHWSensor (1.9.4d0) <5 4 3>





After fresh install Graphics Card work !!! http://www.insanelymac.com/forum/index.php...t&p=1699317








Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

Sign in to follow this

  • Recently Browsing   0 members

    No registered users viewing this page.

×
