dakku Posted May 31, 2011 Share Posted May 31, 2011 HI Guys, I am trying to get OSX 10.6.6 Server installed on ASUS AT5NM10-I (Atom D525) motherboard. Motherboard Spec Integrated dual-core Intel® Atom™ processor D525/D510 Chipset: Intel® NM10 Memory: 2 x DIMM, Max. 4 GB, DDR2 800/667 Expansion Slots 1 x PCI Integrated Intel Graphics Atom D525/D510 Max. shared memory: 256 MB 2 xSATA 3 Gb/s ports support AHCI mode LAN PCIe Gb LAN (RTL8112L) IDT73C 6-Channel High-Definition Audio CODEC Install Procedure I installed 10.6.0 to USB HDD using OSInstall.mpkg method Installed MyHack Updated to 10.6.6 using Combo Updater Using TeaTeam Kernel LAN works - using realtekrtl81xx-osx-driver LAN works - using realtekrtl81xx-osx-driver Extensions Used Evoreboot fakesmc jmicron36xsata nullcpupowermanagement openhaltrestart platformuuid realtekrtl81xx Graphics & Resolution Since this is a server, I am not overly fussed with resolution. I am only getting 1024x768 Sound I am not fussed with sound as this is a server Sleep This is something I am trying to enable. When i click sleep, it seems to make some hdd noise but: Monitor remains ON Network goes OFF I have tried putting the latest SleepEnabler.kext in /E/E and /S/L/E but still no go. Can someone please help me get the sleep and DSDT working? I ran DSDT_Patcher1.0.1e and placed the dsdt.aml file in /Extra folder, but I am not sure what I am meant to do with DSDT patching!! Here is the file.. (attached) thanks dsdt.aml.zip Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/ Share on other sites More sharing options...
MaLd0n Posted May 31, 2011 Share Posted May 31, 2011 send me complete files http://www.insanelymac.com/forum/index.php...st&id=81816 Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691041 Share on other sites More sharing options...
dakku Posted May 31, 2011 Author Share Posted May 31, 2011 send me complete fileshttp://www.insanelymac.com/forum/index.php...st&id=81816 hey mate, just tried the run_me.app and it didnt do anything! it just quit!! any ideas? Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691044 Share on other sites More sharing options...
MaLd0n Posted May 31, 2011 Share Posted May 31, 2011 hey mate,just tried the run_me.app and it didnt do anything! it just quit!! any ideas? generate send_me in desktop Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691045 Share on other sites More sharing options...
dakku Posted May 31, 2011 Author Share Posted May 31, 2011 here you are sir.. send_me.zip Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691050 Share on other sites More sharing options...
MaLd0n Posted May 31, 2011 Share Posted May 31, 2011 dsdt.dakku.zip REMOVE Evoreboot - restart Chameleon RC5 jmicron36xsata - you need it? nullcpupowermanagement - nativePM use Chameleon RC5(from 10.6.2 your processor loses its native support, use it) http://www.insanelymac.com/forum/index.php?showtopic=239993 openhaltrestart - Shutdown in DSDT / restart chameleon RC5 platformuuid - Chameleon RC5 Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691063 Share on other sites More sharing options...
dakku Posted May 31, 2011 Author Share Posted May 31, 2011 dsdt.dakku.zipREMOVE Evoreboot - restart Chameleon RC5 jmicron36xsata - you need it? nullcpupowermanagement - nativePM use Chameleon RC5(from 10.6.2 your processor loses its native support, use it) http://www.insanelymac.com/forum/index.php?showtopic=239993 openhaltrestart - Shutdown in DSDT / restart chameleon RC5 platformuuid - Chameleon RC5 thank you very much mate. I am going to compile Chameleon RC5 and try out the changes right now.. this is so exciting! I had been banging my head against the wall for almost a couple of weeks Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691064 Share on other sites More sharing options...
MaLd0n Posted May 31, 2011 Share Posted May 31, 2011 Let me know whether it is working or not. Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691067 Share on other sites More sharing options...
dakku Posted May 31, 2011 Author Share Posted May 31, 2011 just compiled Chameleon RC5 and disabled the kexts u mentioned above. Building clean caches using pfix.. jmicron36xsata - I use this as my internal HDD icons are orange. Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691069 Share on other sites More sharing options...
MaLd0n Posted May 31, 2011 Share Posted May 31, 2011 just compiled Chameleon RC5 and disabled the kexts u mentioned above. Building clean caches using pfix.. jmicron36xsata - I use this as my internal HDD icons are orange. use it in E/E http://www.insanelymac.com/forum/index.php...st&id=86095 Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691081 Share on other sites More sharing options...

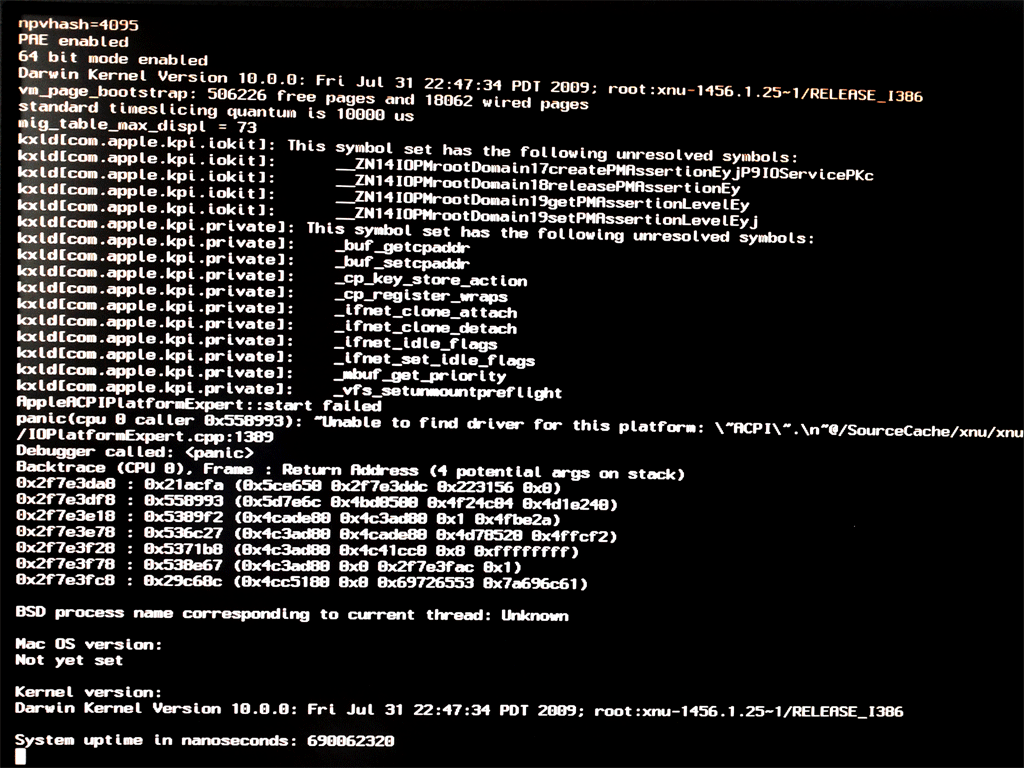

dakku Posted May 31, 2011 Author Share Posted May 31, 2011 hey mate, I disabled all of the above mentioned kexts and now i get a couple of issues: "No SMBIOS replacement found" and then I get "[ERROR] UUID='0123456789ABCDEF' syntax error" and it hangs with the following: AppleACPIPlatformExpert::start failed "Unable to find driver for this platform" edit 1 aha... I think Chameleon RC5 requires the kernel to be vanilla, i think it patches it on the fly.. I am currently using teamTeam kernel, which might explain the errors.. me trying vanilla kernel now edit 2 no joy with vanilla kernel either. same issues any help please? Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691084 Share on other sites More sharing options...
MaLd0n Posted May 31, 2011 Share Posted May 31, 2011 use smbios MacBook try arch=i386 Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691094 Share on other sites More sharing options...
dakku Posted May 31, 2011 Author Share Posted May 31, 2011 thanks.. this is what my com.apple.Boot.plist file looks like: <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>Kernel</key> <string>mach_kernel</string> <key>Timeout</key> <string>5</string> <key>Kernel Flags</key> <string>arch=i386</string> <key>Graphics Mode</key> <string>1024x768x32</string> <key>GraphicsEnabler</key> <string>y</string> <key>PciRoot</key> <string>1</string> <key>Wait</key> <string>y</string> </dict> </plist> can I simply add the smbios as a key string value to this file? Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691103 Share on other sites More sharing options...
MaLd0n Posted May 31, 2011 Share Posted May 31, 2011 smbios macbook2,1 smbios.plist.zip Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691106 Share on other sites More sharing options...
dakku Posted May 31, 2011 Author Share Posted May 31, 2011 thank u again for the fast reply mate... added your smbios.plist and hooray, no more: "No SMBIOS replacement found" message it gets upto the kernel load screen and then just BLACK screen... Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691111 Share on other sites More sharing options...
dakku Posted May 31, 2011 Author Share Posted May 31, 2011 here is what I did overall: added DSDT.aml one from above compile Chameleon RC5 mkdir temp cd temp svn co http://forge.voodooprojects.org/svn/chameleon/branches/meklort cd meklort make clean make embedtheme mv sym/i386/boot /boot removed kexts Evoreboot nullcpupowermanagement openhaltrestart platformuuid create caches using pfix added smbios.plist one from above results: if i use kernel from 10.6.6, i get 1 error and black screen on kernel load: "[ERROR] UUID='0123456789ABCDEF' syntax error" if I use kernel from 10.6.1, i get same error as above and I get the following (screenshot attached) on kernel load. any help please? Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691122 Share on other sites More sharing options...
dakku Posted May 31, 2011 Author Share Posted May 31, 2011 FINALLLLLY some progress I had made a mistake in installing meklort Chameleon RC5 over myhack installer version. you CANNOT simply cpoy the boot file as in my instructions above. CORRECTIONS - I had to install Chameleon RC5 using Chameleon_2.0_RC5_r828.zip - Vanilla Kernel from 10.6.6 results in a black screen once the kernel is loaded. For now, I am using the TeaTeam's kernel with DSDT by MaLd0n (thanks again). still no sleep BUT its running using only FakeSMC.kext Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691213 Share on other sites More sharing options...
MaLd0n Posted May 31, 2011 Share Posted May 31, 2011 still no sleep BUT its running using only FakeSMC.kext with this kernel should not have power management Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691219 Share on other sites More sharing options...
dakku Posted May 31, 2011 Author Share Posted May 31, 2011 hey budd do you mean I wont be able to sleep using teateam kernel? Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691221 Share on other sites More sharing options...
MaLd0n Posted May 31, 2011 Share Posted May 31, 2011 hey budd do you mean I wont be able to sleep using teateam kernel? try with SleepEnabler Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691231 Share on other sites More sharing options...
dakku Posted May 31, 2011 Author Share Posted May 31, 2011 just tried that in 32 and 64 bit mode.. no luck yet!! Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691238 Share on other sites More sharing options...
dakku Posted June 1, 2011 Author Share Posted June 1, 2011 hey MaLd0n, since this motherboard has 2 sata ports, I am using 2 hdds in striped raid (and booting from usb hdd). I had the same setup in Fedora. I was getting around 35MB/sec read/write speed when I was using Fedora and with 10.6.6 I am only managing to get around 22MB/sec Could this be related to the unrecognised sata ports? Do I need to edit my DSDT to speed up the sata performance? Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1691410 Share on other sites More sharing options...
dakku Posted June 14, 2011 Author Share Posted June 14, 2011 hey guys.. I need a little more help.. there are only 2 issues: 1) sleep is no go - I am using teateam kernel + sleepenabler 2) sata is "unrecognised" in "about this mac" Is there anything I can do? Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1697811 Share on other sites More sharing options...
MaLd0n Posted June 14, 2011 Share Posted June 14, 2011 1) sleep is no go - I am using teateam kernel + sleepenabler2) sata is "unrecognised" in "about this mac" 1- 2- AHCI? Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1697836 Share on other sites More sharing options...
dakku Posted June 14, 2011 Author Share Posted June 14, 2011 mate, I am uploading the logs. there are some LPC warnings in there along with other error messages that makes no sense to me at all.. example: SATALink BA5 register space disabled ACPI_SMC_PlatformPlugin::pushCPU_CSTData - _CST evaluation failed FakeSMC: key not found BEMB, length - 1 ACPI_SMC_PlatformPlugin::pushCPU_CSTData - _CST evaluation failed ACPI_SMC_PlatformPlugin::registerLPCDriver - WARNING - LPC device initialization failed: C-state power management not initialized display: Not usable - SATALink BA5 register space disabled - This seems to be from my PCI sata card unrecognised sata: I used AHCIPortInjector + IOAHCIBlockStorageInjector - in system profiler now displaying: "Intel ICH7 AHCI" - is this correct for my motherboard? sleep: no luck still logs.zip Link to comment https://www.insanelymac.com/forum/topic/258211-asus-at5nm10-i-atom-d525-help-with-dsdt-sleep/#findComment-1697862 Share on other sites More sharing options...
