Can't boot with MultiBeast 3.5.2(Screenshot Attached)

[Xanthux]

Hello everyone. I am new to OSx86 and I tried to dual boot my X201 with Windows 7 and Mac OS X. I can only boot into Mac OS X using [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] CD, but not [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url].



I only used one hard drive to do all these:



1. Boot from a Windows 7 USB.

2. Open Command Prompt.



Steps 3-7 are done with "diskpart"

3. Use "diskpart" clean the drive.

4. Convert the disk to use GPT.

5. Create a EFI partition of 200MB

6. Create 3 partitions for Mac OS X,Windows 7 and Data storage respectively.

7. Format the Windows 7 Partition to ntfs.



Steps 8-12 are done for installing Mac OS X 10.6.7

8. Reboot using [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] 3.0.1 CD

9. Installed Mac OS X 10.6.3

10. Using [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url], successfully boot in to Mac OS X.

11. Ran 10.6.7 Combo update with dmg from Apple official website.

12. Ran [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] 3.5.2 with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] and System Ultilies selected.

(The Mac OS X cannot boot from hard drive, but only with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] CD, even though I didn't start installing Windows 7)



Steps 13-17 are done for installing Windows 7.

13. Boot from Windows 7 USB again.

14. Installed Windows 7 to the Windows 7 partition.

15. Boot into Windows 7 without any loader.

16. Installed EasyBCD 2.02.

17. Create a boot entry to enter Mac OS X.



Now I can boot with 2 methods.

I) Boot from [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] CD. (Both Mac OS X and Windows 7 can boot successfully.)

II) Boot from EasyBCD. However, when I chose Mac OS X, Chimera starts, and failed to boot into Mac OS X.





Can anyone figure out what's caused this situation?



Thanks in advance.

[Xanthux]

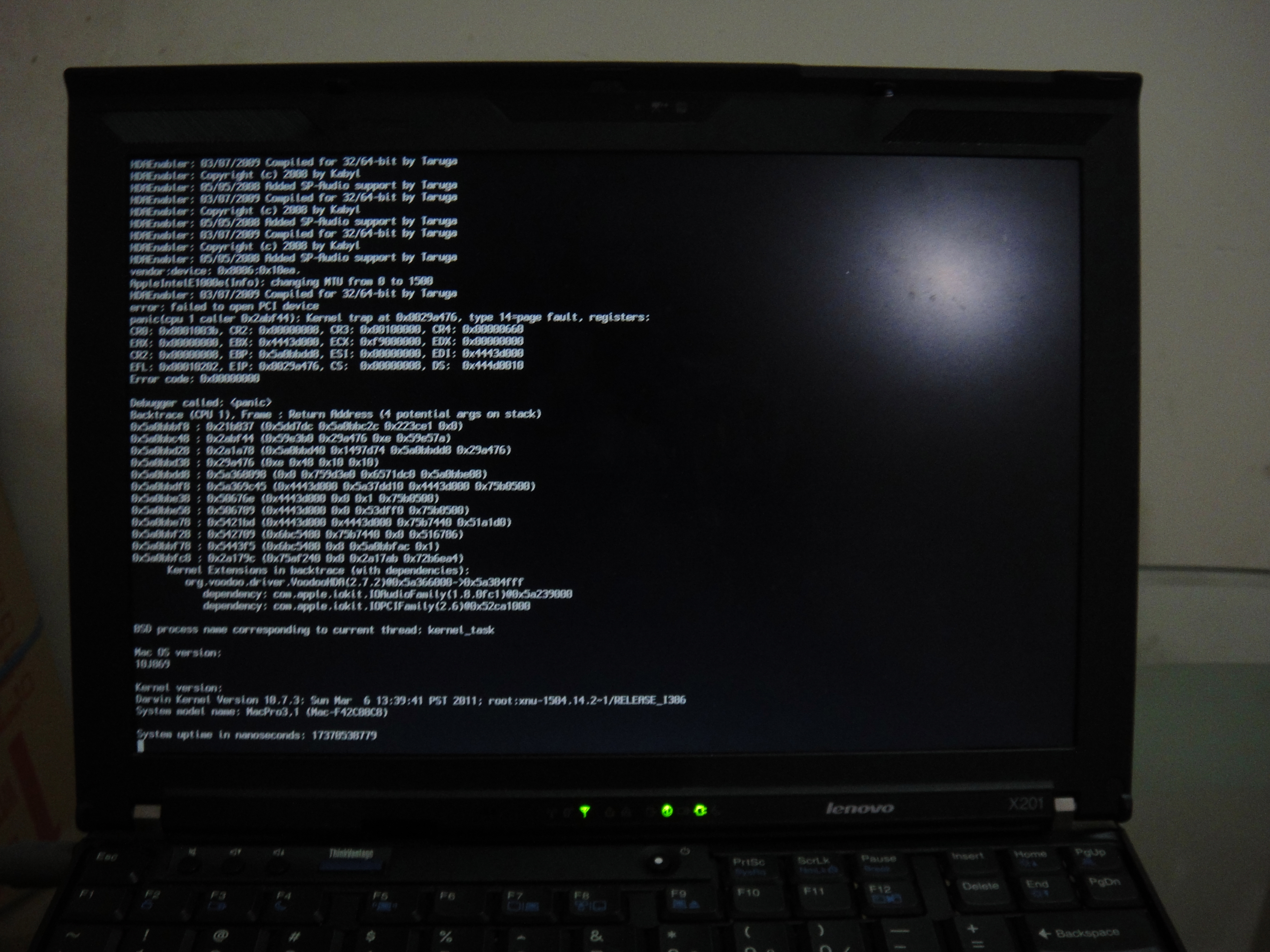

Attached is the screenshot taken when I boot with -v

[rlf]

Attached is the screenshot taken when I boot with -v

At the top of the screen is listed HDAEnabler and at the bottom is a kernel panic with VoodooHDA. These are two different audio enablers that are conflicting.



You need to get rid of one or the other. Since VoodooHDA is causing a panic, I would start with it.

[Xanthux]

At the top of the screen is listed HDAEnabler and at the bottom is a kernel panic with VoodooHDA. These are two different audio enablers that are conflicting.



You need to get rid of one or the other. Since VoodooHDA is causing a panic, I would start with it.



rlf, Thank you very much for your reply.



Since I am new to OSx86, I would like to ask what is meant by get rid of?



Should I search for VoodooHDA kext and remove it, then repair kext caches and permissions?



Besides, I have no problem to boot with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] CD at all.
