Hi all, I am very frustrated because I try (the last few days) to make my mic working in applehda with no success!



I've already tried voodoohda, but only the internal mic work with that

(i didnt tried yet to modify voodoohda, wich is my next step if this will not work!)



My System:



Lenovo Laptop G560

i3 - nvidia 310m



Conexant Cocoa II High Definition SmartAudio

HDAUDIO\FUNC_01&VEN_14F1&DEV_5069&SUBSYS_17AAC00B&REV_1003

Codec : Conexant CX20585

Vendor Id : 0x14f15069

Subsystem Id : 0x17aac00b



This is my Linux Dump, (Ubuntu):

Codec: Conexant CX20585
Address: 1
Function Id: 0x1
Vendor Id: 0x14f15069
Subsystem Id: 0x17aac00b
Revision Id: 0x100302
No Modem Function Group found
Default PCM:
   rates [0x160]: 44100 48000 96000
   bits [0xe]: 16 20 24
   formats [0x1]: PCM
Default Amp-In caps: N/A
Default Amp-Out caps: N/A
GPIO: io=4, o=0, i=0, unsolicited=1, wake=0
 IO[0]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0
 IO[1]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0
 IO[2]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0
 IO[3]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0
Node 0x10 [Audio Output] wcaps 0xc1d: Stereo Amp-Out R/L
 Control: name="Master Playback Volume", index=0, device=0
   ControlAmp: chs=3, dir=Out, idx=0, ofs=0
 Device: name="CONEXANT Analog", type="Audio", device=0
 Amp-Out caps: ofs=0x4a, nsteps=0x4a, stepsize=0x03, mute=1
 Amp-Out vals:  [0x00 0x00]
 Converter: stream=0, channel=0
 PCM:
   rates [0x560]: 44100 48000 96000 192000
   bits [0xe]: 16 20 24
   formats [0x1]: PCM
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
Node 0x11 [Audio Output] wcaps 0xc1d: Stereo Amp-Out R/L
 Amp-Out caps: ofs=0x4a, nsteps=0x4a, stepsize=0x03, mute=1
 Amp-Out vals:  [0x3c 0x3c]
 Converter: stream=0, channel=0
 PCM:
   rates [0x560]: 44100 48000 96000 192000
   bits [0xe]: 16 20 24
   formats [0x1]: PCM
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
Node 0x12 [Audio Output] wcaps 0x611: Stereo Digital
 Converter: stream=0, channel=0
 Digital:
 Digital category: 0x0
 PCM:
   rates [0x160]: 44100 48000 96000
   bits [0xe]: 16 20 24
   formats [0x5]: PCM AC3
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
Node 0x13 [beep Generator Widget] wcaps 0x70000c: Mono Amp-Out
 Amp-Out caps: ofs=0x07, nsteps=0x07, stepsize=0x0f, mute=0
 Amp-Out vals:  [0x00]
Node 0x14 [Audio Input] wcaps 0x100d1b: Stereo Amp-In R/L
 Device: name="CONEXANT Analog", type="Audio", device=0
 Amp-In caps: ofs=0x4a, nsteps=0x50, stepsize=0x03, mute=1
 Amp-In vals:  [0x50 0x50] [0x80 0x80] [0x50 0x50] [0x80 0x80]
 Converter: stream=0, channel=0
 SDI-Select: 0
 PCM:
   rates [0x160]: 44100 48000 96000
   bits [0xe]: 16 20 24
   formats [0x1]: PCM
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 4
    0x17* 0x18 0x23 0x24
Node 0x15 [Audio Input] wcaps 0x100d1b: Stereo Amp-In R/L
 Amp-In caps: ofs=0x4a, nsteps=0x50, stepsize=0x03, mute=1
 Amp-In vals:  [0x4a 0x4a] [0x4a 0x4a] [0x4a 0x4a] [0x4a 0x4a]
 Converter: stream=0, channel=0
 SDI-Select: 0
 PCM:
   rates [0x160]: 44100 48000 96000
   bits [0xe]: 16 20 24
   formats [0x1]: PCM
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 4
    0x17* 0x18 0x23 0x24
Node 0x16 [Audio Input] wcaps 0x100d1b: Stereo Amp-In R/L
 Amp-In caps: ofs=0x4a, nsteps=0x50, stepsize=0x03, mute=1
 Amp-In vals:  [0x4a 0x4a] [0x4a 0x4a] [0x4a 0x4a] [0x4a 0x4a]
 Converter: stream=0, channel=0
 SDI-Select: 0
 PCM:
   rates [0x160]: 44100 48000 96000
   bits [0xe]: 16 20 24
   formats [0x1]: PCM
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 4
    0x17* 0x18 0x23 0x24
Node 0x17 [Audio Selector] wcaps 0x30050d: Stereo Amp-Out
 Amp-Out caps: ofs=0x00, nsteps=0x04, stepsize=0x27, mute=0
 Amp-Out vals:  [0x03 0x03]
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 4
    0x1a* 0x1b 0x1d 0x1e
Node 0x18 [Audio Selector] wcaps 0x30050d: Stereo Amp-Out
 Amp-Out caps: ofs=0x00, nsteps=0x04, stepsize=0x27, mute=0
 Amp-Out vals:  [0x00 0x00]
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 4
    0x1a* 0x1b 0x1d 0x1e
Node 0x19 [Pin Complex] wcaps 0x400581: Stereo
 Pincap 0x0000001c: OUT HP Detect
 Pin Default 0x042110f0: [Jack] HP Out at Ext Right
   Conn = 1/8, Color = Black
   DefAssociation = 0xf, Sequence = 0x0
 Pin-ctls: 0xc0: OUT HP
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 2
    0x10* 0x11
Node 0x1a [Pin Complex] wcaps 0x400481: Stereo
 Pincap 0x00001324: IN Detect
   Vref caps: HIZ 50 80
 Pin Default 0x95a701f0: [Fixed] Mic at Int Top
   Conn = Analog, Color = Unknown
   DefAssociation = 0xf, Sequence = 0x0
   Misc = NO_PRESENCE
 Pin-ctls: 0x24: IN VREF_80
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
Node 0x1b [Pin Complex] wcaps 0x400581: Stereo
 Pincap 0x00011334: IN OUT EAPD Detect
   Vref caps: HIZ 50 80
 EAPD 0x2: EAPD
 Pin Default 0x04a110f0: [Jack] Mic at Ext Right
   Conn = 1/8, Color = Black
   DefAssociation = 0xf, Sequence = 0x0
 Pin-ctls: 0x24: IN VREF_80
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 2
    0x10* 0x11
Node 0x1c [Pin Complex] wcaps 0x400581: Stereo
 Pincap 0x00000014: OUT Detect
 Pin Default 0x400001f0: [N/A] Line Out at Ext N/A
   Conn = Unknown, Color = Unknown
   DefAssociation = 0xf, Sequence = 0x0
   Misc = NO_PRESENCE
 Pin-ctls: 0x40: OUT
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 2
    0x10* 0x11
Node 0x1d [Pin Complex] wcaps 0x400581: Stereo
 Pincap 0x00010034: IN OUT EAPD Detect
 EAPD 0x2: EAPD
 Pin Default 0x400001f0: [N/A] Line Out at Ext N/A
   Conn = Unknown, Color = Unknown
   DefAssociation = 0xf, Sequence = 0x0
   Misc = NO_PRESENCE
 Pin-ctls: 0x20: IN
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 2
    0x10* 0x11
Node 0x1e [Pin Complex] wcaps 0x400481: Stereo
 Pincap 0x00000024: IN Detect
 Pin Default 0x400001f0: [N/A] Line Out at Ext N/A
   Conn = Unknown, Color = Unknown
   DefAssociation = 0xf, Sequence = 0x0
   Misc = NO_PRESENCE
 Pin-ctls: 0x20: IN
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
Node 0x1f [Pin Complex] wcaps 0x400501: Stereo
 Pincap 0x00000010: OUT
 Pin Default 0x921701f0: [Fixed] Speaker at Int Front
   Conn = Analog, Color = Unknown
   DefAssociation = 0xf, Sequence = 0x0
   Misc = NO_PRESENCE
 Pin-ctls: 0x40: OUT
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 2
    0x10* 0x11
Node 0x20 [Pin Complex] wcaps 0x400781: Stereo Digital
 Pincap 0x00000010: OUT
 Pin Default 0x400001f0: [N/A] Line Out at Ext N/A
   Conn = Unknown, Color = Unknown
   DefAssociation = 0xf, Sequence = 0x0
   Misc = NO_PRESENCE
 Pin-ctls: 0x40: OUT
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 1
    0x12
Node 0x21 [Audio Output] wcaps 0x611: Stereo Digital
 Control: name="IEC958 Playback Con Mask", index=0, device=0
 Control: name="IEC958 Playback Pro Mask", index=0, device=0
 Control: name="IEC958 Playback Default", index=0, device=0
 Control: name="IEC958 Playback Switch", index=0, device=0
 Control: name="IEC958 Default PCM Playback Switch", index=0, device=0
 Device: name="Conexant Digital", type="SPDIF", device=1
 Converter: stream=0, channel=0
 Digital: Enabled
 Digital category: 0x0
 PCM:
   rates [0x160]: 44100 48000 96000
   bits [0xe]: 16 20 24
   formats [0x5]: PCM AC3
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
Node 0x22 [Pin Complex] wcaps 0x400781: Stereo Digital
 Pincap 0x00000010: OUT
 Pin Default 0x400001f0: [N/A] Line Out at Ext N/A
   Conn = Unknown, Color = Unknown
   DefAssociation = 0xf, Sequence = 0x0
   Misc = NO_PRESENCE
 Pin-ctls: 0x40: OUT
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 1
    0x21
Node 0x23 [Pin Complex] wcaps 0x40040b: Stereo Amp-In
 Amp-In caps: ofs=0x00, nsteps=0x04, stepsize=0x2f, mute=0
 Amp-In vals:  [0x00 0x00]
 Pincap 0x00000020: IN
 Pin Default 0x400001f0: [N/A] Line Out at Ext N/A
   Conn = Unknown, Color = Unknown
   DefAssociation = 0xf, Sequence = 0x0
   Misc = NO_PRESENCE
 Pin-ctls: 0x00:
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
Node 0x24 [Audio Mixer] wcaps 0x20050b: Stereo Amp-In
 Amp-In caps: ofs=0x4a, nsteps=0x4a, stepsize=0x03, mute=1
 Amp-In vals:  [0x00 0x00] [0x00 0x00]
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 2
    0x10 0x11
Node 0x25 [Vendor Defined Widget] wcaps 0xf00000: Mono

And here again in decimal:

Codec: Conexant CX20585
Address: 1
Function Id: 1
Vendor Id: 351359081
Subsystem Id: 397066251
Revision Id: 1049346
No Modem Function Group found
Default PCM:
   rates [352]: 44100 48000 96000
   bits [14]: 16 20 24
   formats [1]: PCM
Default Amp-In caps: N/A
Default Amp-Out caps: N/A
GPIO: io=4, o=0, i=0, unsolicited=1, wake=0
 IO[0]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0
 IO[1]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0
 IO[2]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0
 IO[3]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0
Node 16 [Audio Output] wcaps 3101: Stereo Amp-Out R/L
 Control: name="Master Playback Volume", index=0, device=0
   ControlAmp: chs=3, dir=Out, idx=0, ofs=0
 Device: name="CONEXANT Analog", type="Audio", device=0
 Amp-Out caps: ofs=74, nsteps=74, stepsize=3, mute=1
 Amp-Out vals:  [0 0]
 Converter: stream=0, channel=0
 PCM:
   rates [1376]: 44100 48000 96000 192000
   bits [14]: 16 20 24
   formats [1]: PCM
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
Node 17 [Audio Output] wcaps 3101: Stereo Amp-Out R/L
 Amp-Out caps: ofs=74, nsteps=74, stepsize=3, mute=1
 Amp-Out vals:  [60 60]
 Converter: stream=0, channel=0
 PCM:
   rates [1376]: 44100 48000 96000 192000
   bits [14]: 16 20 24
   formats [1]: PCM
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
Node 18 [Audio Output] wcaps 1553: Stereo Digital
 Converter: stream=0, channel=0
 Digital:
 Digital category: 0
 PCM:
   rates [352]: 44100 48000 96000
   bits [14]: 16 20 24
   formats [5]: PCM AC3
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
Node 19 [beep Generator Widget] wcaps 7340044: Mono Amp-Out
 Amp-Out caps: ofs=7, nsteps=7, stepsize=15, mute=0
 Amp-Out vals:  [0]
Node 20 [Audio Input] wcaps 1051931: Stereo Amp-In R/L
 Device: name="CONEXANT Analog", type="Audio", device=0
 Amp-In caps: ofs=74, nsteps=80, stepsize=3, mute=1
 Amp-In vals:  [80 80] [128 128] [80 80] [128 128]
 Converter: stream=0, channel=0
 SDI-Select: 0
 PCM:
   rates [352]: 44100 48000 96000
   bits [14]: 16 20 24
   formats [1]: PCM
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 4
    23* 24 35 36
Node 21 [Audio Input] wcaps 1051931: Stereo Amp-In R/L
 Amp-In caps: ofs=74, nsteps=80, stepsize=3, mute=1
 Amp-In vals:  [74 74] [74 74] [74 74] [74 74]
 Converter: stream=0, channel=0
 SDI-Select: 0
 PCM:
   rates [352]: 44100 48000 96000
   bits [14]: 16 20 24
   formats [1]: PCM
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 4
    23* 24 35 36
Node 22 [Audio Input] wcaps 1051931: Stereo Amp-In R/L
 Amp-In caps: ofs=74, nsteps=80, stepsize=3, mute=1
 Amp-In vals:  [74 74] [74 74] [74 74] [74 74]
 Converter: stream=0, channel=0
 SDI-Select: 0
 PCM:
   rates [352]: 44100 48000 96000
   bits [14]: 16 20 24
   formats [1]: PCM
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 4
    23* 24 35 36
Node 23 [Audio Selector] wcaps 3147021: Stereo Amp-Out
 Amp-Out caps: ofs=0, nsteps=4, stepsize=39, mute=0
 Amp-Out vals:  [3 3]
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 4
    26* 27 29 30
Node 24 [Audio Selector] wcaps 3147021: Stereo Amp-Out
 Amp-Out caps: ofs=0, nsteps=4, stepsize=39, mute=0
 Amp-Out vals:  [0 0]
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 4
    26* 27 29 30
Node 25 [Pin Complex] wcaps 4195713: Stereo
 Pincap 28: OUT HP Detect
 Pin Default 69275888: [Jack] HP Out at Ext Right
   Conn = 1/8, Color = Black
   DefAssociation = 15, Sequence = 0
 Pin-ctls: 192: OUT HP
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 2
    16* 17
Node 26 [Pin Complex] wcaps 4195457: Stereo
 Pincap 4900: IN Detect
   Vref caps: HIZ 50 80
 Pin Default 2510750192: [Fixed] Mic at Int Top
   Conn = Analog, Color = Unknown
   DefAssociation = 15, Sequence = 0
   Misc = NO_PRESENCE
 Pin-ctls: 36: IN VREF_80
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
Node 27 [Pin Complex] wcaps 4195713: Stereo
 Pincap 70452: IN OUT EAPD Detect
   Vref caps: HIZ 50 80
 EAPD 2: EAPD
 Pin Default 77664496: [Jack] Mic at Ext Right
   Conn = 1/8, Color = Black
   DefAssociation = 15, Sequence = 0
 Pin-ctls: 36: IN VREF_80
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 2
    16* 17
Node 28 [Pin Complex] wcaps 4195713: Stereo
 Pincap 20: OUT Detect
 Pin Default 1073742320: [N/A] Line Out at Ext N/A
   Conn = Unknown, Color = Unknown
   DefAssociation = 15, Sequence = 0
   Misc = NO_PRESENCE
 Pin-ctls: 64: OUT
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 2
    16* 17
Node 29 [Pin Complex] wcaps 4195713: Stereo
 Pincap 65588: IN OUT EAPD Detect
 EAPD 2: EAPD
 Pin Default 1073742320: [N/A] Line Out at Ext N/A
   Conn = Unknown, Color = Unknown
   DefAssociation = 15, Sequence = 0
   Misc = NO_PRESENCE
 Pin-ctls: 32: IN
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 2
    16* 17
Node 30 [Pin Complex] wcaps 4195457: Stereo
 Pincap 36: IN Detect
 Pin Default 1073742320: [N/A] Line Out at Ext N/A
   Conn = Unknown, Color = Unknown
   DefAssociation = 15, Sequence = 0
   Misc = NO_PRESENCE
 Pin-ctls: 32: IN
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
Node 31 [Pin Complex] wcaps 4195585: Stereo
 Pincap 16: OUT
 Pin Default 2450981360: [Fixed] Speaker at Int Front
   Conn = Analog, Color = Unknown
   DefAssociation = 15, Sequence = 0
   Misc = NO_PRESENCE
 Pin-ctls: 64: OUT
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 2
    16* 17
Node 32 [Pin Complex] wcaps 4196225: Stereo Digital
 Pincap 16: OUT
 Pin Default 1073742320: [N/A] Line Out at Ext N/A
   Conn = Unknown, Color = Unknown
   DefAssociation = 15, Sequence = 0
   Misc = NO_PRESENCE
 Pin-ctls: 64: OUT
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 1
    18
Node 33 [Audio Output] wcaps 1553: Stereo Digital
 Control: name="IEC958 Playback Con Mask", index=0, device=0
 Control: name="IEC958 Playback Pro Mask", index=0, device=0
 Control: name="IEC958 Playback Default", index=0, device=0
 Control: name="IEC958 Playback Switch", index=0, device=0
 Control: name="IEC958 Default PCM Playback Switch", index=0, device=0
 Device: name="Conexant Digital", type="SPDIF", device=1
 Converter: stream=0, channel=0
 Digital: Enabled
 Digital category: 0
 PCM:
   rates [352]: 44100 48000 96000
   bits [14]: 16 20 24
   formats [5]: PCM AC3
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
Node 34 [Pin Complex] wcaps 4196225: Stereo Digital
 Pincap 16: OUT
 Pin Default 1073742320: [N/A] Line Out at Ext N/A
   Conn = Unknown, Color = Unknown
   DefAssociation = 15, Sequence = 0
   Misc = NO_PRESENCE
 Pin-ctls: 64: OUT
 Unsolicited: tag=00, enabled=0
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 1
    33
Node 35 [Pin Complex] wcaps 4195339: Stereo Amp-In
 Amp-In caps: ofs=0, nsteps=4, stepsize=47, mute=0
 Amp-In vals:  [0 0]
 Pincap 32: IN
 Pin Default 1073742320: [N/A] Line Out at Ext N/A
   Conn = Unknown, Color = Unknown
   DefAssociation = 15, Sequence = 0
   Misc = NO_PRESENCE
 Pin-ctls: 0:
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
Node 36 [Audio Mixer] wcaps 2098443: Stereo Amp-In
 Amp-In caps: ofs=74, nsteps=74, stepsize=3, mute=1
 Amp-In vals:  [0 0] [0 0]
 Power states:  D0 D1 D2 D3 D3cold
 Power: setting=D0, actual=D0
 Connection: 2
    16 17
Node 37 [Vendor Defined Widget] wcaps 15728640: Mono

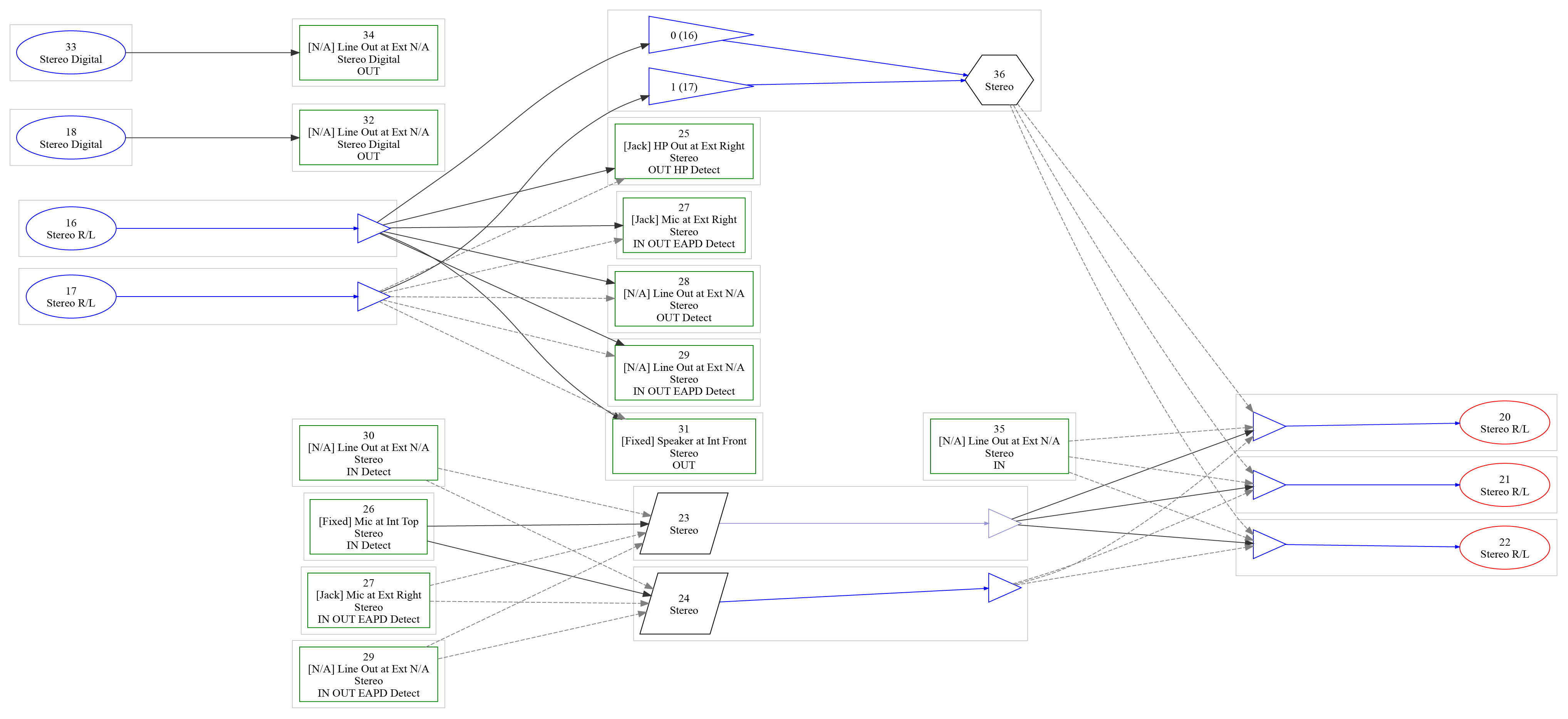

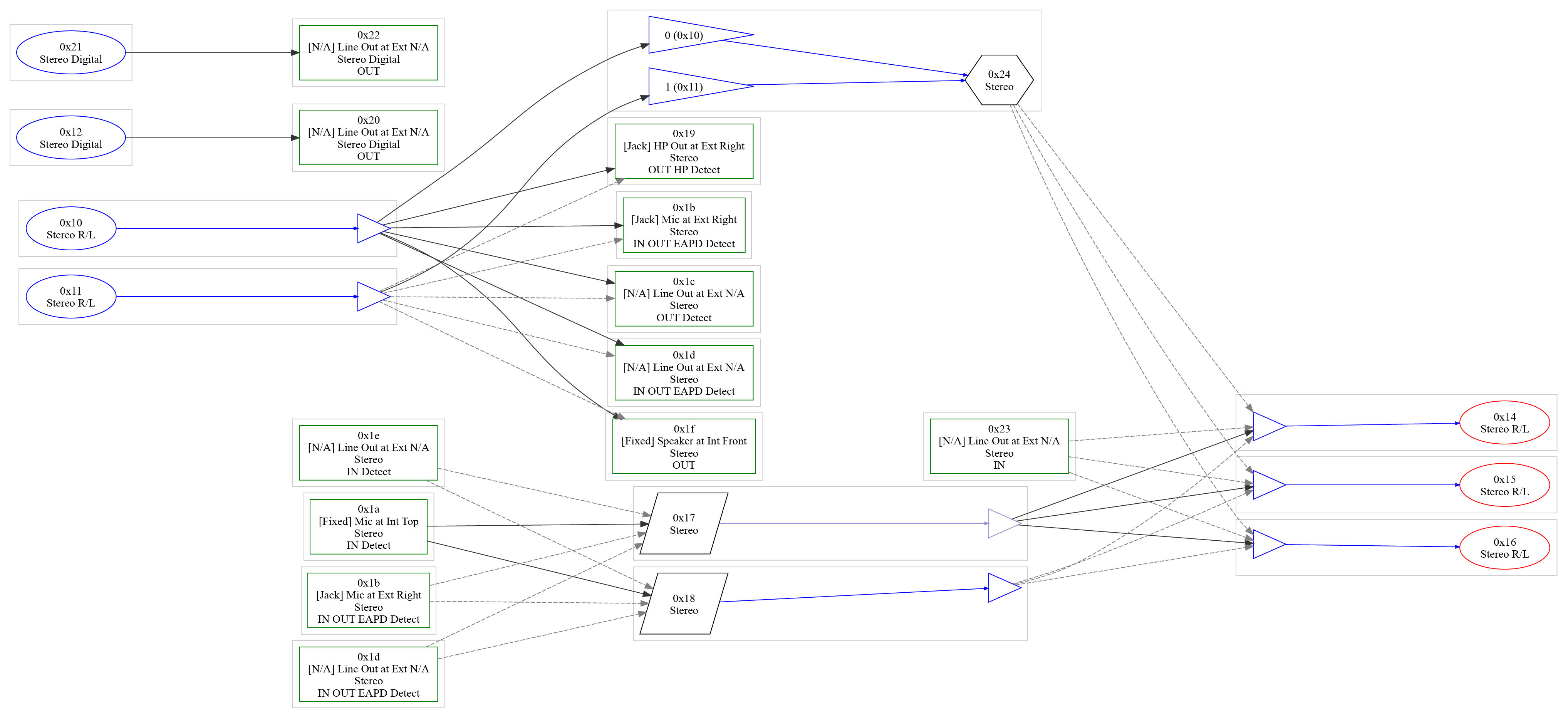

The codecgraph:




These are my codec verbs from Windows 7:

<01971CF0 01971D10 01971E21 01971F04
01A71CF0 01A71D01 01A71EA7 01A71F95
01B71CF0 01B71D10 01B71EA1 01B71F04
01C71CF0 01C71D01 01C71E00 01C71F40
01D71CF0 01D71D01 01D71E00 01D71F40
01E71CF0 01E71D01 01E71E00 01E71F40
01F71CF0 01F71D01 01F71E17 01F71F92
02071CF0 02071D01 02071E00 02071F40
02271CF0 02271D01 02271E00 02271F40
02371CF0 02371D01 02371E00 02371F40>







I wrote this in my AppleHDAHardwareConfigDriver:

(Its ok to do the CodecID there,too? ...under postConstructionInitialization?)

(For what is the MicAttributes? ...maybe change this 28? ...in what?)

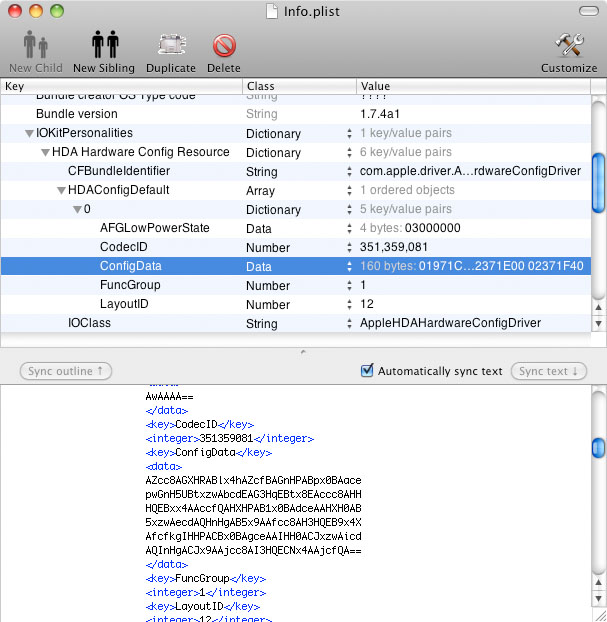

Full Info.plist:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>CFBundleDevelopmentRegion</key>
<string>English</string>
<key>CFBundleExecutable</key>
<string>AppleHDAHardwareConfigDriver</string>
<key>CFBundleGetInfoString</key>
<string>1.9.9f12, Copyright Apple Inc. 2005-2010</string>
<key>CFBundleIdentifier</key>
<string>com.apple.driver.AppleHDAHardwareConfigDriver</string>
<key>CFBundleInfoDictionaryVersion</key>
<string>6.0</string>
<key>CFBundleName</key>
<string>HDA Hardware Config Driver</string>
<key>CFBundlePackageType</key>
<string>KEXT</string>
<key>CFBundleShortVersionString</key>
<string>1.9.9</string>
<key>CFBundleSignature</key>
<string>????</string>
<key>CFBundleVersion</key>
<string>1.9.9f12</string>
<key>IOKitPersonalities</key>
<dict>
	<key>HDA Hardware Config Resource</key>
	<dict>
		<key>CFBundleIdentifier</key>
		<string>com.apple.driver.AppleHDAHardwareConfigDriver</string>
		<key>HDAConfigDefault</key>
		<array>
			<dict>
				<key>AFGLowPowerState</key>
				<data>
				AwAAAA==
				</data>
				<key>CodecID</key>
				<integer>351359081</integer>
				<key>ConfigData</key>
				<data>
				AZcc8AGXHRABlx4hAZcfBAGnHPABpx0BAace
				pwGnH5UBtxzwAbcdEAG3HqEBtx8EAccc8AHH
				HQEBxx4AAccfQAHXHPAB1x0BAdceAAHXH0AB
				5xzwAecdAQHnHgAB5x9AAfcc8AH3HQEB9x4X
				AfcfkgIHHPACBx0BAgceAAIHH0ACJxzwAicd
				AQInHgACJx9AAjcc8AI3HQECNx4AAjcfQA==
				</data>
				<key>FuncGroup</key>
				<integer>1</integer>
				<key>LayoutID</key>
				<integer>12</integer>
				<key>Neues Objekt</key>
				<string></string>
			</dict>
		</array>
		<key>IOClass</key>
		<string>AppleHDAHardwareConfigDriver</string>
		<key>IOMatchCategory</key>
		<string>AppleHDAHardwareConfigDriver</string>
		<key>IOProviderClass</key>
		<string>AppleHDAHardwareConfigDriverLoader</string>
		<key>PostConstructionInitialization</key>
		<array>
			<dict>
				<key>CodecID</key>
				<integer>283904133</integer>
				<key>Layouts</key>
				<array>
					<integer>36</integer>
					<integer>38</integer>
					<integer>52</integer>
					<integer>53</integer>
				</array>
				<key>widgets</key>
				<array>
					<dict>

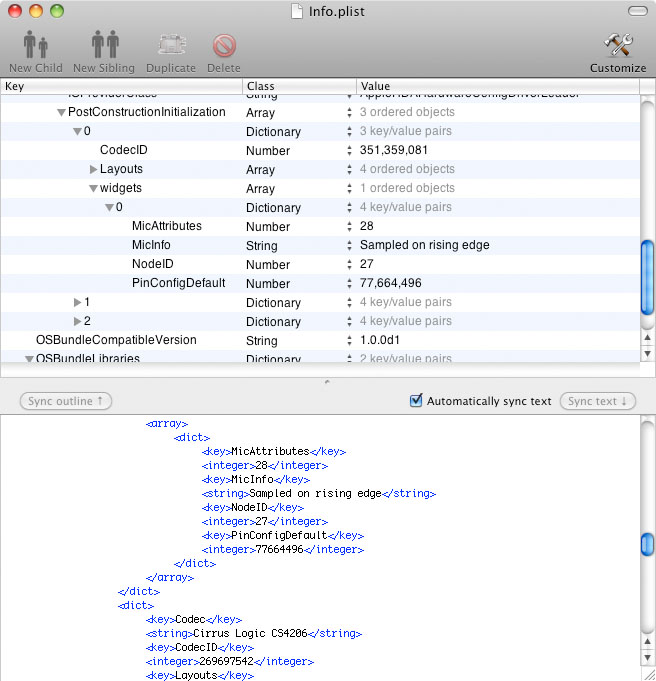

						<key>MicAttributes</key>
						<integer>28</integer>
						<key>MicInfo</key>
						<string>Sampled on rising edge</string>
						<key>NodeID</key>
						<integer>39</integer>
						<key>PinConfigDefault</key>
						<integer>2426405136</integer>
					</dict>
				</array>
			</dict>
			<dict>
				<key>Codec</key>
				<string>Cirrus Logic CS4206</string>
				<key>CodecID</key>
				<integer>269697542</integer>
				<key>Layouts</key>
				<array>
					<integer>0</integer>
				</array>
				<key>widgets</key>
				<array>
					<dict>
						<key>NodeID</key>
						<integer>22</integer>
						<key>PinConfigDefault</key>
						<integer>1073742064</integer>
					</dict>
				</array>
			</dict>
			<dict>
				<key>Codec</key>
				<string>Cirrus Logic CS4206</string>
				<key>CodecID</key>
				<integer>269697542</integer>
				<key>Layouts</key>
				<array>
					<integer>71</integer>
				</array>
				<key>widgets</key>
				<array>
					<dict>
						<key>NodeID</key>
						<integer>23</integer>
						<key>PinConfigDefault</key>
						<integer>2416968002</integer>
					</dict>
				</array>
			</dict>
			<dict>
				<key>Codec</key>
				<string>Wolfson WM8800</string>
				<key>CodecID</key>
				<integer>451708928</integer>
				<key>Layouts</key>
				<array>
					<integer>67</integer>
					<integer>73</integer>
				</array>
				<key>widgets</key>
				<array>
					<dict>
						<key>MicInfo</key>
						<string>WM8800 External Microphone Virtual Pin Complex</string>
						<key>NodeID</key>
						<integer>24</integer>
						<key>PinConfigDefault</key>
						<integer>28020848</integer>
					</dict>
				</array>
			</dict>
		</array>
	</dict>
</dict>
<key>OSBundleCompatibleVersion</key>
<string>1.0.0d1</string>
<key>OSBundleLibraries</key>
<dict>
	<key>com.apple.kpi.iokit</key>
	<string>8.0.0b3</string>
	<key>com.apple.kpi.libkern</key>
	<string>8.0.0b3</string>
</dict>
</dict>
</plist>





And this my PathMaps in AppleHDAPlatformDriver:

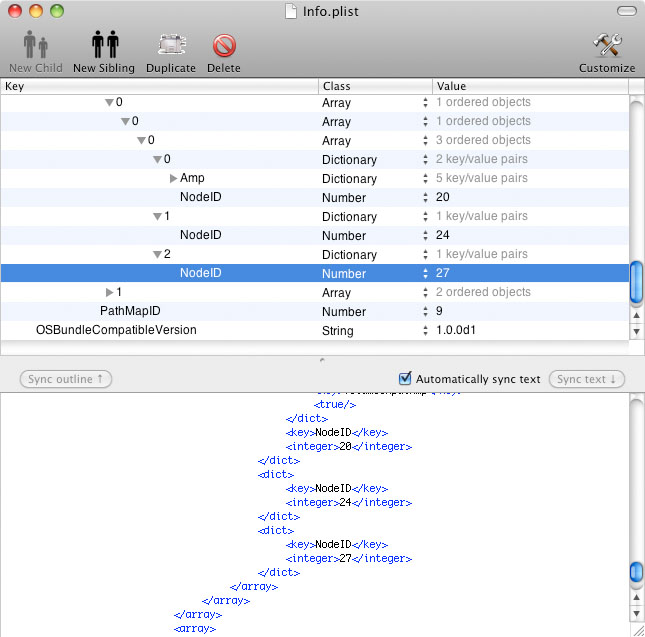

(I wrote the Nodes 20, 24, 27 in it for the extern Mic Jack.)

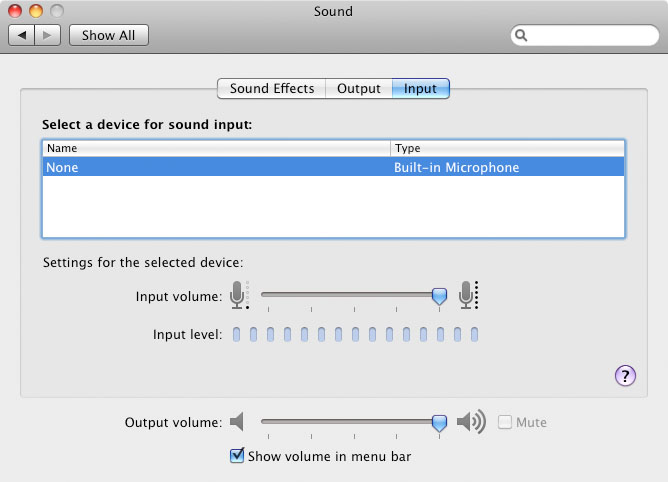

i can see a intern Mic in the pannel but it is not working! No Sound! :(




BTW: The Internal Speaker and Headphone detection works perfect!



I really hope you can help me to make my External mic to work. (and maybe Internal too)



Thank you!

Link to comment
Share on other sites

 Share

×
×
  • Create New...
