10.6.4 - USB Probleme P5K-VM

[Soldiar]

Hallo,



nachdem unter 10.5.8 ja meine Grafikkarte nie mit QE ging hatte ich jetzt mal die Zeit genutzt und auf 10.6.4 geupdated. Die Grafikkarte funktioniert nun 1A. Nur irgendwie die USB-Geräte nicht mehr so ganz, also die laufen eher auf USB 1 Standard. Daher mal mein Boot Log.



Jul 27 09:31:14 localhost com.apple.kextd[10]: Cache file /System/Library/Caches/com.apple.kext.caches/Directories//System/Library/Extensions/KextIdentifiers.plist.gz is out of date; not using.
Jul 27 09:31:12 localhost com.apple.launchd[1]: *** launchd[1] has started up. ***
Jul 27 09:31:12 localhost com.apple.launchd[1]: *** Verbose boot, will log to /dev/console. ***
Jul 27 09:31:18 localhost DirectoryService[15]: Improper shutdown detected
Jul 27 09:31:20 localhost bootlog[39]: BOOT_TIME: 1280215872 0
Jul 27 09:31:22 localhost com.apple.kextd[10]: Cache file /System/Library/Caches/com.apple.kext.caches/Directories//System/Library/Extensions/IOKitPersonalities_i386.ioplist.gz is out of date; not using.
Jul 27 09:31:23 soldiars-iMac configd[14]: setting hostname to "soldiars-iMac.local"
Jul 27 09:31:23 soldiars-iMac configd[14]: network configuration changed.
Jul 27 09:31:23 soldiars-iMac mDNSResponder[27]: mDNSResponder mDNSResponder-214.3.2 (May 14 2010 15:29:49) starting
Jul 27 09:31:24 soldiars-iMac configd[14]: network configuration changed.
Jul 27 09:31:26: --- last message repeated 1 time ---
Jul 27 09:31:26 soldiars-iMac com.apple.usbmuxd[20]: usbmuxd-196 built for iTunesNineTwo on May 17 2010 at 13:53:51, running 32 bit
Jul 27 09:31:53 soldiars-iMac root[64]: /usr/libexec/ntpd-wrapper: scutil key State:/Network/Global/DNS not present after 30 seconds
Jul 27 09:31:53 soldiars-iMac root[67]: sntp options: a=2 v=1 e=0.100 E=5.000 P=2147483647.000
Jul 27 09:31:53 soldiars-iMac root[67]:	 d=15 c=5 x=0 op=1 l=/var/run/sntp.pid f= time.euro.apple.com
Jul 27 09:31:53 soldiars-iMac root[67]: sntp: getaddrinfo(hostname, ntp)  failed with nodename nor servname provided, or not known
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer: timed out waiting for IOKit to quiesce
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer: Busy services :
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1 [3]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert [6]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/CPU1@0 [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/CPU1@0/AppleACPICPU [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/CPU2@1 [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/CPU2@1/AppleACPICPU [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/PCI0@0 [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI [6]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/P0P2@1 [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/P0P2@1/IOPCI2PCIBridge [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/P0P2@1/IOPCI2PCIBridge/display@0 [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/P0P1@1E [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/P0P1@1E/IOPCI2PCIBridge [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/P0P1@1E/IOPCI2PCIBridge/pci14e4,4318@1 [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/EUSB@1D,7 [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/USBE@1A,7 [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/P0P9@1C,5 [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/P0P9@1C,5/IOPCI2PCIBridge [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/P0P9@1C,5/IOPCI2PCIBridge/ethernet@0 [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/pci8086,293e@1B [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/UAR1 [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/AppleACPIPlatformExpert/SMC [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer:   iMac8,1/IOResources [1]
Jul 27 09:32:17 soldiars-iMac configd[14]: InterfaceNamer: No network stack object
Jul 27 09:32:25 soldiars-iMac com.apple.kextd[10]: Failed to load AppleUSBEHCI.kext - (libkern/kext) link error.
Jul 27 09:32:25 soldiars-iMac com.apple.kextd[10]: Load com.apple.driver.AppleUSBEHCI failed; removing personalities.
Jul 27 09:32:27 soldiars-iMac /System/Library/CoreServices/loginwindow.app/Contents/MacOS/loginwindow[28]: Login Window Application Started
Jul 27 09:32:29 soldiars-iMac configd[14]: network configuration changed.
Jul 27 09:32:32 soldiars-imac configd[14]: setting hostname to "soldiars-imac.fritz.box"
Jul 27 09:32:35 soldiars-imac loginwindow[28]: Login Window Started Security Agent
Jul 27 09:32:36 soldiars-imac loginwindow[28]: Login Window - Returned from Security Agent
Jul 27 09:32:36 soldiars-imac loginwindow[28]: USER_PROCESS: 28 console
Jul 27 09:32:36 soldiars-imac com.apple.launchd.peruser.501[92] (com.apple.ReportCrash): Falling back to default Mach exception handler. Could not find: com.apple.ReportCrash.Self
Jul 27 09:32:37 soldiars-imac com.apple.kextd[10]: Cache file /System/Library/Caches/com.apple.kext.caches/Directories//System/Library/Extensions/KextPropertyValues_OSBundleHelper_i386.plist.gz is out of date; not using.
Jul 27 09:32:40 soldiars-imac KernelEventAgent[29]: tid 00000000 received event(s) VQ_LOWDISK, VQ_VERYLOWDISK (516)
Jul 27 09:32:44 soldiars-imac com.apple.launchd.peruser.501[92] (com.apple.Kerberos.renew.plist[115]): Exited with exit code: 1
Jul 27 09:32:45 soldiars-imac com.apple.launchd.peruser.501[92] (com.apple.CSConfigDotMacCert-soldiar@me.com-SharedServices[118]): Exited with exit code: 1
Jul 27 09:33:12 soldiars-imac UnmountAssistant[557]: Volume unmounted successfully
Jul 27 09:33:24 soldiars-imac tuxera_ntfs[566]: Version 2010.1 external FUSE 27
Jul 27 09:33:24 soldiars-imac tuxera_ntfs[566]: Mounted /dev/rdisk2s1 (Read-Write, label "HP SimpleSave", NTFS 3.1)
Jul 27 09:33:24 soldiars-imac tuxera_ntfs[566]: Cmdline options: recover,nfconv,auto_xattr,fstypename=txantfs,fssubtype=0,iosize=1048576,local,nodev,noowners,nosuid,adaptiveuid,adaptivegid
Jul 27 09:33:24 soldiars-imac tuxera_ntfs[566]: Mount options: auto_xattr,fstypename=txantfs,fssubtype=0,iosize=1048576,local,nodev,noowners,nosuid,silent,allow_other,nonempty,relatime,fsname=/dev/disk2s1,volname=HP SimpleSave
Jul 27 09:33:26 soldiars-imac fseventsd[32]: could not open <</Volumes/HP SimpleSave/.fseventsd/fseventsd-uuid>> (No such file or directory)
Jul 27 09:33:26 soldiars-imac fseventsd[32]: log dir: /Volumes/HP SimpleSave/.fseventsd getting new uuid: XXXXFAA0-C17D-41DE-9B3A-BE7E73XXXXXX
Jul 27 09:33:27 soldiars-imac /System/Library/CoreServices/coreservicesd[45]: Received requiest to reset fmod watch. Latest received id is 12448404XXX. Latest sent id is 12448404XXX
Jul 27 09:33:42 soldiars-imac [0x0-0x10010].org.mozilla.firefox[571]: Debugger() was called!
Jul 27 09:35:24 soldiars-imac firmwaresyncd[33]: /sbin/fsck_msdos exited with 8
Jul 27 09:35:24 soldiars-imac firmwaresyncd[33]: Command /sbin/fsck_msdos output: ** /dev/disk0s1\nInvalid BS_jmpBoot in boot block: fa31c0
Jul 27 09:35:24 soldiars-imac kextd[10]: updated kernel boot caches



Das Mainboard ist ein ASUS P5K-VM. Die externe Festplatte in dem Fall eine hp Simple Save.



An kexten habe ich glaube ich nur folgende nachträglich installiert: NullCPUPowerManagement, EvOreboot, lspcidrv, VoodooHDA, Platform UUID.





Wäre echt super, wenn jemand wüsste, was das Problem ist. Vielen Dank vorab.





Mit freundlichen Grüßen,

Soldiar



//edit: eine 2,3 GB Datei braucht ca. 1,5 Std. das sollte eigentl. mit Tuxera NTFS viel schneller gehen...

[04152viki]

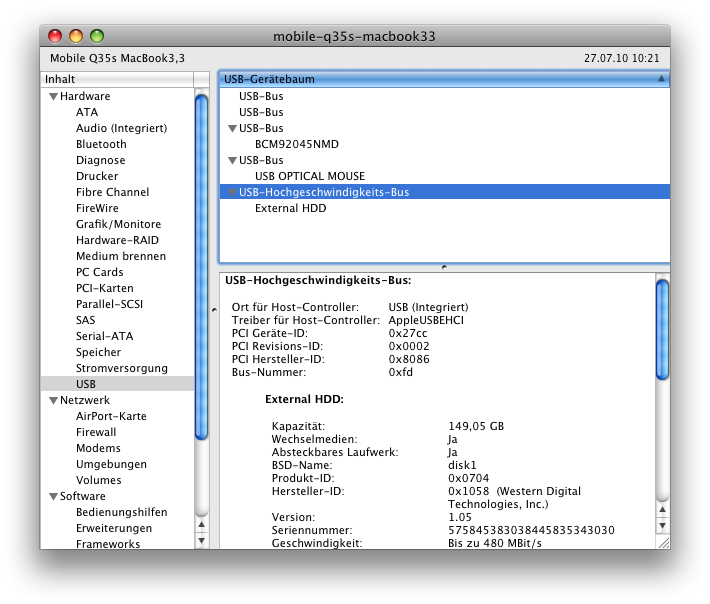

Wie sieht es bei dir aus?



[Soldiar]

Hallo,



wie erwartet kein Hochgeschwindigkeits-USB-Bus







Hast du einen Gedanken woran das liegen kann?



mfg

Soldiar

[04152viki]

				Method (_DSM, 4, NotSerialized)
			{
				Store (Package (0x0f)  // в таком виде в пакете 15 полей
					{

						"device-id",
						Buffer (0x04)
						{
							0x36, 0x28, 0x00, 0x00
						},
						"AAPL,clock-id",
						Buffer (One)
						{
							0x01
						},

							"built-in",
							Buffer ()
							{
									0x00
							},

						  "device_type",
						  Buffer (0x05)
						  {
							  "EHCI"
						  },

						"AAPL,current-available",
						0x04B0,
						"AAPL,current-extra",
						0x02BC,
						"AAPL,current-in-sleep",
						0x03E8,

						Buffer (0x01)
						{
							0x00
						}
					}, Local0)
				DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
				Return (Local0)
			}

In DSDT eintragen.

"device-id",

Buffer (0x04)

{

0x36, 0x28, 0x00, 0x00

für EHCI1



"device-id",

Buffer (0x04)

{

0x3A, 0x28, 0x00, 0x00

für EHCI2

[Soldiar]

Hallo,



habe die letzten Tage nun hier dran herumprobiert. Das Ergebnis: Dieser Bereich fehlt in meiner DSDT vollkommen. Ich hänge meine DSDT mal an. Um jeden Gedanken eurerseits freue ich mich



mfg

Soldiar

dsdt.txt

[riws]

USB neu installieren probiert? (Auf apple Dev seite bekommst du die Installations pkg für jede OSX Version)

[Soldiar]

Hallo,



habe das Problem mittlerweile gelöst. Es war ein veralteter Treiber, der in einem anderen Paket mitgeladen wurde bevor der eigentliche geladen wurde.



Nun gehen meine 5 Front-USB auf USB 2.0 und die 4 USB-Anschlüsse an der Rückseite mit USB 1.1, womit ich leben kann



Vielen Dank nochmals für deine Hilfe!



mfg

Soldiar
