[SOLD]Bluetooth GPS Receiver


originalname
 Share

2 posts in this topic

Recommended Posts

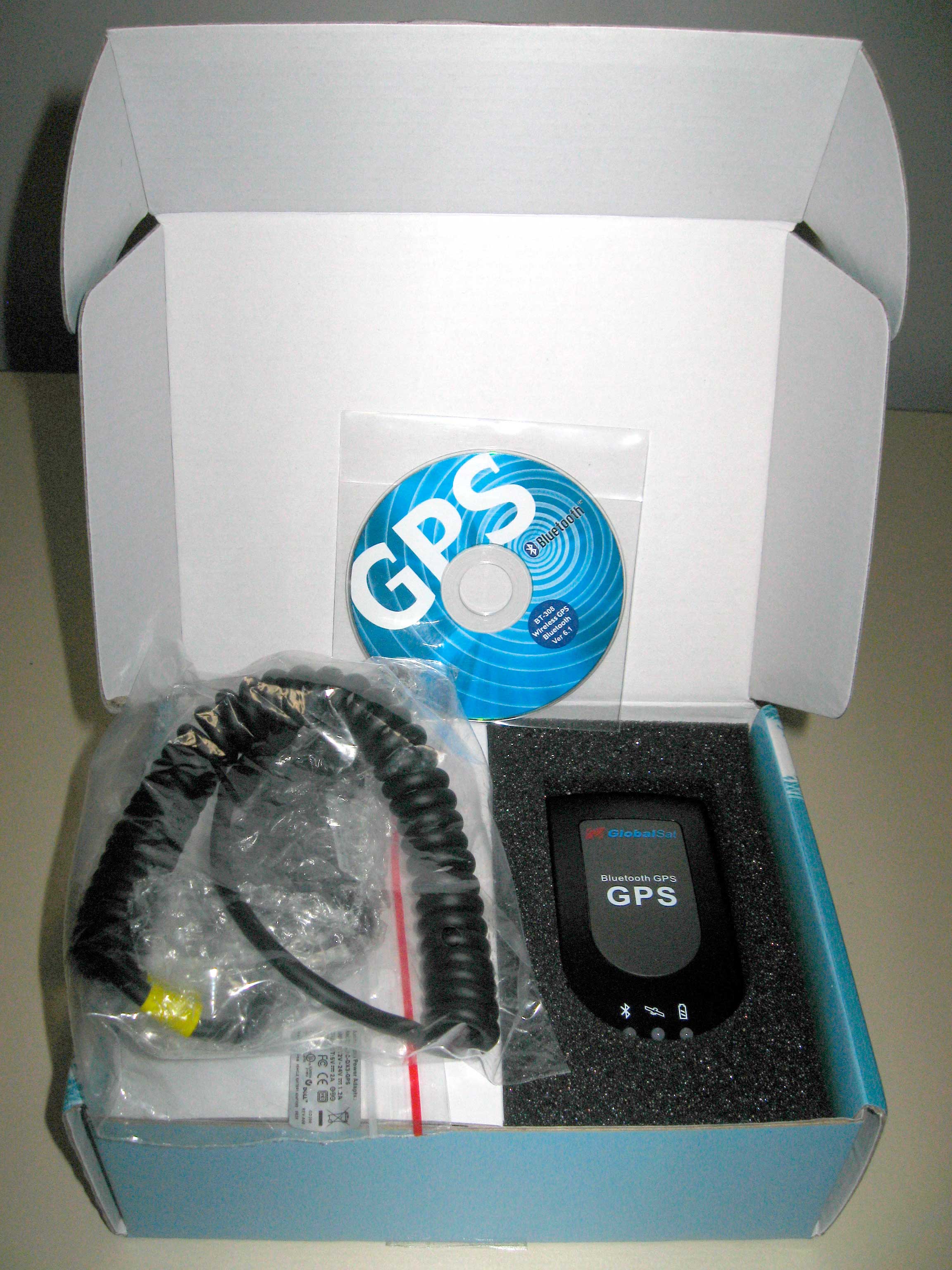

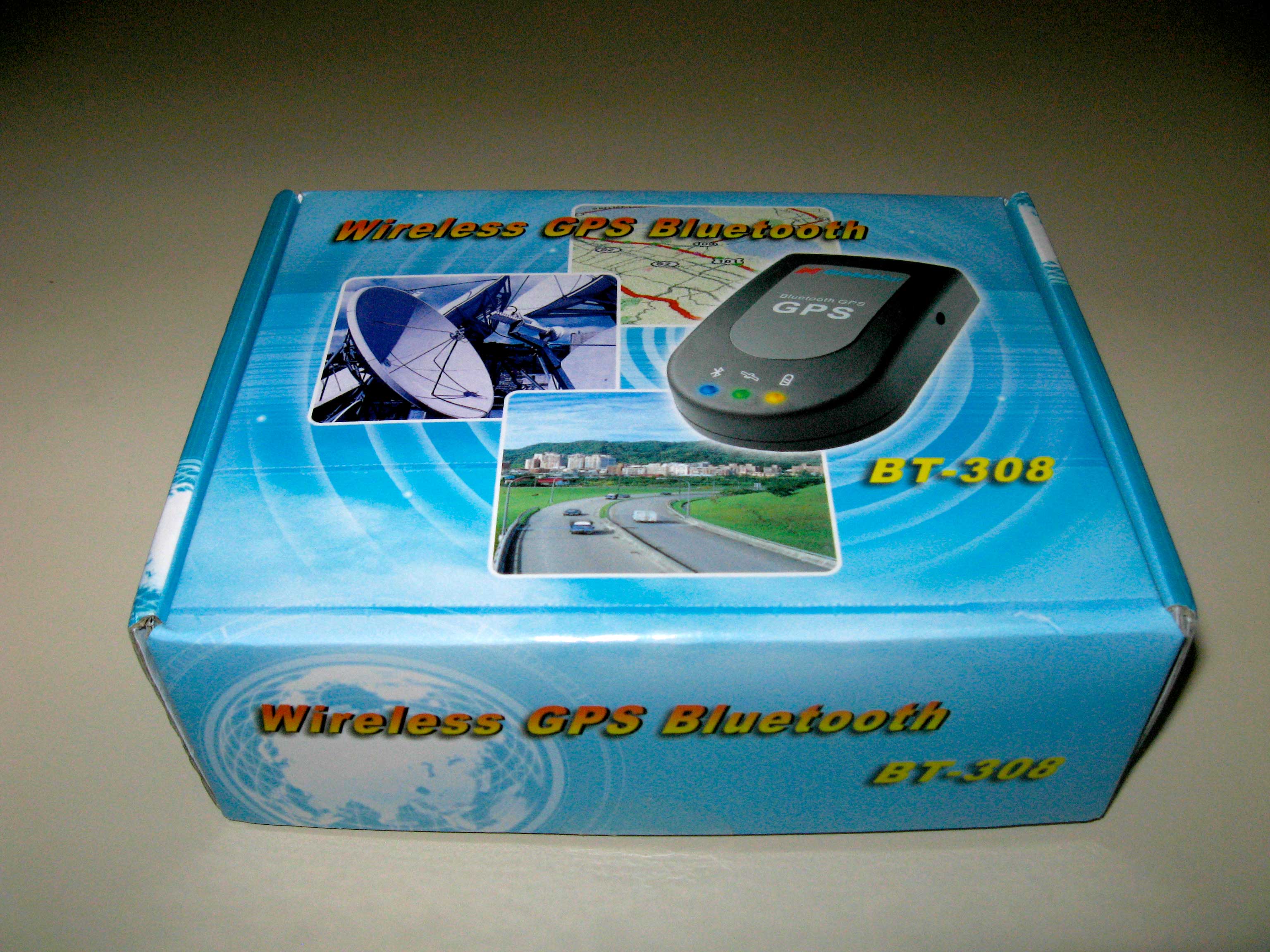

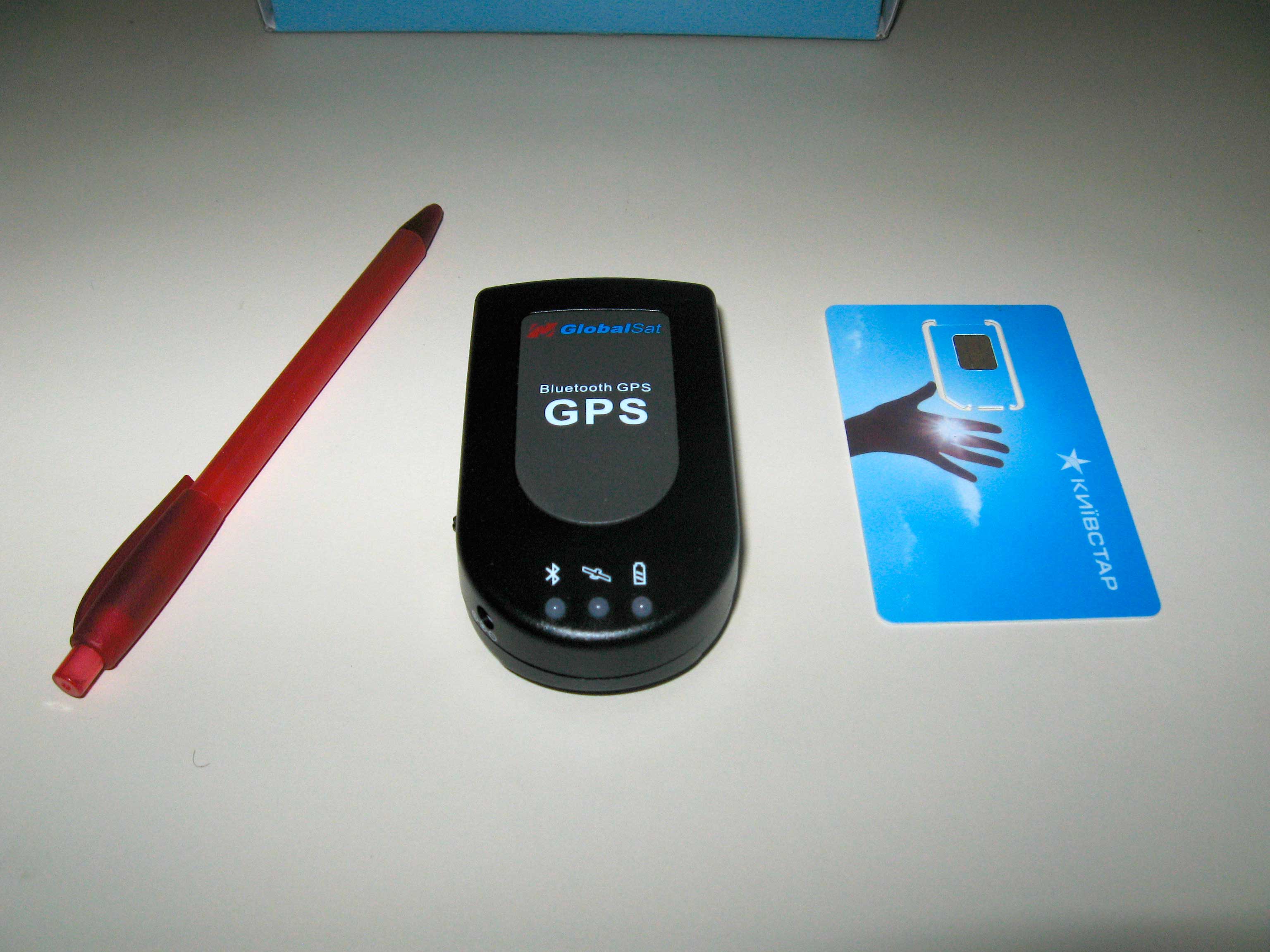

Please see pix below...



This is a NEW Bluetooth GPS Receiver that would make an awesome addition to your mini setup - make your netbook into a mobile device - in the full sense of the word.



$39.99 U.S. / PayPal only. (pm me here or qualitygoals@yahoo.com)



Couple of things to note: (1)This has an internal, rechargeable lithium ion battery, but only a car charger - so you'll have to charge it in the car, but then that's really what it's main purpose is - to be used in the car of course. And (2) You will, of course need to get navigation/gps/map software on your device - this is only the receiver.



That being said, it will fit nicely on the dash or wherever you want, gets very good reviews as far as the bluetooth signal, and more importantly the GPS itself...



Here's the full spec's:



1. Wireless GPS using Bluetooth technology.

2. Communicate with Host Platform via Bluetooth Serial

Profile.

3. SiRF Star II/LPor X-Trac high performance and low power

consumption chipset.

4. All-in-view 12-channel parallel processing.

5. Built-in SuperCap to reserve system data for rapid satellite

acquistion.

6. Supported NMEA 0183 command:GGA, GSA, GSV, RMC,

GLL, VTG.

7. GPS/Bluetooth/Battery LED indicators.

8. Non-slip on the bottom.

9. Built-in Lithium-ion rechargeable battery.





Specification

Channels 12 parallel channels

Output Messages NMEA 0183 V2.2 protocol and supports

Command GGA, GSA, GSV, RMC, VTG, GLL

Hot Start 8 sec., average

Warm Start 38 sec., average

Cold Start 45 sec., average

Acceleration Limit < 4g

Altitude Limit 18,000m

Re-acquisition 100ms

Velocity Limit 515 meters/sec

Time Accuracy 1us synchronized to GPS time

Position Accuracy 15m 2D RMS without SA

5m 2D RMS WAAS enabled

Supply Voltage Build-in rechargeable battery and 5V DC input charging circuit

Operation Time 8hr after fully charged, in continuous mode

Bluetooth Specification

Bluetooth V1.1 compliant

Frequency 2.400~2.480 GHZ

Sensitivity -80 dBm

Transmit power Class2

Transmit Range 10M

Dimension 84mm*47mm*27mm

Storage Temperature -30°C ~ 80°C

Operation Temperature -20°C ~ 70°C

Humidity Up to 95% non-Condensing
