DSDT Problem with HEX

T-Bone90

By T-Bone90,
in OSx86 10.6 (Snow Leopard)

 Share
24 posts in this topic

Recommended Posts

Avelarius
Avelarius
Posted
Posted

Hello,

i currently have the problem, when i try to compile my dsdt with DSDTSE (by Team Ev0sx86) i always get an error but i dont know how to solve it, without making my dsdt unusable.

I'll attach my patched dsdt and the original.

I get this messages

Intel ACPI Component Architecture
ASL Optimizing Compiler version 20100331 [Mar 31 2010]
Copyright (c) 2000 - 2010 Intel Corporation
Supports ACPI Specification Revision 4.0

dsdt.dsl   417:			 Name (_HID, "*pnp0c14")
Error	4001 -								  ^ String must be entirely alphanumeric (*pnp0c14)

dsdt.dsl   430:			 Name (_WDG, Buffer (0x64)
Warning  1099 -					  ^ Unknown reserved name (_WDG)

dsdt.dsl   446:			 Method (_WED, 1, NotSerialized)
Warning  1099 -  Unknown reserved name ^  (_WED)

dsdt.dsl   446:			 Method (_WED, 1, NotSerialized)
Warning  1088 -						^ Not all control paths return a value (_WED)

dsdt.dsl   446:			 Method (_WED, 1, NotSerialized)
Warning  1099 -  Unknown reserved name ^  (_WED)

dsdt.dsl   685:						 Name (_T_0, 0x00)
Remark   5111 -	Use of compiler reserved name ^  (_T_0)

dsdt.dsl   799:							 Name (_T_1, 0x00)
Remark   5111 -		Use of compiler reserved name ^  (_T_1)

dsdt.dsl   843:								 Name (_T_2, 0x00)
Remark   5111 -			Use of compiler reserved name ^  (_T_2)

dsdt.dsl   894:									 Name (_T_3, 0x00)
Remark   5111 -				Use of compiler reserved name ^  (_T_3)

dsdt.dsl   931:										 Name (_T_4, 0x00)
Remark   5111 -					Use of compiler reserved name ^  (_T_4)

dsdt.dsl   973:										 Name (_T_5, 0x00)
Remark   5111 -					Use of compiler reserved name ^  (_T_5)

dsdt.dsl  6513:					 Method (HKDS, 1, NotSerialized)
Warning  1088 -								^ Not all control paths return a value (HKDS)

ASL Input:  dsdt.dsl - 8020 lines, 283822 bytes, 3153 keywords
Compilation complete. 1 Errors, 5 Warnings, 6 Remarks, 908 Optimizations
[Completed]

Thanks in advance

original_dsdt.zip

patched_dsdt.zip

Beerkex'd
Beerkex'd
Posted
Posted

Do a search and replace of "_T_" with "T_" to fix all your "Remark 5111". That's the easy one..



For the two "warning 1088" you need to add a return 0 at the end.



Some clues here (from post #9 an onwards): http://www.projectosx.com/forum/index.php?showtopic=454



As for the rest I have no idea.

T-Bone90
T-Bone90
Posted
  • Author
Posted

Hi,



oh my Post are blank ^^



Here is my DSDT: http://pastebin.com/p9TbeQuW



And here are the Tutorial: http://www.insanelymac.com/forum/index.php...t&p=1280888



OK how can I post the PSS and CST for me, where can I found the Adresses ?



And are the Adresses in the DSDT, I mean 0x0.... are from Board to Board different ?

I have a P5Q-E, can I copy the DSDT from a P5Q-E and chance the CPU Info ? Or more different.



The Problem at the Moment is, I came not forward ;) Many Adresses are different and I don't know were I can found this for my System

Beerkex'd
Beerkex'd
Posted
Posted

Everything you need to know about speed stepping is in this thread:

http://www.insanelymac.com/forum/index.php?showtopic=181631

What is this "HKDS thing" and where do i have to ad a return 0?

Follow the link I posted for more information. That's all the help I can give.



"HKDS" is secondary, what's important is the error message and the error/warning/remark code. If you see " Warning 1088: Not all control paths return a value" you can fix this in the same way as anyone else who gets this error. To fix this warning 1088 you need to add a return 0 at the end of the method in question, which in your case is method HKDS. It even tells you which line number it's on. So you can find it by line number or just search the DSDT for instances of HKDS.



By comparing the information you have with the information you find by following the link I posted, you should be able to fix this yourself.

I can't be more specific simply because I don't remember exactly how to do it.



As for the all the _T_ remarks just use the replace function in DSDTSE as I said. It has nothing to do with HKDS or any of the other errors. It's a common issue in ASUS motherboard DSDTs.

T-Bone90
T-Bone90
Posted
  • Author
Posted

Thanks a lot, very cool.



Another PRoblem from your DSDT.

OperationRegion (BIOS, SystemMemory, 0xCFF7E064, 0xFF)

Field (BIOS, ByteAcc, NoLock, Preserve)

{

SLPS, 8,

Offset (0x0B),

MG1B, 32,

MG1L, 32,

MG2B, 32,

MG2L, 32,

Offset (0x2C),

ASSB, 8,

Offset (0x38),

MG3B, 32,

MG3L, 32

}



Can I copy this 1 to 1 for my System or where can I found Numbers for me ?







And by:

Name (CST, Package (0x04)

{

0x03,

Package (0x04)

{

ResourceTemplate ()

{

Register (FFixedHW,

0x01, // Bit Width

0x02, // Bit Offset

0x0000000000000000, // Address

0x01, // Access Size

)

},



One,

One,

0x03E8

},



Package (0x04)

{

ResourceTemplate ()

{

Register (SystemIO,

0x08, // Bit Width

0x00, // Bit Offset

0x0000000000000814, // Address

,)

},



0x02,

One,

0x01F4

},



Package (0x04)

{

ResourceTemplate ()

{

Register (SystemIO,

0x08, // Bit Width

0x00, // Bit Offset

0x0000000000000816, // Address

,)

},



0x03,

0x39,

0x64

}

})



Are the Adresses for me too ? OR where can I found this for example 0x03, 0x39, 0x64



And the last question, is it good to use MACPro 3.1 with my System or is it better to use 4.1 or IMAC ?

Beerkex'd
Beerkex'd
Posted
Posted

You must change at least "0xCFF7E064, 0xFF" so that it matches the value in your DSDT.



If you compare the rest of that section with your unmodified DSDT you'll see a lot of stuff has been deleted from mine. You should only copy that whole section if you've made the same modifications as I have. If you want to learn more, look here:

http://www.insanelymac.com/forum/index.php...t&p=1280888

Almost all my modifications are based on the DSDTs posted by Master Chief in that thread.



The other bit you quote is specific for my CPU (C-states), don't use it unless you're sure it matches yours.

You need to extract your SSDT tables and see what the code looks like for your CPU.

Again (for the third time, first time was via PM) you need to read this, it is all explained here:

http://www.insanelymac.com/forum/index.php?showtopic=181631



I would only recommend using a MacPro4,1 model identifier to someone who has a Nehalem CPU.

I use iMac9,1 which works very well for me. I think most people with P45/P35 chipset motherboards use MacPro3,1 though.

T-Bone90
T-Bone90
Posted
  • Author
Posted
You must change at least "0xCFF7E064, 0xFF" so that it matches the value in your DSDT.

Where can I found this for me ? Where is it ?



If you compare the rest of that section with your unmodified DSDT you'll see a lot of stuff has been deleted from mine. You should only copy that whole section if you've made the same modifications as I have. If you want to learn more, look here:

http://www.insanelymac.com/forum/index.php...t&p=1280888

Almost all my modifications are based on the DSDTs posted by Master Chief in that thread.

All Right :(



The other bit you quote is specific for my CPU (C-states), don't use it unless you're sure it matches yours.

You need to extract your SSDT tables and see what the code looks like for your CPU.

Again (for the third time, first time was via PM) you need to read this, it is all explained here:

http://www.insanelymac.com/forum/index.php?showtopic=181631

I have extract my DSDT but what Codes I need ? Can you look in my SSDT in the Archiv ? I don't find any Info about CST in this Thread.



I would only recommend using a MacPro4,1 model identifier to someone who has a Nehalem CPU.

I use iMac9,1 which works very well for me. I think most people with P45/P35 chipset motherboards use MacPro3,1 though.

OK I use actualy MacPro 3.1 but I test it with IMac. Only Test :D

SSDT.dsl.zip

Beerkex'd
Beerkex'd
Posted
Posted
Where can I found this for me ? Where is it ?

It's in the same place as it is in my DSDT. You have the same motherboard as I do! Open your DSDT and mine side by side and compare the code, or just use the search function in DSDTSE. Type for example "OperationRegion" in the search field.

I have extract my DSDT but what Codes I need ? Can you look in my SSDT in the Archiv ?

There are no C-states in the table you've extracted. Try using Everest in Windows and extract all the SSDT tables. Again, read the Speedstepping thread, all the information you need is there.

I don't find any Info about CST in this Thread.

It's right there in the first post. Scroll the 2nd codebox. C-States are covered in greater detail towards the end of the thread, just keep looking and you'll find it eventually.

T-Bone90
T-Bone90
Posted
  • Author
Posted
It's in the same place as it is in my DSDT. You have the same motherboard as I do! Open your DSDT and mine side by side and compare the code, or just use the search function in DSDTSE. Type for example "OperationRegion" in the search field.

Thanks I found it :)



There are no C-states in the table you've extracted. Try using Everest in Windows and extract all the SSDT tables. Again, read the Speedstepping thread, all the information you need it there.

Thanks I test it with Everest.



It's right there in the first post. Scroll the codebox. C-States are covered in greater detail towards the end of the thread, just keep looking and you'll find it eventually.

Yes I found this in the 2 Codebox

Method (_CST, 0, NotSerialized)

{

Return (Package (0x02)

{

One,

Package (0x04)

{

ResourceTemplate ()

{

Register (FFixedHW,

0x01, // Bit Width

0x02, // Bit Offset

0x0000000000000000, // Address

0x01, // Access Size

)

},



One,

0x9D,

0x03E8

}

})

}

}

0x01, // Bit Width

0x02, // Bit Offset

0x0000000000000000, // Address

0x01, // Access Size

0x9D,

0x03E8

This six Codes, I don't found any Infos too this in the Thread. Please Can you help me ?

Beerkex'd
Beerkex'd
Posted
Posted

I get five SSDT tables when dumping with Everest.



Do you have C-states disabled in the BIOS?



In the BIOS, Look in the CPU settings menu. You may have to scroll down, the last C-state setting is off-screen in my BIOS.



Do you know the version (stepping) of your CPU? mine for example is stepping E0, ie the last E8500:

http://processorfinder.intel.com/details.aspx?sSpec=SLB9K



Different versions of the same CPU can have different capabilities. if you know the details you can look up your CPU on Intel's website and see exactly which features it supports.

Beerkex'd
Beerkex'd
Posted
Posted

As you can see, your CPU can only do C1E: http://processorfinder.intel.com/details.aspx?sSpec=SL9ZL

Compare with mine: http://processorfinder.intel.com/details.aspx?sSpec=SLB9K



That means you can use the CST code the way it is in FormerlyKnownAs' example.



With witch KEy can I scroll down ?

uhh let's see.. the up arrow? No, that can't be it... :thumbsup_anim:

T-Bone90
T-Bone90
Posted
  • Author
Posted

ah OK also I can use the CST code from http://www.insanelymac.com/forum/index.php?showtopic=181631 in the 2 Codebox ? Or can I use your code because the features from both CPUs are the same ?



In my BIOS, i dont find the hide Option in the CPU Menü

Beerkex'd
Beerkex'd
Posted
Posted

Please pay attention to what I'm writing and follow the links that I post so that you can educate yourself. Having to repeat what I say when speaking is one thing, but when it's in writing and pictures clear as day, then it's just a waste of time. I am not here to hold your hand.



As you can clearly see in the specs page for your CPU (refer to screenshot below), it only supports C1E. This means you can use the generic CST code in FormerlyKnownAs' example:

		Method (_CST, 0, NotSerialized)
	{
		Return (Package (0x02)
		{
			One,
			Package (0x04)
			{
				ResourceTemplate ()
				{
					Register (FFixedHW,
						0x01,			   // Bit Width
						0x02,			   // Bit Offset
						0x0000000000000000, // Address
						0x01,			   // Access Size
						)
				},

				One,
				0x9D,
				0x03E8
			}
		})
	}

Our CPU features are not the same.

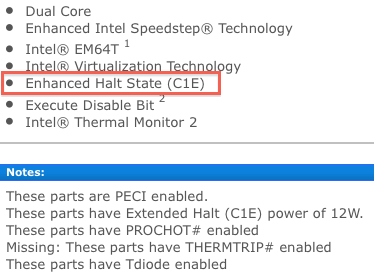

Yours:

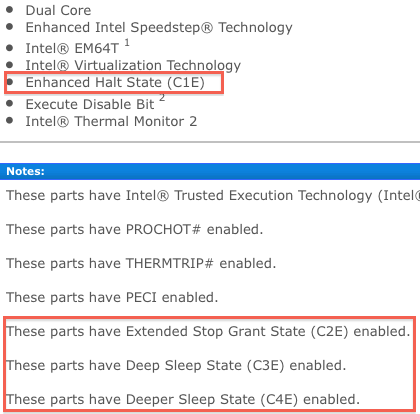

Mine:




What "hide" option?

Beerkex'd
Beerkex'd
Posted
Posted
I mean the option in the bios, that I can see when I scroll.#



Ah you meant to say "hidden" not "hide".



That's because it isn't there, the BIOS "CPU features" page only shows features that are actually supported by your CPU!

Read my previous post again.

T-Bone90
T-Bone90
Posted
  • Author
Posted

OK thanks and sorry. Iam not 100% understand you ^^



OK then I use FormerlyKnownAs' example:





0x01, // Bit Width

0x02, // Bit Offset

0x0000000000000000, // Address

0x01, // Access Size



One,

0x9D,

0x03E8



Can I use this addresses or need I other values from my SSDT or other ?

Beerkex'd
Beerkex'd
Posted
Posted

LOL, this is the third and last time I'm going to say this:



You can use the _CST method as it is in the example posted by FormerlyKnownAs.



As for the rest, just follow the guide.



I recommend that you continue in the German sub-forum:

http://www.insanelymac.com/forum/index.php?showforum=93
