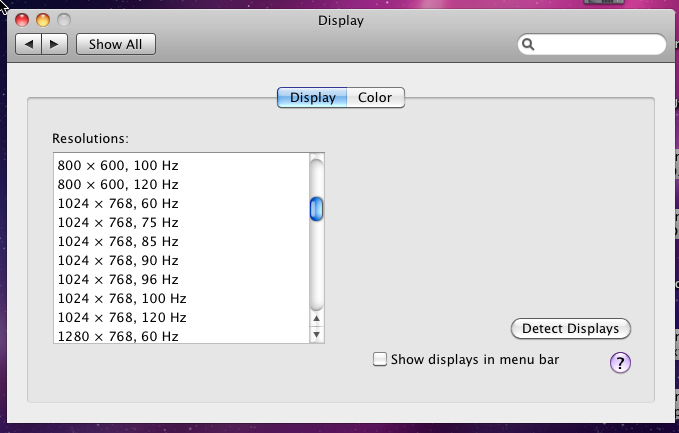

exiva Posted March 28, 2010 Share Posted March 28, 2010 I'm having some trouble with my GMA950 (Vendor: Intel 0x8086 Device ID: 0x27ae Revision ID: 0x0003) on 10.6.2 (With all the latest updates from Software Update) I can't get it into 1024x600 mode. I'm using the driver pack found here prasys.co.cc My com.apple.Boot.plist in /Extra has Graphics Mode 1024x600x32 device-properties 6d0000000100000001000000610000000200000002010c00d041030a000000000101060000027fff 0400100000006d006f00640065006c0000000b000000474d4120393530200000004100410050004c 0 02c00480061007300500061006e0065006c0000000800000001000000 in it. I'm also fairly positive Quartz Extreme is running, as I get the ripple effect and have a transparent menubar. But no matter what I do (Short of using SwitchResX, which I'd like to avoid if at all possible) I can't get it to show 1024x640. Here's my kextstat as well. Index Refs Address Size Wired Name (Version) <Linked Against> 1 47 0 0 0 com.apple.kpi.bsd (10.2.0) 2 4 0 0 0 com.apple.kpi.dsep (10.2.0) 3 67 0 0 0 com.apple.kpi.iokit (10.2.0) 4 72 0 0 0 com.apple.kpi.libkern (10.2.0) 5 56 0 0 0 com.apple.kpi.mach (10.2.0) 6 24 0 0 0 com.apple.kpi.private (10.2.0) 7 42 0 0 0 com.apple.kpi.unsupported (10.2.0) 8 1 0 0 0 com.apple.kernel.6.0 (7.9.9) 9 0 0 0 0 com.apple.kernel.bsd (7.9.9) 10 5 0 0 0 com.apple.kernel.iokit (7.9.9) 11 6 0 0 0 com.apple.kernel.libkern (7.9.9) 12 3 0 0 0 com.apple.kernel.mach (7.9.9) 13 16 0x2f4ae000 0x11000 0x10000 com.apple.iokit.IOPCIFamily (2.6) <7 5 4 3> 14 13 0x2f459000 0x4000 0x3000 com.apple.iokit.IOACPIFamily (1.3.0) <7 6 4 3> 15 2 0x2f6f7000 0x41000 0x40000 com.apple.driver.AppleACPIPlatform (1.3) <14 13 7 6 5 4 3> 16 0 0x2f265000 0x3000 0x2000 com.superhai.driver.SMBIOSResolver (1.0.7) <11 10> 17 0 0x29245000 0x2000 0x1000 com.apple.osx.restart (1.0) <4 3> 18 0 0x2f269000 0x2000 0x1000 org.tgwbd.driver.NullCPUPowerManagement (1.0.0d2) <7 4 3> 19 0 0x2f6a0000 0x1b000 0x1a000 com.apple.driver.AppleIntelCPUPowerManagement (96.0.0) <7 6 5 4 3 1> 20 6 0x2f7e0000 0x2c000 0x2b000 com.apple.iokit.AppleProfileFamily (41) <13 7 6 5 4 3 1> 21 2 0x2f6bb000 0xa000 0x9000 com.apple.driver.AppleSMC (3.0.1d2) <14 7 5 4 3> 22 0 0x2f68e000 0x6000 0x5000 com.apple.Dont_Steal_Mac_OS_X (7.0.0) <21 7 4 3 1> 23 5 0x2f85d000 0x1e000 0x1d000 com.apple.iokit.IOGraphicsFamily (2.0) <13 7 5 4 3> 24 5 0x2f794000 0x18000 0x17000 com.apple.iokit.IOStorageFamily (1.6) <7 6 5 4 3 1> 25 0 0x2f8b9000 0x11000 0x10000 com.apple.driver.DiskImages (281) <24 7 6 5 4 3 1> 26 0 0x2f694000 0xb000 0xa000 com.apple.iokit.IOSurface (73.0) <7 5 4 3 1> 27 0 0x2f49c000 0x2000 0x1000 sk.triaxis.kext.SleepEnabler (1.0.0) <7 4 3> 28 0 0x2f62a000 0x5000 0x4000 com.superhai.driver.VoodooBattery (1.3.2) <14 5 4 3> 29 0 0x2f4bf000 0x3000 0x2000 com.apple.driver.AppleProfileCallstackAction (20) <20 5 4 3 1> 30 0 0x2f635000 0x3000 0x2000 com.apple.driver.AppleProfileKEventAction (10) <20 4 3 1> 31 0 0x2f648000 0x3000 0x2000 com.apple.driver.AppleProfileRegisterStateAction (10) <20 4 3 1> 32 0 0x2f65b000 0x3000 0x2000 com.apple.driver.AppleProfileThreadInfoAction (14) <20 6 4 3 1> 33 0 0x2f6f3000 0x3000 0x2000 com.apple.driver.AppleProfileTimestampAction (10) <20 5 4 3 1> 34 0 0x2f91e000 0x8000 0x7000 com.apple.nke.applicationfirewall (2.1.11) <7 6 5 4 3 1> 35 2 0x2f7b2000 0x3000 0x2000 com.apple.kext.AppleMatch (1.0.0d1) <4 1> 36 0 0x2f926000 0x5000 0x4000 com.apple.security.quarantine (0) <35 7 6 5 4 2 1> 37 0 0x2f914000 0x8000 0x7000 com.apple.security.sandbox (0) <35 7 6 5 4 2 1> 38 0 0x2f92e000 0x3000 0x2000 com.apple.security.TMSafetyNet (6) <7 6 5 4 2 1> 39 1 0x2f949000 0xb000 0xa000 com.apple.driver.IOPlatformPluginFamily (4.0.1d0) <6 5 4 3> 40 0 0x2f931000 0xf000 0xe000 com.apple.driver.ACPI_SMC_PlatformPlugin (4.0.1d0) <39 21 14 13 7 6 5 4 3> 45 0 0x2f92b000 0x3000 0x2000 com.apple.driver.AppleAPIC (1.4) <4 3> 46 0 0x2f96d000 0x4000 0x3000 com.apple.driver.AppleSMBIOS (1.4) <7 4 3> 47 0 0x35532000 0x6000 0x5000 com.apple.driver.AppleRTC (1.3) <14 5 4 3 1> 48 0 0x2f765000 0x2000 0x1000 com.apple.driver.AppleACPIPS2Nub (1.0.0d1) <14 11 7 6 4 3> 49 1 0x2f9fd000 0x3000 0x2000 com.apple.iokit.IOSMBusFamily (1.1) <5 4 3> 50 0 0x35462000 0x5000 0x4000 com.apple.driver.AppleACPIEC (1.3) <49 15 14 5 4 3> 51 0 0x3552d000 0x3000 0x2000 com.apple.driver.AppleHPET (1.4) <14 7 5 4 3> 52 0 0x35525000 0x5000 0x4000 com.apple.driver.AppleACPIBatteryManager (1.0.15) <14 5 4 3 1> 53 3 0x355d6000 0x3b000 0x3a000 com.apple.iokit.IOHIDFamily (1.6.1) <7 6 5 4 3 1> 54 0 0x2f84e000 0x4000 0x3000 com.apple.driver.AppleACPIButtons (1.3) <53 15 14 7 6 5 4 3 1> 55 0 0x2f84b000 0x3000 0x2000 com.apple.driver.AppleLPC (1.4.9) <13 5 4 3> 56 2 0x3556c000 0xd000 0xc000 com.apple.iokit.IOATAFamily (2.5.0) <5 4 3 1> 57 0 0x2f852000 0x9000 0x8000 com.apple.driver.AppleIntelPIIXATA (2.5.0) <56 13 5 4 3> 59 0 0x2f843000 0x4000 0x3000 org.netkas.fakesmc (2) <14 7 4 3> 60 6 0x356a0000 0x2f000 0x2e000 com.apple.iokit.IOUSBFamily (3.8.5) <13 7 5 4 3 1> 61 0 0x35644000 0x10000 0xf000 com.apple.driver.AppleUSBUHCI (3.7.5) <60 13 7 5 4 3 1> 62 0 0x3558e000 0x14000 0x13000 com.apple.driver.AppleUSBEHCI (3.7.5) <60 13 7 5 4 3 1> 63 1 0x355a2000 0x4000 0x3000 com.apple.kext.OSvKernDSPLib (1.3) <5 4> 64 2 0x356cf000 0x18000 0x17000 com.apple.iokit.IOAudioFamily (1.7.2fc1) <63 5 4 3 1> 65 0 0x35704000 0x22000 0x21000 org.voodoo.driver.VoodooHDA (0.2.1) <64 13 8 7 5 4 3 1> 66 0 0x35670000 0x11000 0x10000 com.apple.driver.AppleIntelIntegratedFramebuffer (6.0.0) <23 14 13 11 7 5 4 3 1> 67 1 0x35681000 0xe000 0xd000 com.apple.iokit.IONDRVSupport (2.0) <23 13 7 5 4 3> 68 0 0x357c1000 0x36000 0x35000 com.apple.driver.AppleIntelGMA950 (6.0.0) <67 23 13 10 7 5 4 3 1> 70 2 0x4598d000 0x5000 0x4000 com.apple.driver.ApplePS2Controller (1.1.0) <12 11 10> 72 0 0x459dc000 0x3000 0x2000 com.apple.driver.ApplePS2Keyboard (1.2.0) <70 53 12 11 10 7 6 5 4 3 1> 74 0 0x459df000 0x3000 0x2000 com.apple.driver.ApplePS2Mouse (1.2.0) <70 53 12 11 10 7 6 5 4 3 1> 75 0 0x3597d000 0x5000 0x4000 com.apple.driver.AppleUpstreamUserClient (3.1.0) <23 14 13 7 5 4 3 1> 76 0 0x459e2000 0xe000 0xd000 com.apple.iokit.IOATABlockStorage (2.5.0) <56 24 5 4 3 1> 77 1 0x459ff000 0x16000 0x15000 com.apple.iokit.IONetworkingFamily (1.9) <7 6 5 4 3 1> 78 0 0x45a15000 0x6000 0x5000 ru.Applelife.AttansicL1eEthernet (1.0.1b0) <77 13 5 4 3 1> 79 0 0x35982000 0x3000 0x2000 com.apple.driver.XsanFilter (402.1) <24 5 4 3 1> 80 0 0x2f9cd000 0x2000 0x1000 com.apple.iokit.IOUSBUserClient (3.8.5) <60 7 5 4 3 1> 81 0 0x45a4f000 0xf000 0xe000 com.apple.driver.AppleUSBHub (3.8.4) <60 5 4 3 1> 82 0 0x45a3e000 0x4000 0x3000 com.apple.driver.AppleUSBComposite (3.7.5) <60 4 3 1> 83 2 0x45ac0000 0x1a000 0x19000 com.apple.iokit.IOSCSIArchitectureModelFamily (2.6.0) <5 4 3 1> 84 0 0x45a5e000 0xb000 0xa000 com.apple.iokit.IOUSBMassStorageClass (2.5.1) <83 60 24 5 4 3 1> 85 0 0x45a87000 0x18000 0x17000 com.apple.iokit.IOSCSIBlockCommandsDevice (2.6.0) <83 24 5 4 3 1> 88 0 0x45a49000 0x3000 0x2000 com.apple.driver.AppleProfileReadCounterAction (17) <20 6 4 3> 90 0 0x2f2a9000 0x6000 0x5000 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0d1) <6 4 3 2 1> 91 0 0x2f26f000 0x4000 0x3000 com.apple.driver.AudioIPCDriver (1.1.2) <64 5 4 3 1> 92 0 0x2f2a2000 0x5000 0x4000 com.apple.BootCache (31) <7 6 5 4 3 1> 93 1 0x355b6000 0x9000 0x8000 com.apple.iokit.IOSerialFamily (10.0.3) <7 6 5 4 3 1> 94 0 0x355cb000 0x9000 0x8000 com.apple.iokit.IOBluetoothSerialManager (2.2.4f3) <93 7 5 4 3 1> 97 0 0x2f29d000 0x3000 0x2000 com.apple.driver.ApplePlatformEnabler (2.0.0d2) <7 5 4 3> 98 0 0x45db5000 0xa000 0x9000 com.apple.filesystems.autofs (2.1.0) <7 6 5 4 3 1> 99 0 0x2f289000 0x2000 0x1000 com.superhai.driver.ClamshellDisplay (1.0.1) <23 13 7 5 4 3> Does anyone know how I can get this working? Thanks. Link to comment https://www.insanelymac.com/forum/topic/213968-gma950-wont-display-1024x600/ Share on other sites More sharing options...
TheRegister Posted April 11, 2011 Share Posted April 11, 2011 UP !! I'm in the same problem on my Advent 4213 with Mac OS X 10.6.7 All works, but still in 800x600 or 1024x768 I have 3D and transparent bar (screensave works, grapher 3D works fine) I using EFI partition with KEXTS method for my installation. Here is list of my kexts : 27aeAppleIntelGMA950.kext 27aeAppleIntelIntegratedFramebuffer.kext AppleRTC.kext Disabler.kext IOAHCIBlockStorageInjector.kext IOAudioFamily.kext IOGraphicsFamily.kext IONDRVSupport.kext IONetworkingFamily.kext IOPCIFamily.kext LidSleep.kext NullCPUPowerManagement.kext OSvKernDSPLib.kext OpenHaltRestart.kext PlatformUUID.kext RealtekR1000.kext SMBIOSResolver.kext VoodooBattery.kext VoodooHDA.kext VoodooPS2Controller.kext fakesmc.kext And here my EFI/Extra/com.apple.Boot.plist : <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>Boot Banner</key> <string>No</string> <key>Default Partition</key> <string>hd(0,2)</string> <key>Boot Graphics</key> <string>Yes</string> <key>GraphicsEnabler</key> <string>Yes</string> <key>Graphics Mode</key> <string>1024x600x32</string> <key>Instant Menu</key> <string>No</string> <key>Kernel</key> <string>mach_kernel_atom</string> <key>Kernel Flags</key> <string>"Graphics Mode"="1024x600x32" arch=i386 -v</string> <key>Legacy Logo</key> <string>Yes</string> <key>SMBIOSdefaults</key> <string>No</string> <key>Rescan</key> <string>No</string> <key>SMBIOSdefaults</key> <string>No</string> <key>Timeout</key> <string>2</string> <key>UHCIreset</key> <string>Yes</string> <key>USBBusFix</key> <string>Yes</string> <key>device-properties</key> <string>c60000000100000002000000610000000200000002010c00d041030a000000000101060000027fff0400100000006d006f00640065006c0000000b000000474d4120393530200000004100410050004c002c00480061007300500061006e0065006c0000000800000001000000590000000200000002010c00d041030a0000000001010600001b7fff0400180000006c00610079006f00750074002d00690064000000080000000c000000160000006200750069006c0074002d0069006e0000000500000001</string> <key>BuiltInEthernet</key> <string>Yes</string> <key>AAPL,HasPanel</key> <string>0x00000001</string> <key>PciRoot</key> <string>1</string> </dict> </plist> The strange, is before my disk crash, I have 1024x600 ... I don't remember how I do this before ... Need help please ! Link to comment https://www.insanelymac.com/forum/topic/213968-gma950-wont-display-1024x600/#findComment-1668959 Share on other sites More sharing options...
mathewfer Posted April 21, 2011 Share Posted April 21, 2011 Hi Read the below, it may help you. Use DSDT to get it up & updates should not break it also. With the DSDT patch you must use original (vanila/stock) kexts. I got my desktop fixed with this & with this forum help. DSDT editor - http://www.insanelymac.com/forum/index.php?showtopic=223205 File>extract DSDT Patch> Open> DTGP.txt IASL>Compile>Fix Errors IASL> Save AML As> Desktop Patch>Open> GMA950 laptop.txt IASL>Compile>Fix Errors IASL>Save AML AS>Desktop>Overwrite Exited DSDT Editor Go>Go To Folder> /Extra Moved dsdt.aml from desktop to /Extra Reboot Link to comment https://www.insanelymac.com/forum/topic/213968-gma950-wont-display-1024x600/#findComment-1673210 Share on other sites More sharing options...
