I am trying to add as much info form a MacBook into my bios. I am using a dsdt.aml file that i need to edit been google hunting down as much info as i can find, i have not edit my dsdt.aml yet. If you have a macbook2,1 could you let me know if i got any info wrong or need to add more in to my set up.



I have put a link to the bios feel free to give any feed back to edit the dsdt ect

[entry=100]

http

://www.ecsusa.com/ECSWebSite/Products/...anID=9[/entry]



Running Retall install 10.5.4 with DSDT.aml, AppleDecrypt.kext, EFI String for GMA950 in com.apple.Boot.plist

( add AppleACPIBatteryManager.kext VoodooPS2Controller.kext have not work on sound yet, on a backup bootloader) been testing my set up with munky efi partition, CHAMELEON 2 RC1 and boot think 1.1.0.



My laptop is a ECS G335. I upgrade this laptop out of an old advent 8109(given to me free). I added 2gig of ram,replace the Celeron M420 1.6Ghz with a T5500, (but looking for a T5600 or a T7200) and replace the Motherbroad, and replace the hard drive with a 2nd hand one from an apple mackbook, Hitachi HTS541616J9SA00: Capacity: 149.05 GB

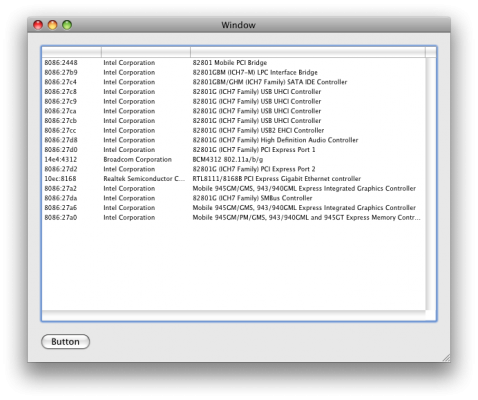

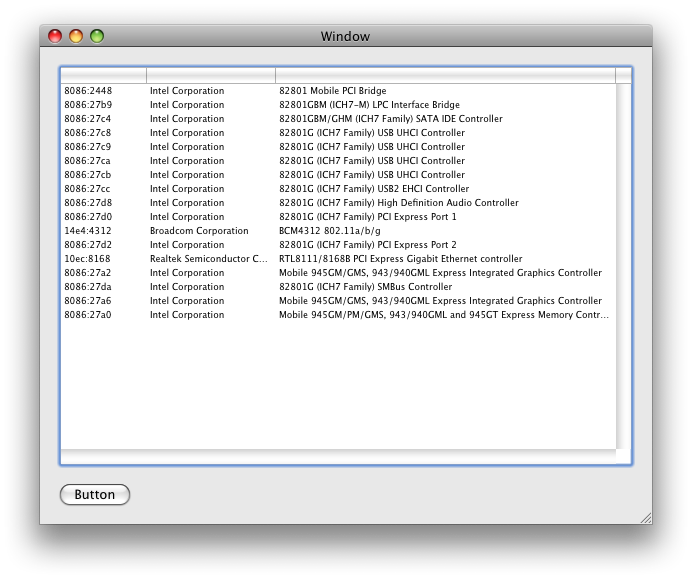

I rebrand my wifi card, Wireless Card Type: AirPort Extreme (0x14E4, 0x87) Wireless Card Firmware Version: Broadcom BCM43xx 1.0 (4.170.46.9) post-176101-1244168565_thumb.png

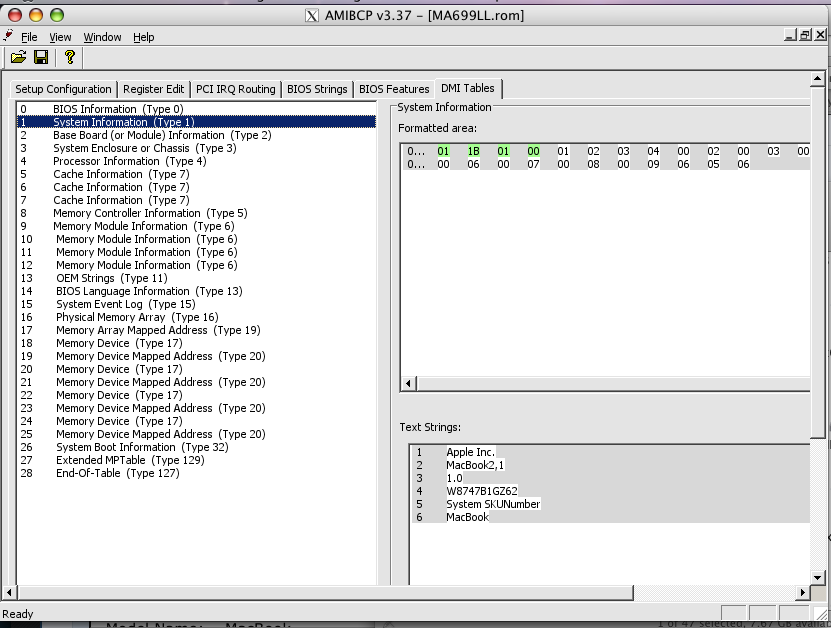

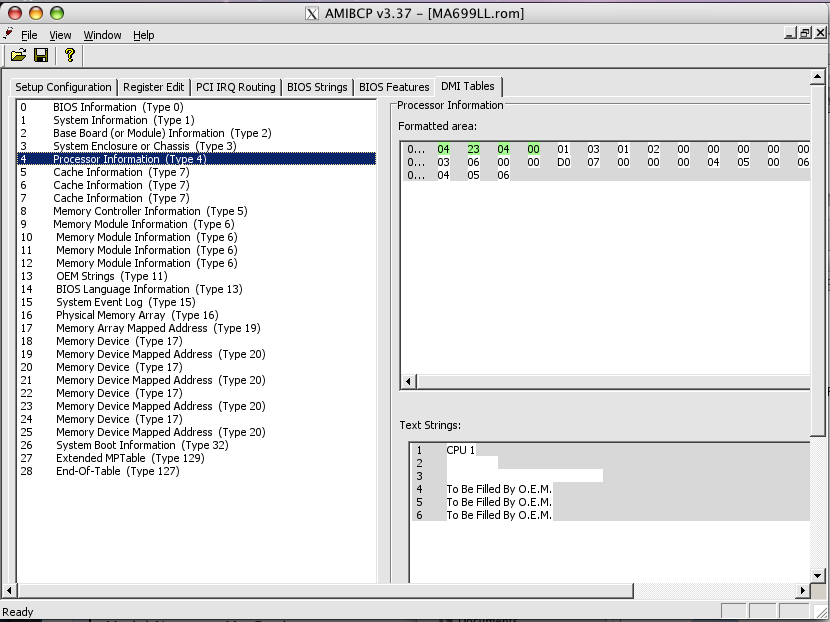

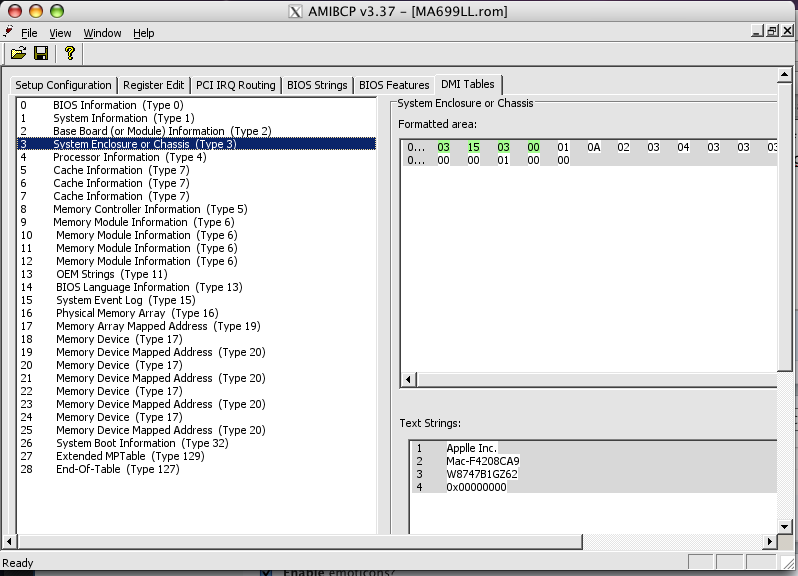

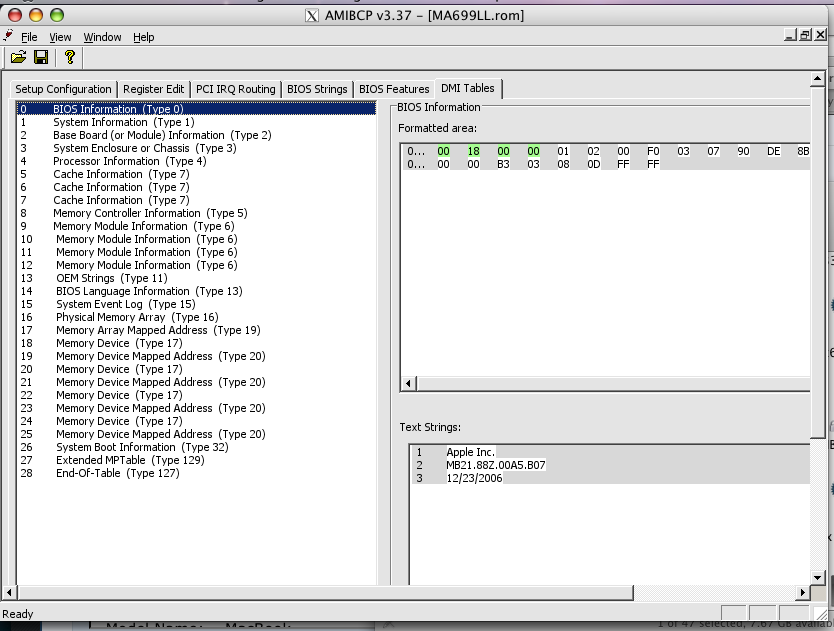

I have edit some of my AMI bios by removing the Intel on screen branding,I have edit some of the smbios by replacing the info for a macbook2,1 (i have two bios chip one for testing and one for a backup for hotflashing)

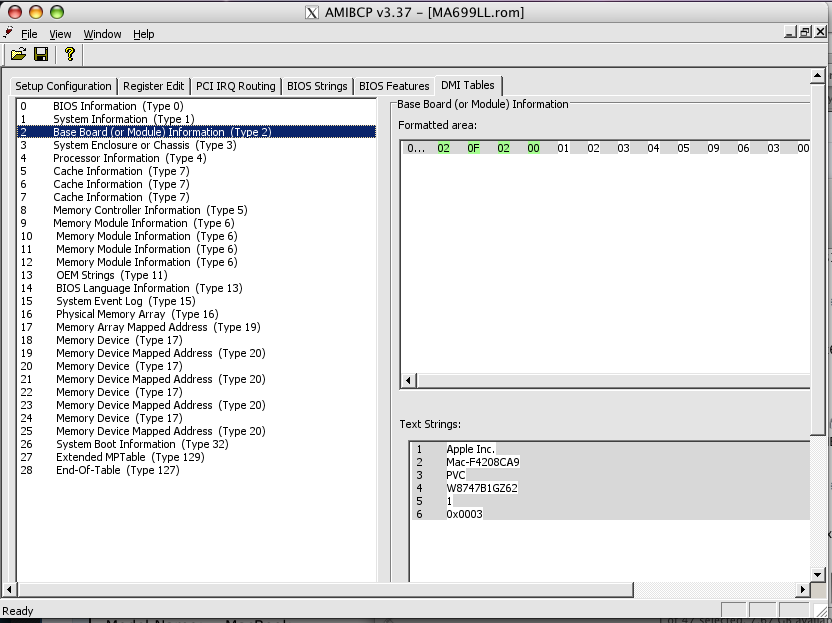

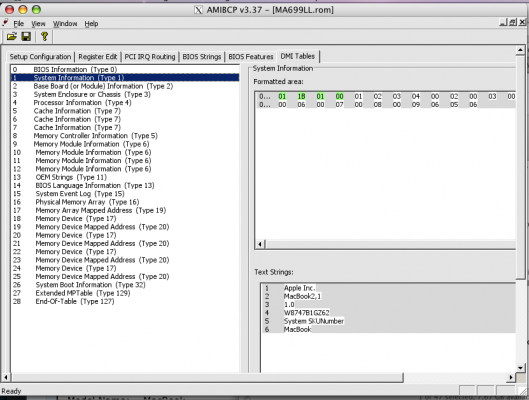

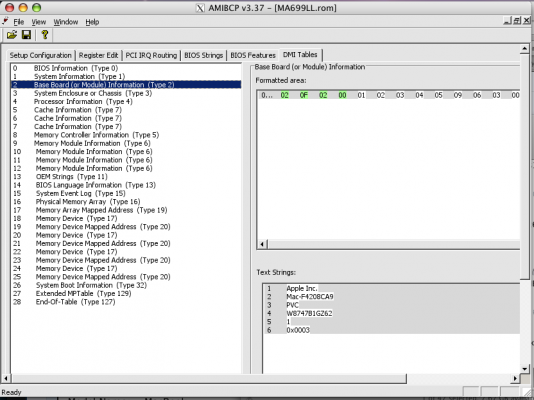

I used AMIBCP_V3.37








Hardware Overview:



Model Name: MacBook

Model Identifier: MacBook2,1

Processor Name: Intel Core 2 Duo

Processor Speed: 1.67 GHz

Number Of Processors: 1

Total Number Of Cores: 2

L2 Cache: 2 MB

Memory: 2 GB

Bus Speed: 2.67 GHz

Boot ROM Version: MB21.00A5.B07

Serial Number: W8747B1GZ62





System Software Overview:



System Version: Mac OS X 10.5.4 (9E25)

Kernel Version: Darwin 9.4.0



I can update to 10.5.5 but if i update to 10.5.6 or 10.5.7 i get panic (cpu 0 caller 0x2edf54bc) no hpets avaiable cpu configured incorrectly unless i use the disable kext. i have not work on editing my dsdt.aml file yet, use the DSDT Patcher Version 1.0.1e

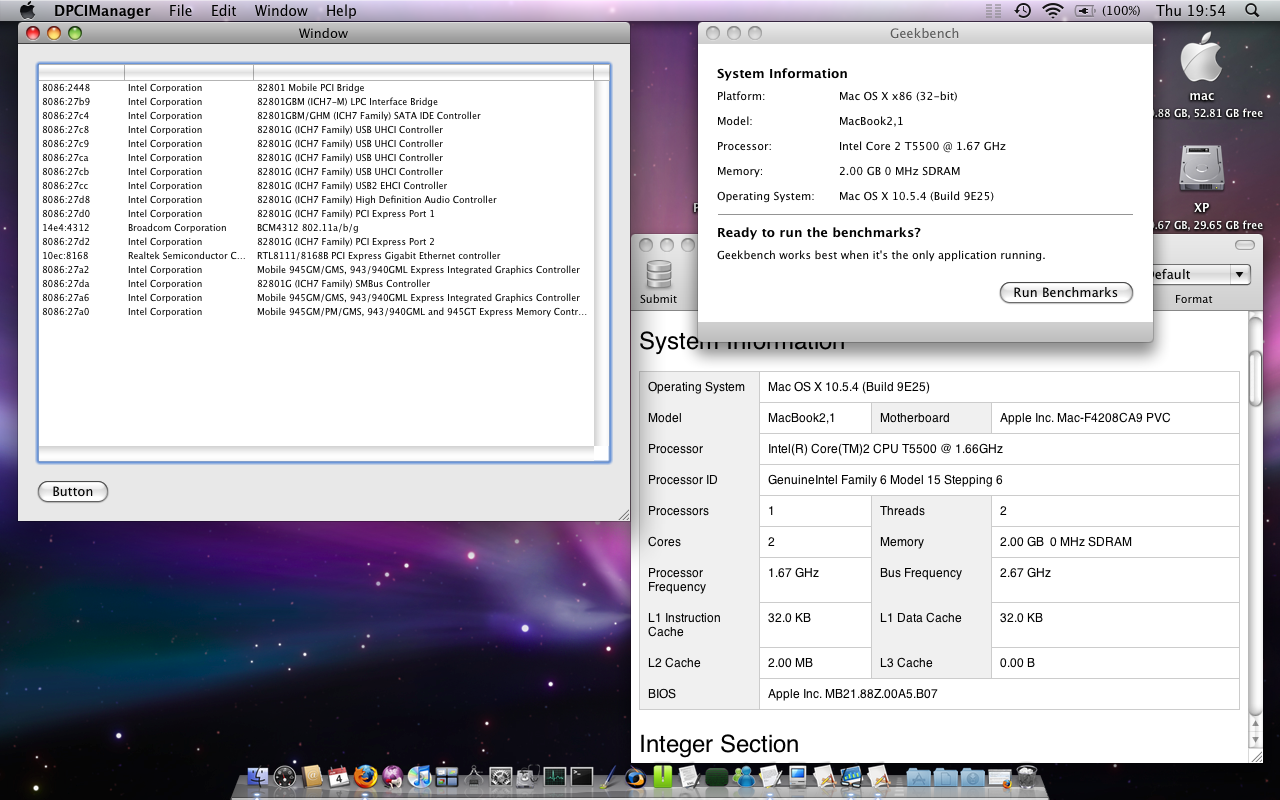

geekbench shows post-176101-1244168475_thumb.png

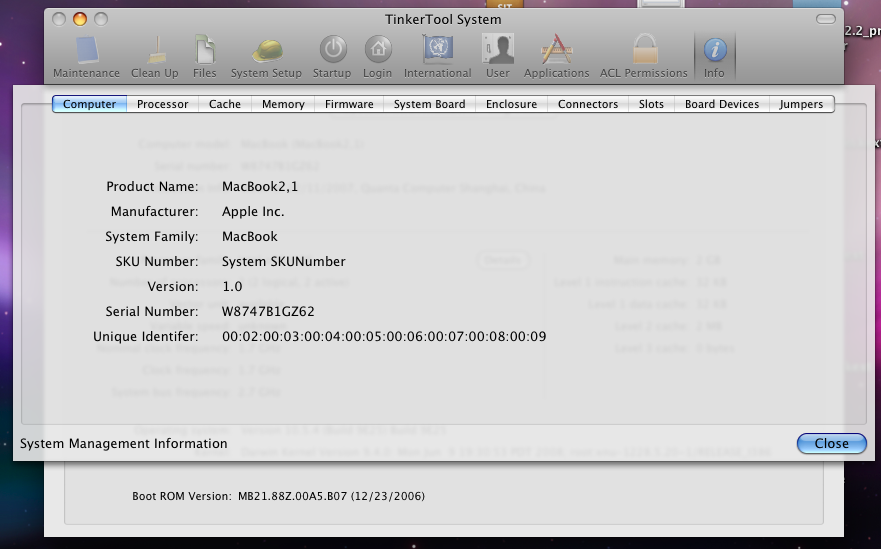

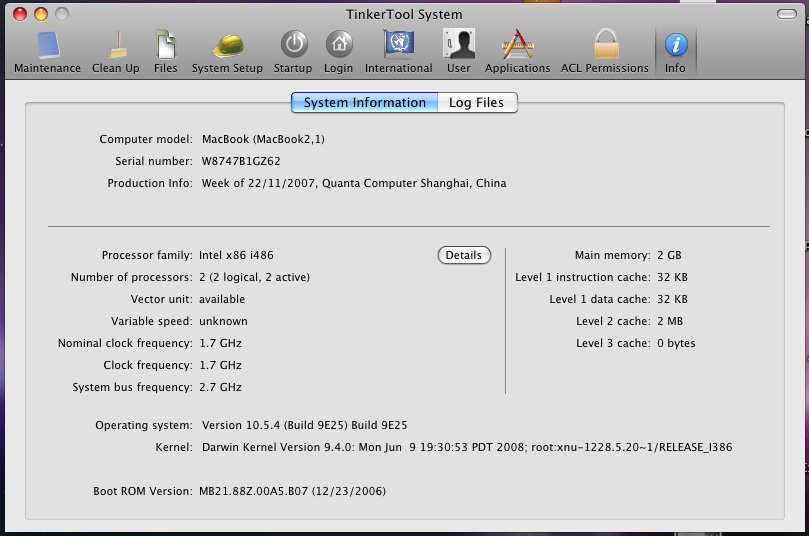

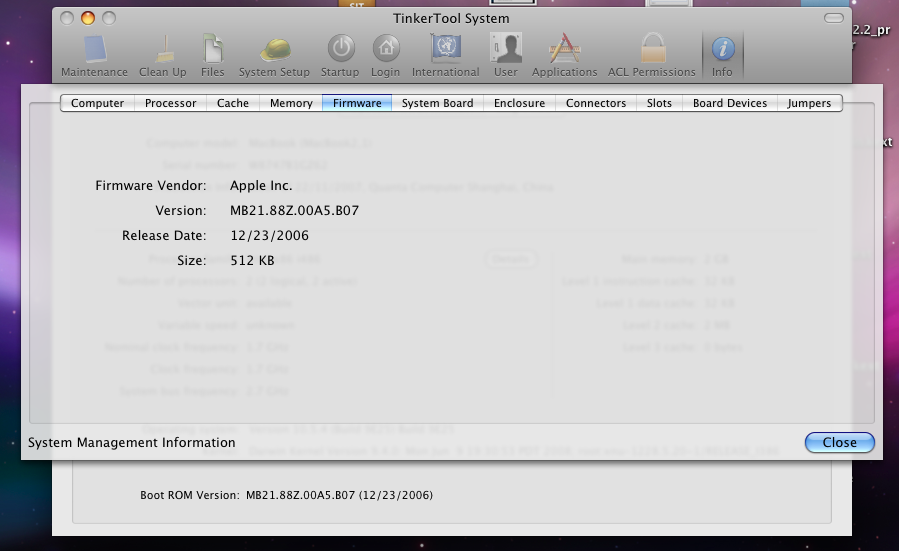

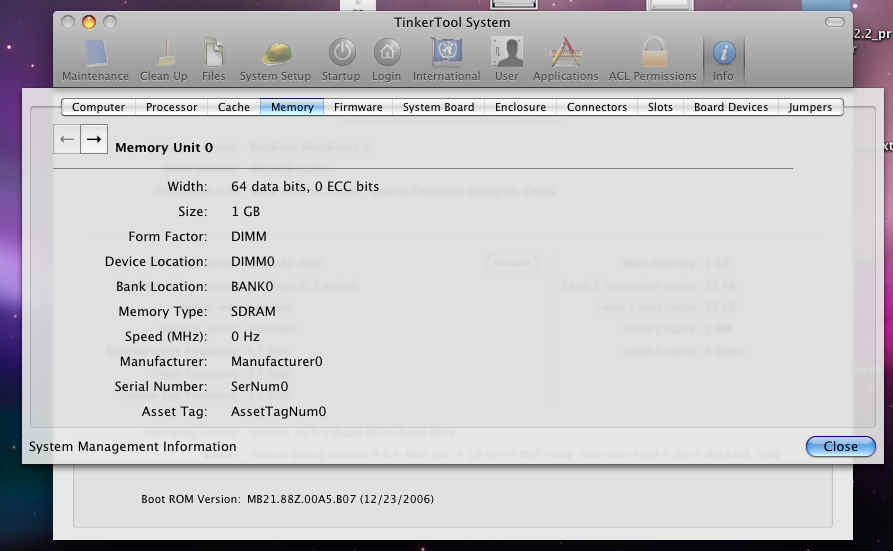

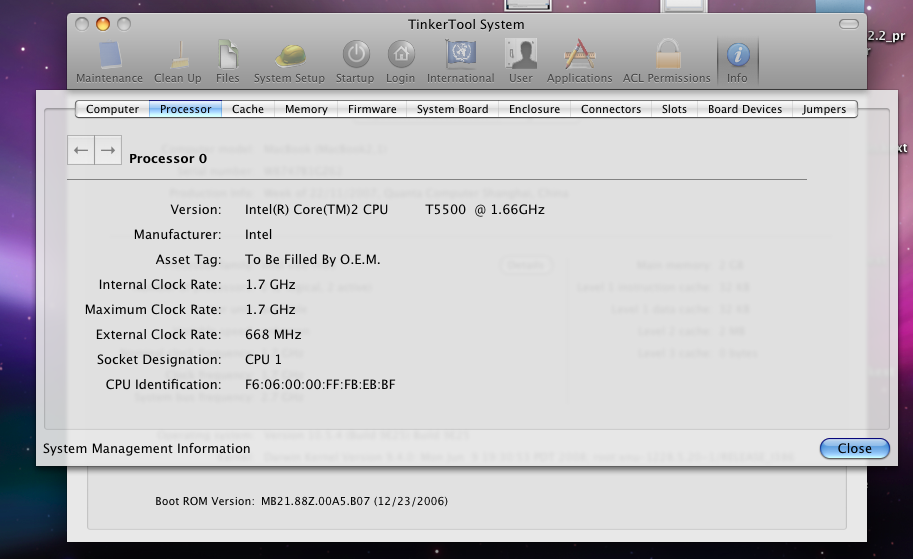

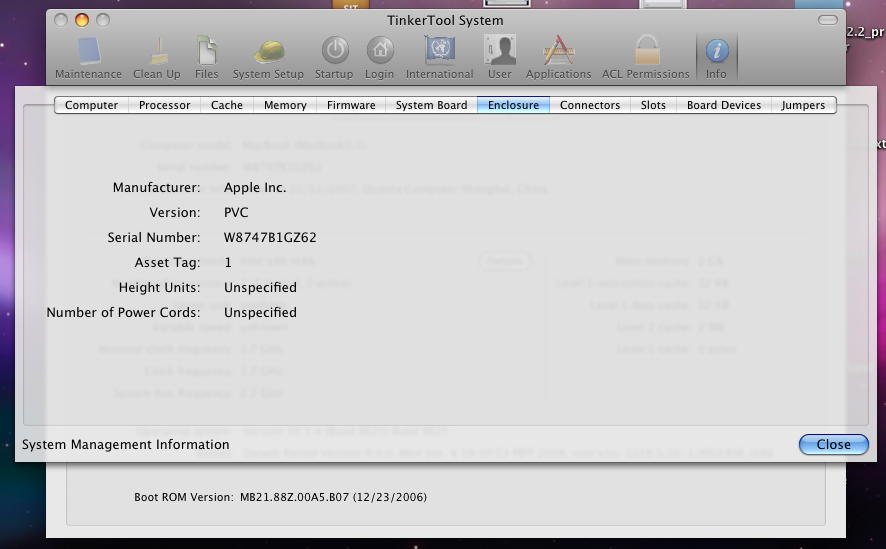

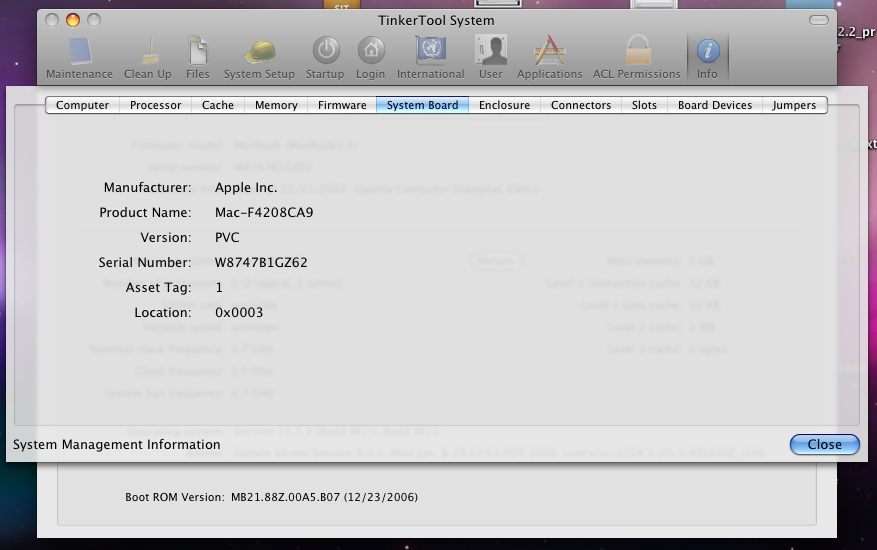

TinkerTool System shows










I thank you in advance for any info or help that you can give

×
×
