hp 6130 em419pa

[kim board]

ATI Mobility Radeon X300 VRAM (id=5460) 128mb Drivers? (patched?)

how can this card be run fully?



my system nx6130

CPU Intel Pentium M 750 (1.86GHz) - i915GM chiset

RAM 1024MB DDR2 SDRAM 533MHz

L2 CACHE 2MB

RESOLUTION SXGA+ (1,400 x 1,050)

VGA ATI Mobility Radeon X300 VRAM (id=5460)



Display:

Type: VGA-Compatible Controller

Bus: PCIe

VRAM (Total): 128 MB

Vendor: ATI (0x1002)

Device ID: 0x5460

Revision ID: 0x0000

Kernel Extension Info: No Kext Loaded

Displays:

Display:

Resolution: 800 x 600

Depth: 32-bit Color

Core Image: Not Supported

Main Display: Yes

Mirror: Off

nline: Yes

Quartz Extreme: Not Supported



ATI MOBILITY RADEON X300

ATI Technologies Inc.

ID=PCI\VEN_1002&DEV_5460&SUBSYS_300F103C&REV_00

ATI Mobility Radeon X300 (M22) Video Adapter



IRQ 16

memory 000A0000-000BFFFF

memory C0000000-C7FFFFFF

memory C8400000-C840FFFF

port 03B0-03BB

port 03C0-03DF

port 2000-20FF



bus ID 1002-5460

sub ID 103C-300F

dev 0300 (VGA Display Controller)



Field Value

Device Properties

Driver Description Mobile Intel® 915GM/PM Express PCI Express Root Port - 2591

Driver Date 2004-05-26

Driver Version 6.1.0.1008

Driver Provider Intel

INF File 915m.inf

Hardware ID PCI\VEN_8086&DEV_2591&SUBSYS_00000000&REV_03

Location Information PCI 버스 0, 장치 1, 기능 0

PCI Device Intel 82915PM PCI Express Graphics Root [C-0]



Device Resources

IRQ 16

Memory 000A0000-000BFFFF

Memory C0000000-C7FFFFFF

Memory C8400000-C87FFFFF

Port 03B0-03BB

Port 03C0-03DF

Port 2000-2FFF



Field Value

Device Properties

Driver Description Mobile Intel® 915GM/PM/GMS/910GML Express Processor to DRAM Controller - 2590

Driver Date 2004-05-26

Driver Version 6.1.0.1008

Driver Provider Intel

INF File 915m.inf

Hardware ID PCI\VEN_8086&DEV_2590&SUBSYS_00000000&REV_03

Location Information PCI 버스 0, 장치 0, 기능 0

PCI Device Intel 82915PM Memory Controller Hub [C-0]



http://forum.osx86project.org/index.php?showtopic=10415

patch = no match device



http://forum.osx86project.org/index.php?showtopic=4301

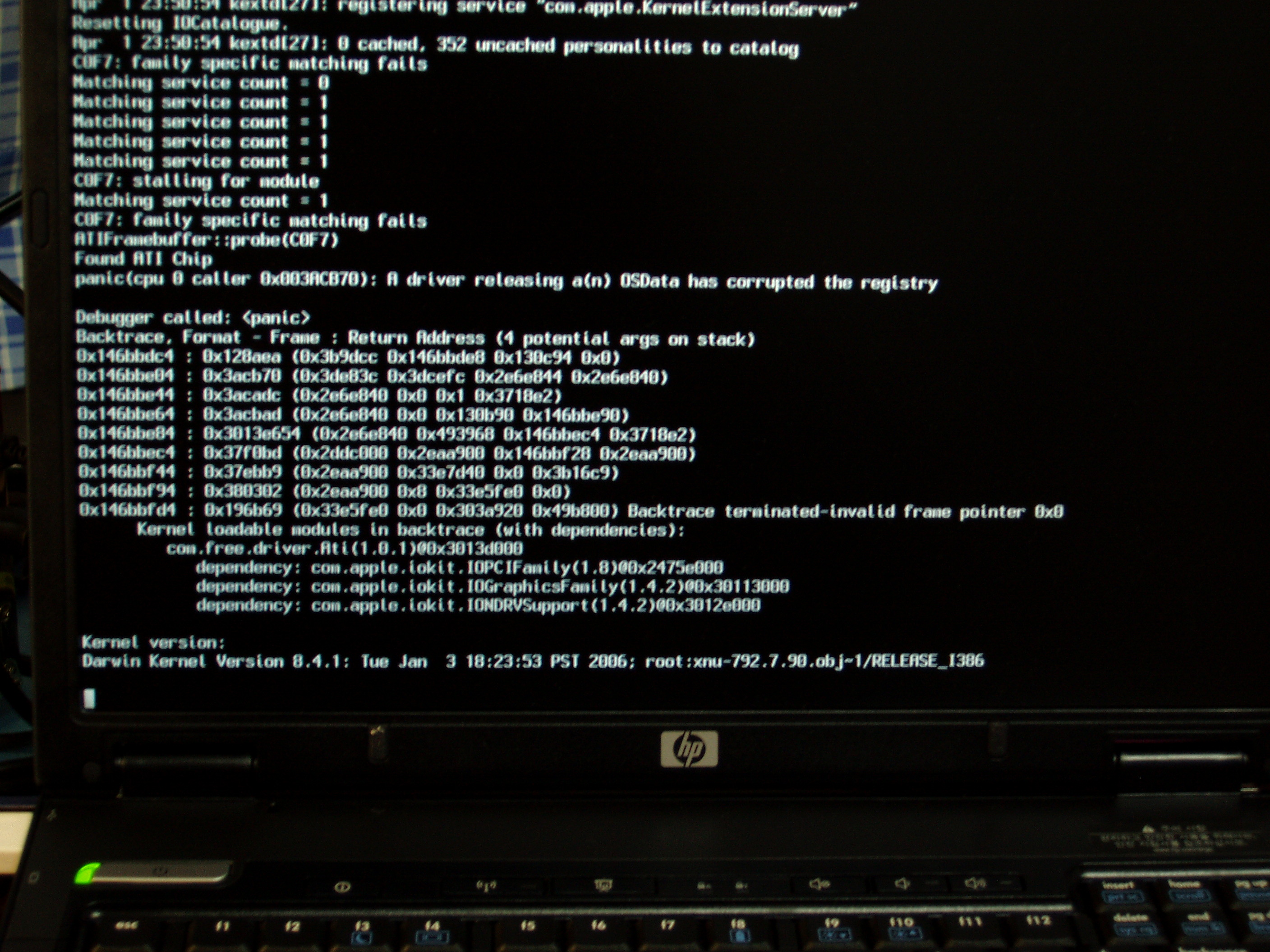

patch = panic



Bus:PCIe help me!!!!

[kim board]

system.log



Apr 3 13:07:27 localhost kernel[0]: IOPCCardBridge::start failed



Apr 3 13:07:27 localhost kernel[0]: IOPCCard info: Intel PCIC probe: not found.



Apr 3 13:07:27 localhost kernel[0]: IOPCCardBridge::start failed



Apr 3 13:07:27 localhost kernel[0]: USB caused wake event (EHCI)



Apr 3 13:07:27 localhost kernel[0]: AppleIntelPIIXPATA: Secondary PCI IDE channel is disabled



Apr 3 13:07:27 localhost kernel[0]: AppleIntelPIIXPATA: ICH6 ATA/100 (CMD 0x1f0, CTR 0x3f4, IRQ 14, BM 0x3580)



Apr 3 13:07:27 localhost kernel[0]: FireWire (OHCI) TI ID 8032 PCI now active, GUID 718b500029e547a6; max speed s400.



Apr 3 13:07:27 localhost kernel[0]: Got boot device = IOService:/AppleACPIPlatformExpert/C002@0/AppleACPIPCI/C0A6@1F,1/AppleIntelPIIXATARoot/C1D5@0/AppleIntelPIIXPATA/ATADeviceNub@0/IOATABlockStorageDriver/IOATABlockStorageDevice/IOBlockStorageDriver/FUJITSU MHT2080AH PL Media/IOFDiskPartitionScheme/Untitled 1@1



Apr 3 13:07:27 localhost kernel[0]: BSD root: disk0s1, major 14, minor 1



Apr 3 13:07:27 localhost kernel[0]: Jettisoning kernel linker.



Apr 3 13:07:27 localhost kernel[0]: Resetting IOCatalogue.



Apr 3 13:07:27 localhost kernel[0]: C0F7: family specific matching fails



Apr 3 13:07:27 localhost kernel[0]: Matching service count = 0



Apr 3 13:07:27 localhost kernel[0]: Matching service count = 2



Apr 3 13:07:27 localhost kernel[0]: Matching service count = 2



Apr 3 13:07:27 localhost kernel[0]: Matching service count = 2



Apr 3 13:07:27 localhost kernel[0]: Matching service count = 2



Apr 3 13:07:27 localhost kernel[0]: C0F7: family specific matching fails



Apr 3 13:07:27 localhost kernel[0]: Apple16X50ACPI0: Identified Serial Port on ACPI Device=C19C



Apr 3 13:07:27 localhost kernel[0]: Apple16X50UARTSync0: Detected 16550AF/C/CF FIFO=16 MaxBaud=115200



Apr 3 13:07:27 localhost kernel[0]: C0F7: family specific matching fails



Apr 3 13:07:27 localhost kernel[0]: ApplePS2Trackpad: Synaptics TouchPad v6.2



Apr 3 13:07:27 localhost kernel[0]: AppleAC97CodecAD198x: 2-to-4 channel spreading enabled



Apr 3 13:07:27 localhost memberd[54]: memberd starting up



Apr 3 13:07:27 localhost mDNSResponder-108 (Dec 25 2005 11: 57:53)[47]: starting



Apr 3 13:07:27 localhost lookupd[58]: lookupd (version 369.3) starting - Mon Apr 3 13:07:27 2006



Apr 3 13:07:27 localhost DirectoryService[59]: Launched version 2.1 (v352.1)



Apr 3 13:07:27 localhost configd[51]: com.apple.SystemConfiguration.DynamicPowerStep load failed



Apr 3 13:07:27 localhost /System/Library/CoreServices/loginwindow.app/Contents/MacOS/loginwindow: Login Window Application Started



Apr 3 13:07:27 localhost diskarbitrationd[53]: disk0s1 hfs 6F19523B-1885-3B96-B5D2-F52D68999AC8 Mac OS X /



Apr 3 13:07:28 localhost kernel[0]: BCM5701Enet: Ethernet address 00:14:c2:dc:35:9dC0F7: vram [c0000000:08000000]



Apr 3 13:07:28 localhost launchd: Server 332b in bootstrap 1103 uid 0: "/usr/sbin/lookupd"[58]: exited abnormally: Hangup



Apr 3 13:07:28 localhost diskarbitrationd[53]: disk0s2 hfs 838A0EC6-1AC8-32E7-8849-3352D8990B61 Mac Data /Volumes/Mac Data



Apr 3 13:07:28 localhost lookupd[90]: lookupd (version 369.3) starting - Mon Apr 3 13:07:28 2006



Apr 3 13:07:28 localhost loginwindow[67]: Login Window Started Security Agent



Apr 3 13:07:28 localhost diskarbitrationd[53]: disk0s3 ntfs 00000000-0000-0000-0000-000000000000 win XP /Volumes/win XP



Apr 3 13:07:29 localhost configd[51]: WirelessAirPortDeviceNameCopy(): no AirPort driver found



Apr 3 13:07:29 localhost configd[51]: AppleTalk startup



Apr 3 13:07:29 redwolfs-computer configd[51]: setting hostname to "redwolfs-computer.local"



Apr 3 13:07:29 redwolfs-computer configd[51]: WirelessAirPortDeviceNameCopy(): no AirPort driver found



Apr 3 13:07:31 redwolfs-computer mDNSResponder: Adding browse domain local.



Apr 3 13:07:31 redwolfs-computer diskarbitrationd[53]: disk0s5 msdos 00000000-0000-0000-0000-000000000000 WIN DATA /Volumes/WIN DATA



Apr 3 13:07:34 redwolfs-computer configd[51]: AppleTalk startup complete



Apr 3 13:07:34 redwolfs-computer configd[51]: AppleTalk shutdown



Apr 3 13:07:34 redwolfs-computer configd[51]: AppleTalk shutdown complete
