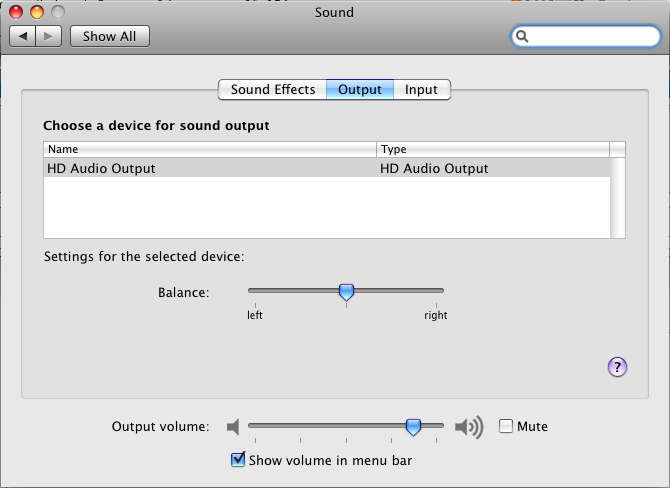

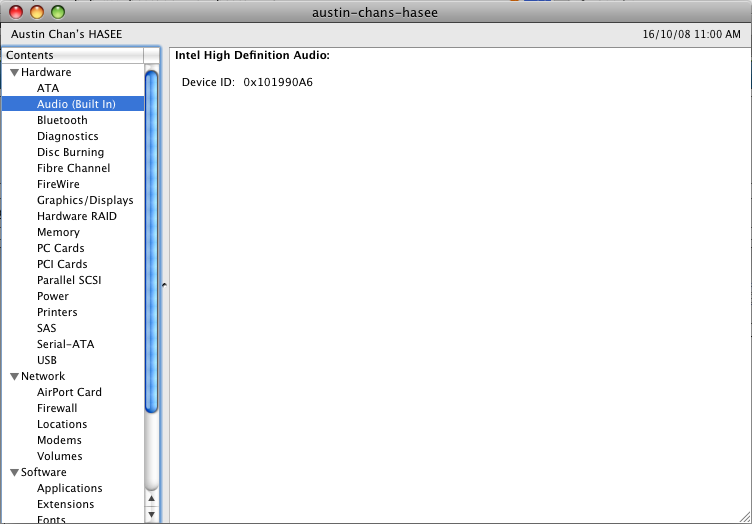

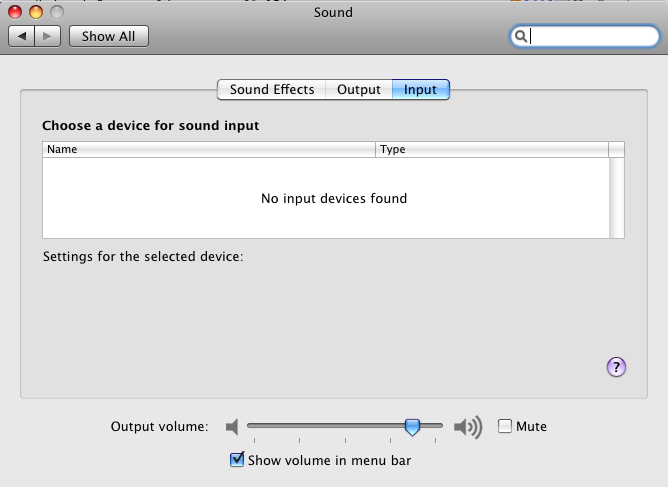

kidalive Posted October 16, 2008 Share Posted October 16, 2008 I got a laptop with alc883 ich8 integrated sound card.The only issue I got is the audio line-in jack and only 2-channels from the built-in speaker. Here you go.It`s the info I can got hope it helps you guys solve the problem. AND MY LINUX CODEC DUMP SHOWED IT`S Address: 1. Here is my audio codec dump: Codec: Realtek ALC883 Address: 1 Vendor Id: 0x10ec0883 Subsystem Id: 0x10190000 Revision Id: 0x100002 No Modem Function Group found Default PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Default Amp-In caps: N/A Default Amp-Out caps: N/A GPIO: io=2, o=0, i=0, unsolicited=1, wake=0 IO[0]: enable=0, dir=0, wake=0, sticky=0, data=0 IO[1]: enable=0, dir=0, wake=0, sticky=0, data=0 Node 0x02 [Audio Output] wcaps 0x11: Stereo Converter: stream=0, channel=0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Node 0x03 [Audio Output] wcaps 0x11: Stereo Converter: stream=0, channel=0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Node 0x04 [Audio Output] wcaps 0x11: Stereo Converter: stream=0, channel=0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Node 0x05 [Audio Output] wcaps 0x11: Stereo Converter: stream=0, channel=0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Node 0x06 [Audio Output] wcaps 0x211: Stereo Digital Converter: stream=0, channel=0 Digital: Digital category: 0x0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0x1e]: 16 20 24 32 formats [0x1]: PCM Node 0x07 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x08 [Audio Input] wcaps 0x10011b: Stereo Amp-In Amp-In caps: ofs=0x08, nsteps=0x1f, stepsize=0x05, mute=1 Amp-In vals: [0x00 0x00] Converter: stream=0, channel=0 SDI-Select: 0 PCM: rates [0x160]: 44100 48000 96000 bits [0x6]: 16 20 formats [0x1]: PCM Connection: 1 0x23 Node 0x09 [Audio Input] wcaps 0x10011b: Stereo Amp-In Amp-In caps: ofs=0x08, nsteps=0x1f, stepsize=0x05, mute=1 Amp-In vals: [0x00 0x00] Converter: stream=0, channel=0 SDI-Select: 0 PCM: rates [0x160]: 44100 48000 96000 bits [0x6]: 16 20 formats [0x1]: PCM Connection: 1 0x22 Node 0x0a [Audio Input] wcaps 0x100391: Stereo Digital Converter: stream=0, channel=0 SDI-Select: 0 Digital: Digital category: 0x0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0x1e]: 16 20 24 32 formats [0x1]: PCM Unsolicited: tag=00, enabled=0 Connection: 1 0x1f Node 0x0b [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x17, nsteps=0x1f, stepsize=0x05, mute=1 Amp-In vals: [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] Connection: 10 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17 Node 0x0c [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0 Amp-Out vals: [0x0f 0x0f] Connection: 2 0x02 0x0b Node 0x0d [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0 Amp-Out vals: [0x0f 0x0f] Connection: 2 0x03 0x0b Node 0x0e [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0 Amp-Out vals: [0x00 0x00] Connection: 2 0x04 0x0b Node 0x0f [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0 Amp-Out vals: [0x00 0x00] Connection: 2 0x05 0x0b Node 0x10 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x11 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x12 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x13 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x14 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x083e: IN OUT HP Detect Trigger Pin Default 0x0121101f: [Jack] HP Out at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0x1, Sequence = 0xf Pin-ctls: 0xc0: OUT HP Unsolicited: tag=00, enabled=0 Connection: 5 0x0c 0x0d* 0x0e 0x0f 0x26 Node 0x15 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x083e: IN OUT HP Detect Trigger Pin Default 0x99130110: [Fixed] Speaker at Int ATAPI Conn = ATAPI, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x40: OUT Unsolicited: tag=00, enabled=0 Connection: 5 0x0c 0x0d* 0x0e 0x0f 0x26 Node 0x16 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x083e: IN OUT HP Detect Trigger Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x20: IN Unsolicited: tag=00, enabled=0 Connection: 5 0x0c 0x0d 0x0e* 0x0f 0x26 Node 0x17 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x083e: IN OUT HP Detect Trigger Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x20: IN Unsolicited: tag=00, enabled=0 Connection: 5 0x0c 0x0d 0x0e 0x0f* 0x26 Node 0x18 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x08173e: IN OUT HP Detect Trigger Vref caps: HIZ 50 GRD 80 Pin Default 0x01a19830: [Jack] Mic at Ext Rear Conn = 1/8, Color = Pink DefAssociation = 0x3, Sequence = 0x0 Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=00, enabled=0 Connection: 5 0x0c* 0x0d 0x0e 0x0f 0x26 Node 0x19 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x08173e: IN OUT HP Detect Trigger Vref caps: HIZ 50 GRD 80 Pin Default 0x99a3093f: [Fixed] Mic at Int ATAPI Conn = ATAPI, Color = Unknown DefAssociation = 0x3, Sequence = 0xf Misc = NO_PRESENCE Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=00, enabled=0 Connection: 5 0x0c* 0x0d 0x0e 0x0f 0x26 Node 0x1a [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x08173e: IN OUT HP Detect Trigger Vref caps: HIZ 50 GRD 80 Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x20: IN VREF_HIZ Unsolicited: tag=00, enabled=0 Connection: 5 0x0c* 0x0d 0x0e 0x0f 0x26 Node 0x1b [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x08173e: IN OUT HP Detect Trigger Vref caps: HIZ 50 GRD 80 Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x20: IN VREF_HIZ Unsolicited: tag=00, enabled=0 Connection: 5 0x0c* 0x0d 0x0e 0x0f 0x26 Node 0x1c [Pin Complex] wcaps 0x400001: Stereo Pincap 0x0820: IN Pin Default 0x593301f0: [N/A] CD at Int ATAPI Conn = ATAPI, Color = Unknown DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x00: Node 0x1d [Pin Complex] wcaps 0x400000: Mono Pincap 0x0820: IN Pin Default 0x598301f0: [N/A] Line In at Int ATAPI Conn = ATAPI, Color = Unknown DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x00: Node 0x1e [Pin Complex] wcaps 0x400300: Mono Digital Pincap 0x0810: OUT Pin Default 0x01451120: [Jack] SPDIF Out at Ext Rear Conn = Optical, Color = Black DefAssociation = 0x2, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x00: Connection: 1 0x06 Node 0x1f [Pin Complex] wcaps 0x400200: Mono Digital Pincap 0x0820: IN Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x00: Node 0x20 [Vendor Defined Widget] wcaps 0xf00040: Mono Processing caps: benign=0, ncoeff=17 Node 0x21 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x22 [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x80 0x80] [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] Amp-Out caps: N/A Amp-Out vals: [0x00 0x00] Connection: 11 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17 0x0b Node 0x23 [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x80 0x80] [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] Amp-Out caps: N/A Amp-Out vals: [0x00 0x00] Connection: 11 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17 0x0b Node 0x24 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x25 [Audio Output] wcaps 0x11: Stereo Converter: stream=0, channel=0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Node 0x26 [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0 Amp-Out vals: [0x00 0x00] Connection: 2 0x25 0x0b Link to comment Share on other sites More sharing options...
