cenkiravul Posted August 11, 2008 Share Posted August 11, 2008 please help! i've been searching the entire forum but it seems no one uses realtek AL662 i've installed 10.5.2 kalyway everything works fine but there is no audio (input or output). what should i do? intel q6600 2 gigs Kingston hyperx 1066 mhz gigabyte p35-s3g GeForce 8800gt Link to comment https://www.insanelymac.com/forum/topic/120537-al662-does-not-work/ Share on other sites More sharing options...
cenkiravul Posted August 11, 2008 Author Share Posted August 11, 2008 anyone? please help! Link to comment https://www.insanelymac.com/forum/topic/120537-al662-does-not-work/#findComment-853325 Share on other sites More sharing options...
cenkiravul Posted August 12, 2008 Author Share Posted August 12, 2008 I've managed to start the device with vanilla kernel but just output works. And in system profiler, there is no audio device shown. I guess noone has the AL662 codec. Link to comment https://www.insanelymac.com/forum/topic/120537-al662-does-not-work/#findComment-853749 Share on other sites More sharing options...
Woutje Posted August 12, 2008 Share Posted August 12, 2008 I do have the ALC662-GR codec on my notebook.. But I cannot get audio out of it.. I've used the HDApatcher v1.20 and the generic AzaliaAudio kexts, but I get no sound at all.. To get full ALC662 sound, we need a Linux codec dump with amplifier settings.. Link to comment https://www.insanelymac.com/forum/topic/120537-al662-does-not-work/#findComment-853810 Share on other sites More sharing options...
cenkiravul Posted August 12, 2008 Author Share Posted August 12, 2008 is the al662 same with alc662? Link to comment https://www.insanelymac.com/forum/topic/120537-al662-does-not-work/#findComment-853827 Share on other sites More sharing options...
Woutje Posted August 12, 2008 Share Posted August 12, 2008 I think AL662 is ALC662 ... typo?? Never heard of an AL662 codec.. Link to comment https://www.insanelymac.com/forum/topic/120537-al662-does-not-work/#findComment-854031 Share on other sites More sharing options...
cenkiravul Posted August 13, 2008 Author Share Posted August 13, 2008 i think noone has. i've found just one person who has the same mainboard. Link to comment https://www.insanelymac.com/forum/topic/120537-al662-does-not-work/#findComment-855269 Share on other sites More sharing options...
whayes75 Posted August 14, 2008 Share Posted August 14, 2008 I have the al662 and it is working with a vanilla install using a patched apple hda. I also used efi studio to add efi strings and I don't need appleazailia. I do get sound output, but cannot control the volume via the system systems, but within itunes I can control the volume. Not sure about input or anything else. Here is the alc662.txt file I used with HDApatcher (just take the lines between the begin here and end here lines) --------Begin here---------- Codec: Realtek ALC662 rev1 Address: 0 Vendor Id: 0x10ec0662 Subsystem Id: 0x10438249 Revision Id: 0x100101 Default PCM: rates [0x160]: 44100 48000 96000 bits [0xe]: 16 20 24 formats [0x1]: PCM Default Amp-In caps: N/A Default Amp-Out caps: N/A Node 0x02 [Audio Output] wcaps 0x1d: Stereo Amp-Out Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0 Amp-Out vals: [0x34 0x34] PCM: rates [0x160]: 44100 48000 96000 bits [0xe]: 16 20 24 formats [0x1]: PCM Node 0x03 [Audio Output] wcaps 0x1d: Stereo Amp-Out Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0 Amp-Out vals: [0x40 0x40] PCM: rates [0x160]: 44100 48000 96000 bits [0xe]: 16 20 24 formats [0x1]: PCM Node 0x04 [Audio Output] wcaps 0x1d: Stereo Amp-Out Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0 Amp-Out vals: [0x40 0x40] PCM: rates [0x160]: 44100 48000 96000 bits [0xe]: 16 20 24 formats [0x1]: PCM Node 0x05 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x06 [Audio Output] wcaps 0x211: Stereo Digital PCM: rates [0x160]: 44100 48000 96000 bits [0x1e]: 16 20 24 32 formats [0x1]: PCM Node 0x07 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x08 [Audio Input] wcaps 0x10011b: Stereo Amp-In Amp-In caps: ofs=0x09, nsteps=0x1f, stepsize=0x05, mute=1 Amp-In vals: [0x89 0x89] PCM: rates [0x160]: 44100 48000 96000 bits [0x6]: 16 20 formats [0x1]: PCM Connection: 1 0x23 Node 0x09 [Audio Input] wcaps 0x10011b: Stereo Amp-In Amp-In caps: ofs=0x09, nsteps=0x1f, stepsize=0x05, mute=1 Amp-In vals: [0x89 0x89] PCM: rates [0x160]: 44100 48000 96000 bits [0x6]: 16 20 formats [0x1]: PCM Connection: 1 0x22 Node 0x0a [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x0b [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x17, nsteps=0x1f, stepsize=0x05, mute=1 Amp-In vals: [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] Connection: 9 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 Node 0x0c [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x80 0x80] Connection: 2 0x02 0x0b Node 0x0d [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x80 0x80] Connection: 2 0x03 0x0b Node 0x0e [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x80 0x80] Connection: 2 0x04 0x0b Node 0x0f [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x10 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x11 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x12 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x13 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x14 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x081003c: IN OUT HP EAPD Detect Pin Default 0x01014010: [Jack] Line Out at Ext Rear Conn = 1/8, Color = Green Pin-ctls: 0x40: OUT Connection: 1 0x0c Node 0x15 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x0810034: IN OUT EAPD Detect Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black Pin-ctls: 0x20: IN Connection: 1 0x0d Node 0x16 [Pin Complex] wcaps 0x40018d: Stereo Amp-Out Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x0834: IN OUT Detect Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black Pin-ctls: 0x20: IN Connection: 1 0x0e Node 0x17 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x18 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x081734: IN OUT Detect Pin Default 0x01a19840: [Jack] Mic at Ext Rear Conn = 1/8, Color = Pink Pin-ctls: 0x24: IN Connection: 1 0x0e Node 0x19 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x08173c: IN OUT HP Detect Pin Default 0x02a19950: [Jack] Mic at Ext Front Conn = 1/8, Color = Pink Pin-ctls: 0x24: IN Connection: 2 0x0c* 0x0e Node 0x1a [Pin Complex] wcaps 0x40018d: Stereo Amp-Out Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x0834: IN OUT Detect Pin Default 0x0181304f: [Jack] Line In at Ext Rear Conn = 1/8, Color = Blue Pin-ctls: 0x20: IN Connection: 1 0x0d Node 0x1b [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x08173c: IN OUT HP Detect Pin Default 0x02214120: [Jack] HP Out at Ext Front Conn = 1/8, Color = Green Pin-ctls: 0xc0: OUT HP Connection: 2 0x0c* 0x0e Node 0x1c [Pin Complex] wcaps 0x400001: Stereo Pincap 0x0820: IN Pin Default 0x593301f0: [N/A] CD at Int ATAPI Conn = ATAPI, Color = Unknown Pin-ctls: 0x20: IN Node 0x1d [Pin Complex] wcaps 0x400000: Mono Pincap 0x0820: IN Pin Default 0x4005c603: [N/A] Line Out at Ext N/A Conn = Optical, Color = UNKNOWN Pin-ctls: 0x20: IN Node 0x1e [Pin Complex] wcaps 0x400300: Mono Digital Pincap 0x0810: OUT Pin Default 0x99430130: [Fixed] SPDIF Out at Int ATAPI Conn = ATAPI, Color = Unknown Pin-ctls: 0x40: OUT Connection: 1 0x06 Node 0x1f [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x20 [Vendor Defined Widget] wcaps 0xf00040: Mono Node 0x21 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x22 [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] Connection: 10 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x0b Node 0x23 [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] Connection: 10 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x0b Node 0x24 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x25 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x26 [Vendor Defined Widget] wcaps 0xf00000: Mono --------End here---------- Link to comment https://www.insanelymac.com/forum/topic/120537-al662-does-not-work/#findComment-856611 Share on other sites More sharing options...
cenkiravul Posted September 3, 2008 Author Share Posted September 3, 2008 thanks a lot, but with 10.5.2 kalyway vanilla kernel al662 output works fine without need for any patch. Link to comment https://www.insanelymac.com/forum/topic/120537-al662-does-not-work/#findComment-878354 Share on other sites More sharing options...

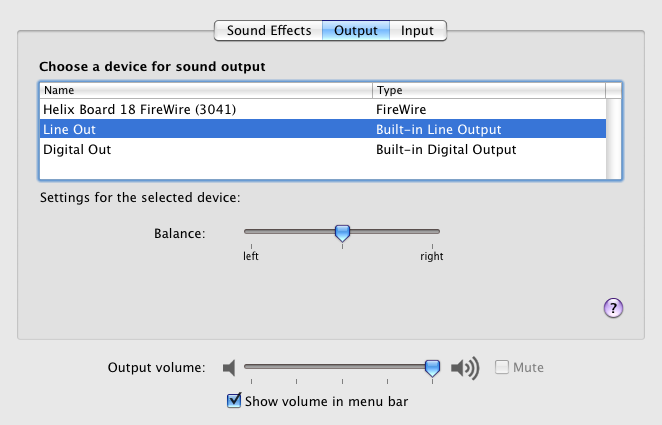

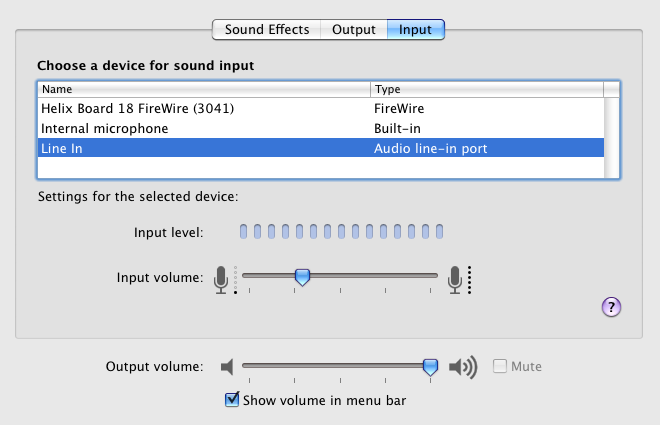

Kit67 Posted September 20, 2008 Share Posted September 20, 2008 All the controls show up but no audio. ICH7 ALC662 I'll post the HDA Kext on next visit.(By Taruga) All my specs are below. EDIT: Link: http://www.mediafire.com/?sharekey=64d6ca6...2db6fb9a8902bda Link to comment https://www.insanelymac.com/forum/topic/120537-al662-does-not-work/#findComment-898527 Share on other sites More sharing options...
