sioh Posted October 20, 2015 Share Posted October 20, 2015 Hello guys, In the past (since Leopard) I was always able to get my rig running with the most recent release of OSX. But El Capitan is driving me crazy. Rig: GigaByte GA-P55M-UD2 1.1 Intel Core i5 750 8GB DDR3-1333 Kinston Memory Sapphire HD4890 1GB The installation of 10.11 itself was pretty easy: Download El Capitan from Store while under Yosemite Create USB thumb drive Boot from mentioned USB Install 10.11 on a fresh and empty SSD Install Clover r3292 Ethernet was running on first boot (Realtek 8111-Chip), Audio is not available, Video is running but w/o QE&CI. As far as I can see getting Audio up and running will take some time and also its not my topic right now. But QE&CI is! As always after an installation of an OSX I was searching for the suitable QE&CI patch from fantomas (thx to him by the way, always quick and easy), downloaded and installed them with kext utility (to S/L/E). Fixed permissions, rebuilded caches. But: No hardware acceleration of the video device! I read through tons of threads, here and elsewere. Tried a lot with FakeID, KextsToPatch, Bootflags and played with Framebuffers for a couple of days. But no success. Please, would someone take a look at my config and give advice how I should set it up to get QE&CI up and running? Current config.plist <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>ACPI</key> <dict> <key>DSDT</key> <dict> <key>Debug</key> <false/> <key>DropOEM_DSM</key> <false/> <key>Fixes</key> <dict> <key>AddDTGP_0001</key> <true/> <key>FixHDA_8000</key> <true/> <key>FixHPET_0010</key> <true/> </dict> <key>Name</key> <string>DSDT.aml</string> <key>ReuseFFFF</key> <false/> </dict> <key>SSDT</key> <dict> <key>DropOem</key> <false/> <key>Generate</key> <false/> </dict> </dict> <key>Boot</key> <dict> <key>Arguments</key> <string>dart=0 kext-dev-mode=1</string> <key>Debug</key> <true/> <key>DefaultVolume</key> <string>LastBootedVolume</string> <key>Legacy</key> <string>PBR</string> <key>Secure</key> <false/> <key>Timeout</key> <integer>5</integer> <key>XMPDetection</key> <false/> </dict> <key>Devices</key> <dict> <key>Audio</key> <dict> <key>Inject</key> <string>Detect</string> </dict> <key>FakeID</key> <dict> <key>ATI</key> <string>0x94401002</string> <key>IMEI</key> <string>0x0</string> <key>IntelGFX</key> <string>0x0</string> <key>LAN</key> <string>0x0</string> <key>NVidia</key> <string>0x0</string> <key>SATA</key> <string>0x0</string> <key>WIFI</key> <string>0x0</string> <key>XHCI</key> <string>0x0</string> </dict> <key>USB</key> <dict> <key>FixOwnership</key> <false/> <key>Inject</key> <false/> </dict> </dict> <key>GUI</key> <dict> <key>Hide</key> <array> <string>\EFI\BOOT\BOOTX64.EFI</string> <string>Windows</string> </array> <key>Language</key> <string>de:0</string> <key>Mouse</key> <dict> <key>DoubleClick</key> <integer>500</integer> <key>Enabled</key> <true/> <key>Mirror</key> <false/> <key>Speed</key> <integer>8</integer> </dict> <key>Scan</key> <dict> <key>Entries</key> <true/> <key>Legacy</key> <string>First</string> <key>Tool</key> <true/> </dict> <key>ScreenResolution</key> <string>1920x1080</string> <key>Theme</key> <string>mac</string> </dict> <key>Graphics</key> <dict> <key>FBName</key> <string>Motmot</string> <key>Inject</key> <dict> <key>ATI</key> <true/> <key>Intel</key> <false/> <key>NVidia</key> <false/> </dict> <key>NvidiaSingle</key> <false/> </dict> <key>KernelAndKextPatches</key> <dict> <key>AppleRTC</key> <true/> <key>AsusAICPUPM</key> <true/> <key>Debug</key> <false/> <key>KernelCpu</key> <false/> <key>KernelHaswellE</key> <false/> <key>KernelLapic</key> <false/> <key>KernelPm</key> <true/> <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>External icons patch</string> <key>Find</key> <data> RXh0ZXJuYWw= </data> <key>Name</key> <string>AppleAHCIPort</string> <key>Replace</key> <data> SW50ZXJuYWw= </data> </dict> <dict> <key>Find</key> <data> OTQ0MDEwMDI= </data> <key>InfoPlistPatch</key> <true/> <key>Name</key> <string>AMD4800Controller</string> <key>Replace</key> <data> OTQ2MDEwMDI= </data> </dict> <dict> <key>Find</key> <data> OTQ0MDEwMDI= </data> <key>InfoPlistPatch</key> <true/> <key>Name</key> <string>ATIRadeonX2000</string> <key>Replace</key> <data> OTQ2MDEwMDI= </data> </dict> </array> </dict> <key>RtVariables</key> <dict> <key>BooterConfig</key> <string>0x28</string> <key>CsrActiveConfig</key> <string>0x67</string> </dict> <key>SMBIOS</key> <dict> <key>BiosReleaseDate</key> <string>03/17/10</string> <key>BiosVendor</key> <string>Apple Inc.</string> <key>BiosVersion</key> <string>IM111.88Z.0034.B02.1003171314</string> <key>Board-ID</key> <string>Mac-F2268DAE</string> <key>BoardManufacturer</key> <string>Apple Inc.</string> <key>BoardType</key> <integer>10</integer> <key>ChassisAssetTag</key> <string>iMac-Aluminum</string> <key>ChassisManufacturer</key> <string>Apple Inc.</string> <key>ChassisType</key> <string>13</string> <key>Family</key> <string>iMac</string> <key>Manufacturer</key> <string>Apple Inc.</string> <key>ProductName</key> <string>iMac11,1</string> <key>SerialNumber</key> <string>QP0108HG5RU</string> <key>Trust</key> <false/> <key>Version</key> <string>1.0</string> </dict> <key>SystemParameters</key> <dict> <key>InjectKexts</key> <string>Detect</string> <key>InjectSystemID</key> <true/> </dict> </dict> </plist> ioreg El Capitan | | +-o pci-bridge@3 <class IOPCIDevice, id 0x1000001bf, registered, matched, active, busy 0 (3931 ms), retain 12> | | | +-o IOPP <class IOPCI2PCIBridge, id 0x1000001e6, registered, matched, active, busy 0 (3918 ms), retain 10> | | | +-o display@0 <class IOPCIDevice, id 0x1000001c8, registered, matched, active, busy 0 (3918 ms), retain 17> | | | | +-o AMD4800Controller <class AMD4800Controller, id 0x100000210, registered, matched, active, busy 0 (0 ms), retain 5> | | | | +-o ATY,MotMot@0 <class AtiFbStub, id 0x100000223, registered, matched, active, busy 0 (22 ms), retain 8> | | | | | +-o ATY_MotMot <class AMDFramebuffer, id 0x1000002a2, registered, matched, active, busy 0 (20 ms), retain 17> | | | | | +-o AppleMCCSControlModule <class AppleMCCSControlModule, id 0x1000002b9, registered, matched, active, busy 0 (2 ms), retain 6> | | | | | | +-o AppleMCCSParameterHandler <class AppleMCCSParameterHandler, id 0x1000002c0, registered, matched, active, busy 0 (0 ms), retain 5> | | | | | +-o AppleUpstreamUserClientDriver <class AppleUpstreamUserClientDriver, id 0x1000002ba, registered, matched, active, busy 0 (0 ms), retain 5> | | | | | +-o AGPM <class AGPM, id 0x100000317, registered, matched, active, busy 0 (1 ms), retain 9> | | | | | | +-o gpu-control <class IOService, id 0x100000318, registered, matched, active, busy 0 (1 ms), retain 7> | | | | | | +-o IOHWControl <class IOHWControl, id 0x10000033a, registered, matched, active, busy 0 (0 ms), retain 8> | | | | | +-o AMDNDRVService <class AtiAppServices, id 0x10000032f, registered, matched, active, busy 0 (0 ms), retain 6> | | | | | +-o IOFramebufferI2CInterface <class IOFramebufferI2CInterface, id 0x100000330, registered, matched, active, busy 0 (0 ms), retain 6> | | | | | +-o display0 <class IODisplayConnect, id 0x100000331, registered, matched, active, busy 0 (0 ms), retain 6> | | | | | | +-o AppleDisplay <class AppleDisplay, id 0x100000333, registered, matched, active, busy 0 (0 ms), retain 8> | | | | | +-o IOFramebufferUserClient <class IOFramebufferUserClient, id 0x100000338, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATY,MotMot@1 <class AtiFbStub, id 0x100000224, registered, matched, active, busy 0 (19 ms), retain 8> | | | | | +-o ATY_MotMot <class AMDFramebuffer, id 0x1000002af, registered, matched, active, busy 0 (8 ms), retain 14> | | | | | +-o AppleMCCSControlModule <class AppleMCCSControlModule, id 0x1000002b6, registered, matched, active, busy 0 (1 ms), retain 6> | | | | | | +-o AppleMCCSParameterHandler <class AppleMCCSParameterHandler, id 0x1000002bc, registered, matched, active, busy 0 (0 ms), retain 5> | | | | | +-o AppleUpstreamUserClientDriver <class AppleUpstreamUserClientDriver, id 0x1000002b7, registered, matched, active, busy 0 (0 ms), retain 5> | | | | | +-o AMDNDRVService <class AtiAppServices, id 0x100000335, registered, matched, active, busy 0 (0 ms), retain 6> | | | | | +-o IOFramebufferI2CInterface <class IOFramebufferI2CInterface, id 0x100000336, registered, matched, active, busy 0 (0 ms), retain 6> | | | | | +-o IOFramebufferUserClient <class IOFramebufferUserClient, id 0x100000339, !registered, !matched, active, busy 0, retain 5> | | | | +-o RadeonSensors <class RadeonSensors, id 0x100000212, registered, matched, active, busy 0 (0 ms), retain 5> | | | | +-o AMDSupport <class AMDSupport, id 0x1000002d6, registered, matched, active, busy 0 (0 ms), retain 5> | | | +-o pci1002,aa30@0,1 <class IOPCIDevice, id 0x1000001c9, registered, matched, active, busy 0 (18 ms), retain 8> ioreg of previously installed Yosemite for comparision (same hardware, QE&CI running) | | +-o pci-bridge@3 <class IOPCIDevice, id 0x1000001b1, registered, matched, active, busy 0 (414 ms), retain 12> | | | +-o IOPP <class IOPCI2PCIBridge, id 0x1000001e7, registered, matched, active, busy 0 (396 ms), retain 10> | | | +-o display@0 <class IOPCIDevice, id 0x1000001b9, registered, matched, active, busy 0 (396 ms), retain 19> | | | | +-o RadeonSensors <class RadeonSensors, id 0x1000001f4, registered, matched, active, busy 0 (0 ms), retain 5> | | | | +-o AMD4800Controller <class AMD4800Controller, id 0x100000299, registered, matched, active, busy 0 (0 ms), retain 5> | | | | +-o ATY,ATY,RadeonFramebuffer@0 <class AtiFbStub, id 0x10000029e, registered, matched, active, busy 0 (6 ms), retain 8> | | | | | +-o ATY_ATY,RadeonFramebuffer <class AMDFramebuffer, id 0x1000002a8, registered, matched, active, busy 0 (3 ms), retain 18> | | | | | +-o AppleMCCSControlModule <class AppleMCCSControlModule, id 0x1000002b2, registered, matched, active, busy 0 (0 ms), retain 6> | | | | | | +-o AppleMCCSParameterHandler <class AppleMCCSParameterHandler, id 0x1000002b4, registered, matched, active, busy 0 (0 ms), retain 5> | | | | | +-o AppleUpstreamUserClientDriver <class AppleUpstreamUserClientDriver, id 0x1000002b3, registered, matched, active, busy 0 (0 ms), retain 5> | | | | | +-o AGPM <class AGPM, id 0x1000002da, registered, matched, active, busy 0 (0 ms), retain 9> | | | | | | +-o gpu-control <class IOService, id 0x1000002db, registered, matched, active, busy 0 (0 ms), retain 7> | | | | | | +-o IOHWControl <class IOHWControl, id 0x10000034d, registered, matched, active, busy 0 (0 ms), retain 8> | | | | | +-o AMDNDRVService <class AtiAppServices, id 0x100000344, registered, matched, active, busy 0 (0 ms), retain 6> | | | | | +-o IOFramebufferI2CInterface <class IOFramebufferI2CInterface, id 0x100000345, registered, matched, active, busy 0 (0 ms), retain 6> | | | | | +-o display0 <class IODisplayConnect, id 0x100000346, registered, matched, active, busy 0 (0 ms), retain 6> | | | | | | +-o AppleDisplay <class AppleDisplay, id 0x100000348, registered, matched, active, busy 0 (0 ms), retain 8> | | | | | +-o IOFramebufferUserClient <class IOFramebufferUserClient, id 0x10000034e, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATY,ATY,RadeonFramebuffer@1 <class AtiFbStub, id 0x10000029f, registered, matched, active, busy 0 (0 ms), retain 8> | | | | | +-o ATY_ATY,RadeonFramebuffer <class AMDFramebuffer, id 0x1000002b5, registered, matched, active, busy 0 (0 ms), retain 15> | | | | | +-o AppleMCCSControlModule <class AppleMCCSControlModule, id 0x1000002b8, registered, matched, active, busy 0 (0 ms), retain 6> | | | | | | +-o AppleMCCSParameterHandler <class AppleMCCSParameterHandler, id 0x1000002ba, registered, matched, active, busy 0 (0 ms), retain 5> | | | | | +-o AppleUpstreamUserClientDriver <class AppleUpstreamUserClientDriver, id 0x1000002b9, registered, matched, active, busy 0 (0 ms), retain 5> | | | | | +-o AMDNDRVService <class AtiAppServices, id 0x10000034a, registered, matched, active, busy 0 (0 ms), retain 6> | | | | | +-o IOFramebufferI2CInterface <class IOFramebufferI2CInterface, id 0x10000034b, registered, matched, active, busy 0 (0 ms), retain 6> | | | | | +-o IOFramebufferUserClient <class IOFramebufferUserClient, id 0x10000034f, !registered, !matched, active, busy 0, retain 5> | | | | +-o AMDSupport <class AMDSupport, id 0x10000029a, registered, matched, active, busy 0 (0 ms), retain 5> | | | | +-o ATIRadeonX2000 <class ATIRadeonX2000, id 0x10000029c, registered, matched, active, busy 0 (311 ms), retain 16> | | | | +-o IOService <class IOService, id 0x1000002cb, registered, matched, active, busy 0 (311 ms), retain 7> | | | | | +-o IOHWSensor <class IOHWSensor, id 0x1000002cc, registered, matched, active, busy 0 (0 ms), retain 8> | | | | +-o ATIR6002DContext <class ATIR6002DContext, id 0x100000350, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATIR6002DContext <class ATIR6002DContext, id 0x100000351, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATIR600Device <class ATIR600Device, id 0x100000357, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATIR600GLContext <class ATIR600GLContext, id 0x100000358, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATIR600Surface <class ATIR600Surface, id 0x10000035f, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATIR600Surface <class ATIR600Surface, id 0x1000003ad, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATIR600Surface <class ATIR600Surface, id 0x100000467, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATIR600Surface <class ATIR600Surface, id 0x100000468, !registered, !matched, active, busy 0, retain 5> | | | +-o pci1002,aa30@0,1 <class IOPCIDevice, id 0x1000001ba, registered, matched, active, busy 0 (22 ms), retain 8> kextstat | grep AMD 47 2 0xffffff7f82650000 0x125000 0x125000 com.apple.kext.AMDSupport (1.3.6) 83090AC0-12F4-3913-875B-34864770E7AD <46 45 12 11 7 5 4 3 1> 48 0 0xffffff7f827b8000 0x17f000 0x17f000 com.apple.kext.AMD4800Controller (1.3.6) 22DB2F28-CC72-3E17-A11E-139B3332103B <47 45 12 11 5 4 3 1> 67 0 0xffffff7f82783000 0x22000 0x22000 com.apple.kext.AMDFramebuffer (1.3.6) 062D84C5-444E-374A-A4CD-D15BF1DAC978 <47 45 12 11 7 5 4 3 1> kextstat | grep ATI 54 0 0xffffff7f81aa6000 0x230000 0x230000 com.apple.ATIRadeonX2000 (10.0.0) 3E7604A9-414C-353D-8334-DBEB9D926905 <45 12 7 6 5 4 3 1> Thanks in advance. i appreciate your support. PS: Attached a full DarwinDumper extraction. sioh_DarwinDump.zip Link to comment Share on other sites More sharing options...
fantomas Posted October 21, 2015 Share Posted October 21, 2015 hi sioh 1) make a new proper install 2) disable SIP 2) install the right QE_CI Exotic patch 3) repair permissions + rebuild the cache with this 4) enable SIP (before reboot) + boot with InjectATI checked or if you want to patch your kexts on the fly, take a look here (it's in french but understandable) or here (it's the same way) but please, don't mix these two methods... good luck Link to comment Share on other sites More sharing options...

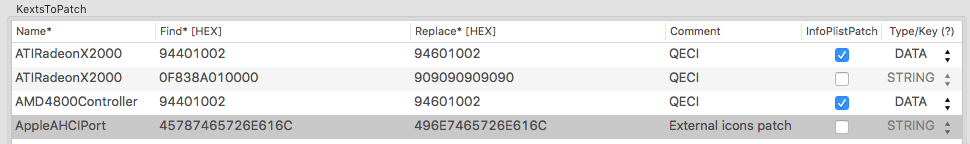

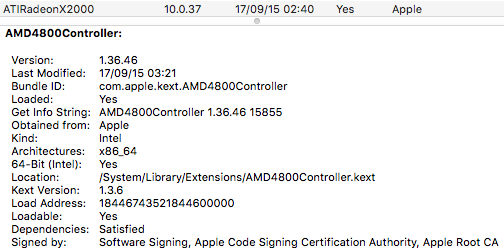

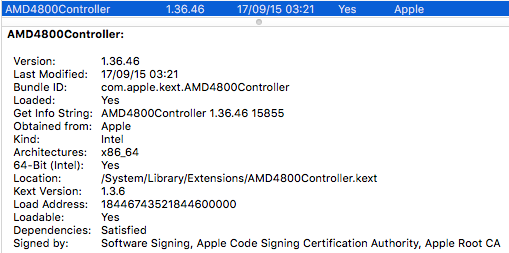

sioh Posted October 21, 2015 Author Share Posted October 21, 2015 Thx for your fast help, I appreciate it so far. The last couple of hours I tried both of your suggestions: Applying your patch as you described, the way you described. But I failed. Then I gave the second way a chance, performed on a fresh install as well. Simply applying a replacement of HEX-values in section KextsToPatch of clover doesn't result in loading both kexts but I'm uncertain about the second replacement at the ATIRadeonX2000 entry: You mentioned to replace the value 0F8394010000 by 909090909090. At other places (like http://www.hackintoshosx.com/files/file/4614-qe-ci-exotic-patch/) you were show to replace the value 0F838A010000 by 909090909090. What does all these values mean? Which ones are right? Finally I got the original AMD4800Controller.kext & ATIRadeonX2000.kext loaded by adding your IOKitPersonalities from the link above, adjusting some values like: replace 944a1002 by 94601002 (my HD4890) in both IOPCIMatch sections changing from Cardinal to Motmot And my config in clover: But till now the only thing I got is the correct output of my video cards memory amount (former: 5MB, now: 1024MB) Still no QE&CI One thing I noticed, I don't know if its important, comparing to my ioreg of my Yosemite installation I'm missing the whole section about the ATIRadeonX2000. ElCapitan: | | | | +-o AMDSupport <class AMDSupport, id 0x1000002bd, registered, matched, active, busy 0 (0 ms), retain 5> | | | +-o pci1002,aa30@0,1 <class IOPCIDevice, id 0x1000001c9, registered, matched, active, busy 0 (22 ms), retain 8> Yosemite: | | | | +-o AMDSupport <class AMDSupport, id 0x10000029a, registered, matched, active, busy 0 (0 ms), retain 5> | | | | +-o ATIRadeonX2000 <class ATIRadeonX2000, id 0x10000029c, registered, matched, active, busy 0 (311 ms), retain 16> | | | | +-o IOService <class IOService, id 0x1000002cb, registered, matched, active, busy 0 (311 ms), retain 7> | | | | | +-o IOHWSensor <class IOHWSensor, id 0x1000002cc, registered, matched, active, busy 0 (0 ms), retain 8> | | | | +-o ATIR6002DContext <class ATIR6002DContext, id 0x100000350, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATIR6002DContext <class ATIR6002DContext, id 0x100000351, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATIR600Device <class ATIR600Device, id 0x100000357, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATIR600GLContext <class ATIR600GLContext, id 0x100000358, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATIR600Surface <class ATIR600Surface, id 0x10000035f, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATIR600Surface <class ATIR600Surface, id 0x1000003ad, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATIR600Surface <class ATIR600Surface, id 0x100000467, !registered, !matched, active, busy 0, retain 5> | | | | +-o ATIR600Surface <class ATIR600Surface, id 0x100000468, !registered, !matched, active, busy 0, retain 5> | | | +-o pci1002,aa30@0,1 <class IOPCIDevice, id 0x1000001ba, registered, matched, active, busy 0 (22 ms), retain 8> Some further ideas? Thanks and good night. sioh PS: In system.log the WindowServer is telling something: WindowServer[134]: update_gl_acceleration: device (0x7f8f3bf081c0) is unsuitable for gl - disabling OpenGL WindowServer[134]: update_gl_acceleration: device (0x7f8f3bf081c0) is unsuitable for gl - disabling OpenGL WindowServer[134]: initialize_display_context: dev counts are zero (0, 0) - disabling OpenGL 1 Link to comment Share on other sites More sharing options...
fantomas Posted October 22, 2015 Share Posted October 22, 2015 I think you forgot this part: ** Ce tuto est fait pour fonctionner sous OS X Mavericks, mais il doit fonctionner aussi avec les autres. La seule chose différente c'est l'adresse binaire à patcher. I let you translate it so, the binary part that you mentioned in first (0F8394010000) is that one from Mavericks ATIRadeonX2000.kext and it will not work in El Capitan. here: 0F8394010000 --> Mavericks 0F839B010000 --> Yosemite 0F838A010000 --> ElCapitan Link to comment Share on other sites More sharing options...
fantomas Posted October 22, 2015 Share Posted October 22, 2015 check Debug feature <key>KernelAndKextPatches</key> <dict> <key>Debug</key> <true/> </dict> and NoCaches <key>SystemParameters</key> <dict> <key>NoCaches</key> <true/> </dict> don't forget to disable SIP before you boot <key>RtVariables</key> <dict> <key>CsrActiveConfig</key> <string>0x67</string> </dict> then let Clover booting like that... your kexts should be patched... and once on your desktop, yo should have QE_Ci enabled. if it's the case, then repair permissions and rebuild the cache as mentioned above and then boot with SIP enabled + with cache + without Debug Link to comment Share on other sites More sharing options...

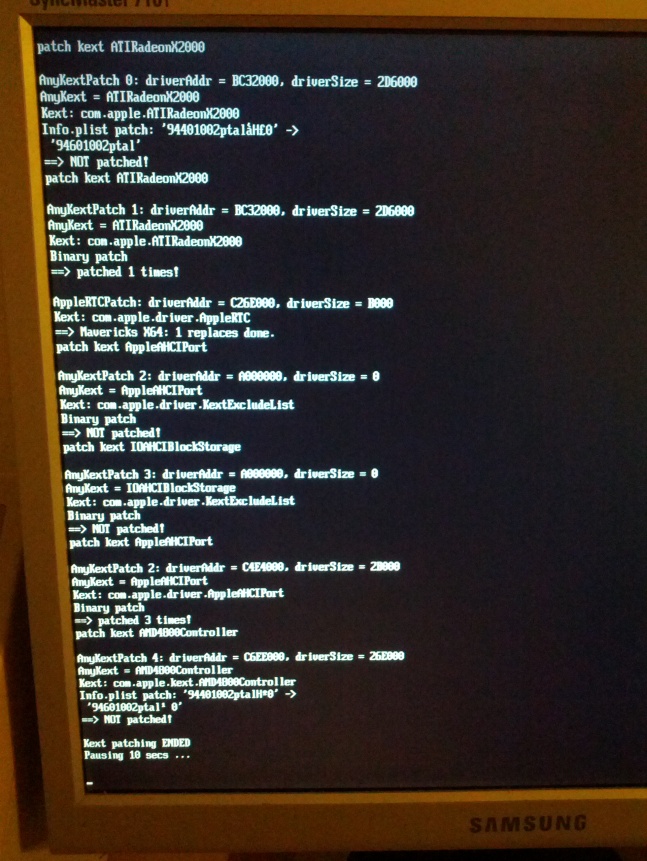

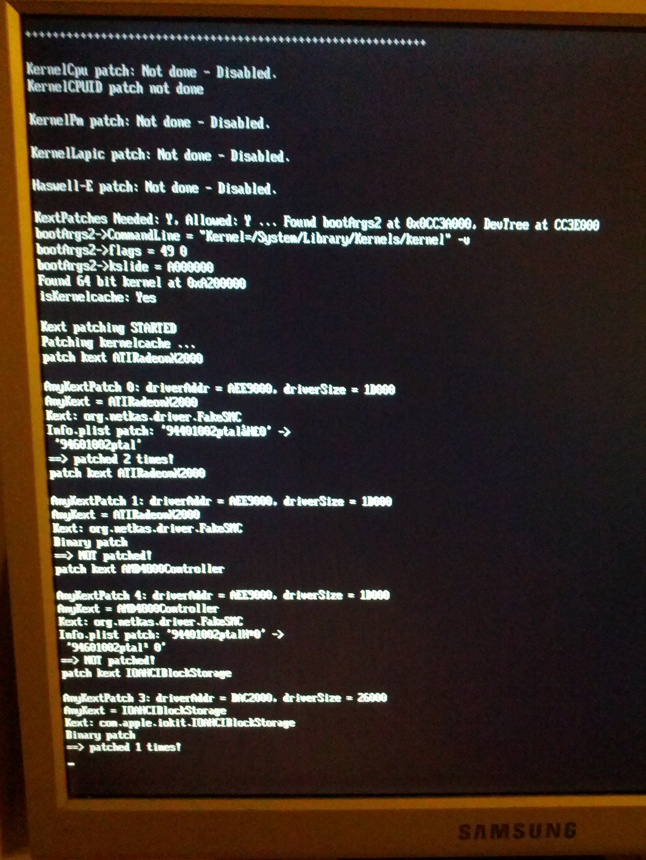

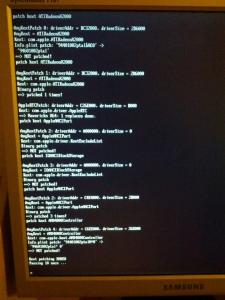

sioh Posted October 22, 2015 Author Share Posted October 22, 2015 I'm sorry if I'm annoying you but still no luck. I booted with the mentioned settings, both kexts are still loading and here 2 photos of the starting debug output: I hope you're able to see where clover tries, and sometimes failed, to patch the Info.plist files but it's the output of the following config.plist: <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>ACPI</key> <dict> <key>DSDT</key> <dict> <key>Debug</key> <false/> <key>DropOEM_DSM</key> <false/> <key>Fixes</key> <dict> <key>AddDTGP_0001</key> <true/> <key>FixHPET_0010</key> <true/> </dict> <key>Name</key> <string>DSDT.aml</string> <key>ReuseFFFF</key> <false/> </dict> <key>SSDT</key> <dict> <key>DropOem</key> <false/> <key>Generate</key> <false/> </dict> </dict> <key>Boot</key> <dict> <key>Debug</key> <false/> <key>DefaultLoader</key> <string></string> <key>DefaultVolume</key> <string>MacHD</string> <key>Legacy</key> <string>PBR</string> <key>Secure</key> <false/> <key>Timeout</key> <integer>5</integer> <key>XMPDetection</key> <false/> </dict> <key>Devices</key> <dict> <key>USB</key> <dict> <key>FixOwnership</key> <false/> <key>Inject</key> <false/> </dict> </dict> <key>GUI</key> <dict> <key>Language</key> <string>en:0</string> <key>Mouse</key> <dict> <key>DoubleClick</key> <integer>500</integer> <key>Enabled</key> <true/> <key>Mirror</key> <false/> <key>Speed</key> <integer>8</integer> </dict> <key>Scan</key> <true/> <key>Theme</key> <string>embedded</string> </dict> <key>Graphics</key> <dict> <key>FBName</key> <string></string> <key>Inject</key> <dict> <key>ATI</key> <true/> <key>Intel</key> <false/> <key>NVidia</key> <false/> </dict> <key>NvidiaSingle</key> <false/> </dict> <key>KernelAndKextPatches</key> <dict> <key>AppleRTC</key> <true/> <key>AsusAICPUPM</key> <false/> <key>Debug</key> <true/> <key>KernelCpu</key> <false/> <key>KernelHaswellE</key> <false/> <key>KernelLapic</key> <false/> <key>KernelPm</key> <false/> <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>QECI</string> <key>Find</key> <data> OTQ0MDEwMDI= </data> <key>InfoPlistPatch</key> <true/> <key>Name</key> <string>ATIRadeonX2000</string> <key>Replace</key> <data> OTQ2MDEwMDI= </data> </dict> <dict> <key>Comment</key> <string>QECI</string> <key>Find</key> <data> D4OKAQAA </data> <key>Name</key> <string>ATIRadeonX2000</string> <key>Replace</key> <data> kJCQkJCQ </data> </dict> <dict> <key>Comment</key> <string>External icons patch</string> <key>Find</key> <data> RXh0ZXJuYWw= </data> <key>Name</key> <string>AppleAHCIPort</string> <key>Replace</key> <data> SW50ZXJuYWw= </data> </dict> <dict> <key>Comment</key> <string>TRIM patch</string> <key>Find</key> <data> QVBQTEUgU1NEAA== </data> <key>Name</key> <string>IOAHCIBlockStorage</string> <key>Replace</key> <data> AAAAAAAAAAAAAA== </data> </dict> <dict> <key>Comment</key> <string>QECI</string> <key>Find</key> <data> OTQ0MDEwMDI= </data> <key>InfoPlistPatch</key> <true/> <key>Name</key> <string>AMD4800Controller</string> <key>Replace</key> <data> OTQ2MDEwMDI= </data> </dict> </array> </dict> <key>RtVariables</key> <dict> <key>BooterConfig</key> <string>0x28</string> <key>CsrActiveConfig</key> <string>0x67</string> </dict> <key>SMBIOS</key> <dict> <key>BiosReleaseDate</key> <string>12/09/11</string> <key>BiosVendor</key> <string>Apple Inc.</string> <key>BiosVersion</key> <string>IM112.88Z.0057.B01.1112090906</string> <key>Board-ID</key> <string>Mac-F2238BAE</string> <key>BoardManufacturer</key> <string>Apple Inc.</string> <key>BoardSerialNumber</key> <string>C02140302D5DMT31M</string> <key>BoardType</key> <integer>10</integer> <key>BoardVersion</key> <string>iMac11,3</string> <key>ChassisAssetTag</key> <string>iMac-Aluminum</string> <key>ChassisManufacturer</key> <string>Apple Inc.</string> <key>ChassisType</key> <string>0x000d</string> <key>Family</key> <string>iMac</string> <key>LocationInChassis</key> <string>Part Component</string> <key>Manufacturer</key> <string>Apple Inc.</string> <key>ProductName</key> <string>iMac11,3</string> <key>SerialNumber</key> <string>QP0312PBDNR</string> <key>SmUUID</key> <string>00000000-0000-0000-0000-6cf049797dab</string> <key>Trust</key> <false/> <key>Version</key> <string>1.0</string> </dict> <key>SystemParameters</key> <dict> <key>CustomUUID</key> <string></string> <key>InjectKexts</key> <string>Yes</string> <key>InjectSystemID</key> <true/> <key>NoCaches</key> <true/> </dict> </dict> </plist> I did this after a fresh install, only after installing clover, FakeSMC.kext (with the personalities) and Realtec kext for network access. Nothing else. Link to comment Share on other sites More sharing options...
fantomas Posted October 23, 2015 Share Posted October 23, 2015 about the patching on the fly steps on your both photos, it is perfectly normal... but have you finished the steps that I mentioned above? Link to comment Share on other sites More sharing options...
Julioces Posted July 31, 2016 Share Posted July 31, 2016 Hi some success in the configuration of your VGA ? I own a HD 4850 and I am the same difficulty some success in the configuration of your VGA ? I own a HD 4850 and I am the same difficulty some success in the configuration of your VGA ? I own a HD 4850 and I am the same difficulty some success in the configuration of your VGA ? I own a HD 4850 and I am the same difficulty Link to comment Share on other sites More sharing options...
aalyasseri Posted September 27, 2016 Share Posted September 27, 2016 Hi i know it's an old topic but i have the same HD 4890 without success, so far i tried every think you my think of even with older and newer Clover boot loader due to the change of patching and still can't get it working. i followed fantomas1 in this QE_CI Exotic patch many times but always end up with black screen at the startup. 1) make a new proper install 2) disable SIP 2) install the right QE_CI Exotic patch 3) repair permissions + rebuild the cache with this 4) enable SIP (before reboot) + boot with InjectATI checked or if you want to patch your kexts on the fly, take a look here (it's in french but understandable) or here (it's the same way) and also read and followed the booth link and topics he mentions including the Download-Fritz help in the Clover General discussion topic and others. so i just wondering if you gut your gf card to work, would you mind to sheer the progress with us. and thanks in advance, i really appreciate any one can help Link to comment Share on other sites More sharing options...
