Kext for Broadcom BCM57786

broadcom bcm57786

  • Please log in to reply
34 replies to this topic

#1
giutor

giutor

    InsanelyMac Protégé

  • Members
  • Pip
  • 22 posts

Hi,



I tried to install quite a lot of IONetworkingFamily.kexts but none was working. I'm wondering if there is a kext for this wired card. If there is not, would u please tell me how to create one from scratch?



Thanks,

GiuTor



#2
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male

Hi. If your dev-id is 16B3, so try this version. After that look at Console, IOReg and about that mac(PCI, Ethernet)

Attached Files



#3
Onixs

Onixs

    Since 2007

  • Members
  • PipPipPipPipPipPipPip
  • 800 posts
  • Gender:Male

Hi. If your dev-id is 16B3, so try this version. After that look at Console, IOReg and about that mac(PCI, Ethernet)


What about 16B5 please. Thanks.

#4
giutor

giutor

    InsanelyMac Protégé

  • Members
  • Pip
  • 22 posts

Hi. If your dev-id is 16B3, so try this version. After that look at Console, IOReg and about that mac(PCI, Ethernet)

Hello Alex, thanks u very much for your help. I'm new to the Mac world. Would you please tell me where exactly shall I place the content of your attached zip file in IONetworkingFamily.kext/Contents/PlugIns/AppleBCM5701Ethernet.kext ?



Thanks

GiuTor



#5
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male
Is your dev-Id 16b5 exactly? Because all website tell that it should be 16b3 for bcm57786.
http://pci-ids.ucw.cz/read/PC/14e4

#6
giutor

giutor

    InsanelyMac Protégé

  • Members
  • Pip
  • 22 posts

Is your dev-Id 16b5 exactly? Because all website tell that it should be 16b3 for bcm57786.
http://pci-ids.ucw.cz/read/PC/14e4

No, it's 16b3. I checked from Linux with lspci -nn:



02:00.0 Ethernet controller [0200]: Broadcom Corporation NetXtreme BCM57786 Gigabit Ethernet PCIe [14e4:16b3] (rev 01)



#7
Onixs

Onixs

    Since 2007

  • Members
  • PipPipPipPipPipPipPip
  • 800 posts
  • Gender:Male

Is your dev-Id 16b5 exactly? Because all website tell that it should be 16b3 for bcm57786.
http://pci-ids.ucw.cz/read/PC/14e4

Ah ok. Mine is actually bcm57785. Sorry about that :)



Can you compile http://www.insanelym...le/79-bcm5722d/ to support SL (32&64).

Thanks again



#8
giutor

giutor

    InsanelyMac Protégé

  • Members
  • Pip
  • 22 posts

Ah ok. Mine is actually bcm57785. Sorry about that :)



Can you compile http://www.insanelym...le/79-bcm5722d/ to support SL (32&64).

Thanks again

Would you please tell me where shall I copy the above file? In the message log I get a file not found error related to IOEthernetAVBController.



Can you please share light on this matter, I'm brand new to the Mac world.



Thank u.

GiuTor



#9
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male
You can copy bcm5722d to S.../L.../E...IONetworkingFamily.kext/Contents/PlugIns or just to S/L/E.
Don't forget lunch kext utility after.
In a word. Copy it to System/Library/Extensions. As it is easy to find.

#10
Onixs

Onixs

    Since 2007

  • Members
  • PipPipPipPipPipPipPip
  • 800 posts
  • Gender:Male

I compiled it myself with your source.. Thanks again for the 3rd time.. Cheers :)



#11
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male

I compiled it myself with your source.. Thanks again for the 3rd time.. Cheers :)

Oh. Great! Can you give me your version for SL? I'll attache it to my link of BCM5772D. Because I can't compile it since I use Mavericks.

I was going to give you that instruction http://www.insanelym...-bit/?p=1932872

but I see you've already done it and that's good.


I compiled it myself with your source.. Thanks again for the 3rd time.. Cheers :)

--

And by the way, does it work for you?



#12
giutor

giutor

    InsanelyMac Protégé

  • Members
  • Pip
  • 22 posts

You can copy bcm5722d to S.../L.../E...IONetworkingFamily.kext/Contents/PlugIns or just to S/L/E.
Don't forget lunch kext utility after.
In a word. Copy it to System/Library/Extensions. As it is easy to find.

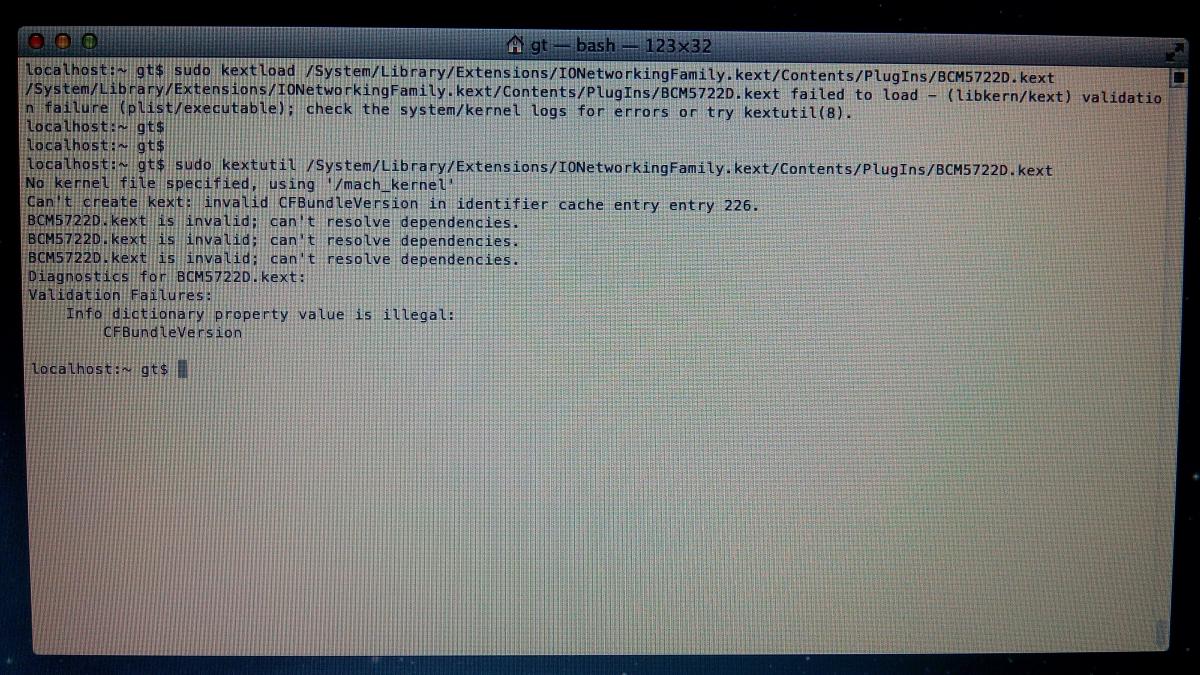

This is what I get when trying to load BCM5722D (please see the attached pictures). Did I miss anything? It doesn't say which are the missed dependencies.

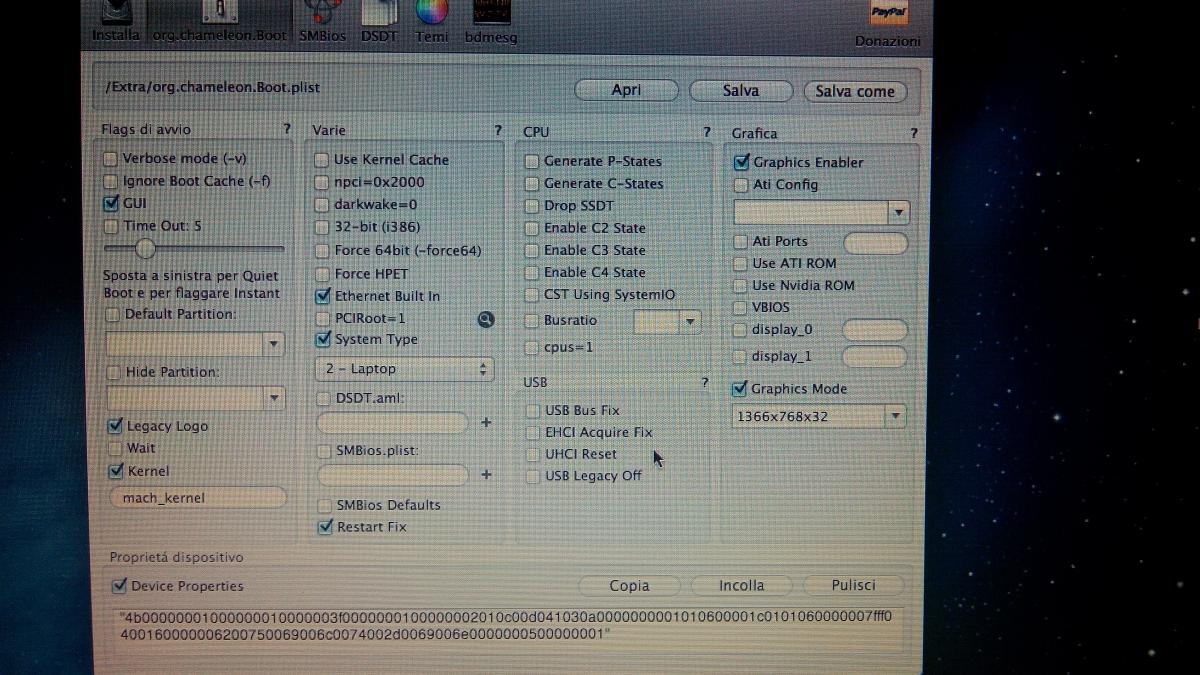

I have also attached my chameleon boot file.



Thanks for your patience,

GiuTor

Attached Files



#13
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male

This is what I get when trying to load BCM5722D (please see the attached pictures). Did I miss anything? It doesn't say which are the missed dependencies.



I have also attached my chameleon boot file.



Thanks for your patience,

GiuTor

Move kext to S/L/E

Launch kext utility http://www.insanelym...-speed-edition/

reboot.


Sorry, Try this kext, made a error at sourses

Attached Files



#14
Onixs

Onixs

    Since 2007

  • Members
  • PipPipPipPipPipPipPip
  • 800 posts
  • Gender:Male

Oh. Great! Can you give me your version for SL? I'll attache it to my link of BCM5772D. Because I can't compile it since I use Mavericks.

I was going to give you that instruction http://www.insanelym...-bit/?p=1932872

but I see you've already done it and that's good.


--

And by the way, does it work for you?

Sorry for the delay.I used xcode 3.2.6 with 0 warnings....Done testing and it works on SL ( tested 32 & 64).

Attached Files



#15
giutor

giutor

    InsanelyMac Protégé

  • Members
  • Pip
  • 22 posts

Sorry for the delay. I used xcode 3.2.6 with 0 warnings....Done testing and it works on SL ( tested 32 & 64).

Hum I wonder which one to use, yours or the one of Alex????



GiuTor



#16
Onixs

Onixs

    Since 2007

  • Members
  • PipPipPipPipPipPipPip
  • 800 posts
  • Gender:Male

Hum I wonder which one to use, yours or the one of Alex????



GiuTor

Mine doesnt have device id 16B3



#17
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male

Hum I wonder which one to use, yours or the one of Alex????



GiuTor

I asked rals2007 to compile the kext for those who use snow leopard. Try mine kext.



#18
giutor

giutor

    InsanelyMac Protégé

  • Members
  • Pip
  • 22 posts

I asked rals2007 to compile the kext for those who use snow leopard. Try mine kext.

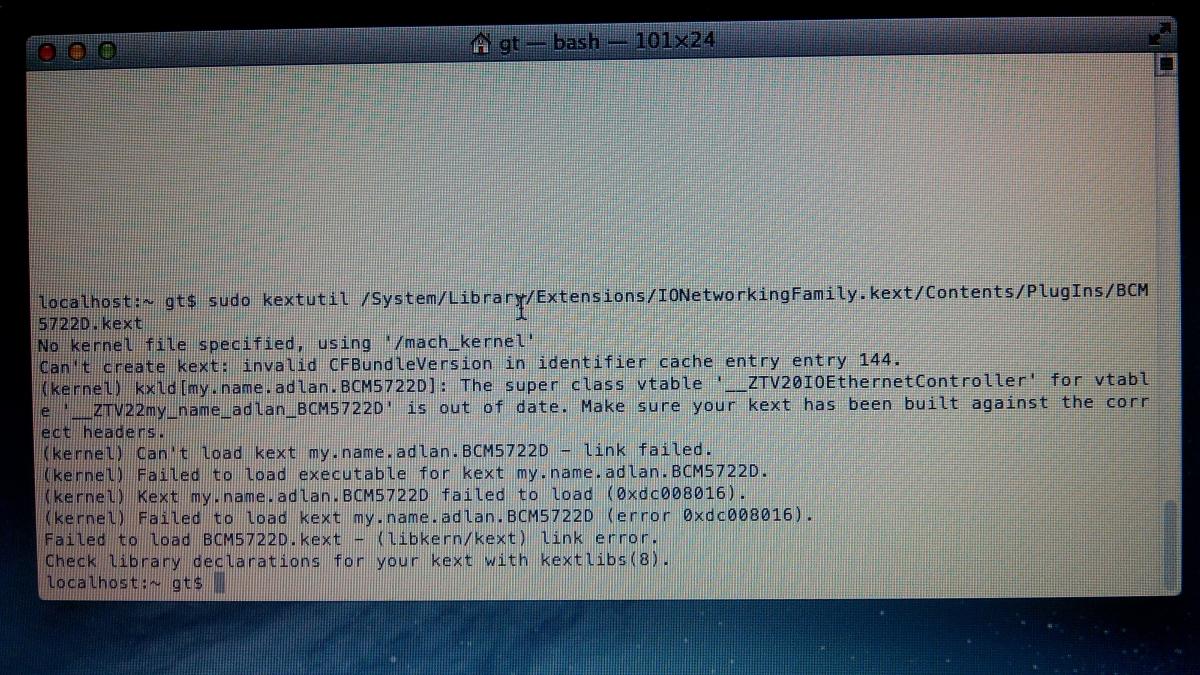

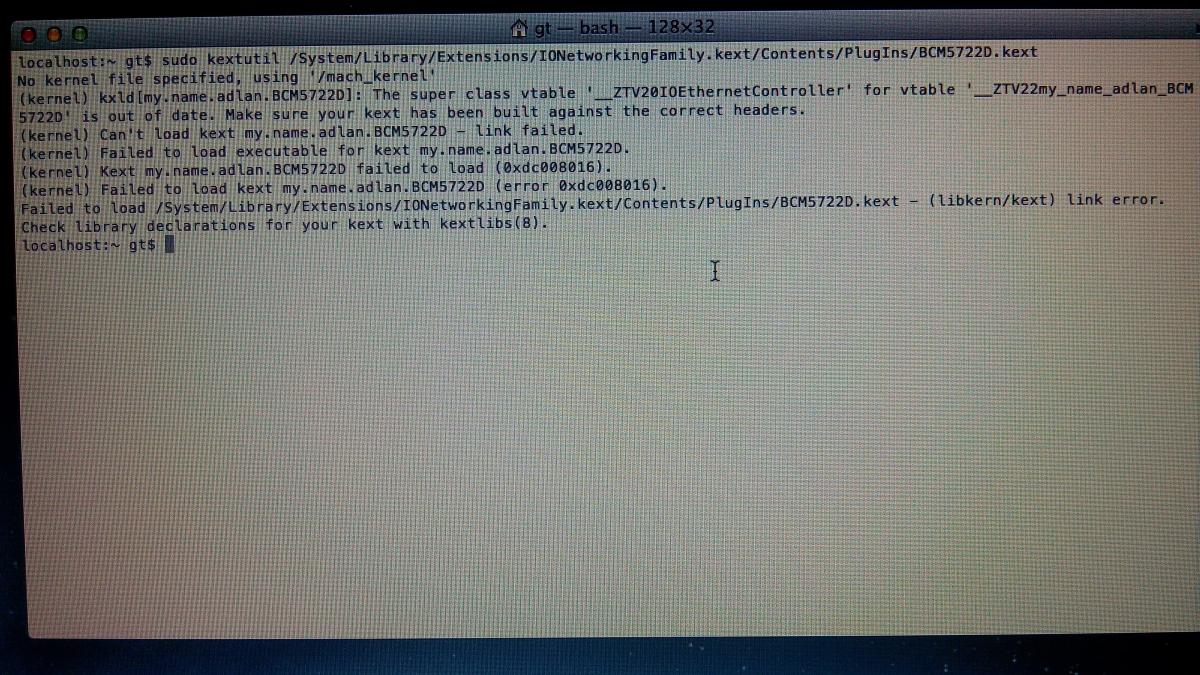

Still the same error as in the attached pictures. I wonder where is line 226 in the Info.plist file as the grep output shows line 23.



By the way, I do not want "ready to eat food". I DO wish to learn how to hack drivers as you and rals2007 are doing. Can you please point me to the guidelines?



Do you have any clue?

Attached Files



#19
Onixs

Onixs

    Since 2007

  • Members
  • PipPipPipPipPipPipPip
  • 800 posts
  • Gender:Male

Still the same error as in the attached pictures. I wonder where is line 226 in the Info.plist file as the grep output shows line 23.



By the way, I do not want "ready to eat food". I DO wish to learn how to hack drivers as you and rals2007 are doing. Can you please point me to the guidelines?



Do you have any clue?

Try this same version with edited CFBundleVersion

Attached Files



#20
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male

Still the same error as in the attached pictures. I wonder where is line 226 in the Info.plist file as the grep output shows line 23.



By the way, I do not want "ready to eat food". I DO wish to learn how to hack drivers as you and rals2007 are doing. Can you please point me to the guidelines?



Do you have any clue?

I think it happened because I changed version from 2.3.5 to 2.3.5b.

Now try this, I checked this on my computer, works. New version with your dev-id added

Attached Files
