where insert nvidia in this dsdt?


  • Please log in to reply
4 replies to this topic

#1
gigignopechegno

gigignopechegno

    InsanelyMac Protégé

  • Members
  • PipPip
  • 91 posts
  • Gender:Male
  • Location:TEXAS
  • Interests:TRAVEL

help guys,



where insert nvidia patch in this dsdt?





thanks



Attached Files

  • Attached File  web.zip   531.25KB   18 downloads


#2
juanerson

juanerson

    InsanelyMac Legend

  • Local Moderators
  • 1,486 posts
  • Gender:Male
  • Location:Tru, Venezuela

Hi. First of all, you need to understand how this works.

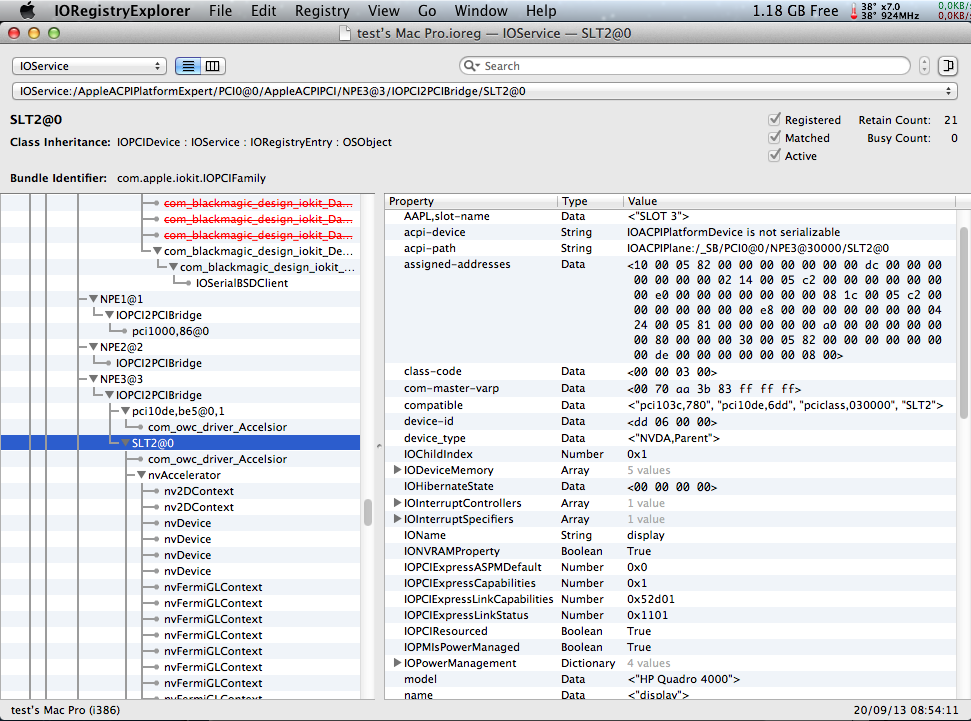

The point of start is from IORegistryExplorer, which is your best friend, because it is a Map or tree of devices:

Attached File  Captura de pantalla 2013-09-20 a la(s) 13.22.39.png   222.31KB   22 downloads

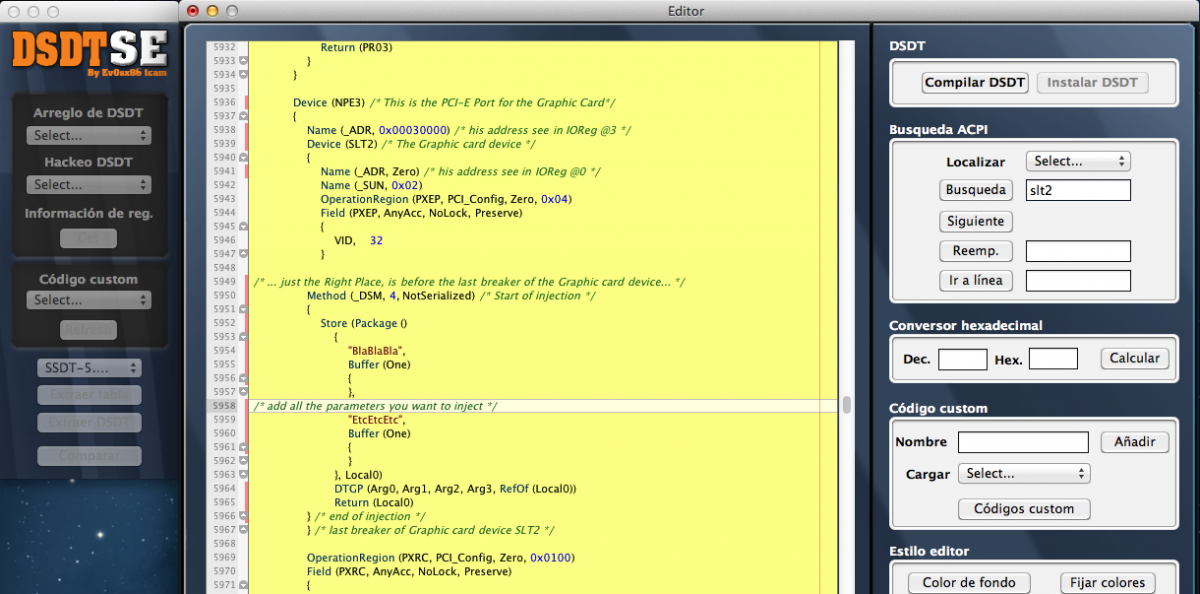

Then, go to your DSDT, and add all the code injection in the right place (the main reference is the Address = _ADR):

Attached File  Captura de pantalla 2013-09-20 a la(s) 13.21.21.png   453.22KB   11 downloads

Good Luck.



#3
gigignopechegno

gigignopechegno

    InsanelyMac Protégé

  • Members
  • PipPip
  • 91 posts
  • Gender:Male
  • Location:TEXAS
  • Interests:TRAVEL

hi Juanerson,

could you do me a practical example?
I have to put this code? from where to where? What should I replace?



Device (GFX0) /**  for Nvidia Fermi Graphics Cards  **/
{
Name (_ADR, Zero)
Name (_SUN, One)
Method (_DSM, 4, NotSerialized)
{
Store (Package (0x1E)
{
“AAPL,slot-name”,
“PCI x16″,
“@0,compatible”,
Buffer (0x0B)
{
“NVDA,NVMac”
},
“@0,connector-type”,
Buffer (0×04)
{
0×00, 0×08, 0×00, 0×00
},
“@0,device_type”,
Buffer (0×08)
{
“display”
},
“@0,name”,
Buffer (0x0F)
{
“NVDA,Display-A”
},
“@1,compatible”,
Buffer (0x0B)
{
“NVDA,NVMac”
},
“@1,connector-type”,
Buffer (0×04)
{
0×00, 0×08, 0×00, 0×00
},
“@1,device_type”,
Buffer (0×08)
{
“display”
},
“@1,name”,
Buffer (0x0F)
{
“NVDA,Display-B”
},
“NVCAP”,
Buffer (0×18)
{
/* 0000 */   0×04, 0×00, 0×00, 0×00, 0×00, 0×00, 0×03, 0×00,
/* 0008 */   0x0C, 0×00, 0×00, 0×00, 0×00, 0×00, 0×00, 0x0A,
/* 0010 */   0×00, 0×00, 0×00, 0×00
},
“VRAM,totalsize”,
Buffer (0×04)
{
0×00, 0×00, 0×00, 0xc0
},
“device_type”,
Buffer (0x0C)
{
“NVDA,Parent”
},
“model”,
Buffer (0×10)
{
“GeForce GTX 580″
},
“rom-revision”,
Buffer (0x1D)
{
“nVidia GTX 580 OpenGL Engine”
},
“hda-gfx”,
Buffer (0x0A)
{
“onboard-1″
}
}, Local0)
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
Return (Local0)
}
}
Device (HDAU)
{
Name (_ADR, One)
Method (_DSM, 4, NotSerialized)
{
Store (Package (0×02)
{
“hda-gfx”,
Buffer (0x0A)
{
“onboard-1″
}
}, Local0)
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
Return (Local0)
}
}



#4
juanerson

juanerson

    InsanelyMac Legend

  • Local Moderators
  • 1,486 posts
  • Gender:Male
  • Location:Tru, Venezuela

OK, I did some work to your DSDT for better compatibility, fixed the factory errors, renamed the graphic device to GFX0 and all his declarations, etc. Now is clean. The right place for the graphic injection is there.



The injection code is for to work. Just find the correct code for your Graphic card, make the changes, and compile the file.


This dsdt.dsl is the base for future editions, your own changes, because have more information and commentaries.
 All you need to start is there.. Good Luck.

Attached Files



#5
gigignopechegno

gigignopechegno

    InsanelyMac Protégé

  • Members
  • PipPip
  • 91 posts
  • Gender:Male
  • Location:TEXAS
  • Interests:TRAVEL

nice nice,



works :)



Juanerson, is possible to inject sata or sas device?

or is only graphics card?
