Tinkergnome Posted May 22, 2013 Share Posted May 22, 2013 I have a Dell Precision 690 that I have got 10.8.2 installed on. I am having issues with getting my network card set as built in, I also need some help with making sure my GPU is being detected properly, and I need a some help making a DSDT or setting the correct patches, as well as getting my SAS drive to show as internal or hidden it currently looks like a yellow external with a white rectangle with several lines coming out of it and my windows buttons on my keyboard do not work as the command button. Graphics card is a ASUS HD6670 I am using the BCM5722d.kext to get my nic working modified AppleLSIFusionMPT.kext to get my SAS controller working keyboard is a Logitech G110 org.chameleon.Boot.plist <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>Boot Graphics</key> <string>Yes</string> <key>Credits</key> <string>Created with Champlist</string> <key>EthernetBuiltIn</key> <string>Yes</string> <key>Graphics Mode</key> <string>1440x900x32</string> <key>GraphicsEnabler</key> <string>Yes</string> <key>Kernel</key> <string>mach_kernel</string> <key>Kernel Flags</key> <string>-f npci=0x3000</string> <key>Legacy Logo</key> <string>Yes</string> <key>PciRoot</key> <string>1</string> <key>SystemType</key> <string>1</string> <key>Timeout</key> <string>5</string> <key>UseKernelCache</key> <string>Yes</string> <key>device-properties</key> <string>4b00000001000000010000003f0000000100000002010c00d041030a0100000001010600041c0101060000007fff0400160000006200750069006c0074002d0069006e0000000500000001</string> </dict> </plist> smbios.plist <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>SMbiosdate</key> <string>02/29/08</string> <key>SMbiosvendor</key> <string>Apple Computer, Inc.</string> <key>SMbiosversion</key> <string>MP31.88Z.006C.B05.0802291410</string> <key>SMboardproduct</key> <string>Mac-F42C88C8</string> <key>SMfamily</key> <string>Mac Pro</string> <key>SMmanufacturer</key> <string>Apple Computer, Inc.</string> <key>SMproductname</key> <string>MacPro3,1</string> <key>SMserial</key> <string>CK941S0LXYL</string> </dict> </plist> Link to comment Share on other sites More sharing options...
Rampage Dev Posted May 22, 2013 Share Posted May 22, 2013 Can you post a IOreg (From the IOreg app) and DSDT? Link to comment Share on other sites More sharing options...
Tinkergnome Posted May 22, 2013 Author Share Posted May 22, 2013 Hey Rampage thanks here are the files below well in a zip as i am not allowed to upload a dsdt. I am not sure if I did the ioreg properly i ran it from a shell outputting it to a txt file. if you would like it done differently let me know how to do it. Thanks dsdt_ireg.zip Link to comment Share on other sites More sharing options...
Tinkergnome Posted May 22, 2013 Author Share Posted May 22, 2013 Figured out keyboard issue it was stuck in game mode which disables the windows keys. Also here is a picture of the drive icon i was talking of. Link to comment Share on other sites More sharing options...
Rampage Dev Posted May 22, 2013 Share Posted May 22, 2013 Figured out keyboard issue it was stuck in game mode which disables the windows keys. Also here is a picture of the drive icon i was talking of. Back trace what kext that uses and then post it here. I have to mod the kext. Please list the full model name and BIOS version that is on the SAS card. Also for IOreg: http://rampagedev.wordpress.com/guides/how-to-use-ioreg/ Link to comment Share on other sites More sharing options...

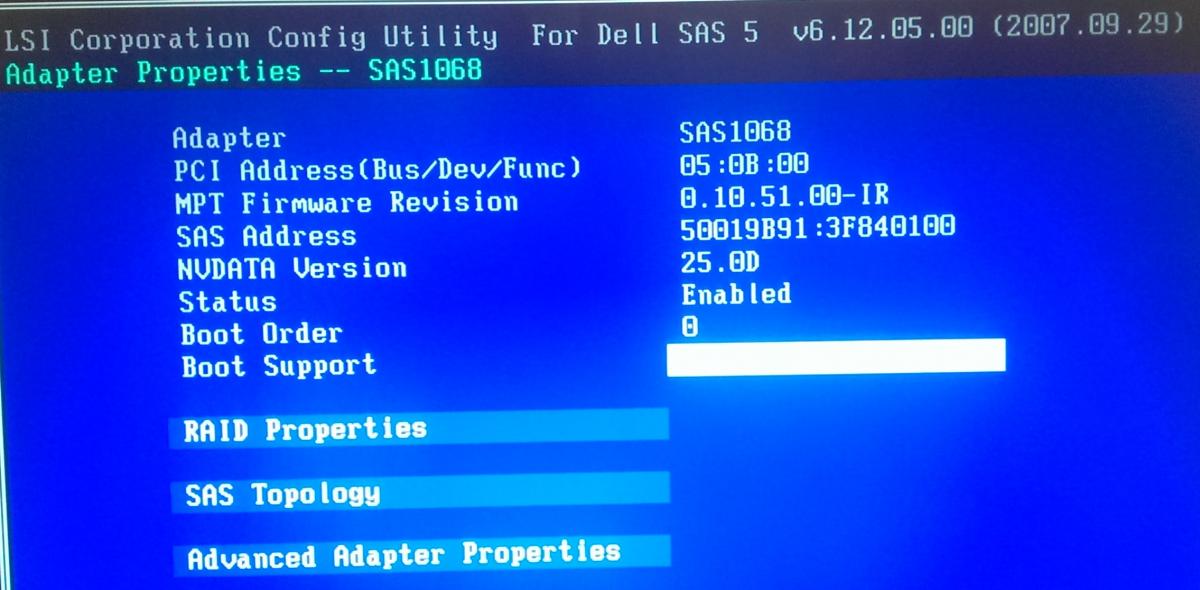

Tinkergnome Posted May 22, 2013 Author Share Posted May 22, 2013 the SAS controller is a LSI 1068 SAS/SATA 3.0Gb/s controller. I am attaching a photo as it contains more information. I am also attaching the kext that i use for it as well as it has already been modified. Not sure if it is easier to fix that or just make a new one. AppleLSIFusionMPT.kext.zip Michael’s Mac Pro.ioreg.txt Link to comment Share on other sites More sharing options...
Rampage Dev Posted May 22, 2013 Share Posted May 22, 2013 Patched driver. I will get to the rest later today. AppleLSIFusionMPT.kext.zip 1 Link to comment Share on other sites More sharing options...
Rampage Dev Posted May 22, 2013 Share Posted May 22, 2013 I need to know what GPU you are using. Link to comment Share on other sites More sharing options...
Tinkergnome Posted May 22, 2013 Author Share Posted May 22, 2013 Graphics card is a ASUS HD6670 1gb GDDR5 with these ports DVI, Display Port, HDMI I just got home will try the sas kext shortly Link to comment Share on other sites More sharing options...
Rampage Dev Posted May 22, 2013 Share Posted May 22, 2013 Here is a proper extra folder with a Errors Removed DSDT. Extra.zip 1 Link to comment Share on other sites More sharing options...
Tinkergnome Posted May 22, 2013 Author Share Posted May 22, 2013 thank you rampage does this also include the built in ethernet?? Link to comment Share on other sites More sharing options...
Rampage Dev Posted May 22, 2013 Share Posted May 22, 2013 thank you rampage does this also include the built in ethernet?? Yes as a boot sting. Your NCI does not support the DSDT edit for it. Test this extra folder and then report back with a new IOreg. Thanks. Link to comment Share on other sites More sharing options...
Tinkergnome Posted May 22, 2013 Author Share Posted May 22, 2013 ok will do thank you again Link to comment Share on other sites More sharing options...
Tinkergnome Posted May 22, 2013 Author Share Posted May 22, 2013 Hey Rampage here is the new ioreg. NIC still not showing as built in. Had to use GraphicsEnabler=Yes to boot without it just had black screen. NIC shows as built in using the network utility during install any ideas. Also noticed that sound is gone and everything is kind of laggy when opening things like safari the animation takes 2-3 seconds before the page is open Michael’s Mac Pro.ioreg.txt Link to comment Share on other sites More sharing options...
Rampage Dev Posted May 22, 2013 Share Posted May 22, 2013 Hey Rampage here is the new ioreg. NIC still not showing as built in. Had to use GraphicsEnabler=Yes to boot without it just had black screen. NIC shows as built in using the network utility during install any ideas. Is SAS showing as internal? Link to comment Share on other sites More sharing options...
Tinkergnome Posted May 22, 2013 Author Share Posted May 22, 2013 Is SAS showing as internal? I do believe so it has the same icon appearance as the sata drive 1 Link to comment Share on other sites More sharing options...
Rampage Dev Posted May 22, 2013 Share Posted May 22, 2013 I do believe so it has the same icon appearance as the sata drive OK. I am a little short on time atm. But if you find what Framebuffer uses under Mac I will add it to the DSDT. Link to comment Share on other sites More sharing options...
Tinkergnome Posted May 23, 2013 Author Share Posted May 23, 2013 Hey Rampage I am having a devil of a time figuring out what framebuffer is used i realy dont know how to start and figure it out properly. I have found tons of different things regarding it and not realy any helped. I did find a modified kext for my GPU have yet to have success with it though. ATI6000Controller with modified personality for ASUS EAH6670/DIS/1GD5 Need DSDT. In org.chameleon.Boot, add AtiConfig=Pithecia GraphicsEnabler=Yes Going to try and reinstall everything with the modified kext you sent me for the sas drivers and use that ati6000controller kext and hope for the best might get a little further along. Still have issue with the nic not showing up as internal any ideas as to where to go next for that. Link to comment Share on other sites More sharing options...
Tinkergnome Posted May 26, 2013 Author Share Posted May 26, 2013 Hey Rampage it appears that if i use AtiConfig=Pithecia and AtiPorts=3 then i seem to be good to go. Link to comment Share on other sites More sharing options...
Rampage Dev Posted May 26, 2013 Share Posted May 26, 2013 Hey Rampage it appears that if i use AtiConfig=Pithecia and AtiPorts=3 then i seem to be good to go. Post a IOreg so I can inject the card in the DSDT. Thanks. Link to comment Share on other sites More sharing options...
Tinkergnome Posted May 26, 2013 Author Share Posted May 26, 2013 Here you go Michael’s Mac Pro.ioreg.txt Link to comment Share on other sites More sharing options...
Rampage Dev Posted May 26, 2013 Share Posted May 26, 2013 No FB is loaded so what you are using does not seem to be working... Try a OpenCL test. Link to comment Share on other sites More sharing options...
