Products available at The Laser Hive.

By a request from a moderator here at IM, I have put together a summary post of product lines and prices as well as details on how to order. I will keep this post updated as new products become available or as old products are removed/ prices changed.

G5 Products.

Micro ATX Conversions

1. Original Version


The kit comprises:
1 x Aluminium mATX backplate; 1x trim panel for the rectangular I/O plate; 2 x standoffs to attach trim plate to fan mount tab; 2 x M3 screw for trim plate; m3 countersunk fixings and nuts for attaching backplate to G5.
As detailed on the main page, this kit converts a G5 backplate for mATX fitment and provides all you need to do this.
Instructions available for download from www.thelaserhive.com

Pricing for the mATX kit: £40, €50 or $60 plus shipping.
Optional: m3.5 screws that'll fit your original G5 standoffs when re-positioned. M3.5 screw kit: £5. OR buy the ideal companion to this kit - the G5 Motherboard tray kit which has everything you need and locates any mATX motherboard in the right place to use the PCI slots without any nasty gluing or hassle for just £20, €25 or $30 plus shipping.
US shipping for mATX backplate plus Mobo tray kit - $20, UK shipping £8, EU shipping €12, Australia/New Zealand £20.


Posted Image

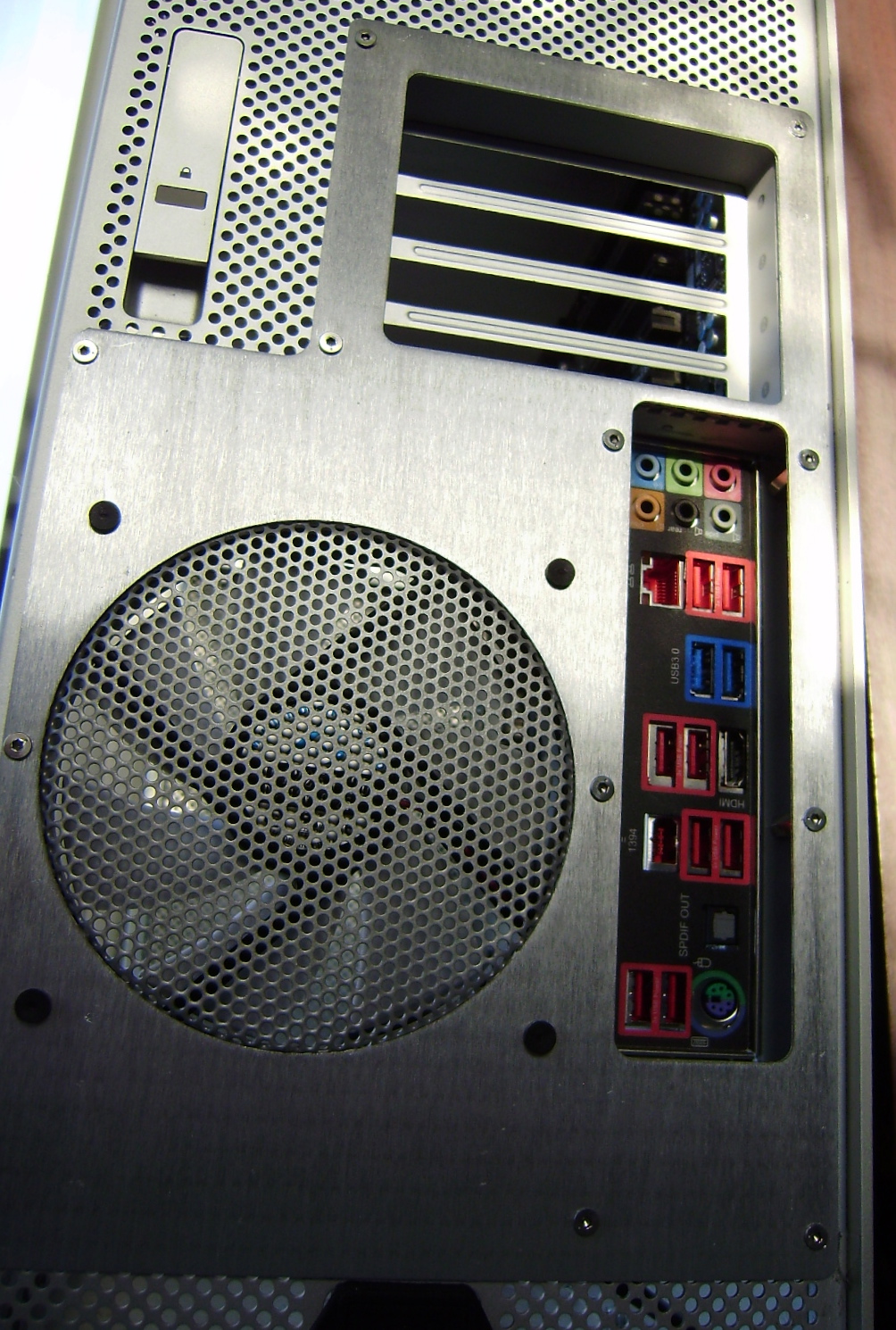

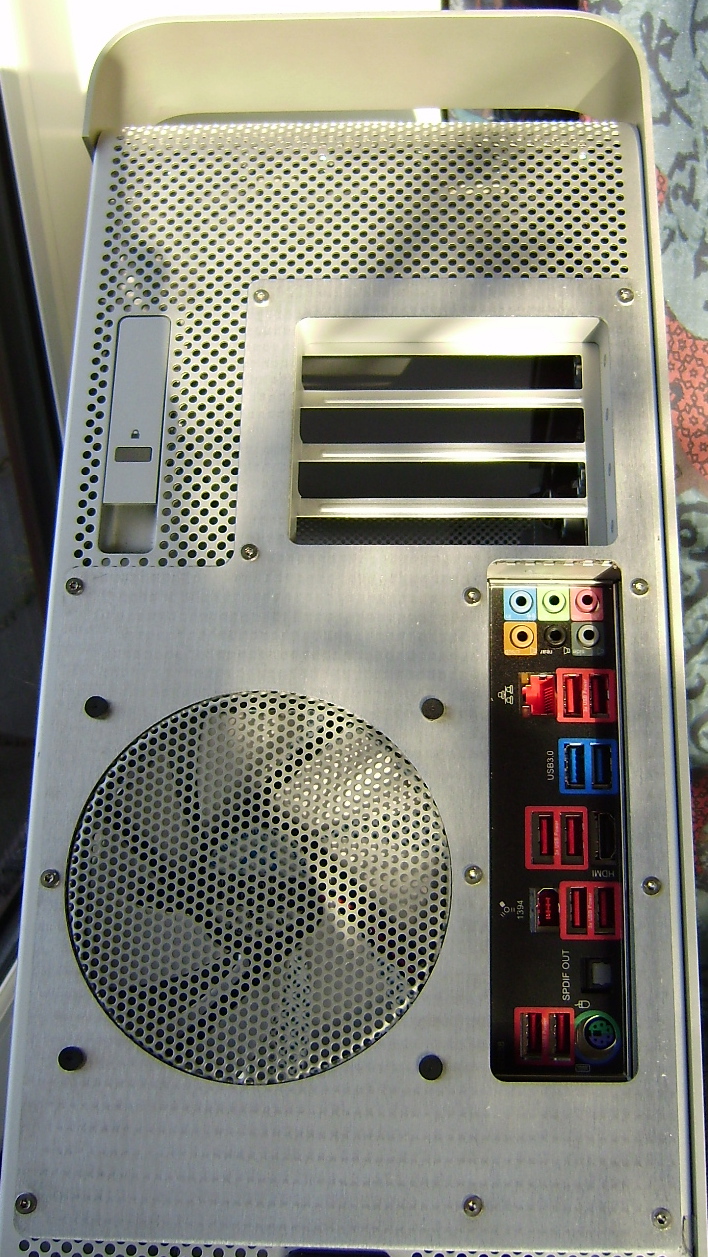

2. 120 Fan Version


The kit comprises:
1 x Aluminium mATX backplate; 1x trim panel for the rectangular I/O plate; 6 x standoffs to attach trim plate to backplate; M3 screws and nuts for fixing trim plate; m3 countersunk fixings and nuts for attaching backplate to G5.
As with the "Original" version this kit fits to existing holes in the G5, retains the use of the original PCI slots and allows you to choose whether to mount your power supply up top or down below, allows use of the original G5 PSU housing and allows retention of the original HDD holder giving maximum flexibility for your conversions.

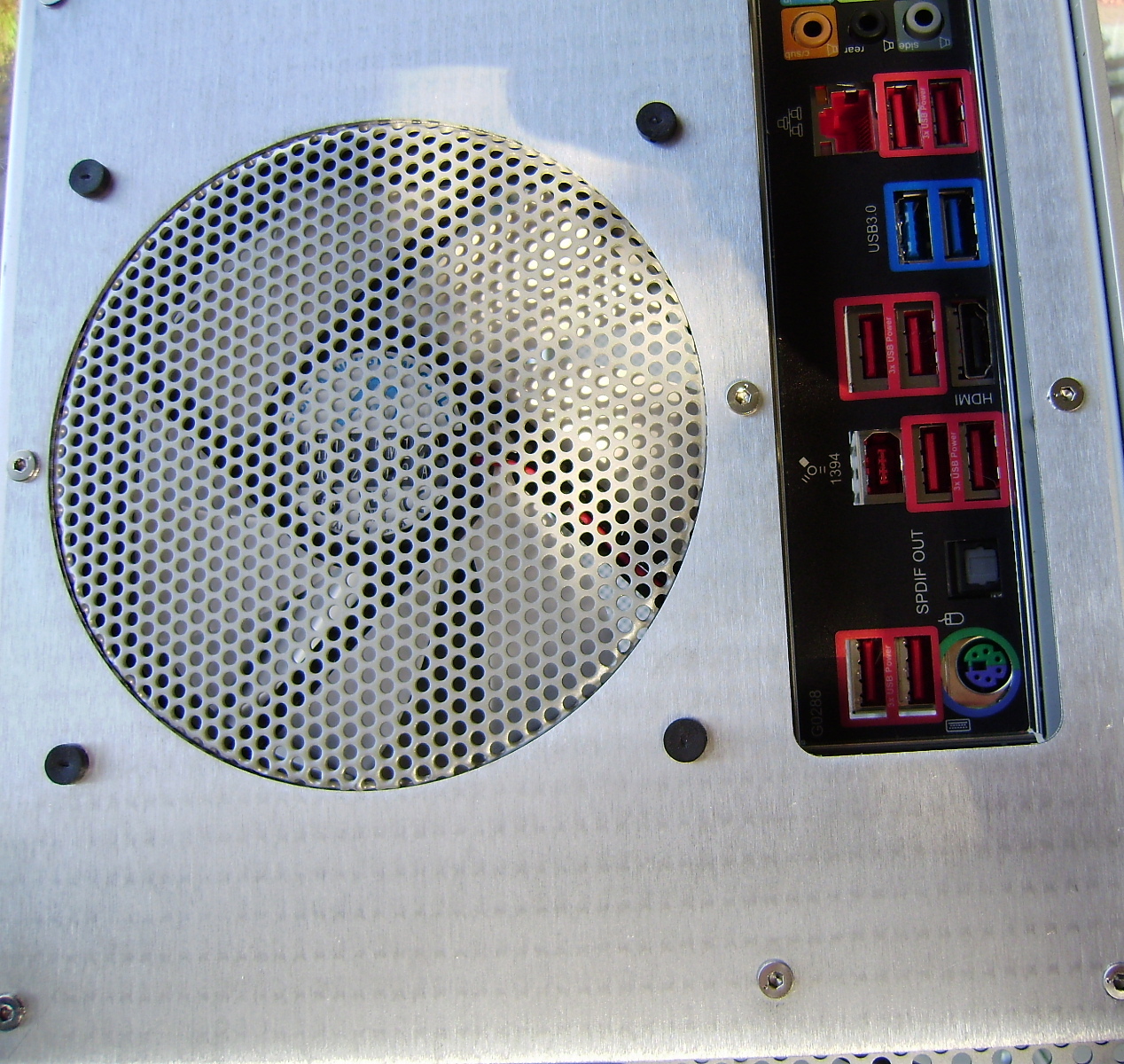

In addition, the careful integration of the 120 fan hole allows the use of all in one cooling solutions to be incorporated directly into the backplate.
This kit converts a G5 backplate for mATX fitment and provides all you need to do this.
Instructions available for download from www.thelaserhive.com
Pricing for the mATX backplate kit on its own: £45, €58 or $70 plus shipping.

Optional: m3.5 screws that'll fit your original G5 standoffs when re-positioned. M3.5 screw kit: £5. OR buy the ideal companion to this kit - the G5 Motherboard tray kit which has everything you need and locates any mATX motherboard in the right place to use the PCI slots without any nasty gluing or hassle for just £20, €25 or $30 plus shipping.
Combined price for mATX backplate kit and motherboard tray kit is $100, £65, €83
US shipping for mATX backplate plus Mobo tray kit - $20, UK shipping £8, EU shipping €12, Australia/New Zealand £20.

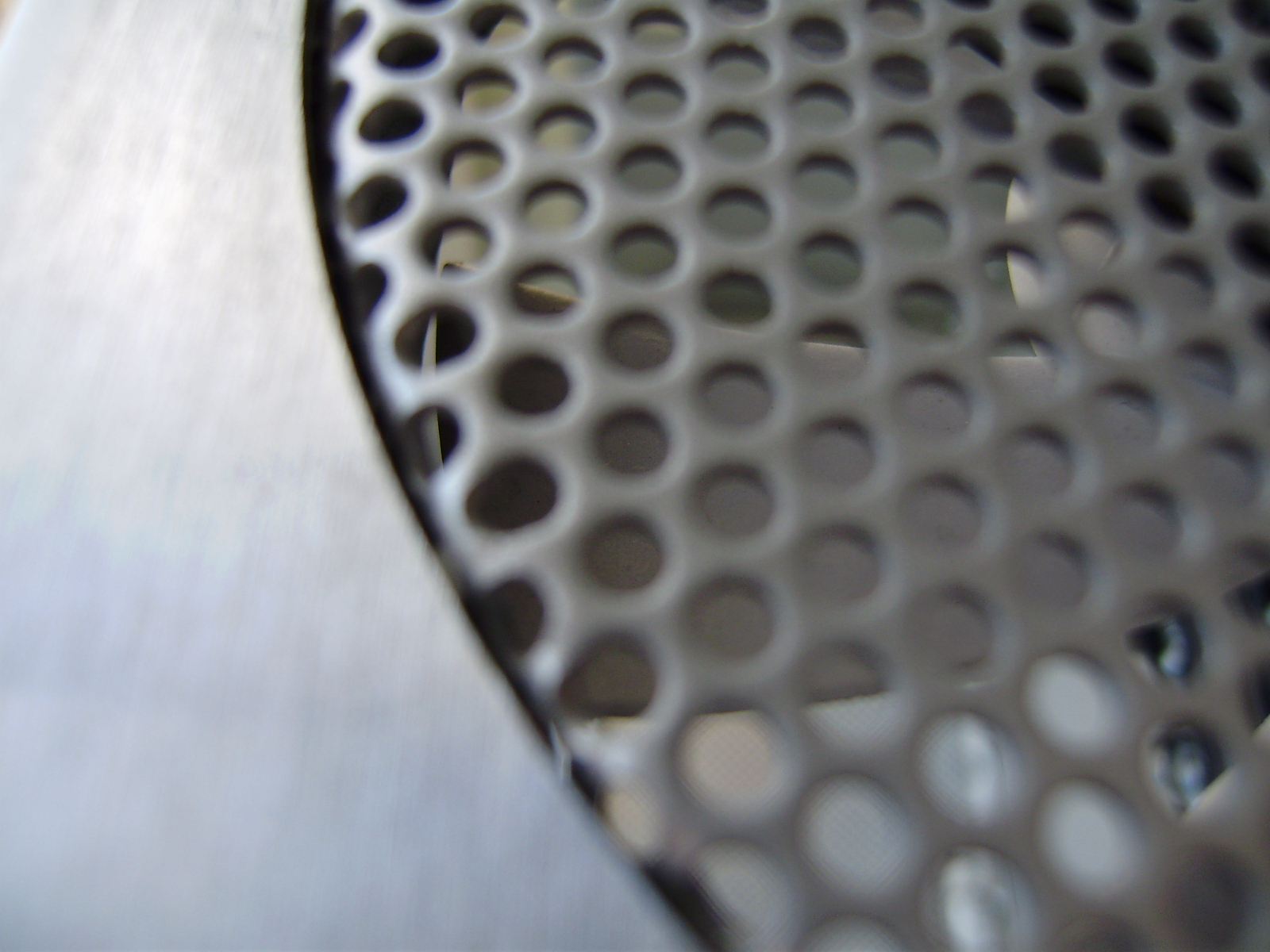

Please note that the perforated fan grill is not included as standard with the kit (applies to all orders from 13 March 2013) and if you want it then a charge of £3.50, €5 or $7 applies.

Posted Image Posted Image

Posted Image

Posted Image



ATX Kits

1. High versions

These kits involve cutting the top shelf of your G5 to make the PCI-e slots sit up high in the case. They let keep the original G5 PSU casing at the bottom (if you want) or let you sit a full ATX supply on the floor of the case. As you lose the original location for the hard drive cage you will need to put that somewhere else (many screw it underneath the DVD player)

As with the mATX kits these are available in both "original" and "120" versions. The Original has mountings for the standard twin 92mm fans the G5 came with, while the 120 has a single fan mounting for a 120 fan. It will also enable the use of any of the all in one 120 water cooling solutions on the market, such as the H80, H80i, H70, H60 from Corsair or the Antec Kuhler H20 620.



Here are some pictures.Posted Image


Posted Image


Posted Image

These kits are available now. Please note these kits contain everything you need to convert the case to ATX format - this means you get our amazing quality full ATX 5mm perspex motherboard tray with mounts tailor made to fit your G5, every screw and a new full ATX IO shield. All ATX kits are priced as follows: £70, €85 or $112.

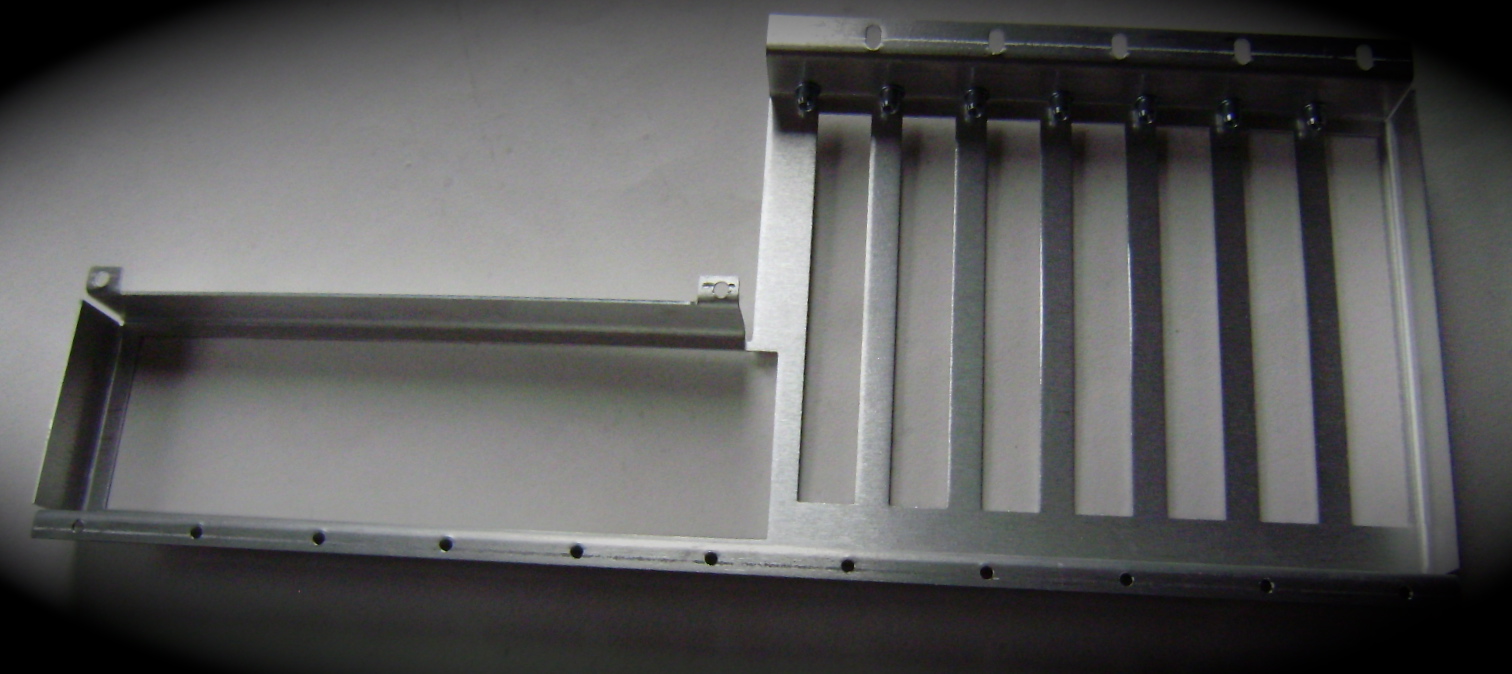

ALL G5 ATX kits are now supplied with the all new aluminium IO shield shown below . This shield has large threaded inserts for securely fastening your PCI-e cards in place and is supplied as standard with a brushed finish. Also the area around the IO opening is slimline so as not to provide any interference with 120 fan shrouds.

Please note that the fan grill shown with the 120 version is not included as standard with the kit and as with the mATX kits it is available to buy for £3.50, $5 euros or $7.


Posted Image All aluminium and with extra long threaded inserts to hold your PCI-e cards extra securely.




2. Low version

These kits do not intrude into the shelf area and so you do not need to cut the top shelf of your G5. You can (as some do) choose to either keep your HD cage on the top shelf or adapt the area to take an ATX power supply. Please note there is no room at the bottom of the case with these kits for you to keep the G5 PSU casing.




Posted Image


Not had time to put these in the shop yet, but basically they will be the same cost as the high mounting ones (plus a small charge for the power inlet if wanted - £3, $4, €5 - blank plates without the inlet also will be available).




G4 Products.

We do backplate, IO and motherboard area conversions for all G4s and the G3.

One of the problems with the G4 (which is otherwise easy to mod) is the pillar between the PCI area and the IO area. Our first ever kits were to solve this problem by allowing you to cut the pillar and then trim the metal area with a custom laser cut perspex surround. That coupled with a specially developed micro ATX shield with holes to fit all G3s and G4 - and designed to fit by using the original Apple made rivet holes in the IO surround - give a pain free mod to the back.


Posted Image All new for 2013 brushed aluminium I/O shields made specifically for G4s
mATX conversion kits for all G4 and G3 models



Posted Image New Quicksilver kits with easy fit- all aluminium IO shield.

Our G3/4 kits allow any micro ATX board to be fitted to the backplate and have all ports accessible. There are various options available that you can choose from. For instance, you may opt for alternate commonly available perspex colouring for outer panels or ask for different types of fixation (subject to availability).

As standard the kit now comes with an all new all aluminium I/O shield panel with long secure threaded inserts for fixing all your PCI-E card, a grey outer panel and black countersunk m3 socket headed screws.

The inner and outer plates are joined together by the M3 fixations which pass through existing rivet holes within the relevant G3/G4 rear plate.
Posted Image Quicksilver IO kit (other G3s/4s similar)

These kits allow a neat finish so that even if you are not the most skilled with a drill or a dremel you can achieve great looking results. The position of the I/O cut-out is at the correct placement to allow the PCI slots to be used perfectly.

We recommend that this kit be used together with kit 2 which provides everything to ensure that new motherboard standoffs are secured in exactly the right postion for a troublefree conversion to PC parts.

While a further option is a totally new rear plate for the right hand side that allows you to easily fit a larger variety of power supplies without having to try and cut up the original Quicksilver plastic panels.

Kit 1 for our G3/G4 conversions is basically the shield, laser cut perspex trim for rear face of the door, and all the fixings to attach them to the door and convert the rear panel so it complies with the mATX format. Contents vary according to G4 model and you can specify whatever colour you want. Basic cost for this kit is: £28, €32 or $42 plus postage

Kit 2 is a template for cutting the door to take the mATX standoffs, as well as a full set of standoffs for screw attachment to the door panel and to get the motherbpard set in the right place and at the right height for use with the rear IO conversion. This kit costs: £7, €8 or $10.

Optional RHS panel is £15, €18 or $23.


UK shipping for kit 1 and 2: £6, EU shipping €12, Rest of the world $20. If ordering additional RHS panel then shipping costs are: £8 UK, €15 EU or $30 rest of the world.
To order please email info@thelaserhive.com




Mini ITX conversion kits for all G4 and G3 models

Latest addition is a special ITX plate for the range which incorporates a 60mm fan opening as well as two PCI-e slots so you can use with a graphics card. The advantage of this plate is that it moves the board down low to give more clearance in the case and give more ventilation possibilities. Also with an ITX board you are less likely to need to do other hardware mod.s to your G4 to make things fit.

Posted Image



These kits are available at the same prices as the mATX kits - but we only have 4!!!

Additional Info and how to order.

We are pleased to be working with G5 Modders now and our G5 kits are showcased on their website as well as ours and we will be working with them to bring extra value to our G5 kits.

Please note the laser hive provides a custom service and is a small business. Disadvantages to this is that I do not have huge buying powers, so cost overheads can be high for me. However, the advantages as a small business, run by an enthusiastic modder, is I understand the G5 and am open to any custom ideas you have that I will try to bring in at a cost that is affordable. Plus I am very happy to split kits - if you just want one part, eg a backplate or a ATX shield or a motherboard tray then I can price those individually for you - just ask.

Ordering

Ordering is at present by email contact with me to:

info@thelaserhive.com.

As a one man business I prefer email and paypal to any shopping cart as I like to know that the kits I supply will be tailored to the Mac they are going on.

Once you are ready to order I wil send you a paypal invoice. Bear in mind that our standard indication from order to dispatch is 2 weeks and then that delivery times are beyond my control - I use the Royal Mail in most cases and delivery is often very quick but dependent on customs checks and your own domestic postal services (which take over once the parcel arrives in your country) can take a few weeks. Of course, if you don't mind paying a little extra for a courier then that is a possibility too.

Finally, please take some time to look around my website and blog. I can offer far more services than just the ones mentioned here and so if you want something custom, or help with another project then drop me a line. Advice is always free.

#2
MiniHack

MiniHack

    InsanelyMac Legend

  • Donators
  • 630 posts
  • Gender:Male

Free fan support template now available for downloading in pdf and dxf formats. This template developed jointly by ourselves and Nickjf20.



http://www.thelaserh.../cutting-files/



Templates here for both 2 x 120mm and 2 x 140mm fans.



I am happy for you to use these as you see fit, but please if you post a build log do give a shout out to TLH and consider posting a "Like" to our facebook page.
