Hello everybody,
I'm sorry for my bad english, i'm french...
So, i have a Sony VAIO VGN-FZ31M, and i want to install OSX Snow Leopard on my computer.
My configuration:
-Motherboard: CPU Type: Mobile DualCore Intel Core 2 Duo T7250, 2000 MHz
Chipset: Intel Crestline-PM PM965
System Memory: 2048 MB (DDR2-667 DDR2 SDRAM)
BIOS Type: Phoenix
-Display: NVIDIA GeForce 8400M GT
-Audio: SigmaTel STAC9872AK @ Intel 82801HBM ICH8M - High Definition Audio Controller
-Network: LAN: Intel® 4965AGN (192.168.1.68)
Ethernet: Marvell Yukon 88E8036 PCI-E

(I don't know if i forgot something..)
I have not succeeded to create DSDT because i can't find my bios on the net
I already tried: iDeneb v1.6 (Leopard) --> My audio works, my graphic card works, my ethernet works
iAtkos S3 v2 --> Installation completed, but my mouse and my keyboard aren't recognized
SL 10.6.1 by hazard --> installation completed, but i have a kernel panic

I need your help to get SL on my computer ! Thank you !

#2
TheRacerMaster

TheRacerMaster

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 189 posts
  • Gender:Male
Have you tried a retail Snow Leopard installation? I did a quick look at your hardware, and it looks like that it should work OK except for WiFi. WiFi will not work at all. Graphics should work as Snow Leopard has drivers for 7xxx, 8xxx, and 9xxx NVIDIA GeForce cards. Looks like your ethernet might work. Audio most likely will work with VoodooHDA. For now, try getting it installed. Try with http://www.insanelym...howtopic=269841 to install Snow Leopard on your PC. If you have issues, post here.

OK, looks like someone got ethernet working:

hi I have installed Leopard 10.5.2 and the only thing you should change to make Marvel Yukon (88e8036) work is: (Dev ID: 4351, Vendor ID: 11AB)
Just edit the file:

sudo nano /System/Library/Extensions/IONetworkingFamily.kext/Contents/Plugins/AppleYukon2.kext/Contents/Info.plist

and change just the 88e8053 section on this file

88e8053 change to 88e8036
AND
436211ab change to 435111ab

save the file copy it to

/System/Library/Extensions/AppleYukon2.kext

and that's it

Enjoy your new NIC on Mac Os

The same method should work fine in Snow Leopard.

#3
theoh88

theoh88

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
  • Gender:Male
  • Location:Aubagne, France
Thank you very much for your answer !
Just to be sure.. SL retail, it's the original dvd ?

#4
TheRacerMaster

TheRacerMaster

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 189 posts
  • Gender:Male
Yep. The retail DVD is the original Snow Leopard disc.

#5
theoh88

theoh88

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
  • Gender:Male
  • Location:Aubagne, France
I have a problem. I have downloaded Mac OS X Snow Leopard Retail 10.6.3, his size's 6,77GB and my dvd's size is 4,7, so can i burn this image file on two dvd ?

#6
theoh88

theoh88

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
  • Gender:Male
  • Location:Aubagne, France
So I get the original DVD. The installation succeeded, but I can boot only on safe mode, because I have kernel panic

#7
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
boot with -v and post photo KP

#8
theoh88

theoh88

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
  • Gender:Male
  • Location:Aubagne, France

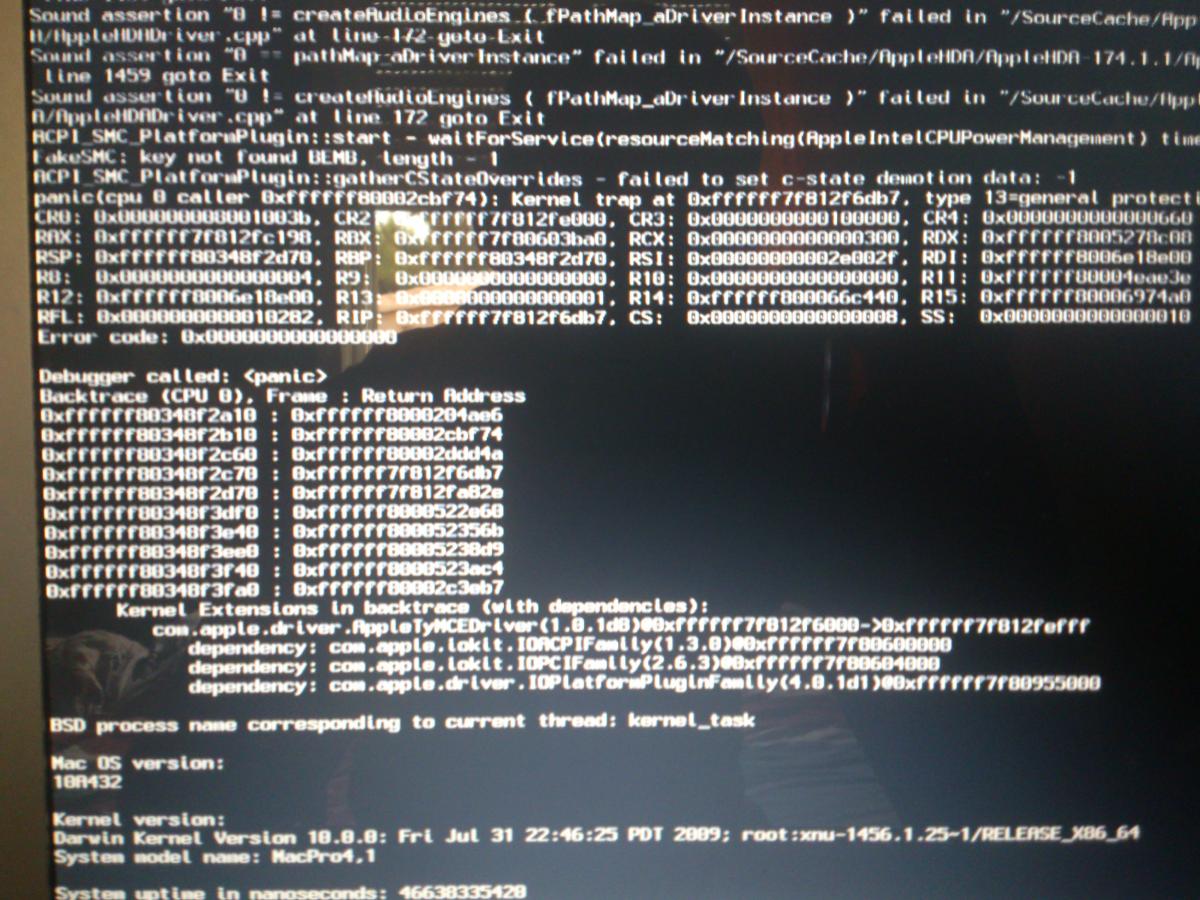

Where can i post my picture ?

it's the verbose mode

Attached Files



#9
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
ok, boot with -s and put this code for delete AppleTyMCEDriver.kext, this kext cause KP for you.

boot with -s


mount /
rm -rf /System/Library/Extensions/AppleTyMCEDriver.kext
sudo rm -rf /System/Library/Caches/*
schutdown -r now


now boot with this boot flag: -f -v GraphicsEnabler=No npci=0x2000

#10
theoh88

theoh88

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
  • Gender:Male
  • Location:Aubagne, France
It works ! Thank you very much !
Now i need your help again to :
active my touchpad
active sound because i have an error when i open voodooHDA "Can't get registry-entry path" just delete and reinstall !!
configure my graphic card in 1280x720
active my usb ports because they don't recognize my devices After the second reboot, it works
configure my keyboard in french
active "About this mac"

#11
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
for trackpad instal this two kexts in S/L/E with KextWizard app, repairPermissions and Rebuild Caches with KW app, now reboot, for graphics card put in your org.chameleon.boot.plist GraphicsEnabler=Yes, use app Chameleon Wizard for configure this.




Attached File  1448-PS2-Synaptics-Keyboard-32+64.zip   140.85KB   128 downloads

#12
theoh88

theoh88

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
  • Gender:Male
  • Location:Aubagne, France
Thanks for your answer
I don't have org.chameleon.boot.plist, i have only com.apple.boot.plist

#13
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
rename this for org.chameleon.boot.plist

#14
theoh88

theoh88

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
  • Gender:Male
  • Location:Aubagne, France
Ok i install Chameleon 2 RC5 VS and i check Graphics enabler but when i boot, i have a black screen. So i uncheck graphics enabler and i check npci-0x2000. Now, audio, ethernet, bluetooth are working. My resolution is 1280x800. Sleep mode and "About this mac.." don't work. And is it possible to get multitouch with my trackpad ?

#15
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain

http://www.insanelym...howtopic=228733



http://www.insanelym...howtopic=252525

#16
theoh88

theoh88

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
  • Gender:Male
  • Location:Aubagne, France
Thanks, it works :thumbsup_anim:
Now for the multi touch ?

#17
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain

http://www.osx86.net..._ps2_32-64.html


#18
theoh88

theoh88

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
  • Gender:Male
  • Location:Aubagne, France
It works perfectly !! Thank you for your help !

#19
theoh88

theoh88

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
  • Gender:Male
  • Location:Aubagne, France
Is it possible to update on 10.6.8 ?

#20
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
Make one backup of the your Disk, or clone your disk for one hard disk external with C.C.C CARBON COPY CLONER and for test install update in the clone, if this work, install in your disk.
