How do I wire up a G5 front panel?


  • Please log in to reply
No replies to this topic

#1
Foxic

Foxic

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,070 posts
  • Gender:Male
  • Location:U.K.

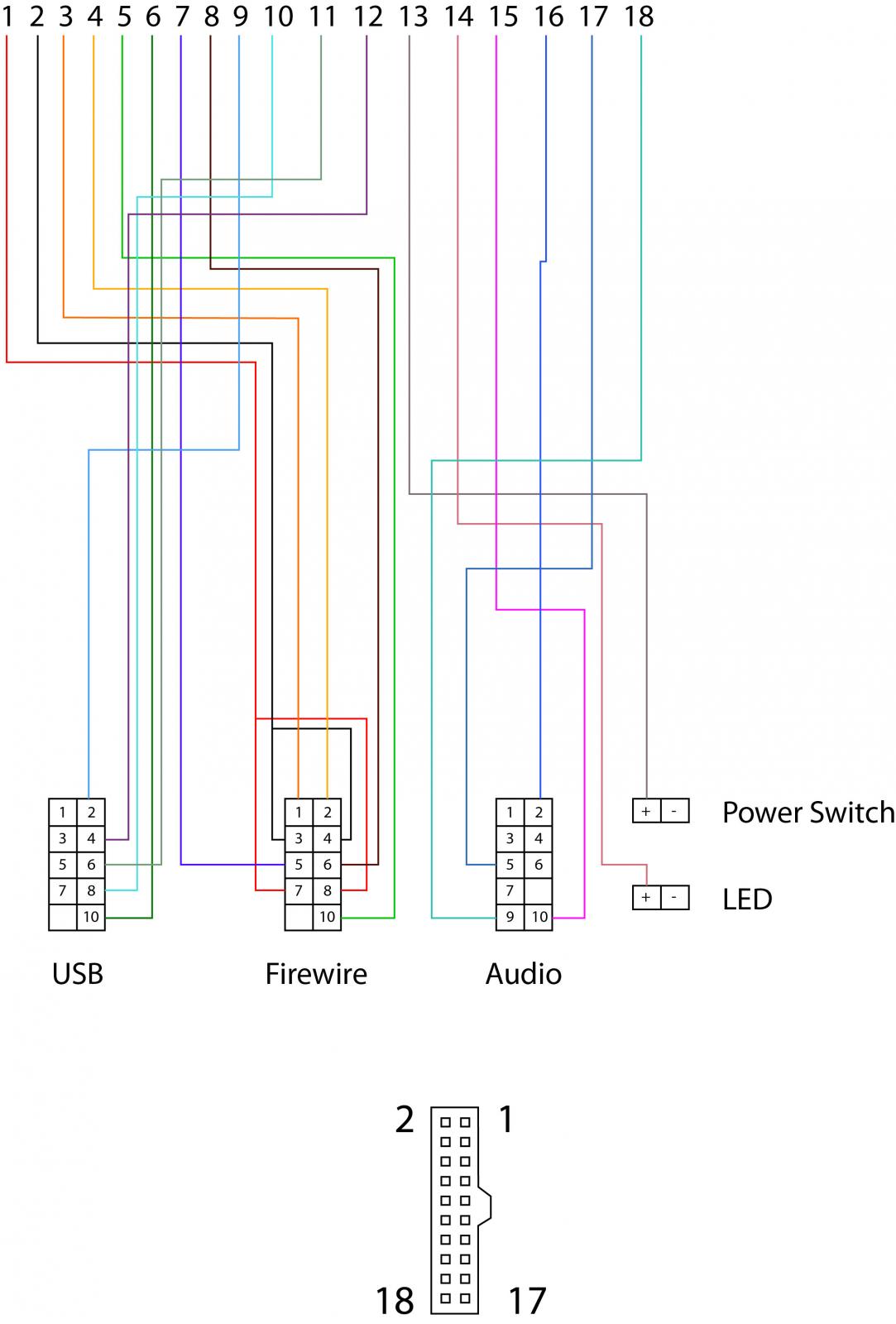

This wiring diagram is specific to G5 powermacs.
The connector illustration is shown as if looking at the bottom of the connector, that is, the side that plugs in.

Attached Files
