Asrock p5b-de sleep and shutdown


  • Please log in to reply
17 replies to this topic

#1
Fedd

Fedd

    InsanelyMac Protégé

  • Members
  • Pip
  • 49 posts
  • Gender:Male
Dear,
i have succesfully installed Osx lion on these components:

-Motherboard: Asrock p5b-de
-Cpu: Intel Core 2 Quad q6600
-Asus 4670 HD 1GB
-4 gb ddr2 800
-Sata hd and dvd-writer
-PS2 Keyboard and USB mouse

First i installed Lion 10.7.2 from Usb thumb drive ,then i upgraded to 10.7.3.
I have this dsdt . (The only one i found)
Voodoo HDA 2.7.2 for the audio.
PS2 kext for the keyboard.
IOAtafamily kext modified for ich*
In "extra" folder i have only fakesmc and appleRTC
For chameleon i have this boot.plist

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>DSDT</key>
<string>/Extra/dsdt.aml</string>
<key>EthernetBuiltIn</key>
<string>Yes</string>
<key>GenerateCStates</key>
<string>Yes</string>
<key>GeneratePStates</key>
<string>Yes</string>
<key>Graphics Mode</key>
<string>1024x768x16</string>
<key>Legacy Logo</key>
<string>Yes</string>
<key>Rescan</key>
<string>Yes</string>
<key>SMBIOS</key>
<string>/Extra/smbios.plist</string>
<key>Theme</key>
<string>DType</string>
<key>Timeout</key>
<string>5</string>
</dict>
</plist>

(If i set graphics mode to 1024x768x24 ,during the boot i get black screen and the display say "off scale",but when in osx it works).

However the real problem is i can't get sleep and shutdown to work.
Shutdown don't work. Turns off only the monitor.
And for the sleep mode, i can't awake it.

It's a dsdt problem? who can help me?

#2
mr_christer

mr_christer

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 261 posts
  • Gender:Male
I'm in the same boat as you, except I'm still in 10.6.8
The ASrock p5b-de is working fine except for sleep and shutdown...
it must be a DSDT issue... I' thinking about getting the DSDT again and ask Mald0n to modify it...

#3
Fedd

Fedd

    InsanelyMac Protégé

  • Members
  • Pip
  • 49 posts
  • Gender:Male
The only problem that still remain is the sleep.
I've modified the DSDT . It's almost working 100% ,apart the sleep.
Even AppleLPC is loading.
My DSDT is here:

https://dl.dropbox.c...rock P5B-de.zip

#4
mr_christer

mr_christer

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 261 posts
  • Gender:Male
thanks for the package fedd! Just installed lion and putting your dsdt to work right now!
much appreciated mate!!

UPDATE: Computer is extremely stable now! Working great with Lion and is used everyday as a Final Cut / After Effects Production Suite! Shutdown works with fedd's DSDT, thanks again!
I uploaded your package here in case your link goes down, I hope this is o.k. with you...

Attached Files



#5
caguars

caguars

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
Hi there. I have the same issue, my pc is restarting instead of shutting down. ( Asrock p5b-de mobo, Lion 10.7.3 )
I put your DSDT file in /extra folder and my pc doesn't boot anymore, it hangs on apple boot screen ( the "loading circle icon" doesn't appear anymore ).
Anyway I have an Acronis Image of my mac partition and I put it back. But I want to make your dstd file to work, the shut down issue is very annoying. What should I do? Thanks in advance.

ps: I have another issue if you can help me. From time to time, when I boot the computer, at apple boot screen, gives me kernel panic. ( in error is something with IOATAFamily.kext ), if I restart pc, then boot normaly. your kext will fix that?

#6
mr_christer

mr_christer

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 261 posts
  • Gender:Male
i would start with updating to 10.7.4 then install the newest chameleon with chameleon wizard.
did you install the provided ioatafamily.kext from the zip with kext utility?
I attached my Extra folder, maybe it will help you! Good Luck!

Are you using any IDE Drives or IDE DVD?

Attached Files



#7
caguars

caguars

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
This is my extra folder ( without theme folder, I remove it because is 24MB ).

No, I have only sata ( hdd and dvd ).

Attached Files



#8
mr_christer

mr_christer

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 261 posts
  • Gender:Male
i dont think your dsdt is even picked up by chameleon because its not named dsdt.aml. you're also missing some extensions that are important for lion... or did you install everything in system/library/extensions ?

did you try backuping your extra folder and replace it with mine?

#9
caguars

caguars

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
Yes, I replace it with your folder and same result - it hangs on apple boot screen ( the "loading circle icon" doesn't appear anymore ). I have Iatkos L2. And yes, everything is in system/library/extension by default.

#10
mr_christer

mr_christer

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 261 posts
  • Gender:Male
i'd suggest you dont use a distro like iatkos! use the original lion install and replace ioatafamily. after boot install ioatafamily to the system and install chameleon, then replace the extra folder with the one above.
this way you know exactly what got modified to make the system run.
here is my preferred guide to get a perfect lion installation partition or usb stick:
http://themacmob.com...lion-usb-drive/

#11
caguars

caguars

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts

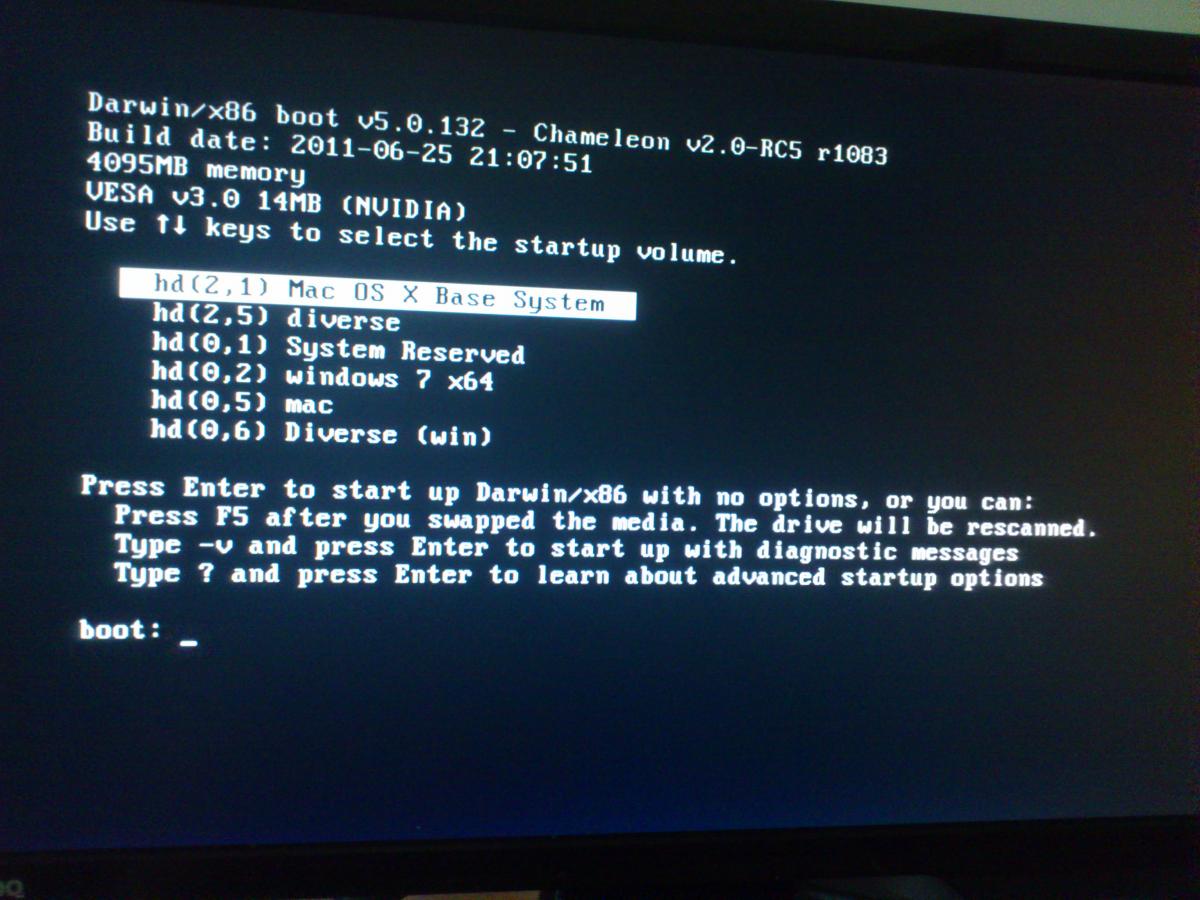

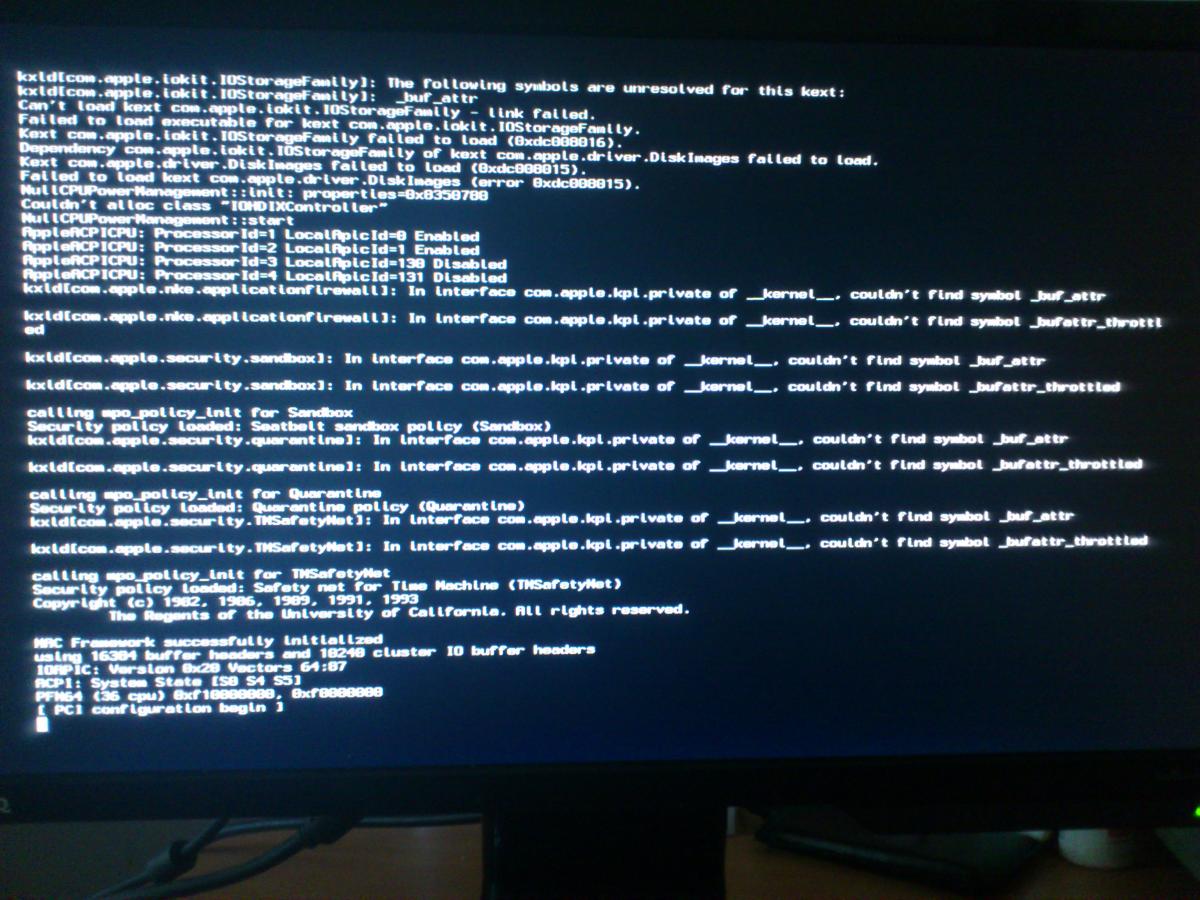

I made a bootable usb flash stick, I use OSX Lion 10.7.4.dmg instead of 10.7, I boot up from the flash, chameleon screen appear, I choose Mac OS X Base system ( witch is my usb drive ), but it freeze at "PCI configuration begin". What is the problem ?

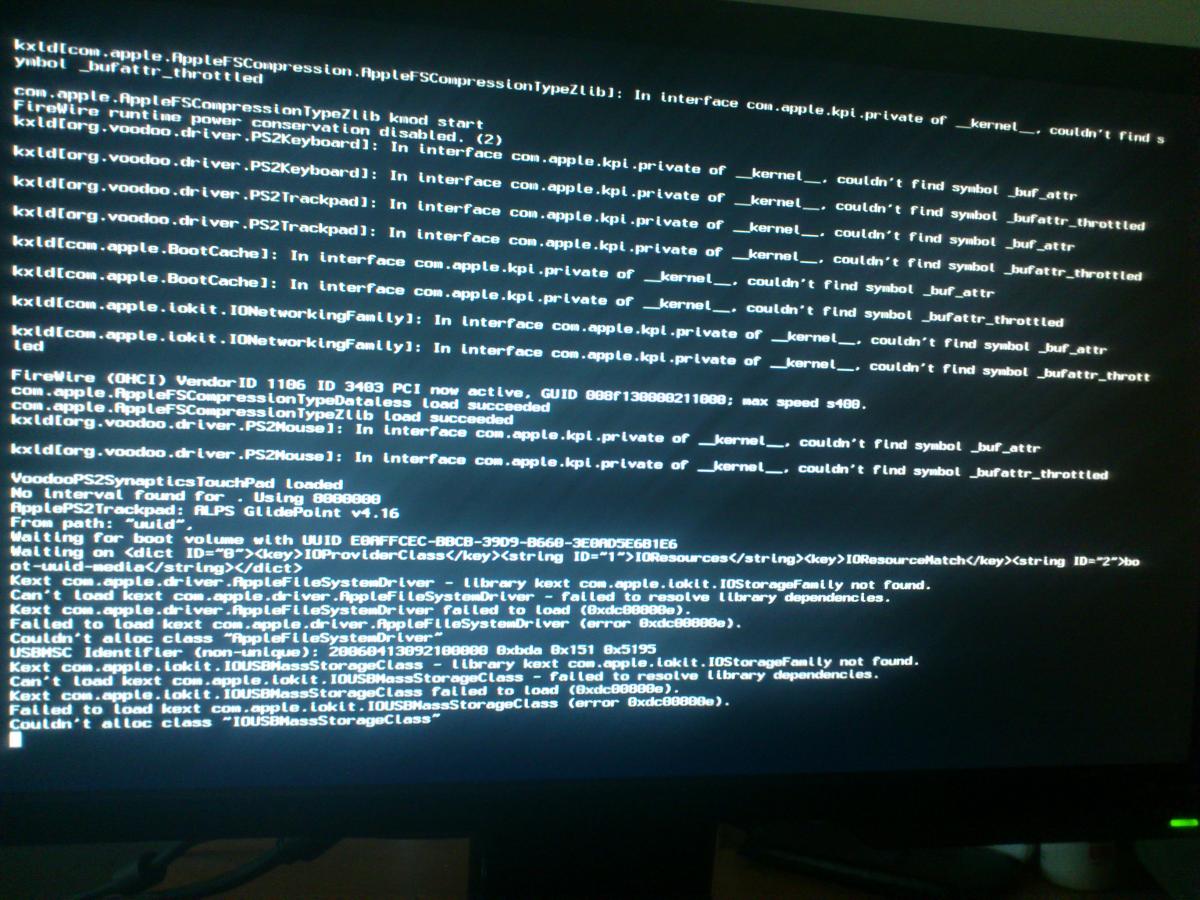

Later edit: If I use "-v npci=0x2000" it freeze at "Couldn't alloc class IOUSBMassStorageClass".

Attached Files



#12
caguars

caguars

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
I made another usb flash with OSX Lion 10.7 ( I follow the tutorial you provided ), boot with -v npci=0x2000, but disk utility doesn't see any of my hdd drives ( I have 2 sata hdd drive ). He see only usb flash drive. I replace ioatafamily.kext with yours and disk utility see just one hdd ( the fisrt sata hdd ). I install macosx, but after restart hangs with "stiil waiting for root device". It seems that my computer only work with Iatkos L2 version :))

#13
caguars

caguars

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
Ok, so my specs are: cpu Intel dual core E2200, 4 GB ram ( 2 x 2 GB ), two sata 2 HDD drives - first WD 500 GB with 3 partitions 1 - Win 7, 2 - Mac OS X Lion ( Iatkos L2 ), 3- multimedia; - second - 1 TB, two partitions HTFS file system, Geforce GTS450 1 GB ram EVGA, Asus DVD RW - sata 2, mobo Asrock p5b-de.

Please anyone help me to install original OXS Lion. ( On Iatkos L2 shut down=restart, and from time to time I get a panic kernel when I boot up de pc ). Iatkos L2 doesn't seems to use any dsdt. If I put one dsdt in extra folder, my pc freeze at apple logo or in verbose mode at "PCI configuration begin".

#14
caguars

caguars

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
I made another usb stick with retail OSX Lion 10.7, install was fine, boot was fine. But when I put your dsdt, same {censored} happens, it hangs on "pci configuration begin". -v npci=0x2000 flag doesn't help.

#15
Fedd

Fedd

    InsanelyMac Protégé

  • Members
  • Pip
  • 49 posts
  • Gender:Male

I made another usb stick with retail OSX Lion 10.7, install was fine, boot was fine. But when I put your dsdt, same {censored} happens, it hangs on "pci configuration begin". -v npci=0x2000 flag doesn't help.


Try to repair the permissions when you put the DSDT.
Also, make sure on the BIOS you have enabled these settings :

Enhanced Sata,ACPI HPET,Speedstep,Enhanced Halt State,USB 2.0,Hyper Threading

Edit:
The hang at "pci configuration begin" depends on your Graphics card.

Try "npci=0x3000" instead of "npci=0x2000"

#16
caguars

caguars

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
Here is my dsdt extracted with chameleon wizard. Can you, please, modify for me? Thanks in advance.

Attached Files



#17
caguars

caguars

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
Finlly I managed to make your dsdt file to work on my pc. With dsdt editor I put in Method MCDP - OSTP 8, and now system boot without problem ( shut down work also ). But time to time kernel panic or freeze still remain, I don't know why.

#18
Fedd

Fedd

    InsanelyMac Protégé

  • Members
  • Pip
  • 49 posts
  • Gender:Male
The same panic regarding IOAtaFamily?
Try my IOAtaFamily kext, from my second post. (Is in the archive)

Install it with kext utility or kext wizard and reboot.
(Make backup of your first)
