Realtek RTL 8169 Ethernet - kext load, but can't use, cause panic


  • Please log in to reply
2 replies to this topic

#1
plsh2me

plsh2me

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 183 posts
  • Gender:Male
  • Location:Bangladesh
Hi, Everyone I have installed Mac OS X Lion 10.7.3 on my Dell inspiron N5010, as i know realtek RTL8169 Ethernet is a working device on Mac OS X(wifi device bcm4313 looks like never working) . But it makes me hopeless :( . Kexts loads.

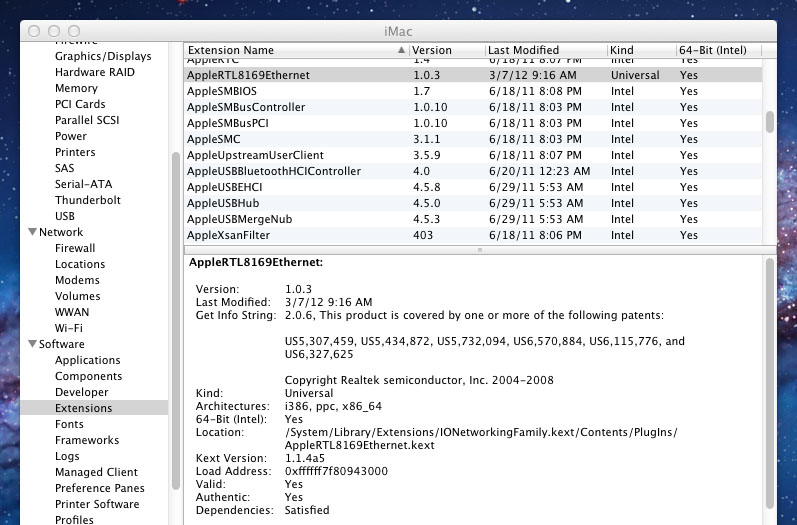

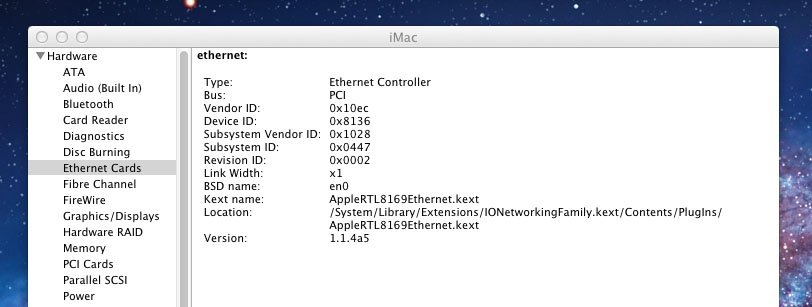

Attached File  net.2.jpg   125.87KB   68 downloads
Attached File  net.1.jpg   59.06KB   81 downloads

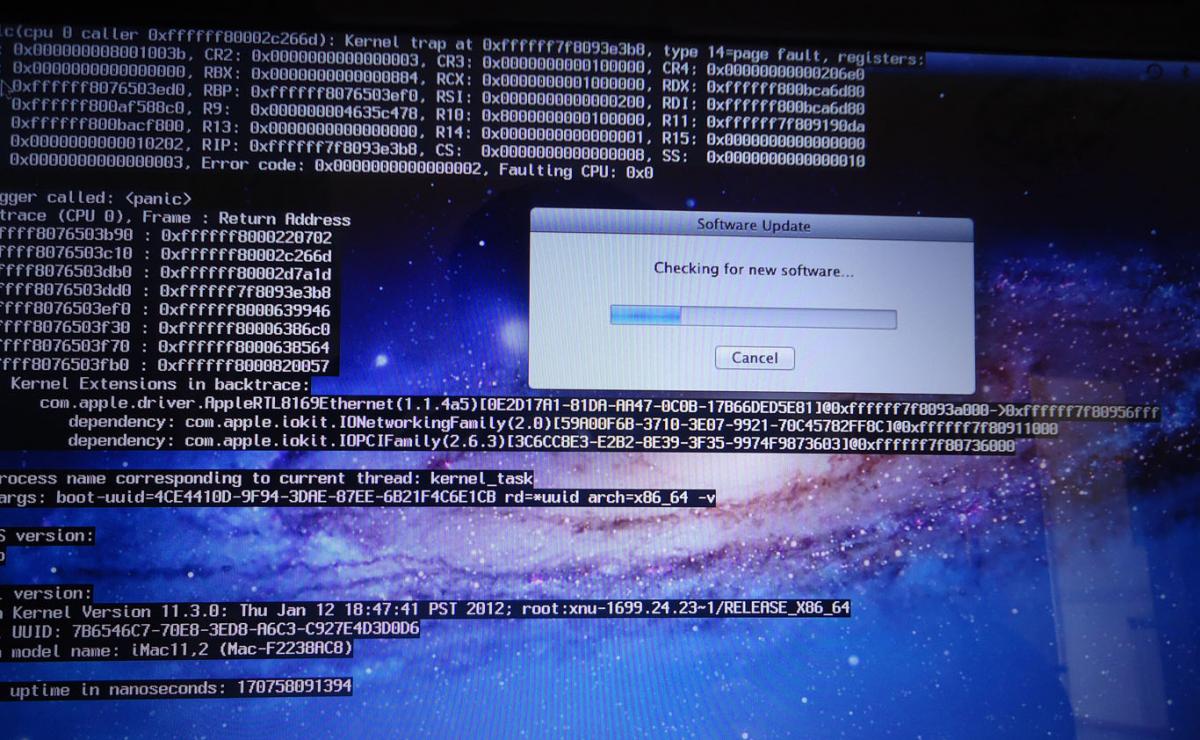

when i connect to the internet it cause panic.
Attached File  netw.jpg   320.21KB   70 downloads

It shows dependancy with IONetworkingFamily.kext & IOPCIFamily.kext. I have tried many other kexts of AppleRTLEthernet8169.kext, results same.
Please help me, What should i do to make it working?

#2
LatinMcG

LatinMcG

    Insanely digesting DSDT

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,509 posts
  • Gender:Male
  • Location:Tampa, Florida
IOPCI issue
replace with
http://www.insanelym...dpost&p=1801161
at bottom of his post

also look at first post by immo..
the Device (PCI0) is missing _UID ??
my 1520 uses 98% of the fixes for m1330 and the _UID missing was crucial.

#3
plsh2me

plsh2me

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 183 posts
  • Gender:Male
  • Location:Bangladesh
@LatinMcG: Thanks for your reply.

Problem solved :) .
Actually I was wrong. My device id 8136 is works with the kext RealtekR1000.kext not Apple RTL8169Ethernet.kext. By loading this kext make me confused. So that I had tried to work Apple RTL8169Ethernet.kext and failed.

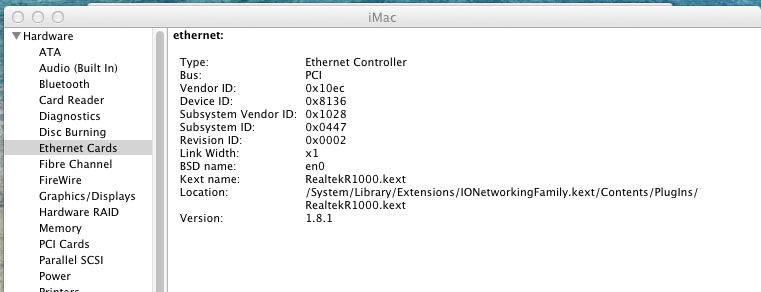

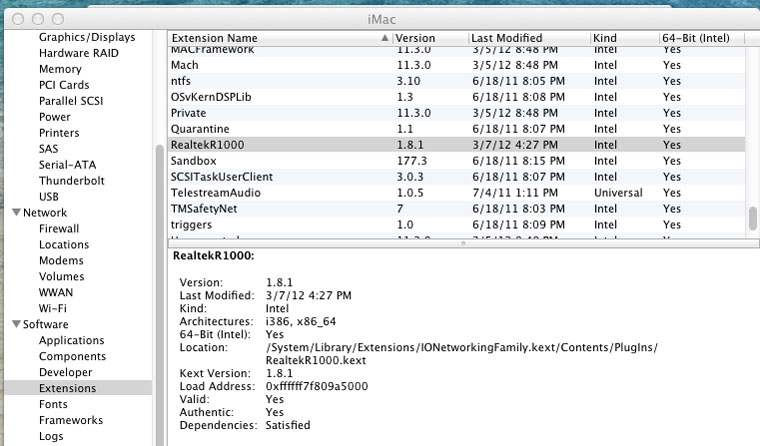

Attached File  eth0.jpg   53.22KB   72 downloads

Attached File  eth1.jpg   91.28KB   69 downloads

Now my Ethernet device works perfectly with RealtekR1000.kext.

Thanks....
