Feasability of an adapter board to mount atx/matx motherboards to mac pro/G5 casings?


  • Please log in to reply
2 replies to this topic

#1
novaris

novaris

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts
I came up with this idea while modding my mac pro.

my approach for the modding is somewhat different from the modding projects here.

Instead of removing existing apple standoffs on the casing then using epoxy to fix and align them to comply with atx/matx motherboard mounting holes, I've been trying to make an adapter board that has mounting holes from BOTH mac pro and atx.

with this board, there is no need to remove existing apple standoffs then realigning them to fit atx specs. the only thing left to do is to trim the height of the existing standoffs and mount atx standoffs on the same board.


The question is, would this be a better solution than the current way of doing things? (of course, if you have spare logic boards, we can discuss further)

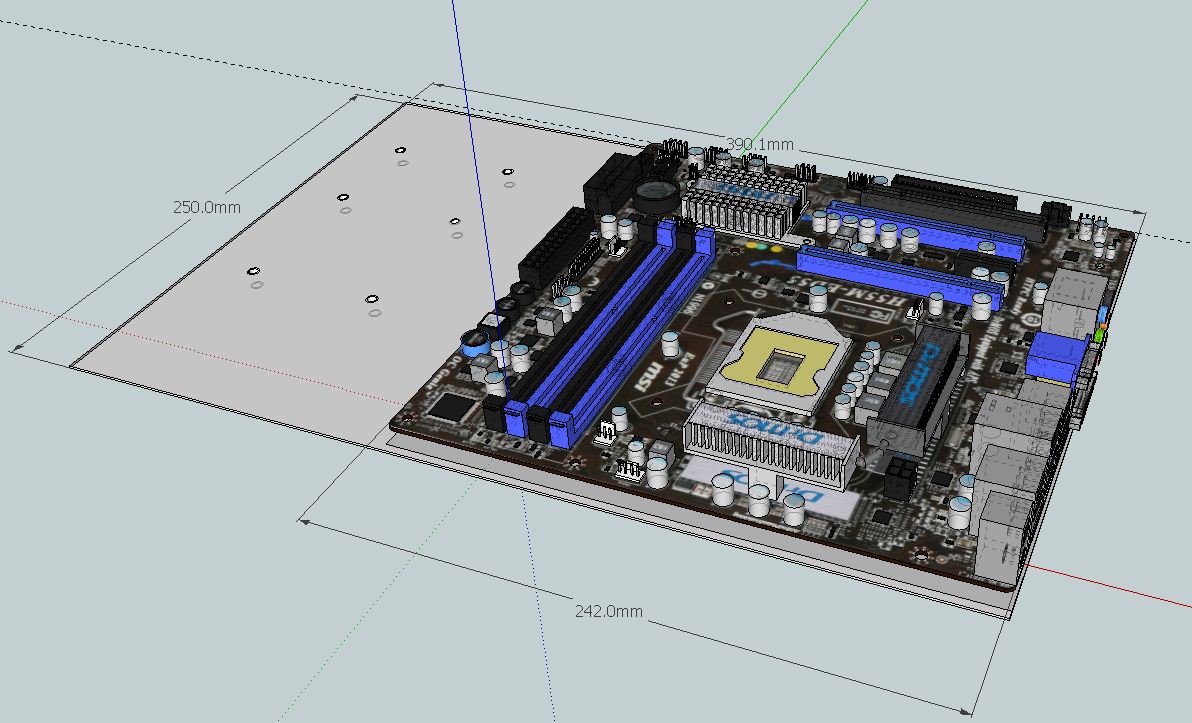

I've attached a diagram to illustrate the concept.


Note: this is not a interest check for a mass order of a commercial product, just a discussion.

Attached Files

  • Attached File  a3.JPG   138.64KB   91 downloads


#2
Surferpro

Surferpro

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
  • Gender:Male
That looks interesting, do you have the specs and dimension for a G5 case?

#3
Buhmi

Buhmi

    InsanelyMac Protégé

  • Members
  • Pip
  • 4 posts
Well the idea is quite nice, but what about the back? When I'm thinking in the right way the standoff would double the distance between the back and the board and therefore the IO/panel would collide with the fans in the back of a G5 case. If you want to replace the back anyway never mind ;)
