Install Lion on Intel Desktop Board DH67B

intel DH67B lion MultiBeast DSDT tonymacx86 unibeast pendrive app store

  • Please log in to reply
5 replies to this topic

#1
thecrazy

thecrazy

    InsanelyMac Protégé

  • Members
  • Pip
  • 46 posts
  • Gender:Male
  • Location:Caracas - Venezuela
I have installed Lion on Vmware and due to good performance I have decided to install natively on the computer using this method: http://tonymacx86.bl...lion-using.html

My machine:

Intel Desktop Board DH67B
Intel Core i3-2100 Processor (3M Cache, 3.10 GHz)
The video is integrated on the motherboard
Samsung S19A300 18.5 inch Widescreen LED Monitor
Two Kingston of 4GB DDR3 PC3-10700 1333MHz

But I have some questions:

1. What would be the choices I make in #####? I found this topic with the option to place in the ##### But not any graphic option marked: http://www.tonymacx8...=141042#p141042

2. How to configure the integrated video motherboard?

3. Can you update the Lion without problems or I have to fix in each update?

4. I recognize the configuration of my monitor?

5. I found the DSDT file of the motherboard but not how to use it: http://olarila.com/f...c.php?f=7&t=219

Any help is appreciated as I am very new on Mac

Thanks

#2
thecrazy

thecrazy

    InsanelyMac Protégé

  • Members
  • Pip
  • 46 posts
  • Gender:Male
  • Location:Caracas - Venezuela
I already set the bios as indicated by this message: http://tonymacx86.co...aef4d18#p144212

I have my pendrive created as is shown in this tutorial: http://tonymacx86.bl...lion-using.html

I got these drivers who wanted to try for my Intel HD Graphics 2000: http://www.osx86.net...d_graphics.html

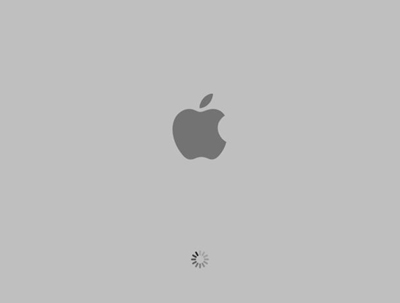

But when I start the process gets stuck here:
Attached File  mac_os_x_boot_screen.jpg   18.92KB   6 downloads


Any help?

#3
thecrazy

thecrazy

    InsanelyMac Protégé

  • Members
  • Pip
  • 46 posts
  • Gender:Male
  • Location:Caracas - Venezuela
I boot in verbose mode and always stop on "still waiting root device" I try every combination possible (GraphicsEnabler=No -s -v -x) and I always get the same result :wacko:

The two hard drives and DVD-ROM are SATA :wallbash:

#4
xcaliburpcs

xcaliburpcs

    InsanelyMac Protégé

  • Members
  • Pip
  • 6 posts
Its the graphic cards drivers, if thats called on Mac OS X. Im new to this, you can boot the system if you delete APPLEINTELHDGRAPHICS.KEXT AND APPLEINTELSNBGRAPHICSFB.KEXT, To do this boot from the installation DVD, go to utilities and open terminal, first you have to know your volume name,(hard drive you installed OS X. Type ls /Volumes to see volumes)after you find your volume name (example:Lion) type in terminal, cd /volumes/LION(VOLUME NAME)/system/library/extensions/
press Enter
then type rm -R /volumes/lion/system/library/extensions/AppleintelHdgraphics.kext
press Enter
then type rm -R /Volumes/lion/system/library/extensions/Appleintelsnbgraphicsfb.kext
press enter

#5
thecrazy

thecrazy

    InsanelyMac Protégé

  • Members
  • Pip
  • 46 posts
  • Gender:Male
  • Location:Caracas - Venezuela

Its the graphic cards drivers, if thats called on Mac OS X. Im new to this, you can boot the system if you delete APPLEINTELHDGRAPHICS.KEXT AND APPLEINTELSNBGRAPHICSFB.KEXT, To do this boot from the installation DVD, go to utilities and open terminal, first you have to know your volume name,(hard drive you installed OS X. Type ls /Volumes to see volumes)after you find your volume name (example:Lion) type in terminal, cd /volumes/LION(VOLUME NAME)/system/library/extensions/
press Enter
then type rm -R /volumes/lion/system/library/extensions/AppleintelHdgraphics.kext
press Enter
then type rm -R /Volumes/lion/system/library/extensions/Appleintelsnbgraphicsfb.kext
press enter

I have not yet installed the system, not even get to the graphical installation menu :wacko:

#6
thecrazy

thecrazy

    InsanelyMac Protégé

  • Members
  • Pip
  • 46 posts
  • Gender:Male
  • Location:Caracas - Venezuela
It worked! Just delete the files from USB drive. Remember I'm using this installation method: http://tonymacx86.bl...lion-using.html

They are located inside the pendrive here: /Volumes/(volume_name)/System/Library/Extensions

To delete files use this program showing hidden files: http://www.macupdate...invisible-files

Is the installation is complete even missing those two files?
