buoo Posted October 16, 2011 Share Posted October 16, 2011 Snow Leopard 10.6.8 Installation Guide Update October 25, 2011 AT5IONT-I support added Bluetooth now working ("How to" below) Requirements Snow Leopard 10.6.3 Combo Update 10.6.8 Atom_kernel_10.6.8.zip AT5CDBoot.iso.zip My_Archive.zip Bios Settings Configure SATA as [AHCI] Installation Procedure Burn AT5CDBoot.iso and use it to install Snow Leopard 10.6.3 Reboot with the CDBoot and, at the Desktop, open "My Archive" and install AT5IONT-I / Deluxe.pkg Now open the Terminal and type: perl -e 'open(CMD, "ioreg -lw0 \| grep DSDT|") or die; while(<CMD>) { chomp; if($_ =~ /\"DSDT\.?\d?\"=<([^>]*)>/) { $buff = $1; open(PIP, "|xxd -r -p > ~/Desktop/dsdt.aml") or die; print PIP "$1"; } }' It will appear "dsdt.aml" on the Desktop, so open DSDT Auto-Patcher, select it and AT5IONT-I Deluxe.txt or AT5IONT-I.txt (you'll find in My package) and apply the patch. Name it DSDT.aml and put it in the Extra folder. Copy mach_kernel_atom (10.6.8) in the Root "/" too. Open Kext Wizard and install the next kexts to System/Library/Extensions: • RealtekRTL81xx.kext • PXHCD.kext • AppleHDADisabler.kext Install the Combo Update 10.6.8 and reboot. Turn back to the Desktop re-open Kext Wizard and install VoodooHDA.kext in Sistem/Library/Extensions Using again Kext Wizard to do Maintenance and reboot. Mission Accomplished! Bluetooth enabler How to: 1) Unpack Bluetooth.zip 2) Run terminal and go to unpacked directory cd Bluetooth 3) Install (will require admin rights) sudo ./install 4) Shutdown This package installs to /Extra/ath3k-firmware-uploader, also it installs launchctl config to /System/Library/LaunchDaemons/local.ath3k-firmware-uploader.plist and registers it with launchctl. Uninstall: sudo rm -rf /Extra/ath3k-firmware-uploader/ sudo launchctl unload /System/Library/LaunchDaemons/local.ath3k-firmware-uploader.plist sudo rm /System/Library/LaunchDaemons/local.ath3k-firmware-uploader.plist Bluetooth.zip Report Boot x86_64 IntelPowerManagement Shut Down\Reboot\Sleep (DSDT) Wifi (DSDT) Bluetooth Graphics Ethernet Audio ___Line-out (Perfect) ___Mic eSata (DSDT) USB3 PS/2 Kextstat 1 com.apple.kpi.bsd (10.8.0) 2 com.apple.kpi.dsep (10.8.0) 3 com.apple.kpi.iokit (10.8.0) 4 com.apple.kpi.libkern (10.8.0) 5 com.apple.kpi.mach (10.8.0) 6 com.apple.kpi.private (10.8.0) 7 com.apple.kpi.unsupported (10.8.0) 8 com.apple.iokit.IOACPIFamily (1.3.0) <7 6 4 3> 9 com.apple.iokit.IOPCIFamily (2.6.5) <7 6 5 4 3> 10 com.apple.driver.AppleACPIPlatform (1.3.6) <9 8 7 6 5 4 3> 11 com.apple.driver.AppleIntelCPUPowerManagement (142.6.0) <7 6 5 4 3 1> 12 com.apple.iokit.IOStorageFamily (1.6.3) <7 6 5 4 3 1> 13 com.apple.driver.DiskImages (289.1) <12 7 6 5 4 3 1> 14 com.apple.nke.applicationfirewall (2.1.12) <7 6 5 4 3 1> 15 com.apple.kext.AppleMatch (1.0.0d1) <4 1> 16 com.apple.security.quarantine (0) <15 7 6 5 4 2 1> 17 com.apple.security.sandbox (1) <15 7 6 5 4 2 1> 18 com.apple.security.TMSafetyNet (6) <7 6 5 4 2 1> 19 com.apple.driver.AppleIntelCPUPowerManagementClient (142.6.0) <7 6 5 4 3 1> 20 com.apple.driver.AppleAPIC (1.4) <4 3> 21 com.apple.driver.AppleSMBIOS (1.7) <7 4 3> 22 com.apple.driver.AppleRTC (1.3.1) <8 5 4 3 1> 23 com.apple.driver.AppleHPET (1.5) <8 7 5 4 3> 24 com.apple.iokit.IOHIDFamily (1.6.6) <7 6 5 4 3 1> 25 com.apple.driver.AppleACPIButtons (1.3.6) <24 10 8 7 6 5 4 3 1> 26 org.netkas.fakesmc (2) <8 7 4 3> 27 com.apple.driver.AppleEFIRuntime (1.4.0) <7 6 5 4 3> 28 com.apple.iokit.IOUSBFamily (4.2.4) <9 7 5 4 3 1> 29 com.apple.driver.AppleUSBUHCI (4.2.0) <28 9 7 5 4 3 1> 31 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0d1) <6 4 3 2 1> 32 com.apple.driver.AppleEFINVRAM (1.4.0) <27 7 5 4 3> 33 com.apple.iokit.IOAHCIFamily (2.0.6) <5 4 3 1> 34 com.apple.driver.AppleAHCIPort (2.1.7) <33 9 5 4 3 1> 35 com.apple.driver.AppleUSBEHCI (4.2.4) <28 9 7 5 4 3 1> 36 com.apple.BootCache (31.1) <7 6 5 4 3 1> 37 com.LaCie.driver.PXHCD (1.0.7) <28 9 7 5 4 3> 38 com.apple.iokit.IOUSBUserClient (4.2.4) <28 7 5 4 3 1> 39 com.apple.iokit.IOSCSIArchitectureModelFamily (2.6.8) <5 4 3 1> 40 com.apple.iokit.IOAHCISerialATAPI (1.2.6) <39 33 5 4 3 1> 41 com.apple.driver.AppleUSBHub (4.2.4) <28 5 4 3 1> 42 com.apple.iokit.IOAHCIBlockStorage (1.6.4) <33 12 5 4 3 1> 43 com.apple.iokit.IOCDStorageFamily (1.6.1) <12 5 4 3 1> 44 com.apple.iokit.IODVDStorageFamily (1.6) <43 12 5 4 3 1> 45 com.apple.iokit.IOBDStorageFamily (1.6) <44 43 12 5 4 3 1> 46 com.apple.iokit.IOSCSIMultimediaCommandsDevice (2.6.8) <45 44 43 39 12 5 4 3 1> 47 com.apple.iokit.SCSITaskUserClient (2.6.8) <39 12 5 4 3 1> 48 com.apple.driver.AppleUSBComposite (3.9.0) <28 4 3 1> 49 com.apple.driver.XsanFilter (402.1) <12 5 4 3 1> 50 com.apple.iokit.IOUSBMassStorageClass (2.6.7) <39 28 12 5 4 3 1> 51 com.apple.iokit.IOUSBHIDDriver (4.2.0) <28 24 5 4 3 1> 52 com.apple.iokit.IOSCSIBlockCommandsDevice (2.6.8) <39 12 5 4 3 1> 53 com.apple.iokit.IONetworkingFamily (1.10) <7 6 5 4 3 1> 54 com.lnx2mac.driver.RealtekRTL81xx (0.0.90) <53 9 5 4 3 1> 55 com.apple.driver.AppleLPC (1.5.1) <9 5 4 3> 56 com.apple.driver.AppleSMBusPCI (1.0.10d0) <9 5 4 3> 57 com.apple.driver.IOPlatformPluginFamily (4.7.0a1) <8 7 6 5 4 3> 58 com.apple.driver.AppleSMC (3.1.0d5) <8 7 5 4 3> 59 com.apple.driver.ACPI_SMC_PlatformPlugin (4.7.0a1) <58 57 9 8 7 6 5 4 3> 60 com.apple.iokit.IO80211Family (320.1) <53 7 6 5 4 3 1> 61 com.apple.driver.AirPort.Atheros21 (425.14.7) <60 53 9 7 5 4 3 1> 62 com.apple.iokit.IOGraphicsFamily (2.2) <9 7 5 4 3> 63 com.apple.iokit.IONDRVSupport (2.2) <62 9 7 5 4 3> 64 com.apple.NVDAResman (6.3.6) <63 62 9 5 4 3 1> 65 com.apple.GeForce (6.3.6) <64 63 62 9 7 6 5 4 3 1> 66 com.apple.iokit.AppleProfileFamily (41) <9 7 6 5 4 3 1> 68 com.apple.kext.OSvKernDSPLib (1.3) <5 4> 69 com.apple.iokit.IOAudioFamily (1.8.3fc2) <68 5 4 3 1> 70 org.voodoo.driver.VoodooHDA (0.2.1) <69 9 7 5 4 3 1> 71 com.apple.nvidia.nv50hal (6.3.6) <64 4 3> 73 com.apple.iokit.IOSMBusFamily (1.1) <5 4 3> 74 com.apple.driver.AppleSMBusController (1.0.10d0) <73 9 8 5 4 3> 75 com.apple.driver.AudioIPCDriver (1.1.6) <69 5 4 3 1> 78 com.apple.driver.AppleMCCSControl (1.0.20) <62 9 7 5 4 3 1> 79 com.apple.Dont_Steal_Mac_OS_X (7.0.0) <58 7 4 3 1> 81 com.apple.driver.AppleUpstreamUserClient (3.5.7) <62 9 8 7 5 4 3 1> 82 com.apple.iokit.IOSerialFamily (10.0.3) <7 6 5 4 3 1> 83 com.apple.iokit.IOBluetoothSerialManager (2.4.5f3) <82 7 5 4 3 1> 84 com.apple.iokit.IOSurface (74.2) <7 5 4 3 1> 85 com.apple.driver.AppleProfileCallstackAction (20) <66 5 4 3 1> 86 com.apple.driver.AppleProfileKEventAction (10) <66 4 3 1> 88 com.apple.driver.AppleProfileRegisterStateAction (10) <66 4 3 1> 89 com.apple.driver.AppleProfileThreadInfoAction (14) <66 6 4 3 1> 90 com.apple.driver.AppleProfileTimestampAction (10) <66 5 4 3 1> 91 com.apple.driver.AppleProfileReadCounterAction (17) <66 6 4 3> 92 com.apple.filesystems.autofs (2.1.0) <7 6 5 4 3 1> 93 com.apple.driver.AppleHWSensor (1.9.3d0) <5 4 3> 94 com.apple.filesystems.msdosfs (1.6.3) <7 5 4 1> Credits P5K PRO DSDT: trick retail drivers by changing "device-id" (e.g USB), Fix sleep issues of ICH9/-R faking ICH10-R Slow Sata Issue Fix, How to fix HPET IRQ conflict that cause that Enabling Bluetooth for P8P67 * boards and BT-211 Atheros AR9285 fix for Snow Leopard, Atheros 0x2b fix JMicron SATA/IDE PCIe Card eSATA problem Patch DSDT for JMB362 in AHCI mode Patched mach_kernel 10.6.0 for Atom-based netbooks Chameleon 2.0 open source boot loader project VoodooHDA - guida al patching Kext Wizard, Maintenance, installation, unpacking and creating mkexts Lnx2Mac's Realtek RTL81xx Driver goes Beta DSDT Editor and Patcher LaCie USB 3.0 1 Link to comment Share on other sites More sharing options...
buoo Posted October 19, 2011 Author Share Posted October 19, 2011 Post reserved Link to comment Share on other sites More sharing options...
RomanTPA Posted November 29, 2011 Share Posted November 29, 2011 Couple of questions, Did you get dual monitor support? Did you get audio from HDMI? Will this work with non Deluxe version of the board? (it seems that Deluxe version is Europe only) Link to comment Share on other sites More sharing options...
buoo Posted November 29, 2011 Author Share Posted November 29, 2011 I've never tested the dual monitor support and HDMI yet. But a friend of mine tested the HDMI on the nonDeluxe version. The guide is for Deluxe and non Deluxe version. Link to comment Share on other sites More sharing options...
zureg Posted November 30, 2011 Share Posted November 30, 2011 Thanks for this guide! I am planning to buy this motherboard, and knowing that all will work is most reassuring. I only have a few questions: Is QE/CI working ok? I found a previous post saying that windows were shaking. Is that working now? I am also interested in knowing whether HDMI works ok, including audio. Thank you again for preparing this guide, it's truly useful! Link to comment Share on other sites More sharing options...
buoo Posted December 1, 2011 Author Share Posted December 1, 2011 QE/CI enabled. Link to comment Share on other sites More sharing options...
melaverde Posted December 9, 2011 Share Posted December 9, 2011 buoo please test it with 10.7.2 i'm interested to this mb but i need iCloud This configuration may used for photoshop little works or it's too slow? ciao Link to comment Share on other sites More sharing options...
buoo Posted December 9, 2011 Author Share Posted December 9, 2011 Hi GreenApple xD As soon as possible I'll try Lion on my little D2-R2, but I'm sure it works without issues. Link to comment Share on other sites More sharing options...

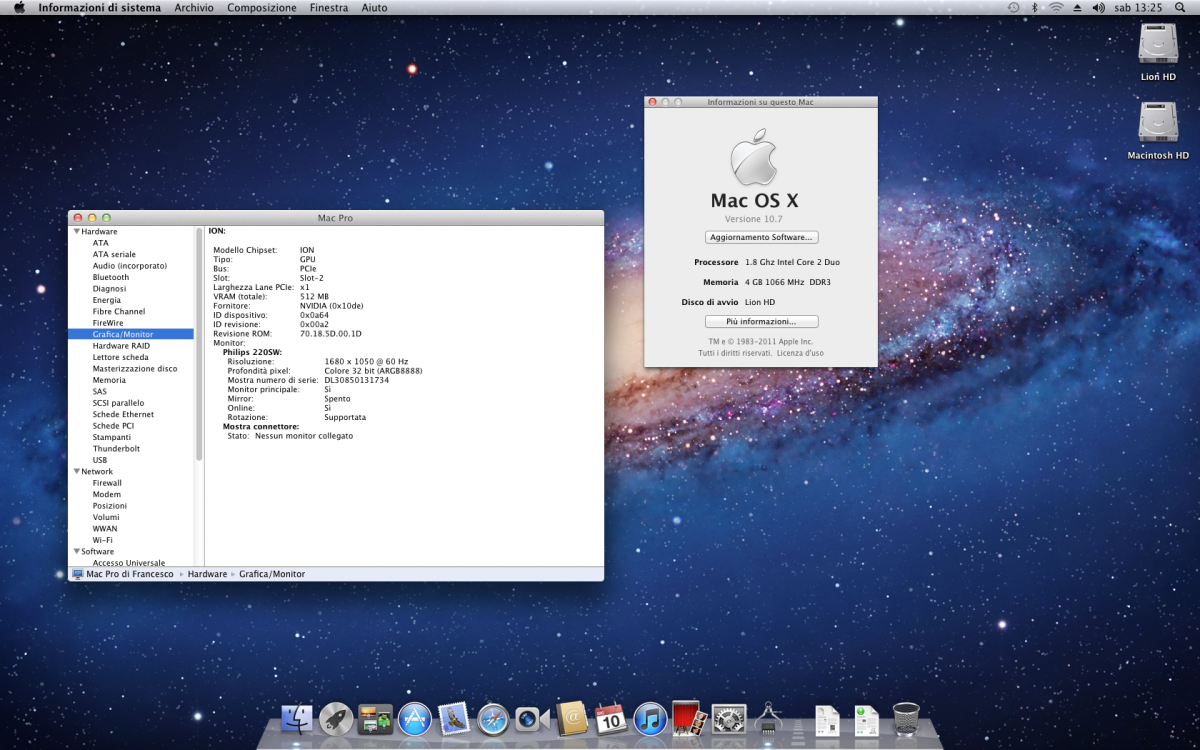

buoo Posted December 10, 2011 Author Share Posted December 10, 2011 It works! 1 Link to comment Share on other sites More sharing options...
melaverde Posted December 10, 2011 Share Posted December 10, 2011 ty Buoo you're a friend. (non potevi postare in italia?! ahaha se devi venderlo prendimi in considerazione:P) I've some question: - how many watts are needed? i would a little little case and i've found a 100wpsu. that's good? - this graphic card ion2 is better than 9300m of zotac minitx? - this cpu dual atom is similar at which intel processor of desktop? many tx! Link to comment Share on other sites More sharing options...
buoo Posted December 10, 2011 Author Share Posted December 10, 2011 Hi GreenApple xD I'm sorry for you but I'll never sell my little mobo 1) Approximately 30W, and I'm using the Thermaltake Element Q http://www.thermaltakeusa.com/product.aspx?s=1321&id=1896 2) I think so, but I'm not really sure. 3) We need a patched kernel but not a disabler for AppleCPUPowermanagement and we can boot in 64bit. Link to comment Share on other sites More sharing options...
melaverde Posted December 10, 2011 Share Posted December 10, 2011 cool! i like it - what do you think about this for our ( ) mobo? only 22 cm x 20 x 7 is like a mac mini also if i haven't understood if really can insert a player in a so little space... - which memories have you used 800mhz? - in windows i've read that browser player don't works well. Do you confirm? Monday i'll buy it and i hope that can work with atom + ion i trust in you and i'm happy that you take care of me Link to comment Share on other sites More sharing options...
buoo Posted December 10, 2011 Author Share Posted December 10, 2011 1) It was the first choice but to the end I bought the Element Q 'cause I let It on all day long for the sharing. If you buy that case you need a slim optical dvd. 2) 2 x DDR3 SO-DIMM 2GB / 1066Mhz KINGSTON Valueram CL7 rt 3) I don't know. 1 Link to comment Share on other sites More sharing options...
Binny1010 Posted February 26, 2012 Share Posted February 26, 2012 This tutorial doen`t work for me- i have installed osx at least seven times using these instructions and every time i install the combo update i am unable to boot back in to osx in any way- that is booting from the boot cd or dorectly from the HDD. I am at my wits end trying to install SL on this board - it just will not work for me. Any suggestions, anyone- please. Link to comment Share on other sites More sharing options...
buoo Posted February 26, 2012 Author Share Posted February 26, 2012 Did you copy the mach_kernel_atom in the root? Link to comment Share on other sites More sharing options...
Binny1010 Posted February 26, 2012 Share Posted February 26, 2012 yes the mach_kernel_atom was placed in the root / as you instructed but no joy Link to comment Share on other sites More sharing options...
Binny1010 Posted February 27, 2012 Share Posted February 27, 2012 Any suggestions??? Link to comment Share on other sites More sharing options...
buoo Posted February 27, 2012 Author Share Posted February 27, 2012 Could you explain the problem exactly? Link to comment Share on other sites More sharing options...
pandravec Posted February 27, 2012 Share Posted February 27, 2012 Hi I managed to get HDMI audio working... DSDT patch looks like this: Device (P0P6) { Name (_ADR, 0x001C0002) Name (_PRW, Package (0x02) { 0x09, 0x05 }) Device (GFX1) { Name (_ADR, Zero) Name (_SUN, One) Method (_DSM, 4, NotSerialized) { Store (Package (0x06) { "@0,connector-type", Buffer (0x04) { 0x00, 0x08, 0x00, 0x00 }, "@1,connector-type", Buffer (0x04) { 0x00, 0x08, 0x00, 0x00 }, "hda-gfx", Buffer (0x0A) { "onboard-1" } }, Local0) DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0)) Return (Local0) } } Device (HDAU) { Name (_ADR, One) Method (_DSM, 4, NotSerialized) { Store (Package (0x02) { "hda-gfx", Buffer (0x0A) { "onboard-1" } }, Local0) DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0)) Return (Local0) } } Method (_PRT, 0, NotSerialized) { If (PICM) { Return (AR06) } Return (PR06) } } Then you also need to install included kexts. Back Panel audio doesnt work with this kext, only HDMI... To binary patch AppleHDA i replaced 0A 00 DE 10 occurrence with 0B 00 DE 10 (according to tutorial from other forum)... Enjoy, NOTE: you cannot have VoodooHDA alongside with this, or you'll get a kernel panic. AppleHDA.kext.zip ALC8xxHDA.kext.zip 1 Link to comment Share on other sites More sharing options...
buoo Posted February 27, 2012 Author Share Posted February 27, 2012 Wow! For a long time I tried to get the AppleHDA working, every time the audio didn't work. I'll it as soon as possible, thanks for this. Link to comment Share on other sites More sharing options...
pandravec Posted February 27, 2012 Share Posted February 27, 2012 Glad you like it, i see there are some news with ALC887 AppleHDA patching for Lion, maybe I'll try to patch the codec part for the onboard audio. buoo, I've got some problems with this board, when system goes to sleep, particularly the USB disks are not available after wake and not cleanly unmounted, they remount again after a while. Does this happen to your DSDT too on 10.6.8 (Update v.1) or 10.7.3 ? If not, could you please post your entire DSDT for this board? Thanks Link to comment Share on other sites More sharing options...
buoo Posted February 27, 2012 Author Share Posted February 27, 2012 These are the patches that I applied to my dsdt AT5IONT-I Deluxe.zip Link to comment Share on other sites More sharing options...
Binny1010 Posted February 27, 2012 Share Posted February 27, 2012 Hello again Buoo. Install was relatively simple- with the exception of not knowing the exact place to put the mach_kernel_atom. That has been placed in the Root/ as you suggested. After installing the SL 10.6.8 combo update i cannot boot into osx- all i get is the apple splash screen with no spinning cog and no HDD activity light. I have left this for over three hours in some cases and still no movement. I have tried booting from the Hard drivr directly and from the AT5 Boot CD but have had no luck. I can install up to 10.6.3 with no issues using my purchased 10.6.3 but it seems to be a problem when updating. Also i mentioned in my PM to you when booting from AT5 Boot i am experiencing quite a few Ebios reag errors and finally a line saying that GUI could not load progress bar (or something along those lines)- as mentioned, i dont know if this is significant. Thanks for all your help. Link to comment Share on other sites More sharing options...
buoo Posted February 27, 2012 Author Share Posted February 27, 2012 Try booting with -v ncpi=0x2000 and take a picture. Link to comment Share on other sites More sharing options...
Binny1010 Posted February 28, 2012 Share Posted February 28, 2012 Thank you buoo, i will do this tonight when i get home and post the details. Link to comment Share on other sites More sharing options...
