DELL LATITUDE E4300 - iATKOS S3 V2 panic

[catanaion]

Hi guys,



My DELL LATITUDE E4300 doesn’t want to go further with the installation of iATKOS S3 v2.

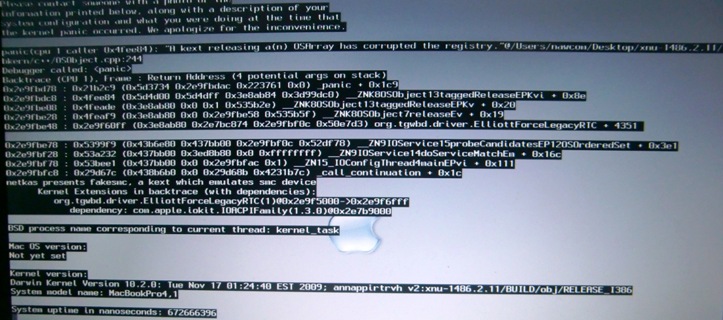

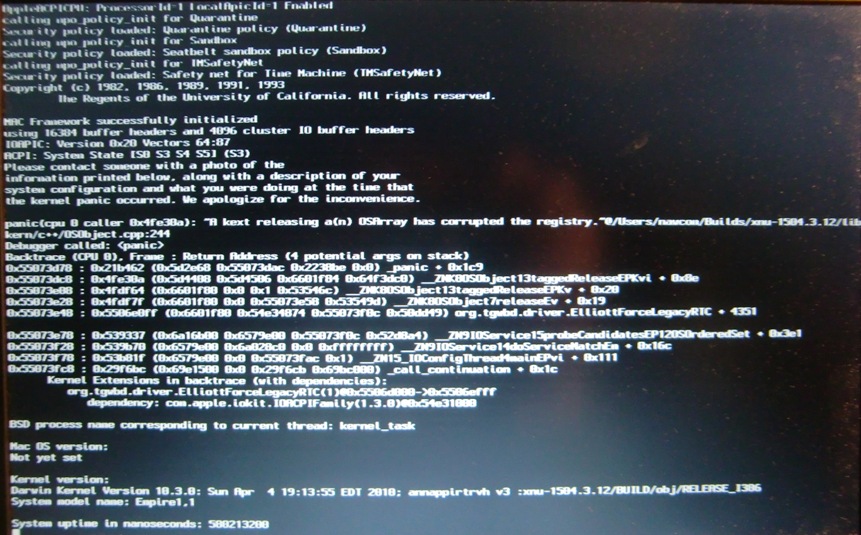

I get the following error message:



The funny part is, that I can install my orig. Mac OS X Snow Leopard 10.6.3 DVD with a little help from Empire-EFI. Problem is after finish installing I have to boot every time with the CD from EFI and when I try to install something like iHack or Chameleon, it won’t boot anymore.



I also read that someone from this forum succeeded installing iATKOS S3 v2 on a DELL LATITUDE E4300 (unfortunately I can’t make a post there )



-> My DELL LATITUDE E4300 configuration:



Computer Brand Name: Dell System Latitude E4300

CPU Brand Name: Intel® Core2 Duo CPU P9600 @ 2.53GHz

Motherboard Model: DELL 0J797R

Motherboard Chipset: Intel GS45 (Cantiga-GS) + ICH9M (Enh)



Module Size: 2048 MBytes

Memory Type: DDR3 SDRAM

Module Type: SO-DIMM

Memory Speed: 533.3 MHz (PC3-8500)

Module Manufacturer: Nanya Technology

Module Part Number: NT2GC64B8HC0NS-BE



Video Chipset: Intel GMA 4500(M)(HD)

Video Card: Intel GM45/47 Chipset - Integrated Graphics 0 [DELL]



Drive Model: WDC WD3200BEVT-00ZAT0

Drive Revision: 01.01A01

Drive Serial Number: WD-WXH0A89S7263

Drive Capacity: 305,245 MBytes (320 GB)

Media Rotation Rate: 5400 RPM



Drive Model: MAT{censored}A DVD+/-RW UJ892

Drive Revision: 1.04

Serial Number: HH26 076075

Drive Type: DVD+R DL

Drive Controller: Serial ATA 1.5Gb/s



Audio Adapter: Intel 82801IB ICH9 - High Definition Audio [A3]

HD Audio Codec: IDT 92HD71B7



Network Card: Intel® WiFi Link 5300 AGN

MAC Address: 00-21-6A-2E-4C-DA

Maximum Link Speed: 130 Mbps



Network Card: Intel® 82567LM Gigabit Network Connection

MAC Address: 00-26-B9-B9-F9-E7

Maximum Link Speed: 1000 Mbps



-> This is what I tried until now:

- [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] + Retail-DVD -> panic error

- Hackintosh-India -> panic error

- insanelymac 10.6.6i -> panic error

- nawcom Mod CD + Retail-DVD -> panic error

- Empire EFI + orig. Mac OS X 10.6.3 -> success (I am not able to install any Chameleon or similar booting directly to HDD)



-> My BIOS Settings:

- disabled/enabling anything/everything that has to do with Double Core

- disabled/enabling anything/everything that has to do with virtualizing

- HDD: SATA / AHCI

( I tried so many conbinations )



-> Booting flags that I tryed out:

cpus=1

cpus=1 busratio=20

cpus=1 busratio=20 arch=i386

-v cpus=1 busratio=20 arch=i386

-x -v cpus=1 busratio=20 arch=i386

-x -v graphicsenabler=no PCIRootUID=1

-x maxmem=2048 cpus=1 graphicsmode=1024x768x32 arch=i386 busratio=xx ;xx = 17, 18, 19, 20, 21, 22 ... 40

fsb=133, etc, etc



-> Question(s):

Should I try and remove the ElliottForceLegacyRTC / IOACPIFamily (or perhaps also further kext-Files that could block the installation) from the iATKOS S3 v2 Retail-DVD and then burn it / install it to a USB-Drive AND then try to do the installation again? Do you have any suggestions? Can you please help me with this?

Is there any hope, that I could get this running on my DELL LATITUDE E4300?

[dothacker]

you are using a laptop, no need to use ElliotforceLegacyRTC. Delete it and reboot.

[catanaion]

First: thank you 'dothacker' for the confirmassion and information



( I had to work on a project over the weekend, but here are my results )



iATKOS S3 v2 (Mac OS X 10.6.3) is working on DELL LATITUDE E4300





My steps:

I deleted from the ‘iATKOS S3 v2’-ISO image the file ‘ElliotforceLegacyRTC’ with a liitle help from TransMac.

Then I burned the ISO to a new DVD.

(I DID NO SETTINGS IN BIOS, no EVEN THE HDD -> it is still on AHCI)



Then I inserted the DVD and the installation started (I did NOT entered any parameters | arguments (whatever u want to call them) and after 30sec-1min I was able to do the installation of the Mac OS X 10.6.3.



After 30min of waiting the installation finished and know I can boot into the Mac OS X 10.6.3 without problems (funny is that the OS X is working faster then Windows 7 – Graphic is working better, loading is faster, etc, etc, etc )



For those who have a DELL LATITUDE E4300 and want to install iATKOS S3 v2, I will make an extra thread from the very beginning with images, etc (even from the file that u have to delete from the iATKOS S3 v2 image). I will also show u how to install kext-Files (drivers that u need for your machines). I wil make the thread in english and german -> why? Because I know how much effort I put in it to install it, then searching for kext, etc



What is not working at all is the WiFi and why? Because I have a Intel 5300 N. I was trying to modify the drivers from the original Mac OS X 10.6.3 and I only got I recognizes as an ethernet but no Airport. Now I bought a Atheros PCI half size and I will report back.

The Touchpad has a few problems, but I think I can fix it
