zascok Posted January 3, 2011 Share Posted January 3, 2011 This is very short Guide for installing a completely updatable retail copy of Snow Leopard on the Intel DP43BF. Intel DP43BF motherboard Intel® Core™2 Quad Q9450 cpu EVGA GeForce 210 GT CORSAIR 4GB (2 x 2GB) 240-Pin DDR3 SDRAM 1333 LAN Broadcom BCM5777 1Gb ID 14e4 1691 Audio Realtek ACL888 8 channels ID 10ec 0888 Under the Advanced tab go to drive configuration and change IDE to AHCI or RAID Use USB.zip to make Boot USB stick. Copy extracted files and folders to you usb stick and make it bootable with syslinux.exe. USB.zip archive has dsdt.aml , com.apple.Boot.plist and Extra folder for DP43BF Just Extra folder + dsdt.aml and com.apple.Boot.plist can be found in Extra.zip Use Retail Snow Leopard 10.6.x for installation. Update installed SL with the last combo update before kexts installation. Copy Extra folder (do not forget to include AHCIPortInjector.kext) to you SL HD root After the first SL boot install VoodooHDA.kext v272 Snow from VoodooHDA.kext_v272_Snow.zip Do not forget to backup and remove original AppleHDA.kext ! Boot with -v -x (safe mode) and install IONetworkingFamily.kext (10.6.5) from IONetworkingFamily.kext.zip Do not forget to backup your original IONetworkingFamily.kext before installation. Just AppleBCM5777Ethernet.kext (10.6.5) can be found in AppleBCM5701Ethernet.kext.zip I did not test AppleBCM5777Ethernet.kext under 32 mode but I am sure it shoud work fine. Good luck! USB.zip Extra.zip AppleBCM5701Ethernet.kext.zip IONetworkingFamily.kext.zip VoodooHDA.kext_v272_Snow.zip 1 Quote Link to comment Share on other sites More sharing options...
grutledge Posted January 5, 2011 Share Posted January 5, 2011 Thanks for this guide! I've been struggling with trying to get USB working at all in OS X. My Apple keyboard works fine in the BIOS and in the initial launch of the boot-loader. I've been able to use a PS/2 keyboard to install Snow Leopard using [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] but still can't get USB to work. I'd like to try the method you described here but am unclear about how to make the USB stick bootable, especially given the USB problems I'm having. Any suggestions? Quote Link to comment Share on other sites More sharing options...
zascok Posted January 5, 2011 Author Share Posted January 5, 2011 Thanks for this guide! I've been struggling with trying to get USB working at all in OS X. My Apple keyboard works fine in the BIOS and in the initial launch of the boot-loader. I've been able to use a PS/2 keyboard to install Snow Leopard using [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] but still can't get USB to work. I'd like to try the method you described here but am unclear about how to make the USB stick bootable, especially given the USB problems I'm having. Any suggestions? com.apple.Boot.plist has USBFix+ USB fixed in new version of dsdt.aml I will give you more detail response soon Quote Link to comment Share on other sites More sharing options...
grutledge Posted January 5, 2011 Share Posted January 5, 2011 com.apple.Boot.plist has USBFix+ USB fixed in new version of dsdt.aml I will give you more detail response soon Thank you so much! I look forward to your insights. Quote Link to comment Share on other sites More sharing options...
zascok Posted January 6, 2011 Author Share Posted January 6, 2011 Thanks for this guide! I've been struggling with trying to get USB working at all in OS X. My Apple keyboard works fine in the BIOS and in the initial launch of the boot-loader. I've been able to use a PS/2 keyboard to install Snow Leopard using [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] but still can't get USB to work. I'd like to try the method you described here but am unclear about how to make the USB stick bootable, especially given the USB problems I'm having. Any suggestions? You need to check your version of cdbood in [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] (Darwin/x86 boot v5.0.132 - Chameleon v2.0-RC5 r651) I think It should support USB Fix. open cdboot in text editor ([url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url]\usr\standalone\i386\cdboot) and search for USBBusFix=Yes Enable all USB fixes below: EHCIacquire=Yes Enable the EHCI fix (disabled by default). UHCIreset=Yes Enable the UHCI fix (disabled by default). USBLegacyOff=Yes Enable the USB Legacy fix (disabled by default). I had USB problem during SL installation as well but I found two working USB ports so I could use USB keyboard and mouse I believe you can use top two USB ports Now the simple thing to do is to put my version of com.apple.Boot.plist to /Volumes/Your SL HD NAME/EXtra and to /Volumes/Your SL HD NAME/SystemConfiguration fix permissions and restart SL It should fix USB issue right away. Also put my new version of dsdt.aml to /Volumes/Your SL HD NAME/EXtra it has USBfix as well. Try this first and let me know dsdt.zip Quote Link to comment Share on other sites More sharing options...
grutledge Posted January 9, 2011 Share Posted January 9, 2011 Thank you so much! The USB fixes worked perfectly and your DSDT.aml was helpful too! I have 2 remaining issues that are keeping the system from being 100% functional. If you have any insight here I'd really appreciate it. - Networking: the on-board Ethernet works with your kext but the upload speed is slow and unreliable (download is fine). By slow, I mean 8-10 kB/sec followed by 1-2 sec with no data transmitted at all. This is happening over both my LAN and the Internet. - PCI bus: with the exception of my video card which is running great in the PCI Express 2.0 slot, none of my other PCI cards are being recognized even though all are natively Mac-compatible. I don't know if this is an issue with OS X not seeing the PCI bus or if the cards aren't being identified to the OS properly so it's not loading the drivers. The cards affected are a Trendnet TEG-PCITXR Gigabit Ethernet card (PCI, Realtek RT8169 chipset), a SYBA Firewire 400 card (PCI, VIA VT6306 chipset), and an SNT eSATA card (PCI Express, Silicon Image 3132 chipset). Thanks in advance for any insight! Quote Link to comment Share on other sites More sharing options...
zascok Posted January 9, 2011 Author Share Posted January 9, 2011 Thank you so much! The USB fixes worked perfectly and your DSDT.aml was helpful too! I have 2 remaining issues that are keeping the system from being 100% functional. If you have any insight here I'd really appreciate it. - Networking: the on-board Ethernet works with your kext but the upload speed is slow and unreliable (download is fine). By slow, I mean 8-10 kB/sec followed by 1-2 sec with no data transmitted at all. This is happening over both my LAN and the Internet. - PCI bus: with the exception of my video card which is running great in the PCI Express 2.0 slot, none of my other PCI cards are being recognized even though all are natively Mac-compatible. I don't know if this is an issue with OS X not seeing the PCI bus or if the cards aren't being identified to the OS properly so it's not loading the drivers. The cards affected are a Trendnet TEG-PCITXR Gigabit Ethernet card (PCI, Realtek RT8169 chipset), a SYBA Firewire 400 card (PCI, VIA VT6306 chipset), and an SNT eSATA card (PCI Express, Silicon Image 3132 chipset). Thanks in advance for any insight! I do have PCI issue as well. 10.6.5(6) does not see my second network card. This card works just fine on DX58OS. We have very specific for dp43bf issue. Not sure how to fix it at this point but I am working on it. Did you try all PCI slots? As for upload speed let me double check it Quote Link to comment Share on other sites More sharing options...
grutledge Posted January 12, 2011 Share Posted January 12, 2011 I do have PCI issue as well. 10.6.5(6) does not see my second network card. This card works just fine on DX58OS. We have very specific for dp43bf issue. Not sure how to fix it at this point but I am working on it. Did you try all PCI slots? As for upload speed let me double check it Yeah, I did try all PCI slots and it made no difference. Here's a status update on my system: - Onboard LAN & PCI NIC Card (Trendnet TEG-PCITXR): Gave up on the onboard LAN. Maybe there's a config file somewhere I could edit, but I didn't feel like messing around with it. The NIC card might lack specific 64 bit drivers (I found some but couldn't get them working), or it's just the PCI issue we've identified. I bought a Linksys USB300M USB > 10/100 Ethernet adapter. It uses the same chipset as Apple's USB to Ethernet device they sell for the MacBook Air. It worked out of the box with no problems at all. - Firewire PCI Card (Syba with VIA VT6306 chipset): Gave up on this too. On my system, the card is recognized and works out of box in Ubuntu 10.10 and with drivers in Win7, so I know the card is fine. I would think there native are 64 bit drivers for this as it uses the same chipset as some Apple Firewire products. The onboard Firewire works, so if I need more than one port at once I'll just buy a hub or daisychain my devices. - eSATA PCI Exp Card (SNT with Silicon Image 3132 chipset): This card is working well running my 2 disk external mirrored RAID, although it doesn't show up in System Profiler. I've heard there's an EFI string edit I could do to make this work, but it's not that important to me. I had to turn off the option to allow hard disks to sleep in System Prefs as disk sleep caused my RAID to refuse to remount on wake and also refuse to unmount & eject. Yikes! There's probably a fix for this too, but I'm fine disabling disk sleep. So I have a smooth, stable running system using reasonable workarounds. I only need this machine to last me a couple years till I can afford to build a well-supported Core i-Series hack or just buy a MacPro, so the compromises are fine. Thanks again for posting this guide and for your troubleshooting help! Quote Link to comment Share on other sites More sharing options...
arcade33 Posted January 19, 2011 Share Posted January 19, 2011 thank you very much your's ethernet kexts works fine i had snow leopard working on this mother board since 6 months but not the ethernet built in i have a question ! I have made new snow whith with all your's kexts and dst.aml when i boot i need to let in my dvd reader the combo update 10.6.6 to boot on the harddisk when i start the computer, hard disk appear and i need to push enter on the keyboard i use like bootloader chameleon V2-Rc5 have you an idea for this problem ??? thank you very much for your's work good job all the best Quote Link to comment Share on other sites More sharing options...
Kinito_2k3 Posted January 20, 2011 Share Posted January 20, 2011 This is very short Guide for installing a completely updatable retail copy of Snow Leopard on the Intel DP43BF. Intel DP43BF motherboard Intel® Core™2 Quad Q9450 cpu EVGA GeForce 210 GT CORSAIR 4GB (2 x 2GB) 240-Pin DDR3 SDRAM 1333 LAN Broadcom BCM5777 1Gb ID 14e4 1691 Audio Realtek ACL888 8 channels ID 10ec 0888 Under the Advanced tab go to drive configuration and change IDE to AHCI or RAID Use USB.zip to make Boot USB stick. Copy extracted files and folders to you usb stick and make it bootable with syslinux.exe. USB.zip archive has dsdt.aml , com.apple.Boot.plist and Extra folder for DP43BF Just Extra folder + dsdt.aml and com.apple.Boot.plist can be found in Extra.zip Use Retail Snow Leopard 10.6.x for installation. Update installed SL with the last combo update before kexts installation. Copy Extra folder (do not forget to include AHCIPortInjector.kext) to you SL HD root After the first SL boot install VoodooHDA.kext v272 Snow from VoodooHDA.kext_v272_Snow.zip Do not forget to backup and remove original AppleHDA.kext ! Boot with -v -x (safe mode) and install IONetworkingFamily.kext (10.6.5) from IONetworkingFamily.kext.zip Do not forget to backup your original IONetworkingFamily.kext before installation. Just AppleBCM5777Ethernet.kext (10.6.5) can be found in AppleBCM5701Ethernet.kext.zip I did not test AppleBCM5777Ethernet.kext under 32 mode but I am sure it shoud work fine. Good luck! Hello, this is very helpful as I have been trying to make my ethernet port work for a long long time now. My ethernet card is recognized now but I can't get it to acquire an IP address. Is there anything special that I need to do? Thanks Sebastien Quote Link to comment Share on other sites More sharing options...
arcade33 Posted January 21, 2011 Share Posted January 21, 2011 Hello, this is very helpful as I have been trying to make my ethernet port work for a long long time now. My ethernet card is recognized now but I can't get it to acquire an IP address. Is there anything special that I need to do? Thanks Sebastien hey , my dear just go to your's network card and configure manually it's working fine Quote Link to comment Share on other sites More sharing options...
arcade33 Posted January 22, 2011 Share Posted January 22, 2011 my god perhaps you have like me on your's computers another ethernet card on a pci bus so be sure that you had plugged your's cable in the good one an idea after two days of reflexions Quote Link to comment Share on other sites More sharing options...
r0k Posted April 12, 2011 Share Posted April 12, 2011 First of all: Thx for your work zascok! I booted with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] ([url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] Legacy afair) and installed from a partition containing the content of the OSX install DVD. Using the dsdt.aml with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] and the Chameleon USB fixes, the system boots without any problems. Sleep, reboot and shutdown work flawlessly. Sleep even works much better (and does sleep/wake up much faster) than with my Gigabyte EX38-DS4, the system wakes after key press and so on. Very nice. But I, too, hat the issues grutledge mentioned. The performance of the builtin ethernet chip is, in "real life", far worse than I could imagine. Nothing really works, even fetching emails with this ethernet connection is a pain. Really. Also, no PCI card that I tested worked at all; with a RTL8139 card plugged in, the driver doesn't even find the device. Hence I reinstalled the vanilla IONetworkingFamily.kext and tried a PCI-E NIC - which works like a charm! I didn't analyze the cause of the PCI problems as this rig is not my main computer. Maybe it's some issue with the PCI-bridge(?). But with the PCI-E NIC and Lnx2Mac's RTL81xx driver, this system runs perfectly; I wish, my Gigabyte board would sleep and wake up that fast. Specs: Core2Duo 7200 CPU 4 GB RAM nVidia 8800GT w/ 640 MB VRAM TP-LINK TG-3468 PCI-E GBit NIC (Mostly) vanilla OSX 10.6.6 Quote Link to comment Share on other sites More sharing options...

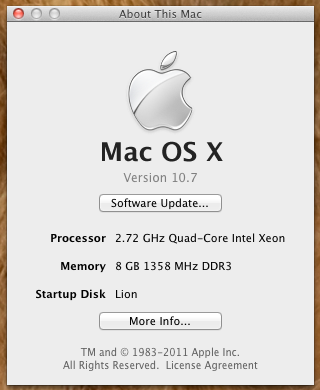

zascok Posted August 1, 2011 Author Share Posted August 1, 2011 Here is a small guide for the Lion (10.7) installation. Lion installation requires several new things: 1. new boot. it was Chameleon 2.0-RC5 (svn-r982) in my case 2. new lines in com.apple.Boot.plist <key>Kernel Flags</key> <string>npci=0x2000</string> 3. Lion PC installation DVD. As you know dp43db has two issues: broadcom network card and LPC. I added LPC and SMBus injectors to Extra folder but it does almost nothing as our mobo does not have LPC. You can easily see it with AIDA64. So not sure if we can solve PCI issue. Broadcom network card issue has been solved recently. Many thx to BCM5722D Here is my Extra folder with corrected dstd, com.apple.Boot.plist and some kexts: AHCIPortInjector.kext AppleHDADisabler.kext fakesmc.kext IOAHCIBlockStorageInjector.kext LPC_injector.kext PlatformUUID.kext SMBusPCI_injector.kext Extra.zip two kexts to S/L/E BCM5722D.kext.zip VoodooHDA.kext.zip here is some screenshots good luck! Quote Link to comment Share on other sites More sharing options...
snickerweb Posted May 29, 2012 Share Posted May 29, 2012 Can anyone write a stepbystepguide for a noob. Or can i chat with someone to make a install dvd/usb on windows Quote Link to comment Share on other sites More sharing options...
