diskutil RAID issue - accident


  • Please log in to reply
1 reply to this topic

#1
Dr Donkey Kong

Dr Donkey Kong

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
Hello,
I was attempting to remove 1 disk from a 4 disc raid to copy the data off it and destroy the raid completely. But instead when i clicked delete, the raid was destroyed. I still have both halves of it. (Two sets of two drives with mirrored data or the striped raid). How can i tell mac os x leopard to take these two "mirror sets" and put them into a striped set?

this was a raid 10

i presume something using:
diskutil command
createRAID mirror|stripe|concat setName format devices ...
Create a new RAID set consisting of multiple disks and/or RAID
sets. setName is used for both the name of the created RAID
volume and the RAID set itself (as displayed in listRAID).
e.g. 'diskutil createRAID stripe MyArray JHFS+ disk1 disk2
disk3 disk4'. Ownership of the affected disks is required.

diskutil listRAID returns:
RAID SETS
---------
===============================================================================
Name: Media Files Mirror 1
Unique ID: 03978808-3337-4330-B63A-BE98C1A37E4B
Type: Mirror
Status: Online
Size: 999860895744 B
Apple RAID Version: 2
-------------------------------------------------------------------------------
# Device Node UUID Status
-------------------------------------------------------------------------------
0 disk4s2 7BE00D5C-9439-46DA-B67A-8B60CA26AF02 Online
1 disk0s2 22444182-6D94-47F3-8E85-F96BDE111685 Online
===============================================================================


===============================================================================
Name: Media Files Mirror 2
Unique ID: 21DFF27D-0A7E-4EC5-BDF8-DB0EA2E2199C
Type: Mirror
Status: Online
Size: 999859814400 B
Apple RAID Version: 2
-------------------------------------------------------------------------------
# Device Node UUID Status
-------------------------------------------------------------------------------
0 disk3s2 011269DC-20B8-467C-8C72-86177923A6B4 Online
1 disk5s2 E56A9A2E-7155-47E9-A884-137779143BB8 Online
===============================================================================

edit:

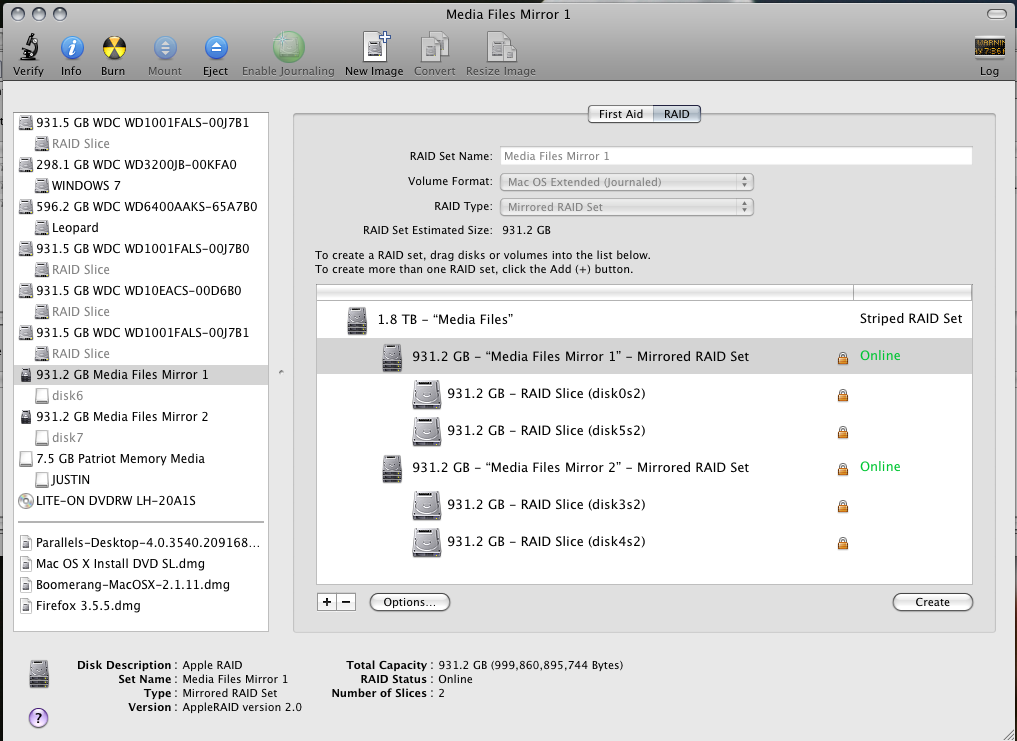

I rebooted and disk utility is showing me this.
I then clicked on one of the raid groups and made it look like the screenshot, however when i click create it wants to erase all the data, this isn't what i want.

Any ideas?
Attached File  Picture_2.png   168.81KB   18 downloads

Thanks

#2
peach-os

peach-os

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,286 posts
  • Location:lago di constanza
you are trying to get your data back? read this:
http://www.insanelym...p...t&p=1298880
