slow performance on hp dv4000 with xnu 9.5 and speedstep


  • Please log in to reply
8 replies to this topic

#1
lovedahackintosh

lovedahackintosh

    InsanelyMac Protégé

  • Members
  • Pip
  • 33 posts
ok, i am having some issues with this setup.

after a long absence from the osx86 community i am trying once again to get my hp dv4000 working properly. so far things are going well. it is a 1.6ghz pentium m processor and i am running xnu 9.5 kernel with chameleon efi and intelenhanced speedstep.

the speedstep app shows all the available frequencies but i am unable to change them and if i select the fastest one, my system locks up.

the system clock seems to be running very fast and the seconds fly by at twice normal speed. i have tried booting with busratio=16 but it does nothing. using fsb=100 causes a kernel panic.

here is my output from speedstep:

sudo dmesg | grep Speed
IntelEnhancedSpeedStep: INFO Initializing version 1.3.2 © Prashant Vaibhav <mercurysquad@yahoo.com>
IntelEnhancedSpeedStep: INFO Your processor doesn't support constant_tsc, but you have a kernel which can compensate for it.
IntelEnhancedSpeedStep: INFO On your processor, voltages can be changed in 16 mV steps
IntelEnhancedSpeedStep: INFO Using 6 PStates.

and this command: sysctl hw | grep EST
does nothing

#2
mercurysquad

mercurysquad

    InsanelyMac Legend

  • Retired Developers
  • 521 posts
  • Gender:Male
  • Location:India
Hi,
Pentium M is fully supported so it will work with a little tweaking.

First, I'm wondering where you read about the fsb flag? Because wherever I have mentioned it, I've made it clear that it is specified in Hz, not MHz :D When it panics, it prints out the busFreq and you could probably see it listed as 0.000100 MHz.

Second, which kernel are you using exactly? You can try uname -v in terminal.

Third, it should be sysctl machdep | grep EST, not hw.

Fourth, could you edit the kext's Info.plist file, and set DebugMessages to true. Then delete Extensions.mkext and reboot. Then you can see the kext's debug messages by using sudo dmesg | grep IntelEnhanced

Fifth, please post the output of sysctl kern | grep throttle - want to make sure your ACPI is reporting proper voltage (common problem).

And lastly, post a photo of the kernel panic. If it just hard freeezes, boot with flag debug=0x100 to get it show the KP message over the gui.

#3
lovedahackintosh

lovedahackintosh

    InsanelyMac Protégé

  • Members
  • Pip
  • 33 posts

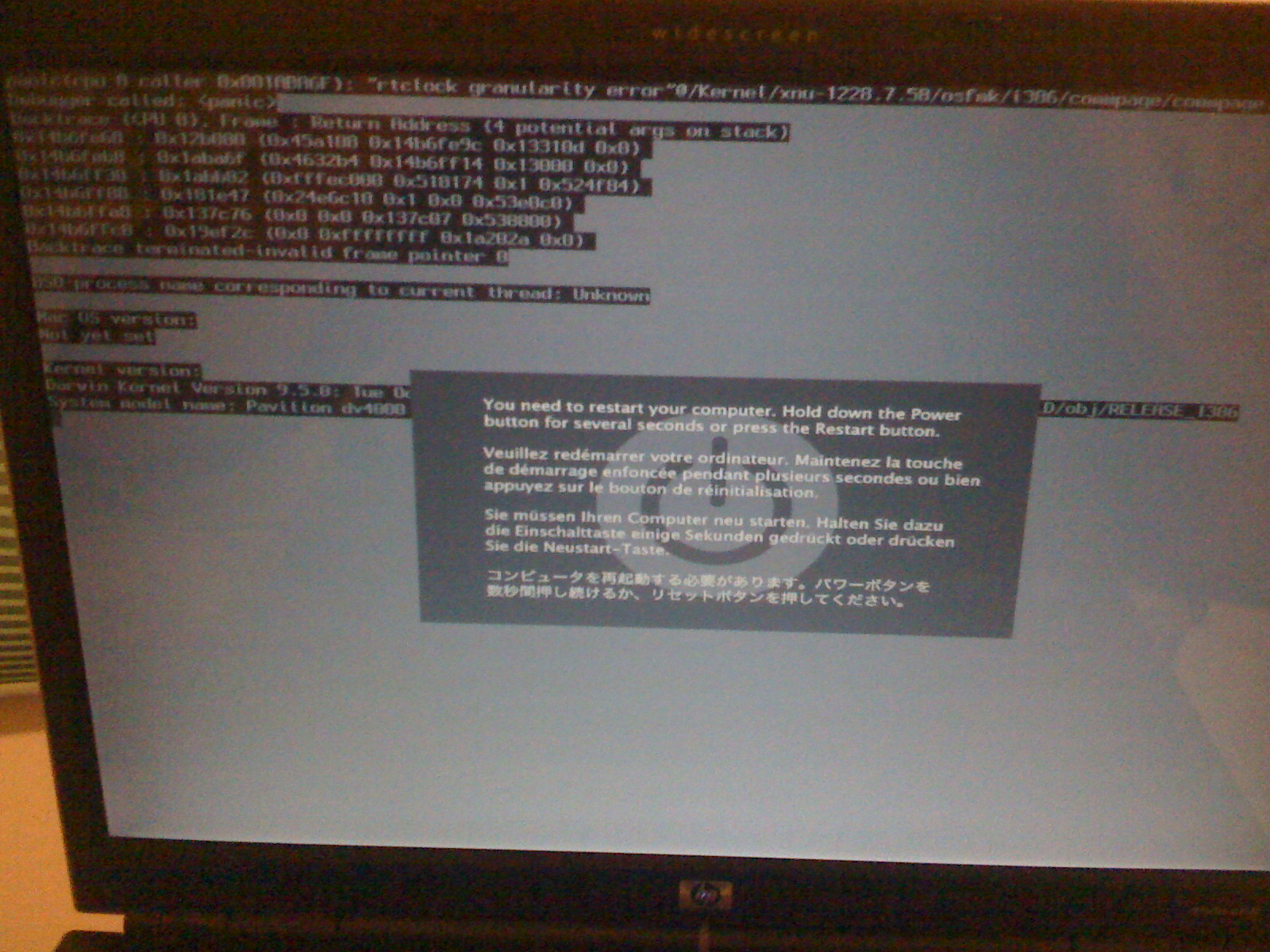

1. i actually used both and they resulted in the same issue. an rtc granularity error. i attached a blurry image. :-)

2. uname -v
Darwin Kernel Version 9.5.0: Tue Oct 14 07:39:11 IST 2008; Voodoo; Beta 2c :xnu-1228.7.58/BUILD/obj/RELEASE_I386

3. sysctl machdep | grep EST
machdep.cpu.features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT CLFSH DS ACPI MMX FXSR SSE SSE2 SS TM EST TM2

4. sudo dmesg | grep IntelEnhanced
IntelEnhancedSpeedStep: INFO Initializing version 1.3.2 © Prashant Vaibhav <mercurysquad@yahoo.com>
IntelEnhancedSpeedStep: INFO Your processor doesn't support constant_tsc, but you have a kernel which can compensate for it.
IntelEnhancedSpeedStep: INFO On your processor, voltages can be changed in 16 mV steps
IntelEnhancedSpeedStep: INFO Using 6 PStates.

5. sysctl kern | grep throttle
kern.exec: unknown type returned
kern.cputhrottle_curfreq: 600
kern.cputhrottle_curvolt: 748
kern.cputhrottle_freqs: 600 800 1000 1200 1400 1600
kern.cputhrottle_factoryvolts: 2796 2796 2796 2796 2796 2796
kern.cputhrottle_ctl: 1539

Attached Files



#4
mercurysquad

mercurysquad

    InsanelyMac Legend

  • Retired Developers
  • 521 posts
  • Gender:Male
  • Location:India

5. sysctl kern | grep throttle
kern.exec: unknown type returned
kern.cputhrottle_curfreq: 600
kern.cputhrottle_curvolt: 748
kern.cputhrottle_freqs: 600 800 1000 1200 1400 1600
kern.cputhrottle_factoryvolts: 2796 2796 2796 2796 2796 2796
kern.cputhrottle_ctl: 1539


That's your problem. Broken ACPI reports ~2.8 Volts! That's clearly too large. Just see how your actual current voltage (at 600 MHz) is 748 mV, not 2796 mV as your ACPI is trying to have us believe.

I'm trying to find a workaround to this. Intel keeps the algorithm to calculate the voltage 'secret' ...

#5
lovedahackintosh

lovedahackintosh

    InsanelyMac Protégé

  • Members
  • Pip
  • 33 posts
so does this then mean that i need to manually put my settings in the array?

does this have anything to do with the faster than normal clock speeds?

#6
mercurysquad

mercurysquad

    InsanelyMac Legend

  • Retired Developers
  • 521 posts
  • Gender:Male
  • Location:India
Yes and yes.

Or wait for v1.5 release.

#7
lovedahackintosh

lovedahackintosh

    InsanelyMac Protégé

  • Members
  • Pip
  • 33 posts
ok, btw, i have the same results with superhai's version

#8
lovedahackintosh

lovedahackintosh

    InsanelyMac Protégé

  • Members
  • Pip
  • 33 posts
ok, i finally have proper throttling back on this thing. here is a copy of my pstate table. do you see any issues with these? i wasnt really sure how much voltage to use.

<key>PStateTable</key>
<array>
<array>
<integer>1600</integer>
<integer>1100</integer>
</array>
<array>
<integer>1400</integer>
<integer>1100</integer>
</array>
<array>
<integer>1200</integer>
<integer>1100</integer>
</array>
<array>
<integer>1000</integer>
<integer>860</integer>
</array>
<array>
<integer>800</integer>
<integer>780</integer>
</array>
<array>
<integer>600</integer>
<integer>748</integer>
</array>

#9
mercurysquad

mercurysquad

    InsanelyMac Legend

  • Retired Developers
  • 521 posts
  • Gender:Male
  • Location:India
Superhai's version, even though it has Pentium M support, is incomplete and not really usable right now.

Voltages look ok. For your 1400 and 1200 MHz voltages, you can use maybe 1000 and 920 though.
