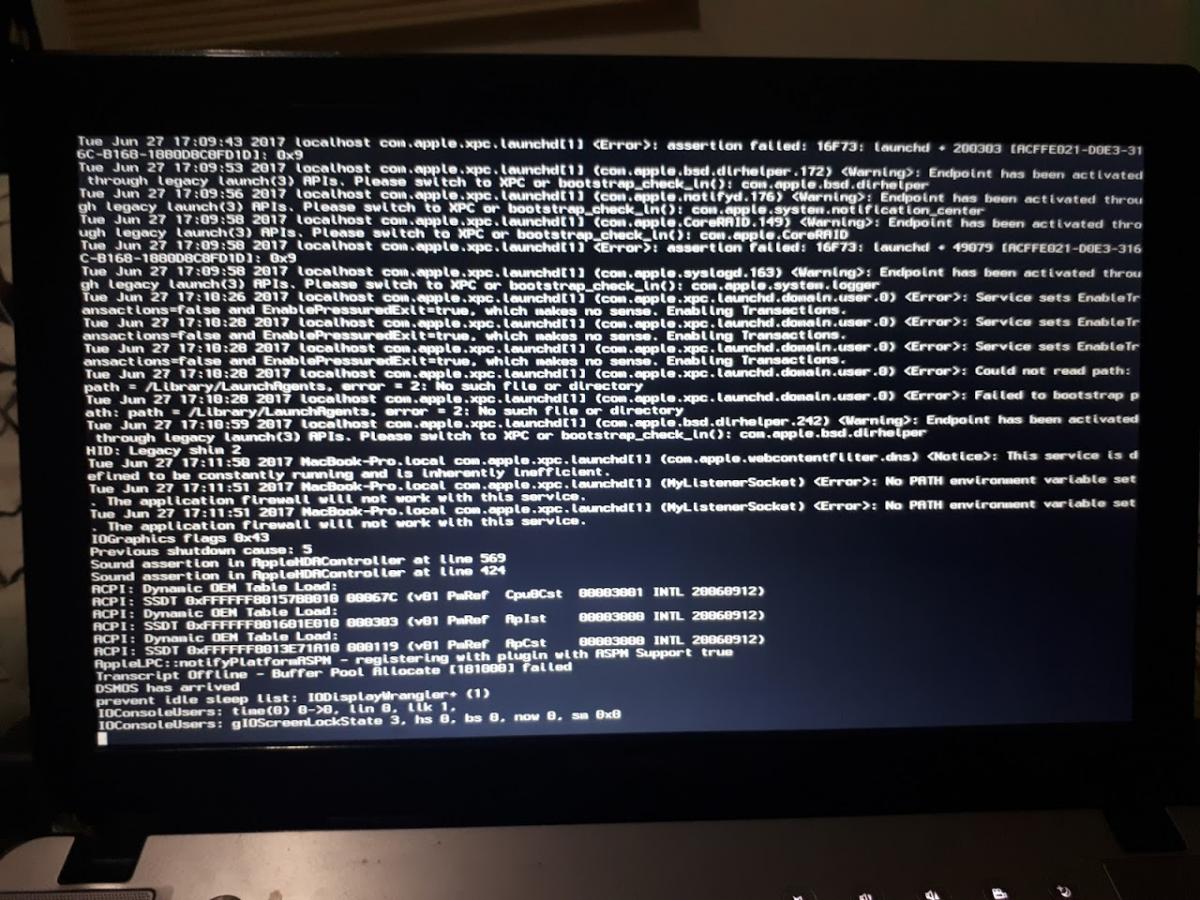

jjforums Posted June 28, 2017 Share Posted June 28, 2017 Hi, I have a Lenovo Z370, it's an HM65 chipset with HD 3000 (1366x768). I'm trying to install 10.12.5 version. I've tried multiple installers, different Clover configurations, but all led to the same result, which is: I see the loading bar and after it ends, the display goes off. IOConsoleUsers: gIOScreenLockState 3, hs 0, bs 0, now 0, sm 0x0 I've previously installed 10.9 or 10.10 in this laptop (years ago), but now I can't get past the loading screen, I've tried toggling the Intel Injection and using Fake ID. lspci -nn output: 00:00.0 Host bridge [0600]: Intel Corporation 2nd Generation Core Processor Family DRAM Controller [8086:0104] (rev 09) 00:02.0 VGA compatible controller [0300]: Intel Corporation 2nd Generation Core Processor Family Integrated Graphics Controller [8086:0116] (rev 09) 00:16.0 Communication controller [0780]: Intel Corporation 6 Series/C200 Series Chipset Family MEI Controller #1 [8086:1c3a] (rev 04) 00:1a.0 USB controller [0c03]: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #2 [8086:1c2d] (rev 05) 00:1b.0 Audio device [0403]: Intel Corporation 6 Series/C200 Series Chipset Family High Definition Audio Controller [8086:1c20] (rev 05) 00:1c.0 PCI bridge [0604]: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 1 [8086:1c10] (rev b5) 00:1c.1 PCI bridge [0604]: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 2 [8086:1c12] (rev b5) 00:1c.2 PCI bridge [0604]: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 3 [8086:1c14] (rev b5) 00:1d.0 USB controller [0c03]: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #1 [8086:1c26] (rev 05) 00:1f.0 ISA bridge [0601]: Intel Corporation HM65 Express Chipset Family LPC Controller [8086:1c49] (rev 05) 00:1f.2 SATA controller [0106]: Intel Corporation 6 Series/C200 Series Chipset Family 6 port SATA AHCI Controller [8086:1c03] (rev 05) 00:1f.3 SMBus [0c05]: Intel Corporation 6 Series/C200 Series Chipset Family SMBus Controller [8086:1c22] (rev 05) 05:00.0 Ethernet controller [0200]: Realtek Semiconductor Co., Ltd. RTL8101/2/6E PCI Express Fast/Gigabit Ethernet controller [10ec:8136] (rev 05) 06:00.0 Network controller [0280]: Qualcomm Atheros AR9285 Wireless Network Adapter (PCI-Express) [168c:002b] (rev 01) dmesg attached. I created the USB installer from my desktop (hackintosh with 10.12.5). lspci.txt dmesg.txt current-clover-without-themes-dir.zip Link to comment Share on other sites More sharing options...
Nonta72 Posted July 9, 2017 Share Posted July 9, 2017 Hi, I have a Lenovo Z370, it's an HM65 chipset with HD 3000 (1366x768). I'm trying to install 10.12.5 version. I've tried multiple installers, different Clover configurations, but all led to the same result, which is: I see the loading bar and after it ends, the display goes off. I've previously installed 10.9 or 10.10 in this laptop (years ago), but now I can't get past the loading screen, I've tried toggling the Intel Injection and using Fake ID. lspci -nn output: 00:00.0 Host bridge [0600]: Intel Corporation 2nd Generation Core Processor Family DRAM Controller [8086:0104] (rev 09) 00:02.0 VGA compatible controller [0300]: Intel Corporation 2nd Generation Core Processor Family Integrated Graphics Controller [8086:0116] (rev 09) 00:16.0 Communication controller [0780]: Intel Corporation 6 Series/C200 Series Chipset Family MEI Controller #1 [8086:1c3a] (rev 04) 00:1a.0 USB controller [0c03]: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #2 [8086:1c2d] (rev 05) 00:1b.0 Audio device [0403]: Intel Corporation 6 Series/C200 Series Chipset Family High Definition Audio Controller [8086:1c20] (rev 05) 00:1c.0 PCI bridge [0604]: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 1 [8086:1c10] (rev b5) 00:1c.1 PCI bridge [0604]: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 2 [8086:1c12] (rev b5) 00:1c.2 PCI bridge [0604]: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 3 [8086:1c14] (rev b5) 00:1d.0 USB controller [0c03]: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #1 [8086:1c26] (rev 05) 00:1f.0 ISA bridge [0601]: Intel Corporation HM65 Express Chipset Family LPC Controller [8086:1c49] (rev 05) 00:1f.2 SATA controller [0106]: Intel Corporation 6 Series/C200 Series Chipset Family 6 port SATA AHCI Controller [8086:1c03] (rev 05) 00:1f.3 SMBus [0c05]: Intel Corporation 6 Series/C200 Series Chipset Family SMBus Controller [8086:1c22] (rev 05) 05:00.0 Ethernet controller [0200]: Realtek Semiconductor Co., Ltd. RTL8101/2/6E PCI Express Fast/Gigabit Ethernet controller [10ec:8136] (rev 05) 06:00.0 Network controller [0280]: Qualcomm Atheros AR9285 Wireless Network Adapter (PCI-Express) [168c:002b] (rev 01) dmesg attached. I created the USB installer from my desktop (hackintosh with 10.12.5). Have you tried to remove all graphics related kexts (AMD*, ATI*, NVDA*, GeForce*, AppleIntelHD*) ? It should fix your issue. And I assume that you are using the same config.plist from your last Maverick/Yosemite installation. If not, you might want to find this config. And if I were you, I'd generated a new config.plist with "generic" parameters. The config.plist you seem to be using has many patches (some related to SNB Framebuffer). The HD 3000 GPU works OOB (0x0116). Just make sure you checked inject Intel in clover configurator. Still, the best fix is to remove all Graphics related kexts. Which *might* just postpone the problem, however. Link to comment Share on other sites More sharing options...
