Dell Inspiron N7010 - ATI Mobility Radeon HD 5470 Issue

N7010 5470 Dell Inspiron ATI


  • Please log in to reply
6 replies to this topic

#1
MacOlifa

MacOlifa

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts
Hello.
I have a "little" problem. I installed sucessfully Mountain Lion (very easy) on my Dell Inspiron 17R (N7010) but I can't boot with GraphicsEnabler=Yes, so my Graphic Card doesn't work.
At first here are my Laptop and Hackintosh Specs:

Laptop:
Processor: Intel Core i3 350M
RAM: 4GB Shared Dual Channel DDR3
Chipset: Mobile Intel 5 Series Express Chipset (HM57)
Graphic Card: ATI Mobility Radeon HD5470 (1024MB)

(I guess the rest isn't important for my issue - otherwise please ask for it.)


Hackintosh:
Operating System: OS X Mountain Lion (10.8.2)
System Definition: MacBook Pro 8,1
Bootloader: Chimera v1.11.1 r1394
Kexts:
com.apple.kpi.bsd
com.apple.kpi.dsep
com.apple.kpi.iokit

com.apple.kpi.libkern
com.apple.kpi.mach
com.apple.kpi.private
com.apple.kpi.unsupported
com.apple.kpi.corecrypto
com.apple.iokit.IOAPCIFamily
com.apple.iokit.IOPCIFamily
com.apple.driver.AppleACPIPlatform
es.osx86.driver.EvOreboot

org.tgwbd.driver.NullCPUPowerManagement
com.apple.driver.AppleKeyStore
com.apple.iokit.IOStorageFamily
com.apple.driver.DiskImages
com.apple.driver.AppleIntelCPUPowerManagement
com.apple.security.TMSafetyNet
com.apple.kext.AppleMatch

com.apple.security.sandbox
com.apple.security.quarantine
com.apple.nke.applicationfirewall
com.apple.driver.AppleAPIC
com.apple.driver.AppleSMBIOS
com.apple.iokit.IOSMBusFamily
com.apple.driver.AppleACPIEC
com.apple.driver.AppleHPET
com.apple.iokit.IOHIDFamily

com.apple.driver.AppleACPIButtons
com.apple.driver.AppleRTC

org.netkas.driver.FakeSMC
com.apple.driver.AppleEFIRuntime
com.apple.driver.AppleEFINVRAM

com.apple.iokit.IOUSBFamily
com.apple.driver.AppleUSBEHCI
com.apple.iokit.IOAHCIFamily
com.apple.driver.AppleAHCIPort

com.apple.iokit.IONetworkingFamily
com.insanelymac.ALXEthernet
com.apple.iokit.IOUSBUserClient
com.apple.BootCache
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib

com.apple.AppleFSCompression.AppleFSCompressionTypeDataless
com.apple.driver.AppleUSBHub
com.apple.iokit.IOAHCIBlockStorage
com.apple.driver.XsanFilter
com.apple.iokit.IOSCSIArchitectureModelFamily
com.apple.iokit.IOAHCISerialATAPI
com.apple.iokit.SCSITaskUserClient
com.apple.iokit.IOCDStorageFamily
com.apple.iokit.IODVDStorageFamily
com.apple.iokit.IOBDStorageFamily
com.apple.iokit.IOSCSIMultimediaCommandsDevice
com.apple.driver.AppleUSBComposite

com.apple.driver.AppleUSBMergeNub
com.apple.iokit.IOUSBMassStorageClass
com.apple.iokit.IOSCSIBlockCommandsDevice
com.apple.iokit.IOUSBHIDDriver

com.apple.iokit.IOGraphicsFamily
com.apple.kext.AMDSupport
com.apple.kext.AMD5000Controller

com.apple.iokit.IONDRVSupport
com.apple.driver.AppleSMC
com.apple.driver.AppleGraphicsControl
com.apple.driver.ApplePolicyControl
com.apple.Dont_Steal_Mac_OS_X
com.apple.iokit.IOBluetoothFamily
com.apple.iokit.IOSerialFamily

com.apple.iokit.IOBluetoothSerialManager
com.apple.iokit.IOSurface
com.apple.iokit.IOUserEthernet
com.apple.iokit.IOAcceleratorFamily

com.apple.AMDRadeonAccelerator
com.apple.driver.AppleSMBusController
com.apple.driver.AppleMCCSControl
com.apple.driver.AppleUpstreamUserClient
com.apple.driver.IOPlatformPluginFamily

com.apple.driver.IOPlatformPluginLegacy
com.apple.driver.ACPI_SMC_PlatformPlugin
com.apple.driver.AppleSMCPDRC
com.apple.driver.AppleUSBOpticalMouse
com.apple.kext.triggers

com.apple.filesystems.autofs
com.apple.driver.AGPM
com.apple.driver.AppleHWSensor
com.apple.filesystems.ntfs

com.apple.filesystems.smbfs

Plist:
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com...yList-1.0.dtd">
<plist version="1.0">
<dict>
<key>AtiConfig</key>
<string>Hoolock</string>
<key>EthernetBuiltIn</key>
<string>Yes</string>
<key>Graphics Mode</key>
<string>1600x900x32</string>
<key>GraphicsEnabler</key>
<string>Yes</string>
<key>Kernel</key>
<string>mach_kernel</string>
<key>Kernel Flags</key>
<string>darkwake=0</string>
<key>Legacy Logo</key>
<string>Yes</string>
<key>SMBIOS</key>
<string>/Extra/smbios.plist</string>
<key>Theme</key>
<string>Choose_Your_OS</string>
<key>Timeout</key>
<string>2</string>
<key>UseKernelCache</key>
<string>Yes</string>
</dict>
</plist>

(I guess the rest isn't important for my issue - otherwise please ask for it.)


So now to my Problem:

I already add the "0xDeviceIDVendorID" of my ATI Mobility Radeon HD 5470 (which is: 0x68e01002) in the ATI5000Controller.kext, AMDRadeonAccelerator.kext and ATISupport.kext.

Here are the kextstats:
63 1 0xffffff7f8148b000 0x1ea000 0x1ea000 com.apple.kext.AMDSupport (8.0.0) <62 10 9 7 5 4 3 1>
64 0 0xffffff7f81675000 0x49000 0x49000 com.apple.kext.AMD5000Controller (8.0.0) <63 62 10 9 5 4 3 1>
79 0 0xffffff7f81c84000 0x3ce000 0x3ce000 com.apple.kext.AMDRadeonAccelerator (1.0.0) <78 65 62 7 5 4 3 1>


I also inject the EDID of my Internal Screen/LVDC.
But I can't change the resolution, even if I add a new child-item in the Display.plist.
I guess, because I'm starting with GraphicsEnabler=No ML I can't change the resolution (maybe?)

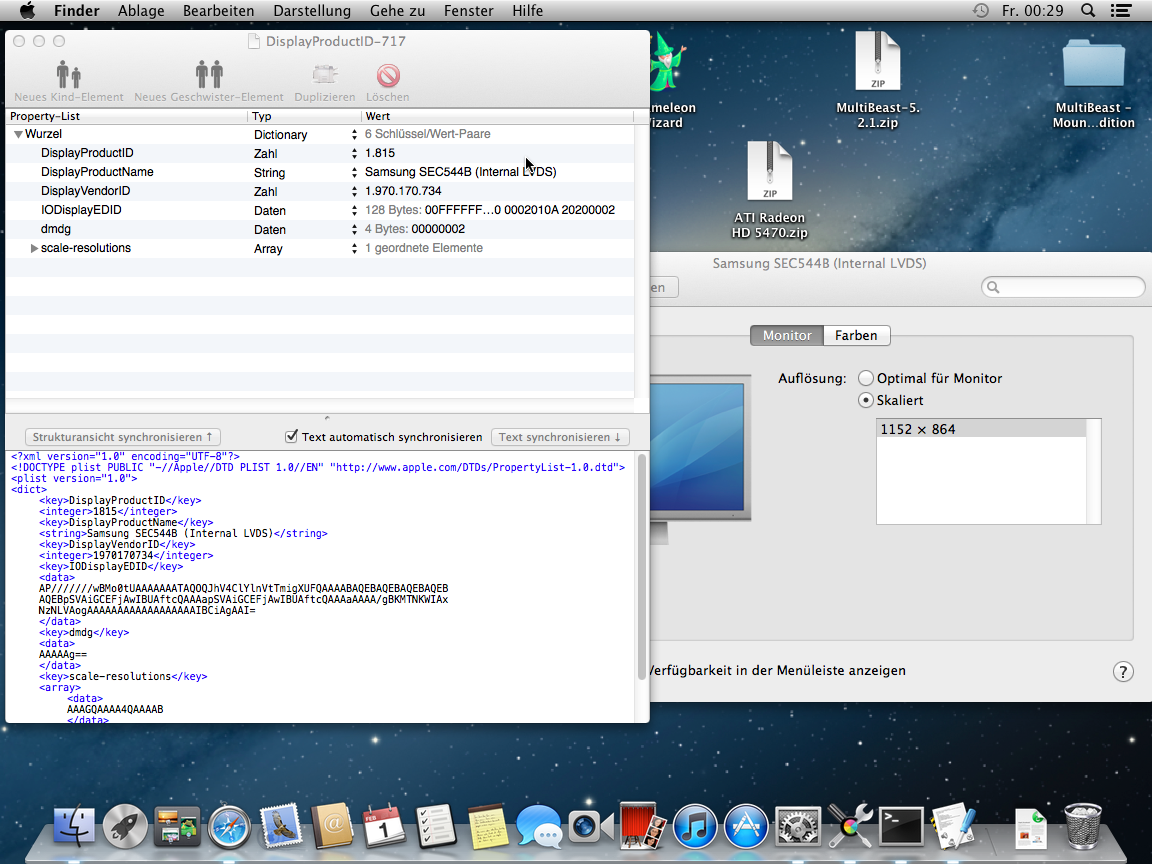

Here is a picture:
Attached File  EDID.png   586.65KB   46 downloads


I did nothing with DSDT-Stuff, maybe that could be the fix, but I have no idea how to do that and I even don't see something for my ambition. If you have a good guide how to make a DSDT file, please share it. :D

So, I don't know how to continue the way to get my graphic card working and I hope you have the superior knowledge to solve my issue. :rolleyes:


-----------------------------------------------------------------------------------------------------------------------------------------------------------
I'm sorry for some gramma mistakes, I'm not a native speaker. I hope you can still get the idea/issue.

Thank you.
MacOlifa

#2
iFIRE

iFIRE

    InsanelyMacaholic

  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain
not load your framebufer, try use the kext Aty_init.kext

Attached File  ATY_Init.kext.zip   34.93KB   98 downloads

#3
MacOlifa

MacOlifa

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts
I tried this method, but still blackscreen with my bootsettings.
But the kext loads:
94 0 0xffffff7f8213e000 0x6000 0x6000 com.dong.driver.ATY_Init (1.0.0d1) <66 10 4 3>

I installed it with KextWizard.

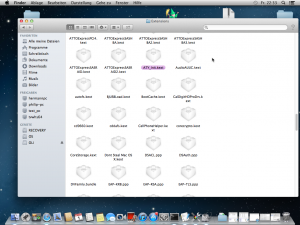

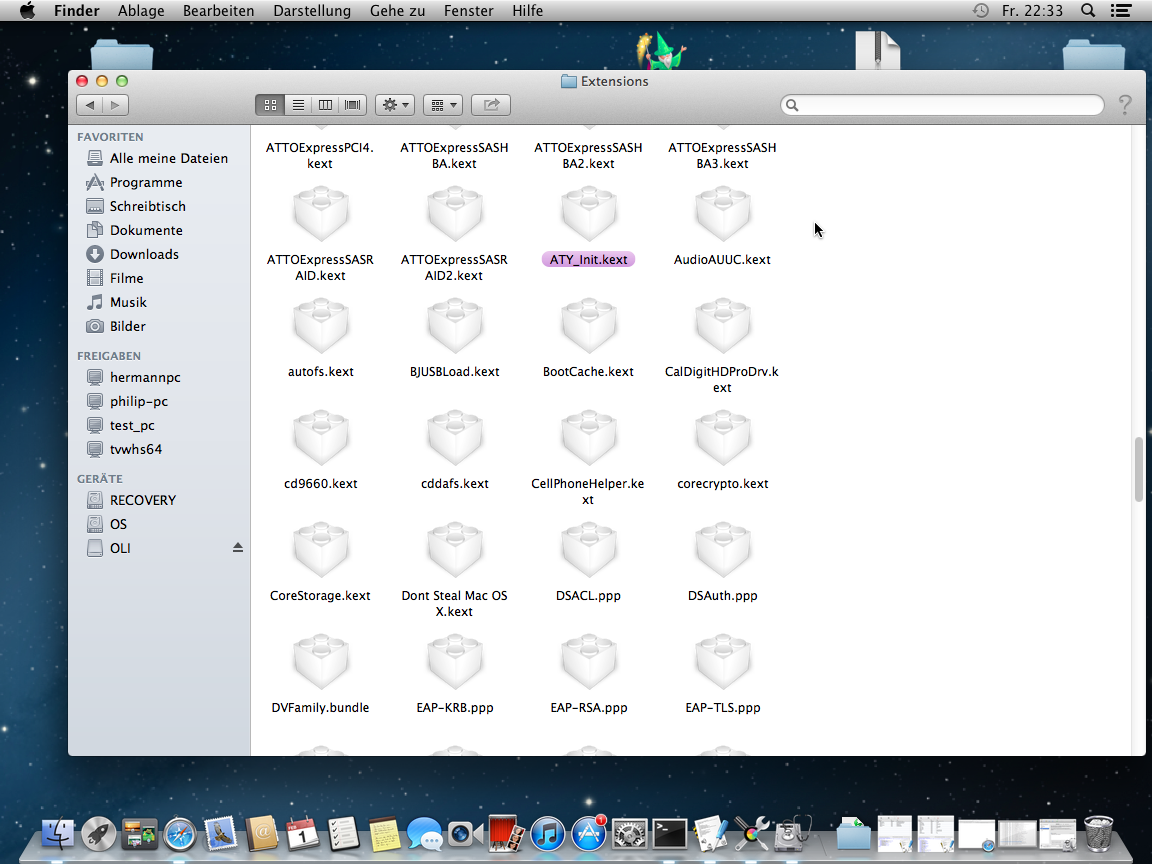

In my 'Extensions' folder the kext file 'ATY_Init' has a blue background:
Attached File  Bildschirmfoto.png   419.42KB   22 downloads
What does that mean?

Should I also add my "0xDeviceIDVendorID" in the IOPCIMatch of the ATY_Init Info.plist?


Thank you, that you try to help me. :)

#4
jorge.alexandro

jorge.alexandro

    InsanelyMac Protégé

  • Members
  • Pip
  • 9 posts

I cant HD5470 get it work on mavericks ¿some one can share kexts?



#5
asok30

asok30

    InsanelyMac Protégé

  • Members
  • Pip
  • 31 posts
  • Gender:Male
  • Location:Rotterdam
  • Interests:ICT, Programming

im trying to do something with hd470 on packardbell lm85...still working...



#6
jorge.alexandro

jorge.alexandro

    InsanelyMac Protégé

  • Members
  • Pip
  • 9 posts
Remove all modified kext texts that you have installed and change your aticonfig like that:

<key>AtiConfig</key>
<string>Hoolok</string>

Use graphicenabler = yes without pcirootuid, dont ask me why, It just work for me.

On my research I found that this card is natively supported, so no need of kexts, and randomly found the solution when I edit my boot plist and made a mistake with the ati config framebuffer name

Good luck


#7
dcai777

dcai777

    BAZINGA!!!!!!!!!!!

  • Members
  • PipPipPipPipPipPipPip
  • 702 posts
  • Gender:Male
  • Location:San Jose, CA
  • Interests:Hacking your Hackintosh

jorge, its AtiConfig=Hoolock... and i told you to put that in :)
