Modding of the G5 for the first time


For ATX Motherboard


Posted Image



Aim


-To create a G5 mod with little hassle and cuts as possible, and make it 'authentic'. Hassle came , was forced to make contingency plans along the way.
-Dual Boot OS X and Windows
-ATX Mod
-To feed something back to the community

Step 1: Purchasing the case


I found a nice one for only £20 on gumtree, but it has a massive scratch down the side lol
Heres an image:
Attached File  IMG_0245.JPG   662.68KB   71 downloads

Step 2: Purchasing the parts


Motherboard: Gigabyte GA-X58A-UD3R rev 2.0 £142.14
Processor: Intel Core i7 950 £180
Graphics Card: XFX HD 6870 £139
RAM: Corsair 4GB £37.18
PSU: Arctic Power 700W PSU £43.98

EXTRA RANDOM STUFF:
Zammykoo's Rear I/O: £49.87
SATA Cables: £11.50
Front I/O Wiring (Gus.Carrie): £15.50
Motherboard Tray: £32.69
DVI Extension Cable: £5.99

In total the Hackintosh costed £677.89.

Step 3: Sawing the Motherboard Tray


I bought a motherboard tray so that the heavy graphics card and other PCI things is secure.
I didn't want to create custom shelves or drill into my cards or anything lol

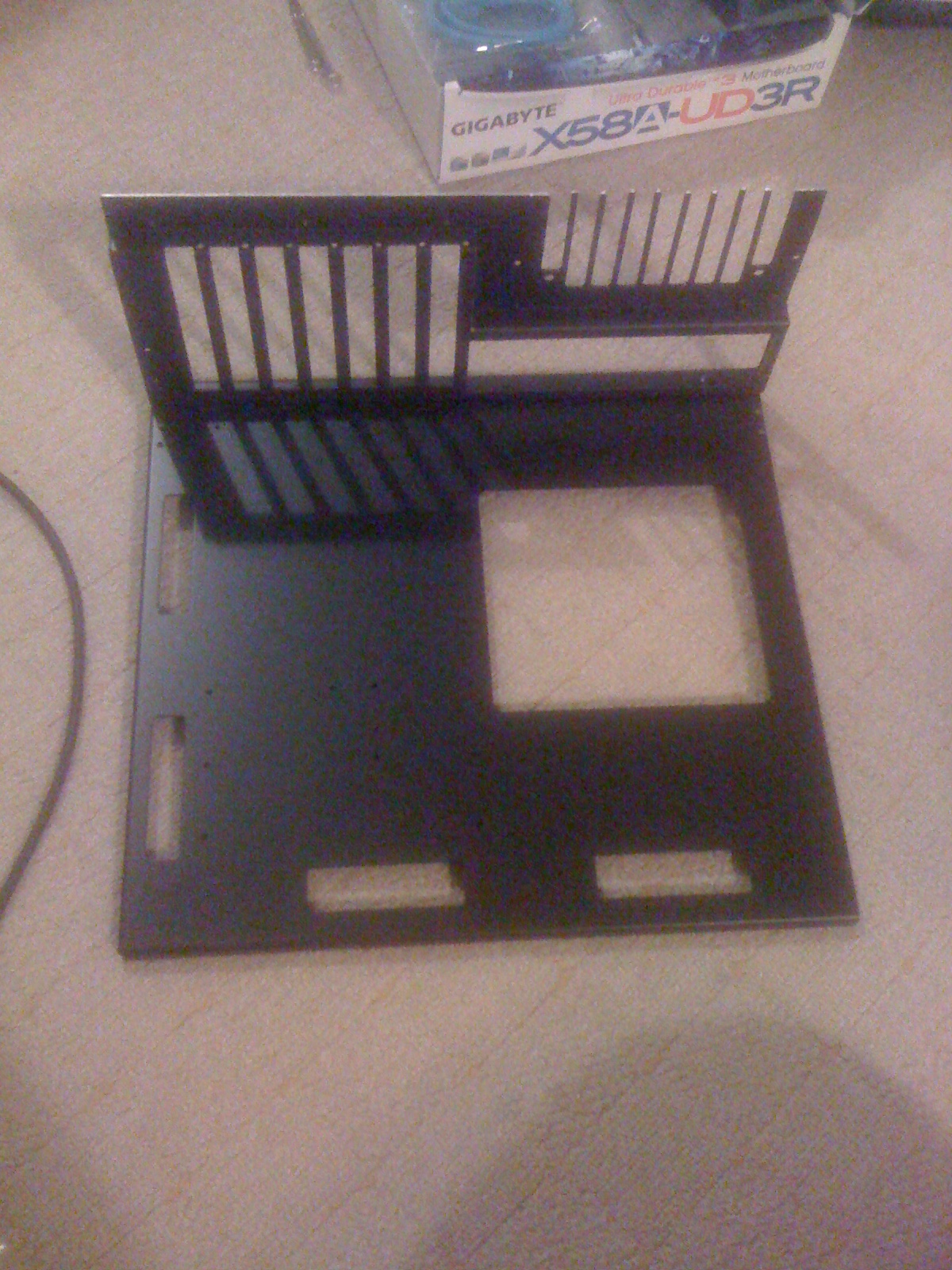

Here's a pic:
Attached File  IMG_0246.JPG   728.15KB   72 downloads

Step 4: Case Fan


I wanted to keep the original location of the case fan. By using a spare fan I found in an old Dell Inspiron, I decided to drill into the original Mac case fan support and added my own.
Here's a pic:
Attached File  IMG_0248.JPG   745.8KB   59 downloads
(I had to extend the wires too because it was too short)

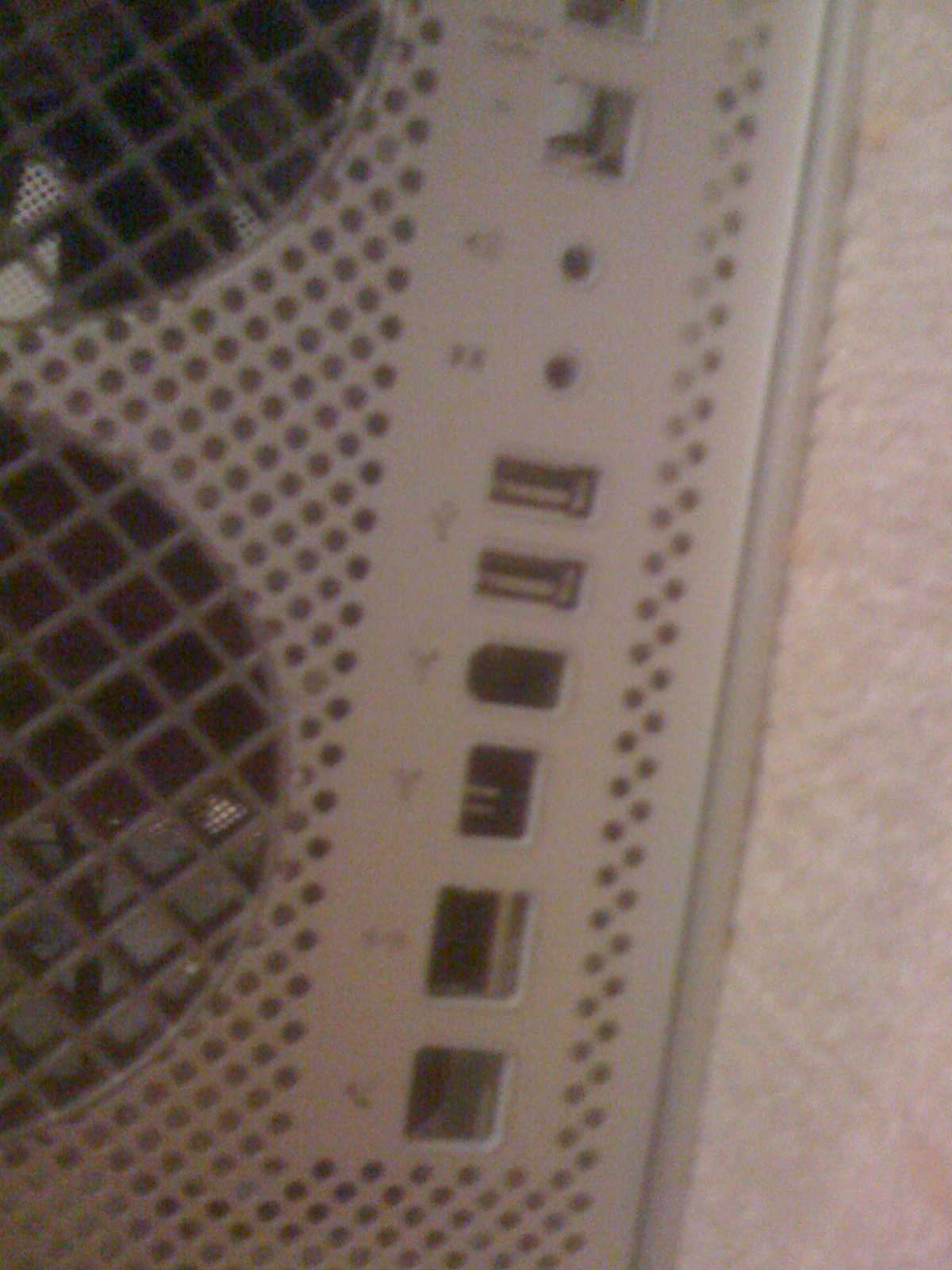

Step 5: ZAMMYKOOOO!


I used Zammykoo's rear I/O to not cut the original back of the G5
I mounted it to the original standoffs and glued it down in place with expoy
I had some trouble at first because it kept on coming off, and it wasn't aligned but after removing the grey plastic lining, it was fine.

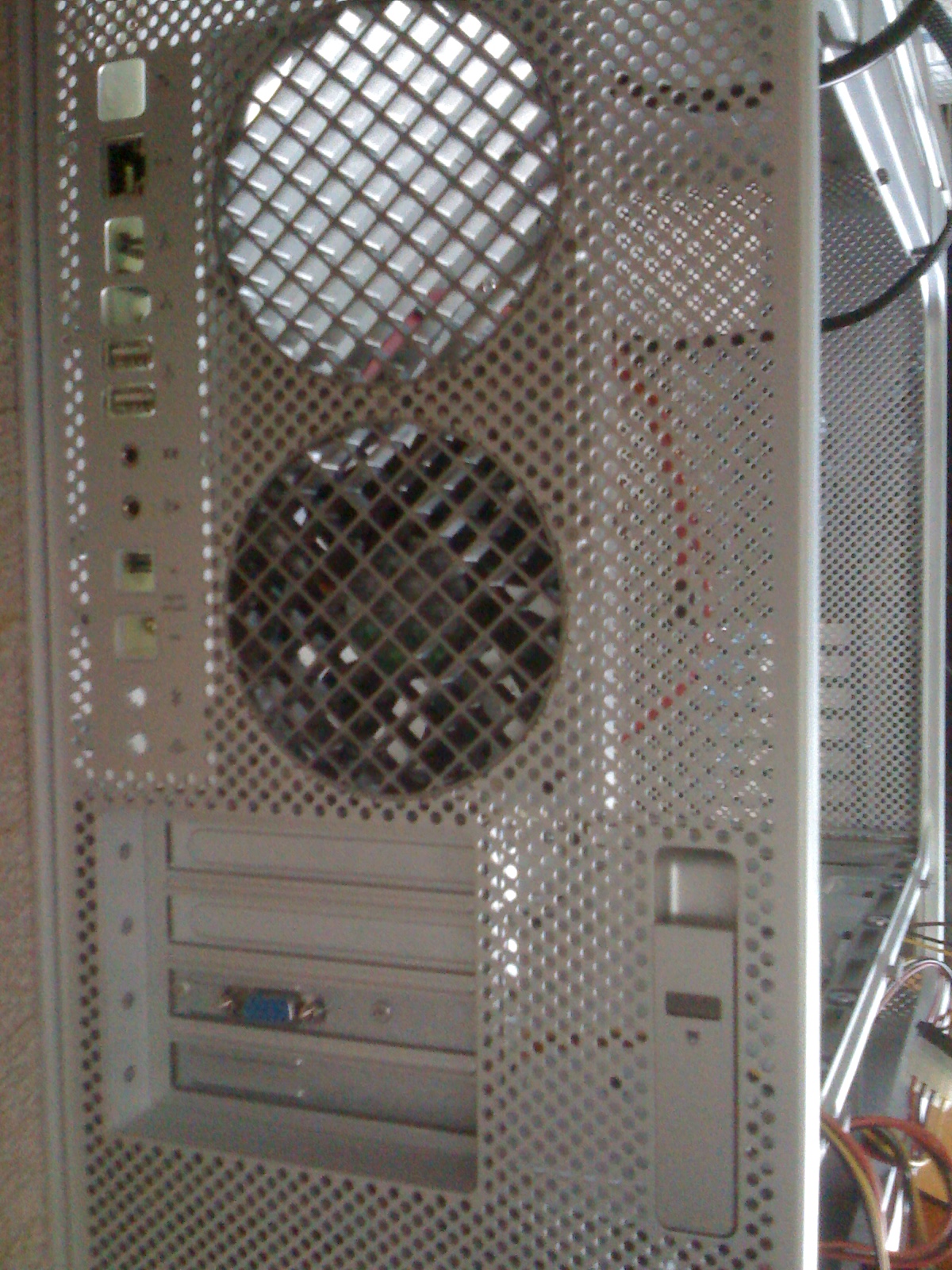

Here's a pic:
Attached File  IMG_0258.JPG   671.17KB   73 downloads

Step 6: The Graphics port

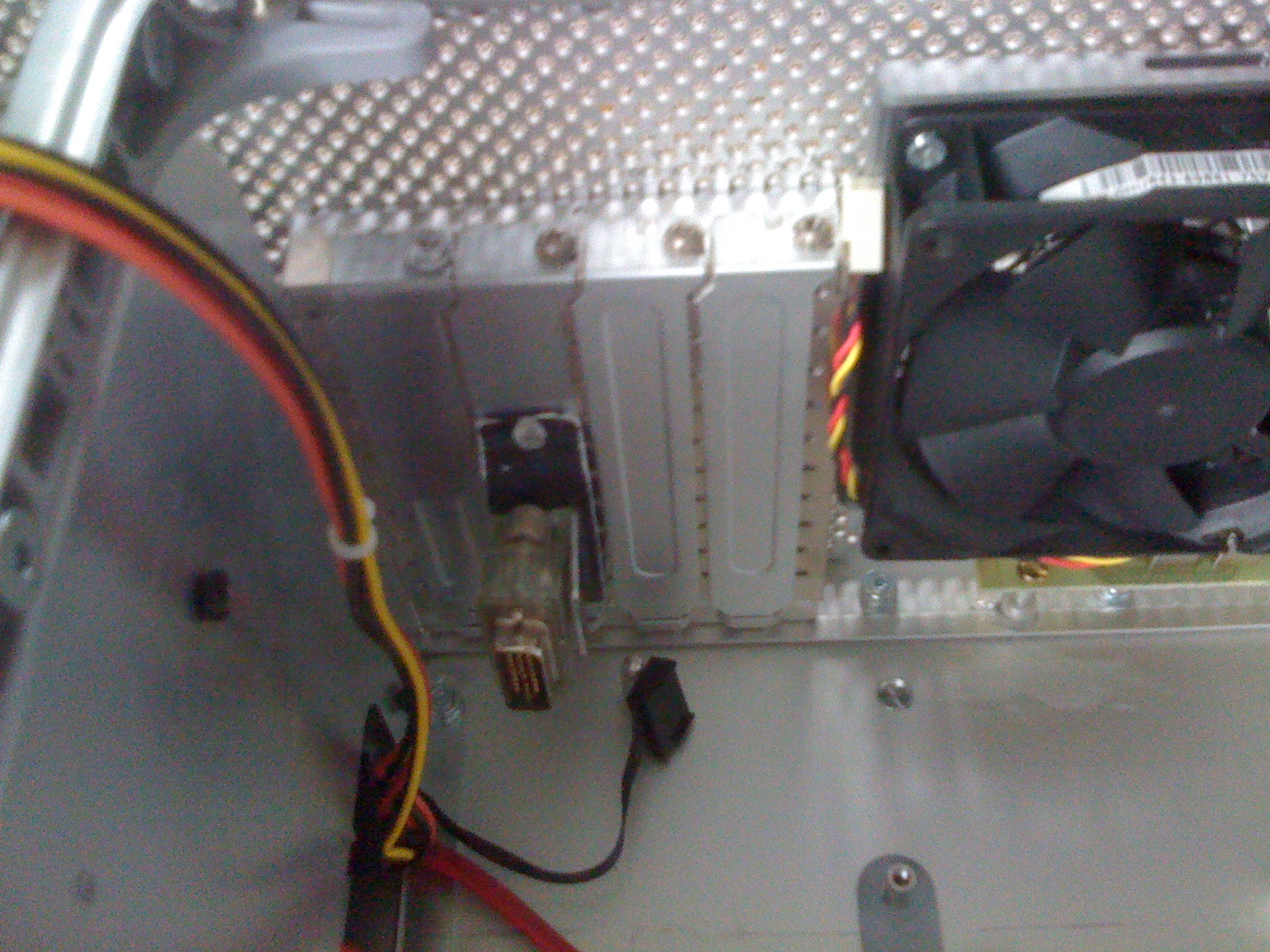

I made a cut as shown in the picture and placed a DVI-VGA converter as my monitor is VGA
Attached File  IMG_0283.JPG   791.42KB   71 downloadsAttached File  IMG_0280.JPG   841.82KB   69 downloads

Step 7: POWER


I made an odd connector for the power using scrap metal, power cable and an old PSU (took the plug out)
Attached File  IMG_0279.JPG   685.31KB   64 downloads

Step 8: Cables and Tidying

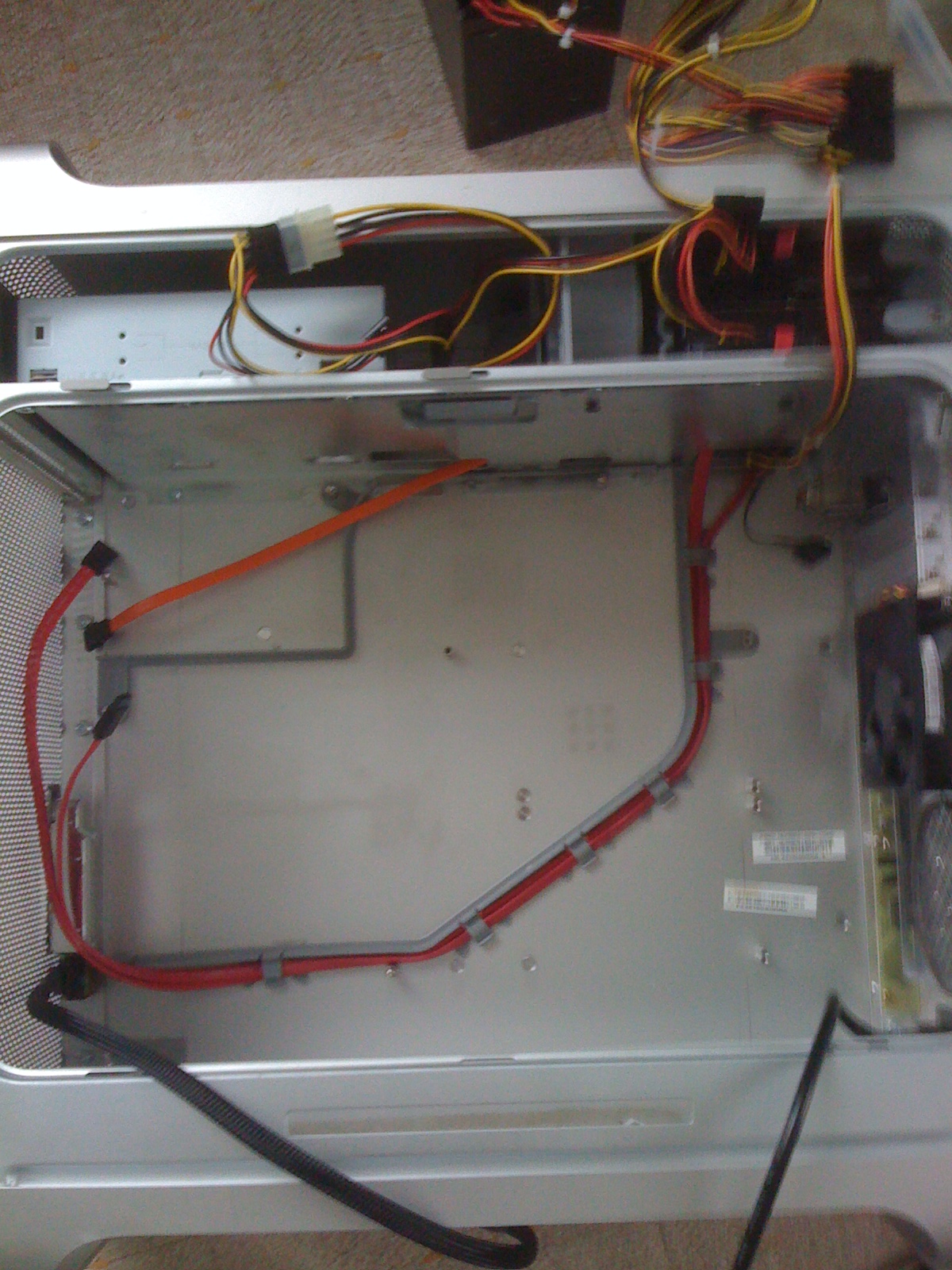

I removed the default black wires from the case (shown in the first picture), and replaced them with 2 SATA cables as I intend to use the default drive bays to store the HDDs
I also plugged in the Front I/O wires and CD drive.
Oh yes, I had to remove the front plate of the CD drive or else it won't come through the slot.
Attached File  IMG_0278.JPG   686.71KB   74 downloads

Step 9: Final Assembled Result

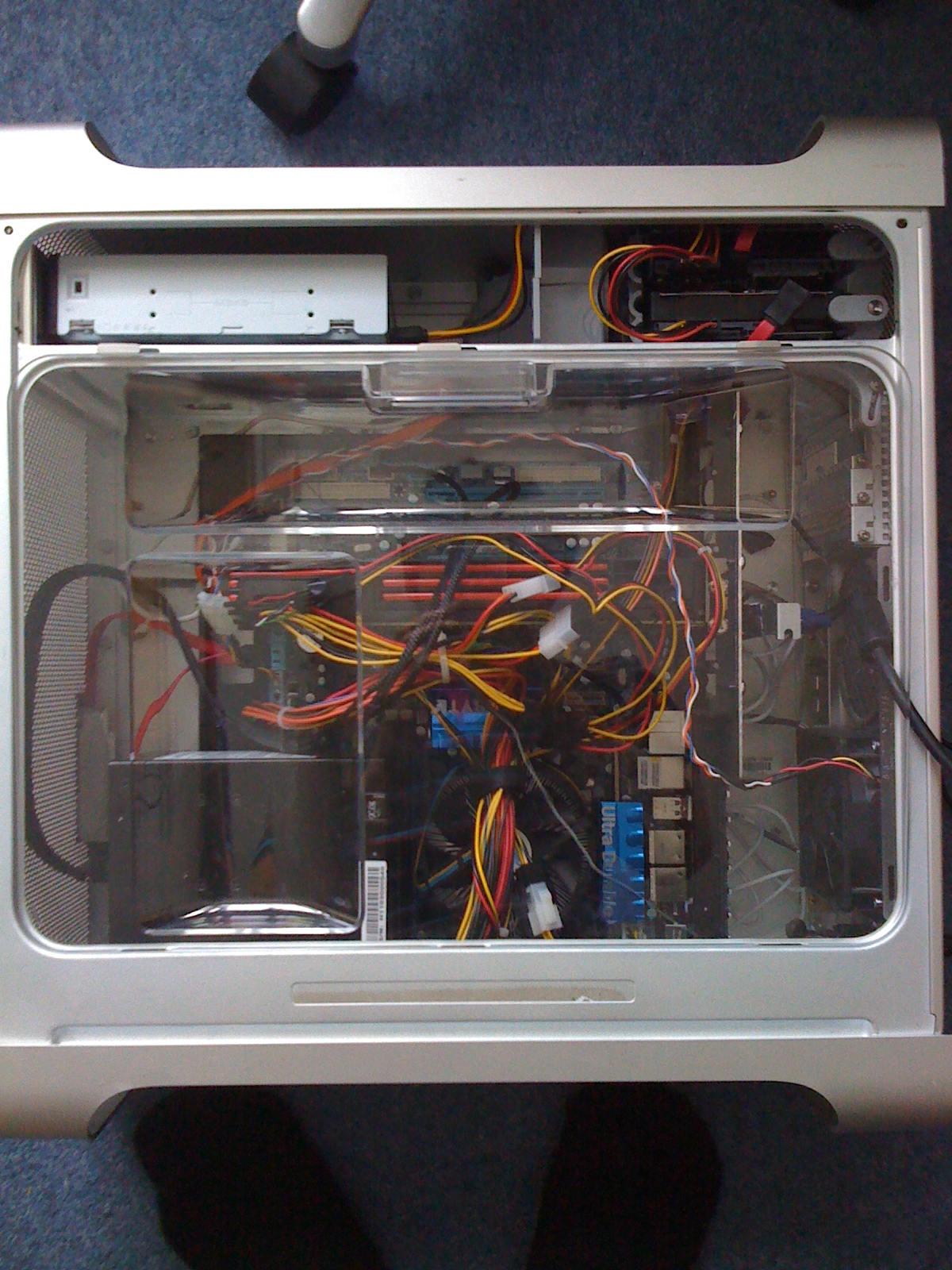

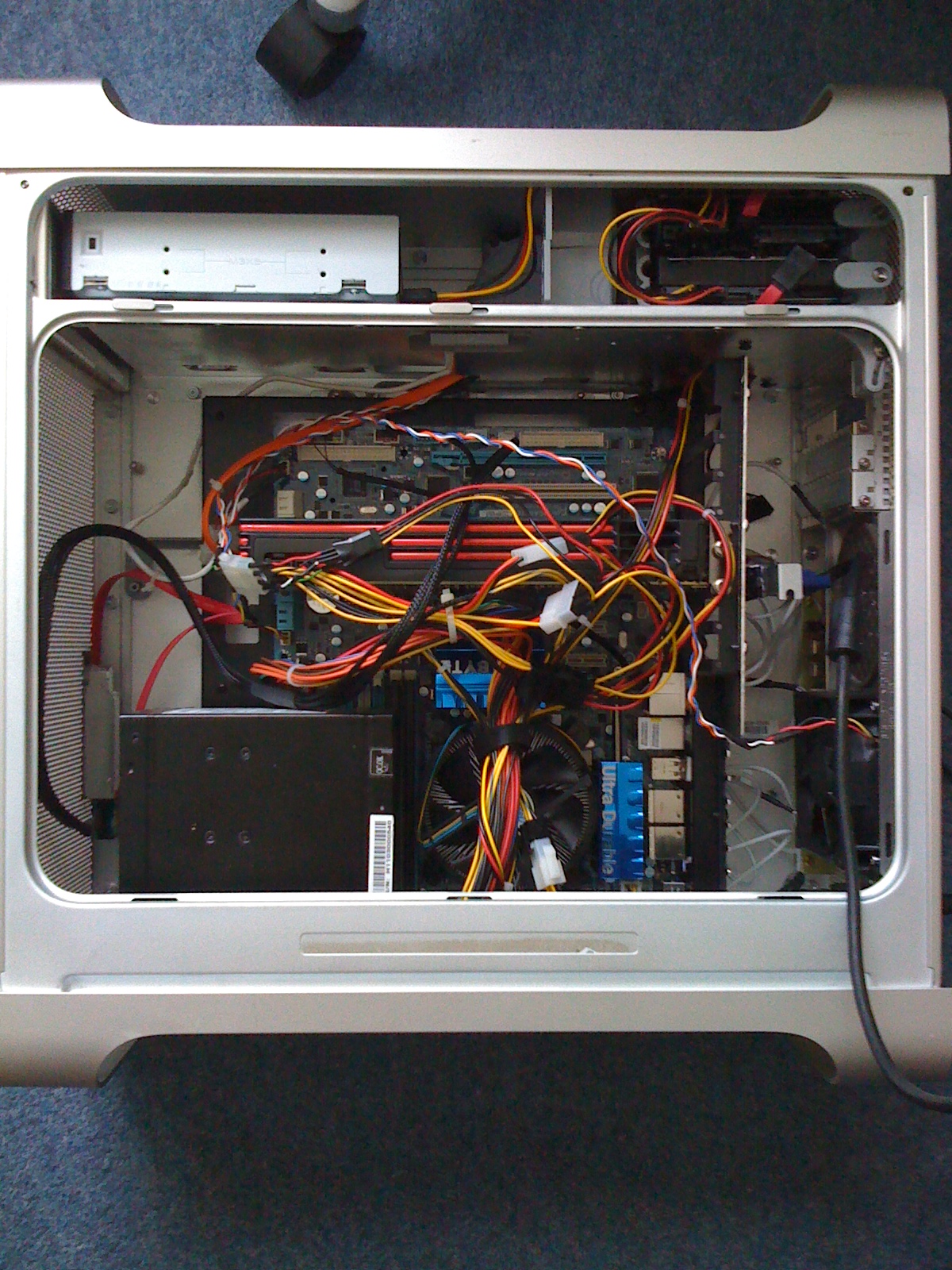

This is how it looks like so far. I've used Epoxy resin to hold the Mobo tray in place and screwed the motherboard into place, inserted the graphics cards etc. As you can see the PSU is in an awkward position, but I couldn't think of an alternative position to place it.

Attached File  IMG_0322.JPG   812.57KB   110 downloads Attached File  IMG_0323.JPG   748.08KB   95 downloads

Problems


I "THINK" the two hard drives over heat in the top shelf, because after a while I get stuck at bios... It works fine when I take the hard drives out and run it outside of the case. I tried connecting the HDD fan/blower to the MOBO, but I can't seem to get it to work... Any ideas guys?

FIXED: I added two fans. One blower (original case fan), and one fan from an old PC (it has blue lights :D I wanted it to not emit anything, oh wells).

Step X: Installing the X


This is truly a d*ck in the {censored}. If anyone can help it would save me.
Bios settings: ACHI for drives
Used a DSDT found somewhere in the Forums, I'll provide a link if requested.
Methods I have tried:
Kakewalk 4.0 (Lion) FAILED
Reason: Memory stick fails to complete, haven't got a spare memory stick.

iDeneb 10.5.7 (Leopard) FAILED
Reason: Waiting for root device error? Doesn't get past the DVD

iAtkos s3 v2 (Leopard) FAILED
Reason: Waiting for root device error? Doesn't get past the DVD. Restarts randomly.

#####/##### (Snow Leopard) SEMI-WORK
Reason: ##### works with
-x -v GraphicsEnabler=no PCIRootUID=1

This installs. 1024x768 resolution with OOB internet. Great.
Note: Graphics Card fan spins very loud and scary unless GraphicsEnabler=no is used at every restart.
Did Combo Update to 10.6.8.
Upon using #####, it fails.
Using GraphicsEnabler=no causes the GFX Card to run normally, but however I get a grey screen :)

Any other options guys?

UPDATE: Oh my god. It works! I don't fully understand it, but I'll give it a shot at my understanding, ok here goes:

I installed Windows just after assembling my computer, so at least I have an OS to work on, and do every day tasks etc. I used EasyBCD and created a Dual Boot of Windows and OS X (I couldn't specify the location of OS X because it didn't exist).
Then after installing Snow Leopard with #####/#####, with no hope left...I plugged both HDDs in to boot into windows. I then took my chances once again and selected OS X from the windows Boot loader, and BAMM, it worked :S
God knows why Chameleon RC5 or the ##### boot loader didn't work

Special Thanks:


This Forum for advice and tips
Zammykoo for the rear I/O, or else I would've done a cut mod :)
Dad, for his amazing metal work skills
