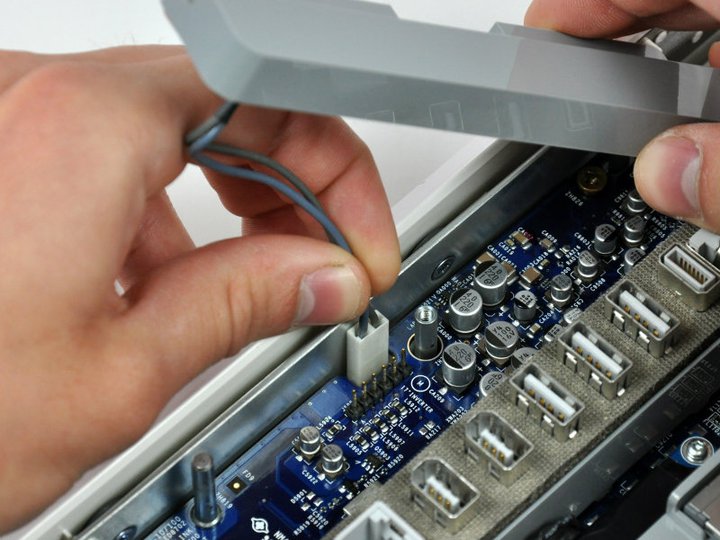

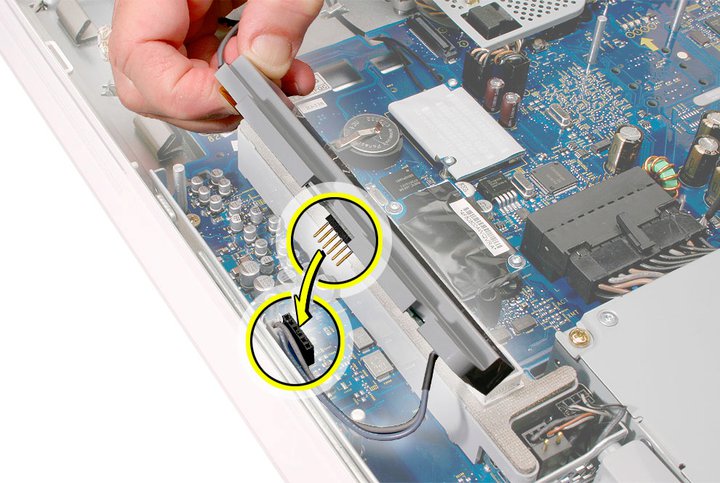

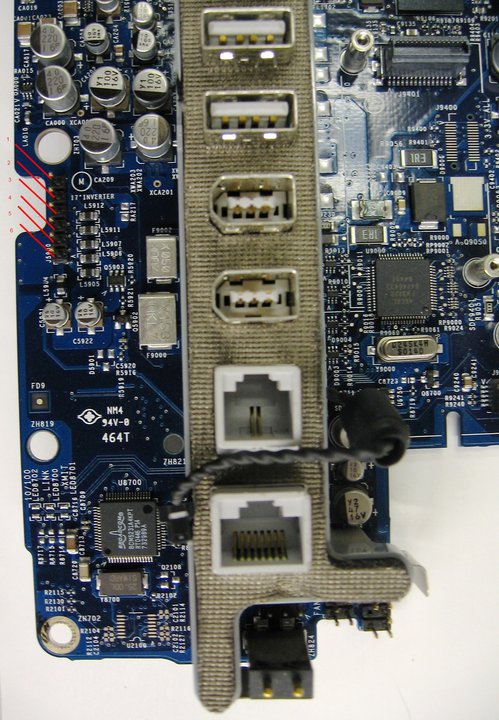

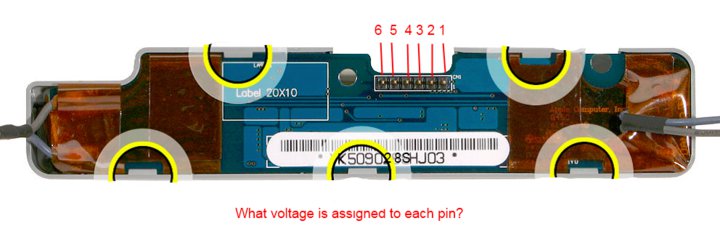

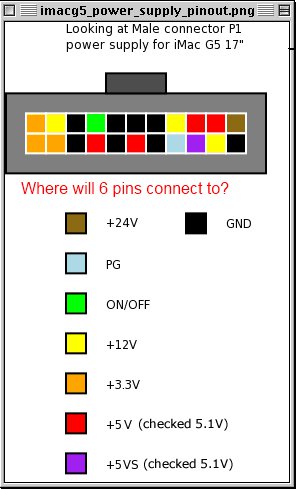

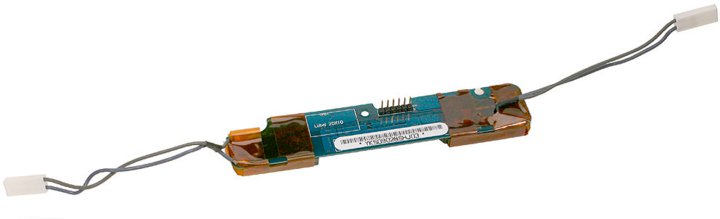

shanwookie Posted October 6, 2010 Share Posted October 6, 2010 I have a broken LCD on my netbook. The LVDS cable correctly fits in the display for my iMac which was gutted when the logic board caps went bad. I have tossed the logic board. I still have the display, the power supply and the inverter. I need to know the voltage that each pin on the inverter takes to power the back light on the iMac display directly from the power supply. The following links may be helpful to someone who speaks French. http://forum.macbidouille.com/index.php?sh...p;#entry3069916 http://users.skynet.be/fa835376/pas%20a%20pas.pdf Link to comment Share on other sites More sharing options...
