Triple displays using more then 1 type of graphics card?


  • Please log in to reply
4 replies to this topic

#1
windin

windin

    InsanelyMac Protégé

  • Members
  • Pip
  • 22 posts
  • Gender:Male
  • Location:UK
Hi there

ok bit of a strange one and probably a no go but I have done some searching around and not found anyone thats even tried it so i thought i would ask

I am running dual monitors from a GeForce 8400GS, the card is enabled using and EFI string in the com.apple.boot.plist and every things is working with no issues

However I have the built in Intel GMA950 on the motherboard I am using (an Asrock 2Core1333DVI-2.66G) thats sat there doing nothing, looking in the System Profiler its picked up fine but when i plug a third monitor into it the system freezes and all the new display shows is a blue screen. If you then reboot all the screens come on but but they system is totally frozen.

So can you get 3 monitors from two different cards in OSX? Any help is massively appreciated

I am running 10.5.4 from Iatkos 4.1i

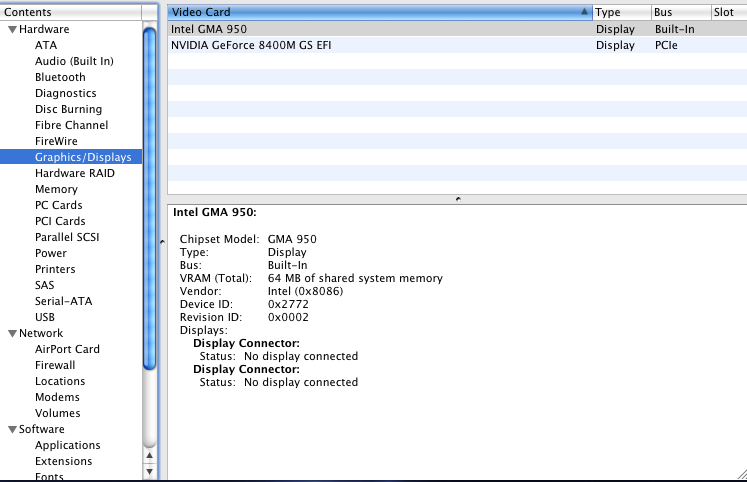

this is what i get in system profiler



Attached File  Picture_1_2_.png   68.26KB   10 downloads

#2
peach-os

peach-os

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,286 posts
  • Location:lago di constanza
read aquamacs instructions here

http://forum.insanel...howtopic=101121


i did the same with aquamacs instructions read here

http://forum.insanel...mp;#entry742502

#3
windin

windin

    InsanelyMac Protégé

  • Members
  • Pip
  • 22 posts
  • Gender:Male
  • Location:UK
Thanks for that Peach

I have given it a go but no luck

using the instructions I managed to get the the device paths for the adapters

PciRoot(0x0)/Pci(0x2,0x0) for the GMA950 and PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0) for the 8400GS

I then put them in a merged plist like so

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)</key>
	<dict>
		<key>@0,VRAM,memsize</key>
		<data>
		AAAABAAAAAg=
		</data>
		<key>@0,compatible</key>
		<data>
		TlZEQSxOVk1hYw==
		</data>
		<key>@0,device_type</key>
		<data>
		ZGlzcGxheQ==
		</data>
		<key>@0,name</key>
		<data>
		TlZEQSxEaXNwbGF5LUE=
		</data>
		<key>@1,VRAM,memsize</key>
		<data>
		AAAABAAAAAg=
		</data>
		<key>@1,compatible</key>
		<data>
		TlZEQSxOVk1hYw==
		</data>
		<key>@1,device_type</key>
		<data>
		ZGlzcGxheQ==
		</data>
		<key>@1,name</key>
		<data>
		TlZEQSxEaXNwbGF5LUI=
		</data>
		<key>NVCAP</key>
		<data>
		BAAAAAAAAwAMAAAAAAAABwAAAAA=
		</data>
		<key>NVPM</key>
		<data>
		AQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA==
		</data>
		<key>device_type</key>
		<data>
		TlZEQSxHZUZvcmNl
		</data>
		<key>model</key>
		<data>
		R2VGb3JjZSA3MzAwIEdUIEVGSQ==
		</data>
		<key>name</key>
		<data>
		TlZEQSxQYXJlbnQ=
		</data>
		<key>rom-revision</key>
		<data>
		MzE3NQ==
		</data>
	</dict>
	<key>PciRoot(0x0)/Pci(0x2,0x0)</key>
	<dict>
		<key>AAPL,HasPanel</key>
		<data>
		AQAAAA==
		</data>
		<key>model</key>
		<data>
		R01BIDk1MA==
		</data>
	</dict>
	</dict>
</plist>

which gives me

df0200000100000002000000720200000e00000002010c00d041030a000000000101060000010101
60000007fff04000e0000004e00560050004d0000002000000001000000000000000000000000000
0000000000000000000000000024000000400030002c005600520041004d002c006d0065006d0073
069007a00650000000c00000000000004000000081c0000006400650076006900630065005f00740
7900700065000000100000004e5644412c4765466f7263650e0000006e0061006d00650000000f00
0004e5644412c506172656e7422000000400030002c006400650076006900630065005f007400790
7000650000000b000000646973706c617922000000400031002c006400650076006900630065005f
0740079007000650000000b000000646973706c6179100000006d006f00640065006c00000017000
004765466f72636520373330302047542045464920000000400031002c0063006f006d0070006100
400690062006c00650000000e0000004e5644412c4e564d616314000000400030002c006e0061006
0065000000120000004e5644412c446973706c61792d4114000000400031002c006e0061006d0065
00000120000004e5644412c446973706c61792d4220000000400030002c0063006f006d007000610
7400690062006c00650000000e0000004e5644412c4e564d61631e00000072006f006d002d007200
50076006900730069006f006e0000000800000033313735100000004e00560043004100500000001
00000004000000000003000c000000000000070000000024000000400031002c005600520041004d
02c006d0065006d00730069007a00650000000c00000000000004000000086100000002000000020
0c00d041030a000000000101060000027fff0400100000006d006f00640065006c0000000b000000
74d4120393530200000004100410050004c002c00480061007300500061006e0065006c000000080
000001000000

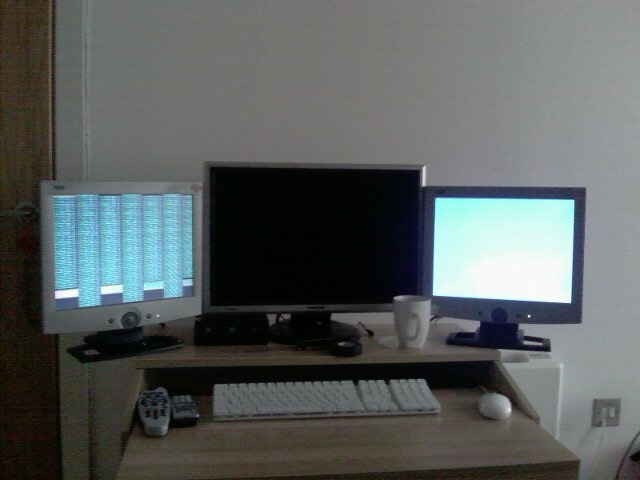

however when I put that in my com.apple.boot.plist repair permissions and reboot I get

Attached File  attach.jpg   53.96KB   14 downloads

I am going to carry on playing with it but its not looking good for doing this with integrated graphics and a PCIe card, I may just have to go and buy a another card for a matched pair

#4
peach-os

peach-os

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,286 posts
  • Location:lago di constanza
sorry - Ive been reading too fast and didnt notice that you are using an onboard graphics.
that might be a problem. only things you still could try is playing with different plists that you could find and change the priority of the graphics cards in bios (if this option exists on your mainboard its something like PEG1,PEG2).
another mistake youre doing: if you want more help you should attach your specs :D

#5
windin

windin

    InsanelyMac Protégé

  • Members
  • Pip
  • 22 posts
  • Gender:Male
  • Location:UK
yeah I have only been here 2 years it takes time to get round to these things lol

have tried that no good so far, I have however found a PCI (yes PCI nor PCIe) version of the 8400GS I am thinking of trying with that

anyways cheers for the help
