I need help trying to get 10.4 - 10.7 and OSX server VMs running (VMware Workstation & AMD)

18446744073709S

By 18446744073709S,
in New Users Lounge

 Share
1 post in this topic

Recommended Posts

18446744073709S
18446744073709S
Posted
Posted (edited)

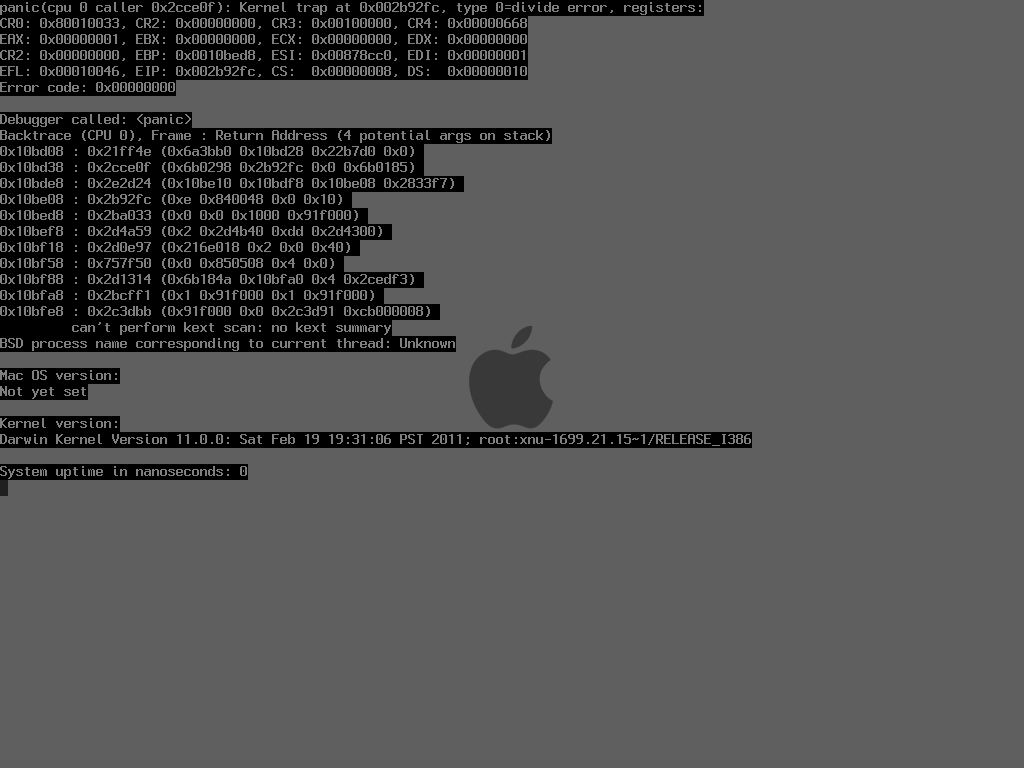

So I've made myself a VM of every version of Mac OS from 10.8 to 12.0 but for some reason, 10.4 to 10.7 is being very difficult. I am currently trying to create a VM of 10.7. I used the exact same method to create it as I did with 10.8 - 12.0, even tried replacing the virtual hard disk of a working 10.8 VM with a 10.7 vmdk, but it kept telling me "The guest operating system is not Mac OS X server." So I found this GitHub project efi-unlocker (https://github.com/sakurayz/efi-unlocker) that I used to fix that problem. Upon trying to power the VM again, it's now telling me that "The CPU has been disabled by the guest operating system." To fix this on my 10.8 - 12.0 VMs, I put some VMX parameters in the .vmx file of the VM (I have an AMD CPU.), but once again for whatever reason it's not working for 10.7. Upon dismissing the error that reads "The CPU has been disabled by the guest operating system.", the 10.7 VM presents this very scary looking kernel panic:

unknown.png?width=776&height=583

Here are the VMX parameters I added to the .vmx file:

smc.version = "0"
bios.bootDelay = "2000"
cpuid.0.eax = "0000:0000:0000:0000:0000:0000:0000:1011"
cpuid.0.ebx = "0111:0101:0110:1110:0110:0101:0100:0111"
cpuid.0.ecx = "0110:1100:0110:0101:0111:0100:0110:1110"
cpuid.0.edx = "0100:1001:0110:0101:0110:1110:0110:1001"
cpuid.1.eax = "0000:0000:0000:0001:0000:0110:0111:0001"
cpuid.1.ebx = "0000:0010:0000:0001:0000:1000:0000:0000"
cpuid.1.ecx = "1000:0010:1001:1000:0010:0010:0000:0011"
cpuid.1.edx = "0000:0111:1000:1011:1111:1011:1111:1111"
featureCompat.enable = "TRUE"
efi32.filename = "EFI32-MACOS.ROM"
efi64.filename = "EFI64-MACOS.ROM"

If anyone is able to help me get these 10.4 - 10.7 & OSX Server VMs running, that'd be greatly appreciated. TiA

Update: I've tried these VMX parameters:

smc.version = "0"
bios.bootDelay = "2000"
board-id.reflectHost = "TRUE"
hw.model.reflectHost = "FALSE"
hw.model = "iMac5,1"
cpuid.inhibitDarwinMasks = "TRUE"
monitor_control.enable_fullcpuid = "TRUE"
cpuid.0.eax = "0000:0000:0000:0000:0000:0000:0000:1011"
cpuid.0.ebx = "0111:0101:0110:1110:0110:0101:0100:0111"
cpuid.0.ecx = "0110:1100:0110:0101:0111:0100:0110:1110"
cpuid.0.edx = "0100:1001:0110:0101:0110:1110:0110:1001"
cpuid.1.eax = "0000:0000:0000:0001:0000:0110:0111:0001"
cpuid.1.ebx = "0000:0010:0000:0001:0000:1000:0000:0000"
cpuid.1.ecx = "1000:0010:1001:1000:0010:0010:0000:0011"
cpuid.1.edx = "0000:0111:1000:1011:1111:1011:1111:1111"
cpuid.2.eax = "0000:0101:1011:0000:1011:0001:0000:0001"
cpuid.2.ebx = "0000:0000:0101:0110:0101:0111:1111:0000"
cpuid.2.ecx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.2.edx = "0010:1100:1011:0100:0011:0000:0100:1001"
cpuid.3.eax = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.3.ebx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.3.ecx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.3.edx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.4.0.eax = "0000:0100:0000:0000:0000:0001:0010:0001"
cpuid.4.0.ebx = "0000:0001:1100:0000:0000:0000:0011:1111"
cpuid.4.0.ecx = "0000:0000:0000:0000:0000:0000:0011:1111"
cpuid.4.0.edx = "0000:0000:0000:0000:0000:0000:0000:0001"
cpuid.4.1.eax = "0000:0100:0000:0000:0000:0001:0010:0010"
cpuid.4.1.ebx = "0000:0001:1100:0000:0000:0000:0011:1111"
cpuid.4.1.ecx = "0000:0000:0000:0000:0000:0000:0011:1111"
cpuid.4.1.edx = "0000:0000:0000:0000:0000:0000:0000:0001"
cpuid.4.2.eax = "0000:0100:0000:0000:0100:0001:0100:0011"
cpuid.4.2.ebx = "0000:0011:1100:0000:0000:0000:0011:1111"
cpuid.4.2.ecx = "0000:0000:0000:0000:0000:1111:1111:1111"
cpuid.4.2.edx = "0000:0000:0000:0000:0000:0000:0000:0001"
cpuid.4.3.eax = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.4.3.ebx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.4.3.ecx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.4.3.edx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.5.eax = "0000:0000:0000:0000:0000:0000:0100:0000"
cpuid.5.ebx = "0000:0000:0000:0000:0000:0000:0100:0000"
cpuid.5.ecx = "0000:0000:0000:0000:0000:0000:0000:0011"
cpuid.5.edx = "0000:0000:0000:0010:0010:0010:0010:0000"
cpuid.6.eax = "0000:0000:0000:0000:0000:0000:0000:0001"
cpuid.6.ebx = "0000:0000:0000:0000:0000:0000:0000:0010"
cpuid.6.ecx = "0000:0000:0000:0000:0000:0000:0000:0001"
cpuid.6.edx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.7.0.eax = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.7.0.ebx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.7.0.ecx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.7.0.edx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.8.eax = "0000:0000:0000:0000:0000:0100:0000:0000"
cpuid.8.ebx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.8.ecx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.8.edx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.9.eax = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.9.ebx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.9.ecx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.9.edx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.a.eax = "0000:0111:0010:1000:0000:0010:0000:0010"
cpuid.a.ebx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.a.ecx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.a.edx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000000.eax = "1000:0000:0000:0000:0000:0000:0000:1000"
cpuid.80000000.ebx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000000.ecx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000000.edx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000001.eax = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000001.ebx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000001.ecx = "0000:0000:0000:0000:0000:0000:0000:0001"
cpuid.80000001.edx = "0010:0000:0001:0000:0000:1000:0000:0000"
cpuid.80000002.eax = "0110:0101:0111:0100:0110:1110:0100:1001"
cpuid.80000002.ebx = "0010:1001:0101:0010:0010:1000:0110:1100"
cpuid.80000002.ecx = "0111:0010:0110:1111:0100:0011:0010:0000"
cpuid.80000002.edx = "0100:1101:0101:0100:0010:1000:0110:0101"
cpuid.80000003.eax = "0100:0011:0010:0000:0011:0010:0010:1001"
cpuid.80000003.ebx = "0010:0000:0010:0000:0101:0101:0101:0000"
cpuid.80000003.ecx = "0010:0000:0010:0000:0010:0000:0010:0000"
cpuid.80000003.edx = "0101:0100:0010:0000:0010:0000:0010:0000"
cpuid.80000004.eax = "0011:0000:0011:0000:0011:0110:0011:0111"
cpuid.80000004.ebx = "0010:0000:0100:0000:0010:0000:0010:0000"
cpuid.80000004.ecx = "0011:0011:0011:0011:0010:1110:0011:0010"
cpuid.80000004.edx = "0000:0000:0111:1010:0100:1000:0100:0111"
cpuid.80000005.eax = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000005.ebx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000005.ecx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000005.edx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000006.eax = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000006.ebx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000006.ecx = "0001:0000:0000:0000:1000:0000:0100:0000"
cpuid.80000006.edx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000007.eax = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000007.ebx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000007.ecx = "0000:0000:0000:0000:0000:0000:0000:0000"
cpuid.80000007.edx = "0000:0000:0000:0000:0000:0000:0000:0000"
featureCompat.enable = "TRUE"
efi32.filename = "EFI32-MACOS.ROM"
efi64.filename = "EFI64-MACOS.ROM"

And it produces this kernel panic with a more visible error message:


I think it's because the CPUID is masking an incompatible CPU, or something else is incompatible with the software. If anyone knows the proper CPUID masking, please post it. Once again, TiA.

Edited by 18446744073709S
