Big Sur on Gigabyte Z490 i9-10900

[Muaitai]

Hi,



I have finished my Hackintosh and everything seemed to go very well but as soon as I tried the network and sound neither were working.

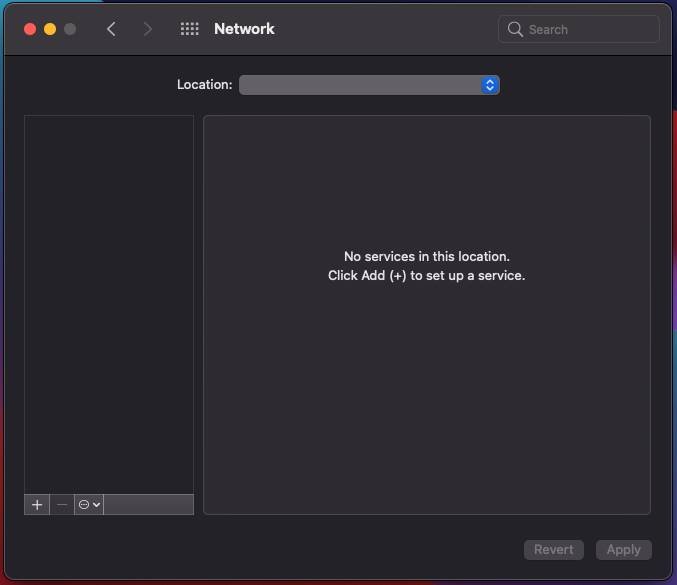

I don't even see an option in the Network.

Below is my configuration and parts:



• GIGABYTE Z490 AORUS Master
• Intel Core i9-10900 Desktop Processor
• HyperX Fury 128GB 3200MHz DDR4 Ram CL16 DIMM
• Sapphire Radeon Pulse RX 580
• Samsung 970 EVO Plus SSD 1TB
• Fenvi M.2 NGFF BCM94360NG Card



SSDT-AWAC.aml
SSDT-EC-USBX-DESKTOP.aml
SSDT-PLUG-DRTNIA.aml



AppleALC.kext
Lilu.kext
LucyRTL8125Ethernet.kext
NVMeFix.kext
RealtekRTL8111.kext
USBInjectAll.kext
VirtualSMC.kext
WhateverGreen.kext



Sanity Checker Results



Appreciate any inputs. TIA.

[BALDY_MAN]

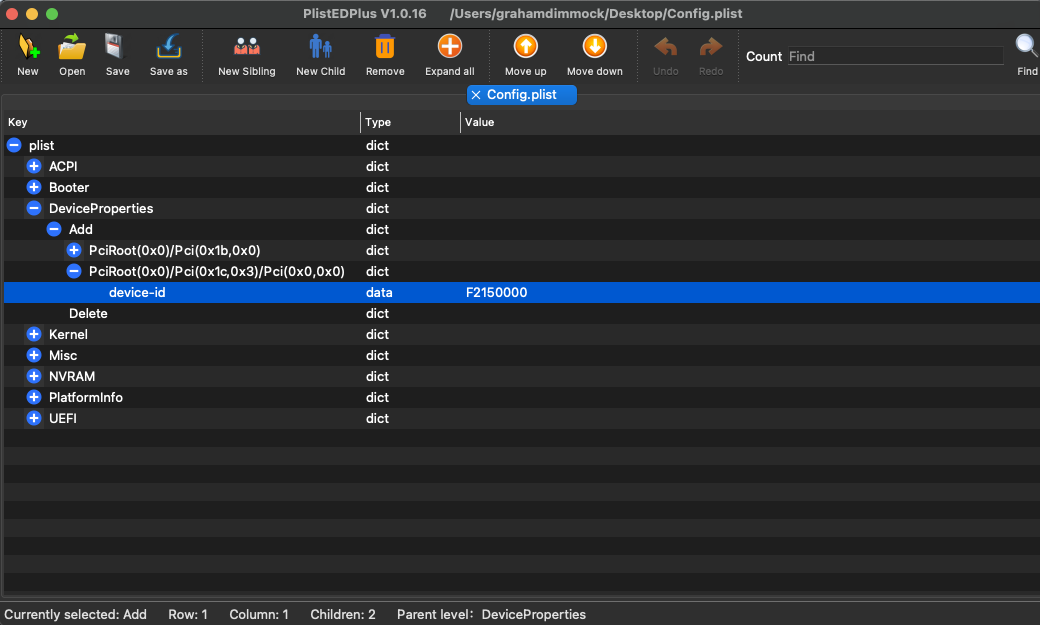

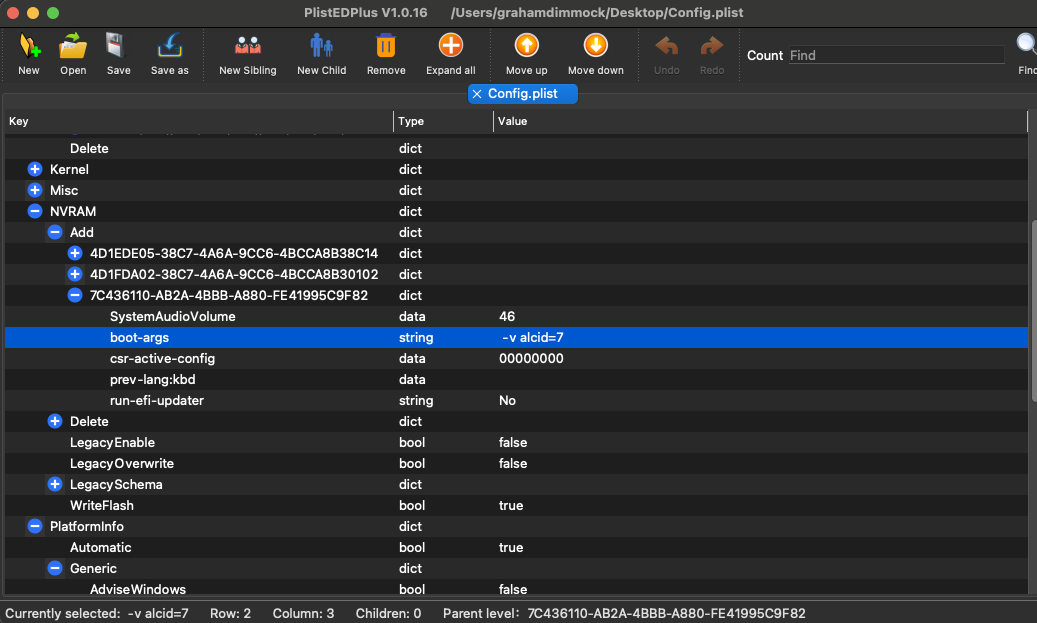

open you config.plist. Device properties add a new child. PciRoot(0x0)/Pci(0x1c,0x3)Pci(0x0) then add sibling device-idF2150000. to your kext folder add FakePCIID_Intel_1225-V.kext and FakePCIID.kext. that will get your internet working. for sound you will need Lilu.kext andAppleALC.kext and alcid=7 in the boot arg or you could try this EFI

Edited December 2, 2020 by BALDY_MAN

[Muaitai]

Hi BALDY_MAN, my sound is working now thank you so much, but the ETHERNET still not showing, I added IntelMausiEthernet.kext but no results.

[Muaitai]

I was able to get the Ethernet working, I used Hackintool to find out the correct PciRoot for my Ethernet and it was PciRoot(0x0)/Pci(0x1C,0x3)/Pci(0x0,0x0), now is working.

Only the Wi-Fi and Bluetooth are not working and is very weird because I replaced the original for a Fenvi M.2 NGFF BCM94360NG Wifi 802.11ac Bluetooth 4.0 Network Card and should have worked out of the box.

[BALDY_MAN]

48 minutes ago, Muaitai said:

I was able to get the Ethernet working, I used Hackintool to find out the correct PciRoot for my Ethernet and it was PciRoot(0x0)/Pci(0x1C,0x3)/Pci(0x0,0x0), now is working.

Only the Wi-Fi and Bluetooth are not working and is very weird because I replaced the original for a Fenvi M.2 NGFF BCM94360NG Wifi 802.11ac Bluetooth 4.0 Network Card and should have worked out of the box.

PciRoot(0x0)/Pci(0x1C,0x3)/Pci(0x0,0x0) is in the screen shot I posted. glad you up and running

 enjoy. I just bluetooth from my windows drive

Edited December 2, 2020 by BALDY_MAN

[Muaitai]

4 hours ago, BALDY_MAN said:

PciRoot(0x0)/Pci(0x1C,0x3)/Pci(0x0,0x0) is in the screen shot I posted. glad you up and running

 enjoy. I just bluetooth from my windows drive

Sorry, I did not see it, although the sound is working, I am not able to hear the Youtube sound or any other sound than the system sound, that's weird.

Did you change your wifi card for a Fenvi or you kept your original Intel card?

[BALDY_MAN]

54 minutes ago, Muaitai said:

Sorry, I did not see it, although the sound is working, I am not able to hear the Youtube sound or any other sound than the system sound, that's weird.

Did you change your wifi card for a Fenvi or you kept your original Intel card?

I have just this Minuit got motherboard wifi working  I will be post in a bit



[Beefcat]

Great build!! Well done.



I have Z490 master with corsair H80i V2 water cooler cpu.

My computer shows HS13 as USB 2.0 Hub.On this Hub (port 4), H80i V2@ 14940000 can be found.

This device is preventing sleep.
Sleeps works when:
1. I remove the CPU USB header (H80i V2) from the motherboard
2. OR if I removed HS13 completely in SSDT-UIAC.aml

What is the best and most elegant way to achieve this without affecting the other 3 devices that also sits on HS13 Hub ?

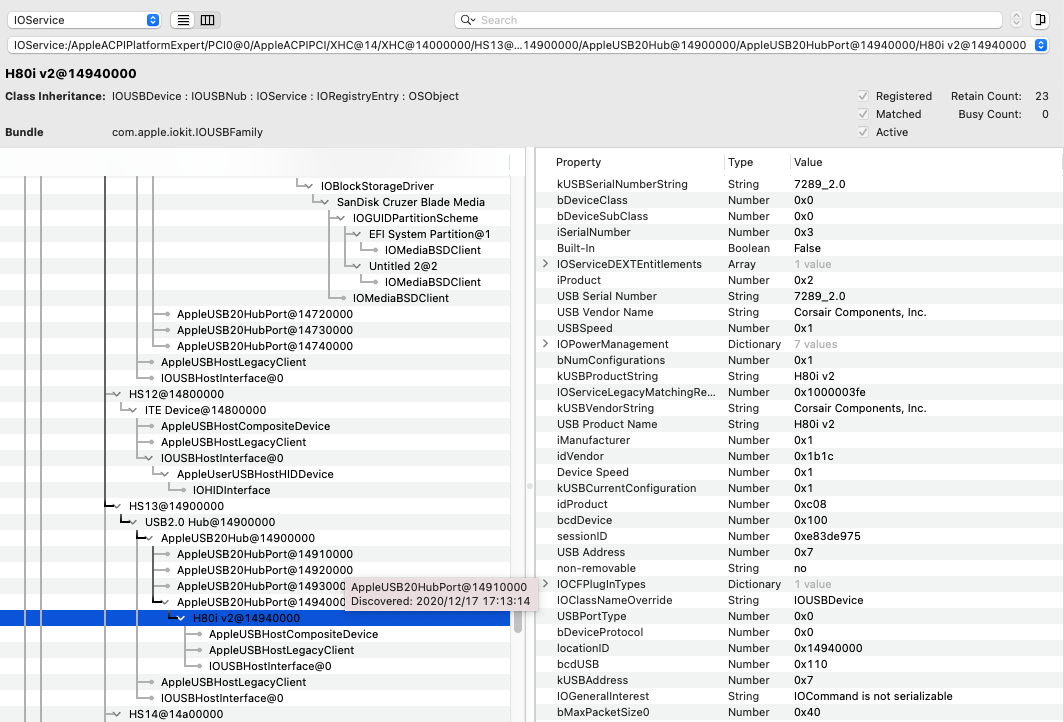

See below HS13 that shows on Hub port 4 the H80i V2.





[BALDY_MAN]

@Beefcat I expemented with I wifi kext it works but not all the time. so Im not used it now.

also I do not have sleep working but Ido not need it to work for me



All my fans. temps  and lights are run though a Aquairo 6pro and a farbweks light controller. I'm only using the bottom  two usb mother board headers
