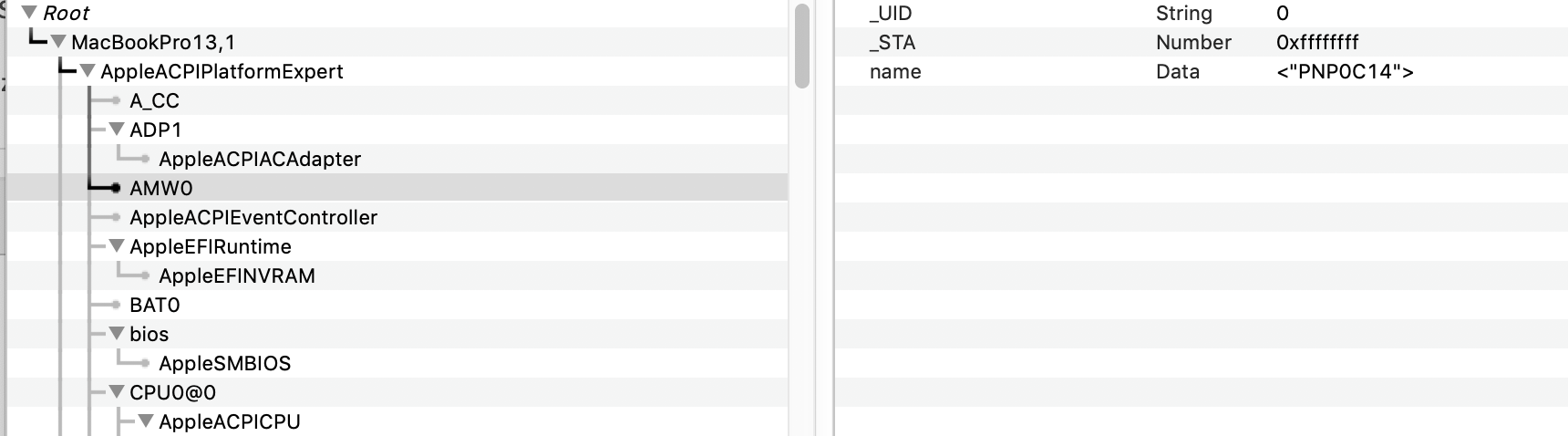

I would like to remove AMW0 Device which is described in my DSDT as shown below. Is it possible to remove a device with a DSDT hot patch. I was reading here that states "You cannot override existing devices and/or methods!"  - not sure if this can be interpreted as deleting devices as well.




Device (AMW0)
        {
            Mutex (WMIX, 0x01)
            Name (_HID, "PNP0C14")  // _HID: Hardware ID
            Name (_UID, Zero)  // _UID: Unique ID
            Name (_WDG, Buffer (0x64)
            {
                /* 0000 */  0xBC, 0xDC, 0x9D, 0x8D, 0x97, 0xA9, 0xDA, 0x11,
                /* 0008 */  0xB0, 0x12, 0xB6, 0x22, 0xA1, 0xEF, 0x54, 0x92,
                /* 0010 */  0x41, 0x41, 0x01, 0x00, 0xCE, 0x93, 0x05, 0xA8,
                /* 0018 */  0x97, 0xA9, 0xDA, 0x11, 0xB0, 0x12, 0xB6, 0x22,
                /* 0020 */  0xA1, 0xEF, 0x54, 0x92, 0x42, 0x41, 0x01, 0x02,
                /* 0028 */  0x94, 0x59, 0xBB, 0x9D, 0x97, 0xA9, 0xDA, 0x11,
                /* 0030 */  0xB0, 0x12, 0xB6, 0x22, 0xA1, 0xEF, 0x54, 0x92,
                /* 0038 */  0xD0, 0x00, 0x01, 0x08, 0xE0, 0x6C, 0x77, 0xA3,
                /* 0040 */  0x88, 0x1E, 0xDB, 0x11, 0xA9, 0x8B, 0x08, 0x00,
                /* 0048 */  0x20, 0x0C, 0x9A, 0x66, 0x42, 0x43, 0x01, 0x00,
                /* 0050 */  0x21, 0x12, 0x90, 0x05, 0x66, 0xD5, 0xD1, 0x11,
                /* 0058 */  0xB2, 0xF0, 0x00, 0xA0, 0xC9, 0x06, 0x29, 0x10,
                /* 0060 */  0x4D, 0x4F, 0x01, 0x00
            })
            Name (INFO, Buffer (0x80){})
            Name (ECD0, Zero)
            Method (WED0, 1, NotSerialized)
            {
                Store (Arg0, ECD0)
                Return (Zero)
            }

            Method (WCAA, 1, NotSerialized)
            {
                Return (Zero)
            }

            Method (WQAA, 1, NotSerialized)
            {
                Acquire (WMIX, 0xFFFF)
                BCLR (INFO)
                If (LNotEqual (Arg0, Zero))
                {
                    Store (INFO, Local1)
                }
                Else
                {
                    BDWR (INFO, Zero, 0x4C4C4544)
                    BDWR (INFO, 0x04, 0x494D5720)
                    BDWR (INFO, 0x08, One)
                    BDWR (INFO, 0x0C, 0x8000)
                    BDWR (INFO, 0x10, One)
                    Store (INFO, Local1)
                }

                Release (WMIX)
                Return (Local1)
            }

            Method (WSAA, 2, NotSerialized)
            {
                Return (Arg1)
            }

            Method (WMBA, 3, NotSerialized)
            {
                CreateDWordField (Arg2, 0x28, WBUF)
                Add (WBUF, 0x2C, Local1)
                If (LLessEqual (Local1, 0x8000))
                {
                    Store (WMI (Arg2, Local1), Local0)
                }

                Return (Local0)
            }

            Method (WMI, 2, NotSerialized)
            {
                If (LLessEqual (Arg1, 0x8000))
                {
                    Store (GENS (0x03, Arg0, Arg1), Arg0)
                }

                Return (Arg0)
            }

            Name (WQMO, Buffer (0x04FD)
            {
                /* 0000 */  0x46, 0x4F, 0x4D, 0x42, 0x01, 0x00, 0x00, 0x00,
                /* 0008 */  0xED, 0x04, 0x00, 0x00, 0xD8, 0x15, 0x00, 0x00,
                /* 0010 */  0x44, 0x53, 0x00, 0x01, 0x1A, 0x7D, 0xDA, 0x54,
                /* 0018 */  0x28, 0xD5, 0x8A, 0x00, 0x01, 0x06, 0x18, 0x42,
                /* 0020 */  0x10, 0x0D, 0x10, 0x22, 0x21, 0x04, 0x12, 0x01,
                /* 0028 */  0xA1, 0xC8, 0x2C, 0x0C, 0x86, 0x10, 0x38, 0x2E,
                /* 0030 */  0x84, 0x1C, 0x40, 0x48, 0x1C, 0x14, 0x4A, 0x08,
                /* 0038 */  0x84, 0xFA, 0x13, 0xC8, 0xAF, 0x00, 0x84, 0x0E,
                /* 0040 */  0x05, 0xC8, 0x14, 0x60, 0x50, 0x80, 0x53, 0x04,
                /* 0048 */  0x11, 0xF4, 0x2A, 0xC0, 0xA6, 0x00, 0x93, 0x02,
                /* 0050 */  0x2C, 0x0A, 0xD0, 0x2E, 0xC0, 0xB2, 0x00, 0xDD,
                /* 0058 */  0x02, 0xA4, 0xC3, 0x12, 0x91, 0xE0, 0x28, 0x31,
                /* 0060 */  0xE0, 0x28, 0x9D, 0xD8, 0xC2, 0x0D, 0x1B, 0xBC,
                /* 0068 */  0x50, 0x14, 0xCD, 0x20, 0x4A, 0x82, 0xCA, 0x05,
                /* 0070 */  0xF8, 0x46, 0x10, 0x78, 0xB9, 0x02, 0x24, 0x4F,
                /* 0078 */  0x40, 0x9A, 0x05, 0x18, 0x16, 0x60, 0x5D, 0x80,
                /* 0080 */  0xEC, 0x21, 0x50, 0xA9, 0x43, 0x40, 0xC9, 0x19,
                /* 0088 */  0x02, 0x6A, 0x00, 0xAD, 0x4E, 0x40, 0xF8, 0x95,
                /* 0090 */  0x4E, 0x09, 0x49, 0x10, 0xCE, 0x58, 0xC5, 0xE3,
                /* 0098 */  0x6B, 0x16, 0x4D, 0xCF, 0x49, 0xCE, 0x31, 0xE4,
                /* 00A0 */  0x78, 0x5C, 0xE8, 0x41, 0xF0, 0x40, 0x0A, 0x40,
                /* 00A8 */  0x58, 0x78, 0x08, 0x45, 0x80, 0x41, 0x49, 0x18,
                /* 00B0 */  0x0B, 0x75, 0x31, 0x6A, 0xD4, 0x48, 0xD9, 0x80,
                /* 00B8 */  0x0C, 0x51, 0xDA, 0xA8, 0xD1, 0x03, 0x3A, 0xBF,
                /* 00C0 */  0x23, 0x39, 0xBB, 0xA3, 0x3B, 0x92, 0x04, 0x46,
                /* 00C8 */  0x3D, 0xA6, 0x63, 0x2C, 0x6C, 0x46, 0x42, 0x8D,
                /* 00D0 */  0xD1, 0x1C, 0x14, 0x81, 0xC6, 0x0D, 0xDA, 0x12,
                /* 00D8 */  0x61, 0x35, 0xAE, 0xD8, 0x67, 0x66, 0xE1, 0xC3,
                /* 00E0 */  0x12, 0xC6, 0x11, 0x1C, 0x58, 0x82, 0x46, 0xD1,
                /* 00E8 */  0x34, 0xC7, 0xB3, 0x0D, 0x91, 0xE0, 0x20, 0x42,
                /* 00F0 */  0x63, 0x64, 0x40, 0xC8, 0xF3, 0xB0, 0x05, 0x7A,
                /* 00F8 */  0xE4, 0x09, 0xEC, 0x1E, 0x51, 0x0A, 0x11, 0x34,
                /* 0100 */  0xDF, 0x13, 0xA9, 0x51, 0x80, 0x36, 0x0C, 0xD9,
                /* 0108 */  0x3A, 0x1B, 0x68, 0xA8, 0xB1, 0x1A, 0x43, 0x11,
                /* 0110 */  0x44, 0x84, 0xA0, 0x51, 0x0C, 0x16, 0x21, 0x54,
                /* 0118 */  0x88, 0xFF, 0x7F, 0x94, 0xA8, 0xA7, 0x14, 0x24,
                /* 0120 */  0x6A, 0x65, 0x20, 0x42, 0x0B, 0x66, 0x04, 0x66,
                /* 0128 */  0x7F, 0x10, 0x24, 0xC6, 0x99, 0x41, 0x87, 0x05,
                /* 0130 */  0xCB, 0x00, 0x91, 0x11, 0x41, 0xA3, 0x61, 0x67,
                /* 0138 */  0x01, 0x0F, 0xC7, 0x33, 0x69, 0x7E, 0x62, 0x1A,
                /* 0140 */  0x9C, 0x09, 0xC6, 0x3E, 0x3F, 0x50, 0x51, 0x07,
                /* 0148 */  0x07, 0x4A, 0x60, 0x29, 0x03, 0x27, 0xB6, 0xC7,
                /* 0150 */  0xA5, 0xF1, 0x9D, 0x71, 0xD4, 0x10, 0xA7, 0x7E,
                /* 0158 */  0x66, 0xFE, 0x47, 0x78, 0x0B, 0x3E, 0x02, 0xF0,
                /* 0160 */  0x31, 0x78, 0xB0, 0x87, 0x10, 0xF0, 0x08, 0xD9,
                /* 0168 */  0x19, 0xC0, 0x80, 0x78, 0xEF, 0x93, 0x26, 0x73,
                /* 0170 */  0xF1, 0x59, 0x00, 0xC6, 0xF0, 0xE1, 0x1A, 0x1F,
                /* 0178 */  0x85, 0xC6, 0xC3, 0xCE, 0x07, 0x6C, 0x5C, 0x1C,
                /* 0180 */  0xDE, 0x87, 0x82, 0x13, 0x2E, 0x16, 0x44, 0x01,
                /* 0188 */  0x20, 0x24, 0xEB, 0x7C, 0x80, 0x9E, 0xF5, 0xB1,
                /* 0190 */  0x05, 0x7C, 0x18, 0x68, 0xF6, 0x0E, 0x41, 0x08,
                /* 0198 */  0x5E, 0x04, 0x7C, 0x74, 0xF0, 0x71, 0xC3, 0xE3,
                /* 01A0 */  0x7E, 0xDE, 0x00, 0xC3, 0xE1, 0xC0, 0xC3, 0xF1,
                /* 01A8 */  0x69, 0x03, 0xB8, 0x8C, 0x80, 0x4B, 0x7B, 0x52,
                /* 01B0 */  0x98, 0x40, 0x92, 0x9F, 0x00, 0x12, 0x03, 0x83,
                /* 01B8 */  0x3A, 0x10, 0xF8, 0x60, 0x01, 0x57, 0x12, 0x1C,
                /* 01C0 */  0x6A, 0x78, 0x9E, 0xD8, 0x03, 0xC2, 0xFF, 0xFF,
                /* 01C8 */  0x28, 0x4F, 0xE4, 0xC5, 0xC0, 0xD3, 0x7F, 0x0C,
                /* 01D0 */  0x80, 0x71, 0x40, 0xF0, 0xB4, 0x4E, 0xCA, 0x37,
                /* 01D8 */  0x8F, 0x07, 0x09, 0x0F, 0x2A, 0x4C, 0x02, 0x9F,
                /* 01E0 */  0x12, 0x18, 0x1A, 0x3F, 0x6E, 0x80, 0x75, 0xD4,
                /* 01E8 */  0xF8, 0x03, 0x02, 0xBC, 0x93, 0xC4, 0xF9, 0xF5,
                /* 01F0 */  0x39, 0x00, 0x1D, 0x1A, 0x4E, 0x91, 0x81, 0xBC,
                /* 01F8 */  0x06, 0x9C, 0xF4, 0x29, 0x79, 0x7C, 0x09, 0x7C,
                /* 0200 */  0xE6, 0x80, 0x7D, 0x37, 0x38, 0x8C, 0x83, 0x09,
                /* 0208 */  0x11, 0xE1, 0x3D, 0xE0, 0xA9, 0xC3, 0x77, 0x8D,
                /* 0210 */  0x47, 0x81, 0x40, 0x11, 0x7A, 0x3B, 0x73, 0xD0,
                /* 0218 */  0x53, 0x88, 0x51, 0xA2, 0x9D, 0x55, 0x98, 0x07,
                /* 0220 */  0x8E, 0x28, 0x3E, 0x72, 0x18, 0xE1, 0xDD, 0xC3,
                /* 0228 */  0x77, 0x82, 0x07, 0x90, 0xD6, 0x26, 0x27, 0xDC,
                /* 0230 */  0x40, 0xCF, 0x1C, 0x2C, 0xDA, 0x99, 0x45, 0x16,
                /* 0238 */  0x40, 0x14, 0x69, 0x34, 0xA8, 0x33, 0x82, 0x4F,
                /* 0240 */  0x03, 0x9E, 0xD6, 0x53, 0x8C, 0x8F, 0x12, 0x06,
                /* 0248 */  0x39, 0xC3, 0x03, 0x7B, 0x4E, 0x78, 0x0C, 0xF0,
                /* 0250 */  0x80, 0xD9, 0xFD, 0xC0, 0xC7, 0x09, 0x9F, 0x0B,
                /* 0258 */  0xF0, 0xAE, 0x01, 0x35, 0x43, 0x1F, 0x36, 0xE0,
                /* 0260 */  0x1C, 0x3A, 0xF0, 0xA7, 0x09, 0xFC, 0xC1, 0x02,
                /* 0268 */  0x3F, 0x1E, 0x5F, 0x73, 0xD8, 0x84, 0x13, 0x58,
                /* 0270 */  0xFE, 0x20, 0x50, 0x23, 0x33, 0xB4, 0x67, 0x79,
                /* 0278 */  0x5A, 0xAF, 0x01, 0x3E, 0xED, 0x98, 0xC0, 0xE7,
                /* 0280 */  0x0D, 0xFF, 0xFF, 0xFF, 0x39, 0x1E, 0x0F, 0xF8,
                /* 0288 */  0x15, 0x9F, 0x2E, 0xC8, 0x5D, 0xC1, 0xF3, 0xF5,
                /* 0290 */  0xD9, 0x85, 0xD9, 0x18, 0x0F, 0x6A, 0x14, 0x3E,
                /* 0298 */  0xE0, 0xE0, 0xCE, 0x2E, 0x3E, 0x02, 0xF8, 0xEC,
                /* 02A0 */  0x02, 0x3C, 0x27, 0xF1, 0x2C, 0x01, 0xDE, 0x43,
                /* 02A8 */  0x80, 0x4F, 0x24, 0xF1, 0x1E, 0xB6, 0x60, 0x8C,
                /* 02B0 */  0x18, 0x0F, 0x79, 0xC6, 0x55, 0x0F, 0x43, 0x17,
                /* 02B8 */  0x01, 0xAB, 0xBB, 0xAF, 0xA0, 0x8E, 0x5E, 0x60,
                /* 02C0 */  0x82, 0x7A, 0xCD, 0xC0, 0x9D, 0x5E, 0x80, 0xCF,
                /* 02C8 */  0x29, 0x0B, 0xDE, 0xFF, 0xFF, 0x94, 0x05, 0xDC,
                /* 02D0 */  0xAF, 0x0A, 0xFC, 0x88, 0x02, 0x06, 0xC8, 0xCE,
                /* 02D8 */  0x4E, 0x27, 0x42, 0x78, 0x2F, 0x79, 0x0E, 0xF1,
                /* 02E0 */  0xED, 0xCA, 0x07, 0x93, 0x20, 0xCF, 0x01, 0x11,
                /* 02E8 */  0x9E, 0xB2, 0xF8, 0x7D, 0x20, 0x4A, 0xCC, 0x03,
                /* 02F0 */  0x8A, 0x14, 0xC5, 0x88, 0x41, 0x9E, 0xB0, 0x7C,
                /* 02F8 */  0x3D, 0x89, 0x61, 0xE8, 0x60, 0xE1, 0xC2, 0x47,
                /* 0300 */  0x78, 0xCA, 0x02, 0x2C, 0x5E, 0xB2, 0x30, 0xA7,
                /* 0308 */  0x2C, 0x98, 0xAF, 0x2C, 0x9F, 0xB2, 0xC0, 0xF1,
                /* 0310 */  0xFF, 0x3F, 0x65, 0x81, 0x6B, 0xDC, 0x4F, 0x59,
                /* 0318 */  0xC0, 0x4C, 0xFA, 0x73, 0x92, 0x9C, 0x6A, 0xF4,
                /* 0320 */  0x04, 0x50, 0xF4, 0x83, 0x05, 0x85, 0xF1, 0x29,
                /* 0328 */  0x0B, 0x70, 0x25, 0xEF, 0x80, 0x00, 0x9A, 0xB3,
                /* 0330 */  0x93, 0x6F, 0x0B, 0x06, 0x3B, 0x66, 0x5F, 0x32,
                /* 0338 */  0x7C, 0x4A, 0x04, 0xC3, 0x21, 0xC3, 0x77, 0xAA,
                /* 0340 */  0x43, 0x79, 0xE4, 0x78, 0x0A, 0xF0, 0x11, 0x0B,
                /* 0348 */  0xEC, 0x71, 0x8E, 0x01, 0x3A, 0xAE, 0xF8, 0x88,
                /* 0350 */  0xE5, 0xFF, 0xFF, 0x11, 0x0B, 0xE0, 0xC6, 0x01,
                /* 0358 */  0x04, 0x7F, 0xEA, 0x80, 0x75, 0x0F, 0x08, 0xEB,
                /* 0360 */  0x43, 0x07, 0xF0, 0x90, 0xFD, 0x10, 0xD0, 0x19,
                /* 0368 */  0xC6, 0x92, 0x41, 0x64, 0xE3, 0x5C, 0x43, 0xC7,
                /* 0370 */  0x68, 0xF1, 0x0B, 0xD5, 0x4D, 0x21, 0xF6, 0xC1,
                /* 0378 */  0x70, 0xD9, 0x40, 0x02, 0xF5, 0x70, 0x2D, 0x98,
                /* 0380 */  0x42, 0xA2, 0x68, 0x34, 0x1A, 0x03, 0x13, 0x18,
                /* 0388 */  0xC1, 0x19, 0xC4, 0x80, 0xCE, 0x08, 0xA1, 0x43,
                /* 0390 */  0x19, 0x4E, 0xC5, 0x79, 0x08, 0xF5, 0xFF, 0x27,
                /* 0398 */  0x18, 0xEA, 0xC6, 0x44, 0x67, 0xE7, 0xF9, 0xF3,
                /* 03A0 */  0xDB, 0x88, 0x4F, 0x04, 0x06, 0xF6, 0x15, 0xE2,
                /* 03A8 */  0x2D, 0x03, 0x2C, 0xC3, 0xF2, 0xE2, 0x9E, 0x00,
                /* 03B0 */  0x8E, 0xF1, 0x24, 0x13, 0x54, 0x73, 0xAC, 0x41,
                /* 03B8 */  0xCD, 0xC1, 0x57, 0x81, 0x37, 0x32, 0x13, 0xF8,
                /* 03C0 */  0x0A, 0x06, 0xB6, 0xD3, 0x0C, 0x46, 0xDF, 0x9D,
                /* 03C8 */  0x00, 0x14, 0x40, 0x3E, 0x0A, 0xF8, 0xBE, 0xFC,
                /* 03D0 */  0x36, 0xC0, 0x66, 0xF1, 0xCA, 0x6C, 0x34, 0x9F,
                /* 03D8 */  0x3F, 0x11, 0x43, 0x47, 0x89, 0x19, 0x3A, 0x05,
                /* 03E0 */  0xF1, 0xD0, 0x1D, 0x74, 0xE8, 0xE8, 0xE3, 0x80,
                /* 03E8 */  0x4F, 0x56, 0xB8, 0x60, 0x87, 0x2F, 0x68, 0x93,
                /* 03F0 */  0x3B, 0xDA, 0x13, 0xF3, 0x2C, 0x3C, 0x4F, 0xDC,
                /* 03F8 */  0xDC, 0xC1, 0x74, 0x44, 0x82, 0x31, 0x78, 0xCC,
                /* 0400 */  0xE4, 0xC1, 0x2C, 0x70, 0xF2, 0xA0, 0xF8, 0xFF,
                /* 0408 */  0x4F, 0x1E, 0x26, 0x3C, 0x26, 0xEC, 0xE1, 0x90,
                /* 0410 */  0x1E, 0x3A, 0x3C, 0x32, 0x3E, 0x4E, 0x9F, 0x7E,
                /* 0418 */  0x18, 0xF6, 0xE9, 0x9C, 0x4B, 0xD1, 0x33, 0xD2,
                /* 0420 */  0x1D, 0xE3, 0x99, 0x0B, 0x03, 0xEB, 0x91, 0x73,
                /* 0428 */  0x58, 0xA3, 0x85, 0x3D, 0xE0, 0xE7, 0x10, 0xDF,
                /* 0430 */  0x61, 0x7C, 0xE0, 0x61, 0xB0, 0x3E, 0xBD, 0x80,
                /* 0438 */  0xE3, 0xF8, 0x05, 0xFF, 0x34, 0x00, 0x9E, 0x03,
                /* 0440 */  0x88, 0xC7, 0xF0, 0x02, 0xC2, 0x8F, 0x2F, 0x3A,
                /* 0448 */  0xFF, 0x52, 0xA1, 0x8B, 0x93, 0x3C, 0x18, 0xD4,
                /* 0450 */  0x69, 0x0A, 0x70, 0x75, 0x7A, 0x03, 0xCF, 0x55,
                /* 0458 */  0x1F, 0x77, 0x96, 0xC2, 0xFD, 0xFF, 0xCF, 0x52,
                /* 0460 */  0x30, 0x0E, 0xBF, 0xBE, 0xC0, 0xFB, 0x2E, 0x65,
                /* 0468 */  0x84, 0x03, 0x79, 0x96, 0x02, 0x7B, 0xEC, 0x67,
                /* 0470 */  0x88, 0x0E, 0x01, 0x3E, 0x4B, 0x01, 0xFC, 0x78,
                /* 0478 */  0x7D, 0xF8, 0x3C, 0x03, 0x37, 0xF0, 0xE9, 0x17,
                /* 0480 */  0x68, 0xFD, 0xFF, 0x4F, 0x21, 0xE0, 0x3F, 0x46,
                /* 0488 */  0xF8, 0x88, 0x83, 0x3B, 0xFA, 0x02, 0xB7, 0x83,
                /* 0490 */  0x31, 0x3F, 0x63, 0xE0, 0x8E, 0x63, 0xC0, 0xE3,
                /* 0498 */  0xE4, 0x8C, 0x3B, 0x4D, 0x78, 0x08, 0x7C, 0x00,
                /* 04A0 */  0xAD, 0x4E, 0x8F, 0x9C, 0x7A, 0x4E, 0x09, 0x77,
                /* 04A8 */  0x1C, 0xE0, 0x53, 0xC2, 0x0D, 0x00, 0xA3, 0xD0,
                /* 04B0 */  0xA6, 0x4F, 0x8D, 0x46, 0xAD, 0x1A, 0x94, 0xA9,
                /* 04B8 */  0x51, 0xA6, 0x41, 0xAD, 0x3E, 0x95, 0x1A, 0x33,
                /* 04C0 */  0xA6, 0x03, 0xCE, 0xAF, 0x03, 0x1D, 0x0F, 0x1C,
                /* 04C8 */  0xEA, 0x85, 0x20, 0x10, 0x4B, 0x7A, 0x75, 0x08,
                /* 04D0 */  0xC4, 0xA2, 0x3C, 0x80, 0xB0, 0xB8, 0x26, 0x40,
                /* 04D8 */  0x98, 0xF0, 0x37, 0x81, 0x40, 0x1C, 0x1B, 0x84,
                /* 04E0 */  0x8A, 0xA5, 0x97, 0x91, 0xF1, 0x19, 0x44, 0x40,
                /* 04E8 */  0x0E, 0xE1, 0x03, 0x88, 0x45, 0x02, 0x11, 0x38,
                /* 04F0 */  0x51, 0x02, 0x4A, 0x9D, 0x80, 0x30, 0xA1, 0xAF,
                /* 04F8 */  0x06, 0x81, 0xF8, 0xFF, 0x0F
            })
        }



Link to comment
Share on other sites
foskvs
foskvs
Posted
Posted
1 hour ago, takeawaydave said:

I would like to remove AMW0 Device which is described in my DSDT as shown below. Is it possible to remove a device with a DSDT hot patch.

It is. Just set _STA equal to zero. _STA is neither a Device nor a Method.

Link to comment
Share on other sites
Pavo
Pavo
Posted
Posted
9 minutes ago, takeawaydave said:

@foskvs tried this but doesn't work. Still learning....




DefinitionBlock ("", "SSDT", 2, "hack", "NOAMW0", 0x00000000)
{
    Device (AMW0)
    {
        Name (_HID, "PNP0C14")  // _HID: Hardware ID
        Method (_STA, 0, NotSerialized)  // _STA: Status
        {
            Return (Zero)
        }
    }
}



You need to specify the Scope not the device, without seeing your DSDT I am assuming the device is located at _SB.PCI0, so.... replace Device (AMW0) with Scope (\_SB.PCI0.AMW0).

Link to comment
Share on other sites
takeawaydave
takeawaydave
Posted
  • Author
Posted (edited)

If I define scope as Scope (\_SB.PCI0.AMW0) I get compilation error.... I'll attached the DSDT but was thinking this:



DefinitionBlock ("", "SSDT", 2, "hack", "NOAMW0", 0x00000000)
{
    Scope (_SB)
    {
        Device (AMW0)
        {
            Name (_HID, "PNP0C14")  // _HID: Hardware ID
            Method (_STA, 0, NotSerialized)  // _STA: Status
            {
                Return (Zero)
            }
        }
    }
}



DSDT.dsl.zip

Edited by takeawaydave
Link to comment
Share on other sites
Pavo
Pavo
Posted
Posted
11 minutes ago, takeawaydave said:

If I define scope as Scope (\_SB.PCI0.AMW0) I get compilation error.... I'll attached the DSDT but was thinking this:




DefinitionBlock ("", "SSDT", 2, "hack", "NOAMW0", 0x00000000)
{
    Scope (_SB)
    {
        Device (AMW0)
        {
            Name (_HID, "PNP0C14")  // _HID: Hardware ID
            Method (_STA, 0, NotSerialized)  // _STA: Status
            {
                Return (Zero)
            }
        }
    }
}



DSDT.dsl.zip

It needs to be like this

DefinitionBlock ("", "SSDT", 2, "Pavo", "NOANW0", 0x00001000)
{
    External (_SB_.AMW0, DeviceObj)

    If (_OSI ("Darwin"))
    {
        Scope (\_SB.AMW0)
        {
            Name (_HID, "PNP0C14")  // _HID: Hardware ID
            Method (_STA, 0, NotSerialized)  // _STA: Status
            {
                    Return (Zero)
            }
        }
    }
}



Link to comment
Share on other sites
takeawaydave
takeawaydave
Posted
  • Author
Posted
41 minutes ago, Pavo said:

But it did work, the device will still show up in ioreg but will be disabled as shown by the _STA.



OK - I'll need to believe you on this one since the _STA value of 0xffffffff appears to be the same whether or not SSDT-AMW is in ACPI/patched or not.



if 0xffffffff signifies "Off" - then 0xf is "On" ?



Screenshot 2019-10-10 at 22.22.46.png

Link to comment
Share on other sites
whatnameisit
whatnameisit
Posted
Posted

Delete Name(_HID) because

On 10/11/2019 at 12:53 AM, takeawaydave said:

"You cannot override existing devices and/or methods!"

See if that turns the device off(Zero=not in IOReg) instead of f or ffffffff.

Also Google ACPI specs sheet. Hotpatch with SSDT is for those who have some understanding of the ACPI language. Just stick with patching the DSDT untill you get it.

And in the post with the ADP1 patch I helped you with, I said (custom) SSDTs (with devices) need scope and external, in this case Scope(_SB.AMW0) and External(_SB.AMW,DeviceObj). Looks like you didn't learn anything from that...

Link to comment
Share on other sites
jpz4085
jpz4085
Posted
Posted (edited)
On 10/10/2019 at 2:25 PM, takeawaydave said:

@Pavo Thanks but that didn't work - machine restarts but ioreg (in Archive.zip ) still shows:



1410904400_Screenshot2019-10-10at20_24_18.thumb.png.e9cd9cae74b06607a13e7a611ead12fe.png





If the device is still in ioreg explorer then it's not disabled and the SSDT you've created isn't working. It's pretty simple to disable anything this way, only the STA method is needed. Try the example below:



DefinitionBlock ("", "SSDT", 2, "hack", "NOAMW0", 0)
{
    External(_SB.AWM0, DeviceObj)
    Scope(_SB.AWM0)
    {
        Method (_STA, 0, NotSerialized)  // _STA: Status
        {
           Return (Zero)
        }
    }
}

That should be it.

Edited by jpz4085
Link to comment
Share on other sites
  • 2 weeks later...
hardcorehenry
hardcorehenry
Posted
Posted (edited)
On 10/10/2019 at 9:03 PM, takeawaydave said:



OK - I'll need to believe you on this one since the _STA value of 0xffffffff appears to be the same whether or not SSDT-AMW is in ACPI/patched or not.



if 0xffffffff signifies "Off" - then 0xf is "On" ?



Screenshot 2019-10-10 at 22.22.46.png





All SSDTs won't work for you, probably because of wrong Scope. I edited @Pavo's example and AMW0 doesn't appear in my IOReg. Maybe it will work for you.




DefinitionBlock ("", "SSDT", 2, "hack", "NOANW0", 0x00001000)
{
    External (AMW0, DeviceObj)

    If (_OSI ("Darwin"))
    {
        Scope (\)
        {
            Scope (AMW0)
            {
                Name (_STA, Zero)  // _STA: Status
            }
        }
    }
}






Edited by hardcorehenry
Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
