takeawaydave

Unable to find correct platform id - Intel P530

12 posts in this topic

Recommended Posts

Running Mojave 10.14.6 (18G95) on a Dell Precision 7510 and trying to get all framebuffers working properly.



The following CPU is being used: https://ark.intel.com/content/www/us/en/ark/products/89608/intel-xeon-processor-e3-1505m-v5-8m-cache-2-80-ghz.html



The actual Device ID of the iGPU is 0x191D.



There are the following graphical outputs:



mDP

HDMI

Thunderbolt



Clover 5058 (update to date at time of writing) is being used and up to date versions of Lilu 1.38, WEG 1.3.1



Till now I've been running with the following config:






with Model Name: MacBookPro13,3



When using 191B:



LDVS - Ok

HDMI (no audio) : 1920x1080

Thunderbolt (no audio) : 3440 x 1440

no mDP






191B-config-ioreg.zip is attached.



When using 1912:



No LDVS (as expected since this arrangement is targeted for iMac17,1

HDMI (with audio): 1920 x 1080

Thunderbolt (with audio) : 3440 x 1440

no mDP



1912-config-ioreg.zip attached



Question:



How can I get audio working as with 1912 on the 191B laptop config ?





Share this post


Link to post
Share on other sites
Advertisement

MacBookPro 13.3 is not correct , the best for you 13.1

I am sure you have little lag with 13.3 especially with administrative password request

For audio I am not sure what the problem, but you can try mix the value of 1912 with 191B or try 191b00006

Share this post


Link to post
Share on other sites
53 minutes ago, zkingtut said:

MacBookPro 13.3 is not correct , the best for you 13.1

I am sure you have little lag with 13.3 especially with administrative password request

For audio I am not sure what the problem, but you can try mix the value of 1912 with 191B or try 191b00006



@zkingtut thanks. What do you mean by mix the values?

Share this post


Link to post
Share on other sites
16 minutes ago, takeawaydave said:



@zkingtut thanks. What do you mean by mix the values?



For example use hakintool.app to export patch for 1912 connectors and again export 191b connectors , now you have both connectors values

Now use AAPL,ig platform-id 191b with connectors of 1912

Wait I will upload an example for you

Share this post


Link to post
Share on other sites

@zkingtut OK swapped over to MacBook13,3 - Thanks



I tried loading these configs in replacing my existing PciRoot(0x0)/Pci(0x2,0x0) however not sure I've quite grasped the approach you're proposing. I tended to get KP each time I disconnected an external display

Share this post


Link to post
Share on other sites

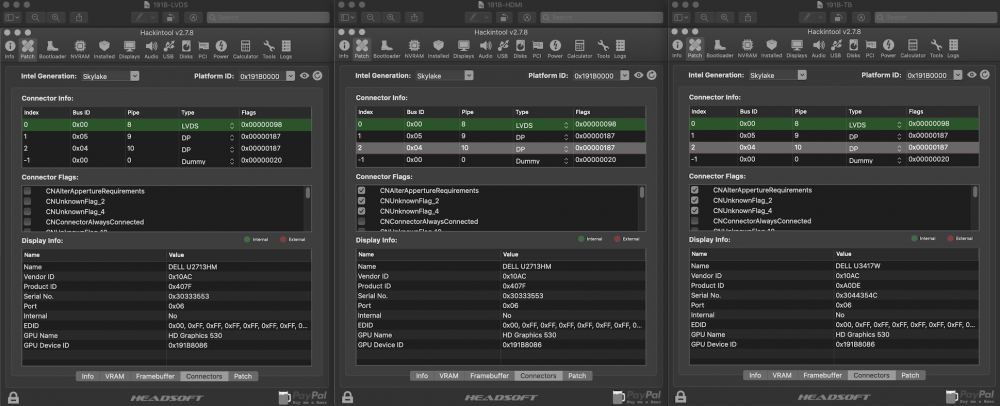

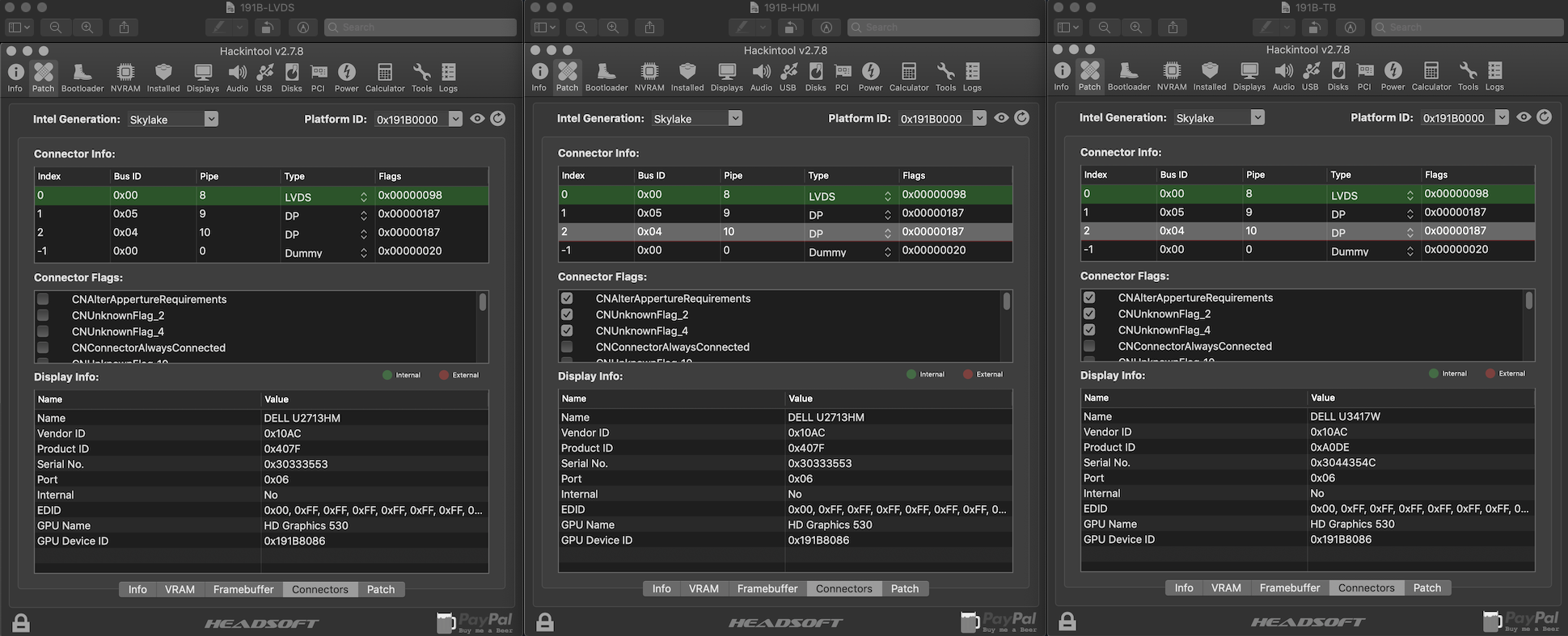

@zkingtut Happy to say found an improved monitor setup with 193B0005 and got 2 External monitors and laptop screen working in full resolution!



Now I could really do with the audio devices working on each of the connections.



Share this post


Link to post
Share on other sites
1 hour ago, takeawaydave said:

@zkingtut Happy to say found an improved monitor setup with 193B0005 and got 2 External monitors and laptop screen working in full resolution!



Now I could really do with the audio devices working on each of the connections.



Good

So 193B00005 and MacBookPro 13.1 ?

I have similar setup too

Share this post


Link to post
Share on other sites
2 hours ago, takeawaydave said:

@zkingtut Any idea where to start with getting external sound working?

What is external sound means ? HDMI Audio? Or Laptop Speakers ?

Have a look to framebuffer patching under Hackintool.app thread..

I think you should use AppleALC.kext and spoof audio id using hackintool patching ..

I recommend to use audio id under Device/ Properties and don't use inject method

Screenshot 2019-07-23 at 14.53.28.png

Edited by zkingtut

Share this post


Link to post
Share on other sites

@zkingtut yes I mean HDMI Audio. Laptop sound is working ok but only could get HDMI sound when using 1912.

Using AppleALC and no  injection. ALC293 codec.

Layout 11 gives me use of output and microphone on laptop.

Layout 28 only out but no mic.

Layout 29 doesn't do a clean boot and get some garbled character (which is strange but I was tied and might need to retest)

Share this post
