Boot error

[amir9000]

Hi Guys,

I have the hardware setup I listed bellow, I'm trying to install Mojave or even High Sierra on it but no luck, it always stuck at the boot and gives me this error "Couldn’t allocate runtime area". I don't know what could be wrong.

Can anyone give me an advice? Thanks.



Here is my hardware:

- ASUS TUF X299 MARK I Motherboard

- Intel Core i9-7980XE Skylake X 18-Core 2.6 GHz

- CORSAIR Dominator Platinum 64GB (4 x 16GB) 288-Pin DDR4

- Crucial MX100 256GB SATA 2.5" SSD

- NVIDIA GeForce Titan X Pascal 12GB NVIDIA

- GeForce GTX 680

- CORSAIR AX1200i Digital 1200W Power supply





Edited November 16, 2018 by amir9000
Correcting wrong text

[styrian]

Hello and welcome!



Your Pascal GPU is not compatible with OSX 14.x and with 10.13.6 only supported by Webdrivers. Remove it from the build and use a your hardware matching smbios of real Mac. Try to install with Lilu + weg in Clover/kexts/other. Perhaps you have to use your CPU gfx or check in Clover nv-disable for the install.



Have fun.



PS: It would be nice, if you could follow this guide: https://www.insanelymac.com/forum/topic/336486-video-how-to-add-a-signature/?tab=comments#comment-2647874

[STLVNUB]

"Couldn’t allocate runtime area" is the clue.

Usually means your using wrong OsxAptioFixDrv-64.efi

Try the other versions, you may get further...

Edited November 16, 2018 by STLVNUB

[amir9000]

33 minutes ago, styrian said:

Hello and welcome!



Your Pascal GPU is not compatible with OSX 14.x and with 10.13.6 only supported by Webdrivers. Remove it from the build and use a your hardware matching smbios of real Mac. Try to install with Lilu + weg in Clover/kexts/other. Perhaps you have to use your CPU gfx or check in Clover nv-disable for the install.



Have fun.



PS: It would be nice, if you could follow this guide: https://www.insanelymac.com/forum/topic/336486-video-how-to-add-a-signature/?tab=comments#comment-2647874



Thank you, I will try removing the TitanX and see.

10 minutes ago, STLVNUB said:

"Couldn’t allocate runtime area" is the clue.

Usually means your using wrong AptioMemoryFix driver

Try the other versions, you may get further...

Thanks, How do I use another version?

[STLVNUB]

give your efi folder, I fix it

Edited November 16, 2018 by STLVNUB

[amir9000]

26 minutes ago, STLVNUB said:

give your efi folder, I fix it

Thanks, I would highly appreciate that!

Here is the EFI folder

EFI Folder.zip

[STLVNUB]

Try this

EFI.zip

[amir9000]

9 hours ago, STLVNUB said:

Try this

EFI.zip

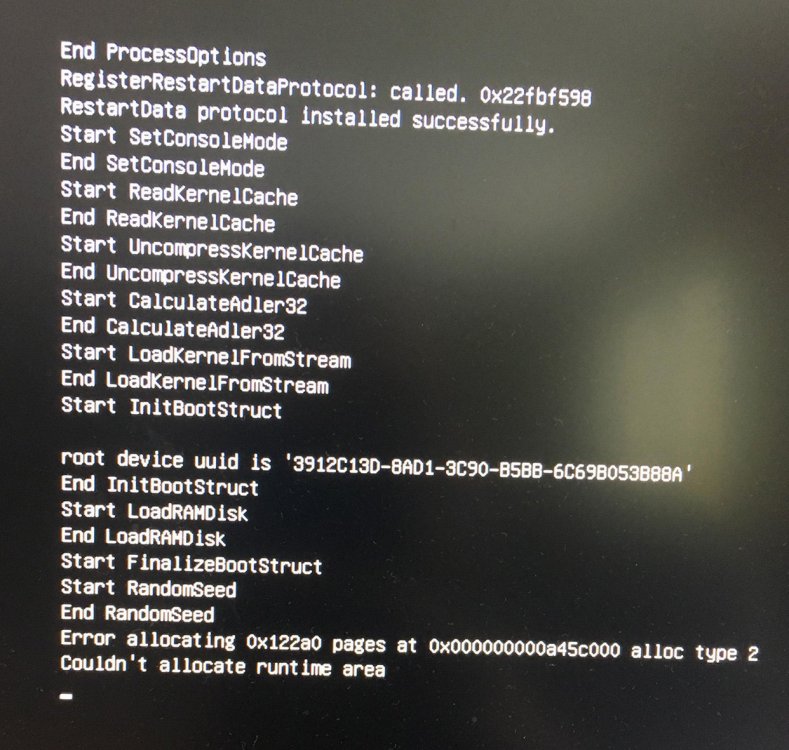

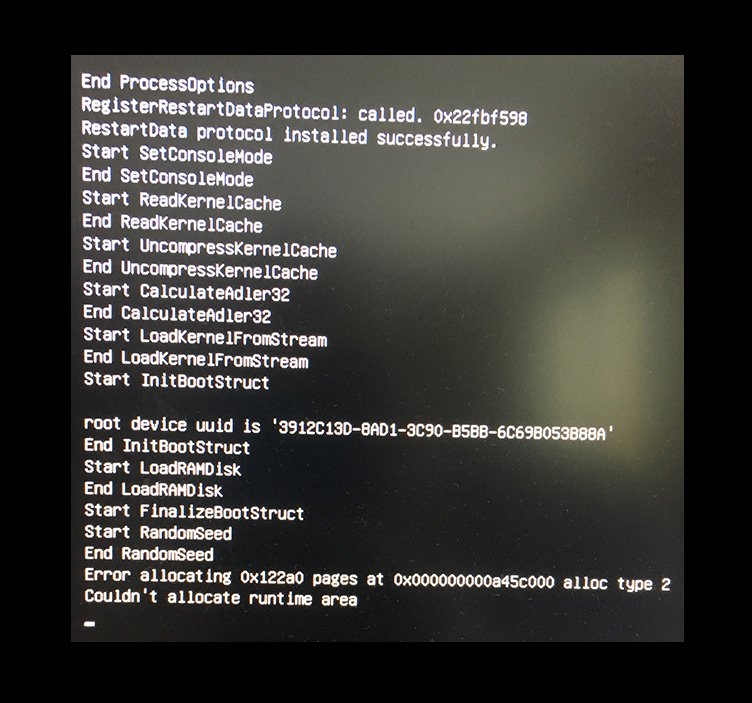

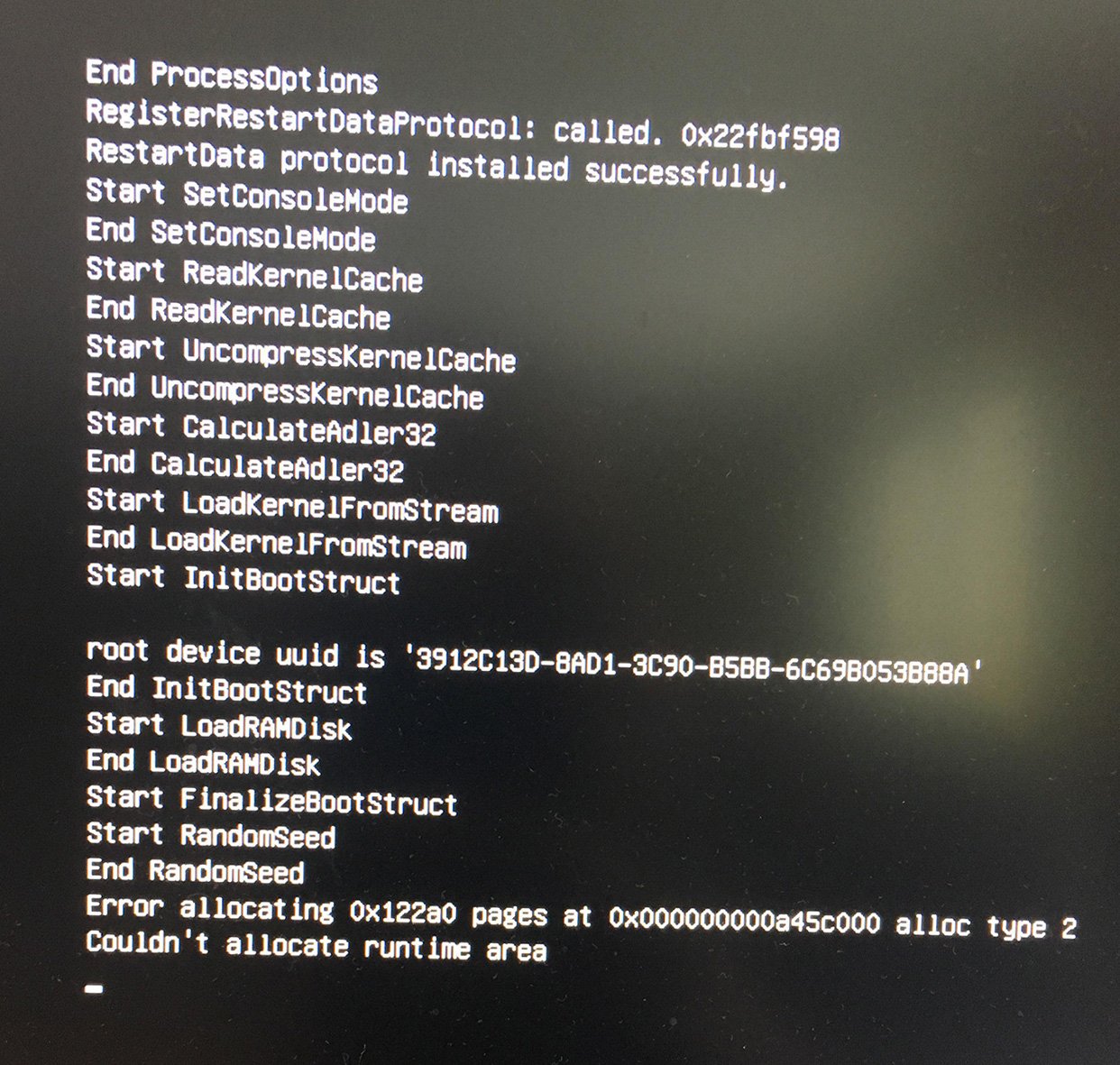

Still getting an error! Here's a snapshot of the error screen:



[STLVNUB]

try this

EFI.zip



edit:

If that don't work replace OsxAptioFixDrv.efi with this.

OsxAptioFix3Drv-64.efi

Edited November 16, 2018 by STLVNUB

[bronxteck]

make sure your ram slots are populated properly you need to populate dim slot 0 then 1, 2, 3 if all are populated then try aptiomemoryfix.efi if the osxaptio drivers do not work for you.

[amir9000]

Thank you! But still No luck, I tried all these solutions but unfortunately, non of them seemed to work

Could it be because I have an M.2 SSD in the build? even though I'm not installing Mac os on it, I'm installing to another regular SSD

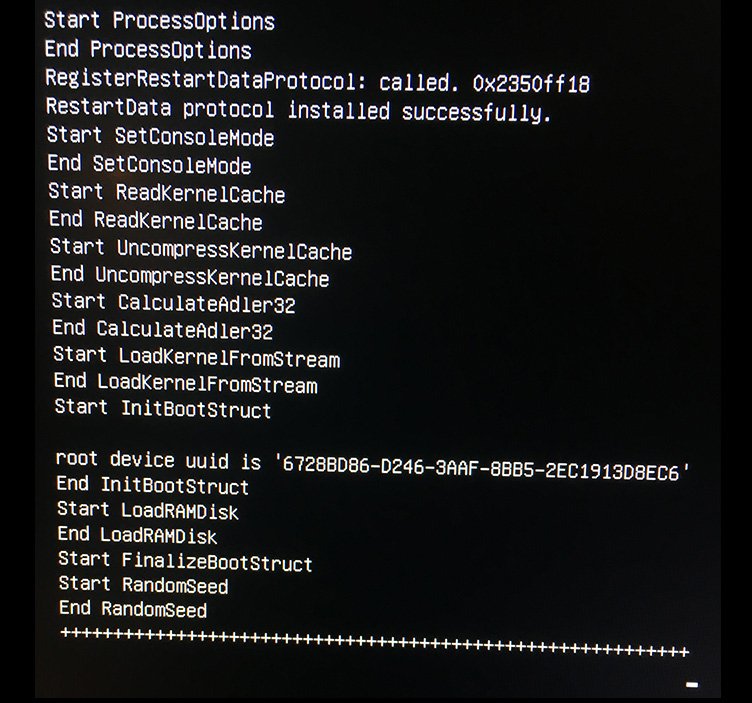

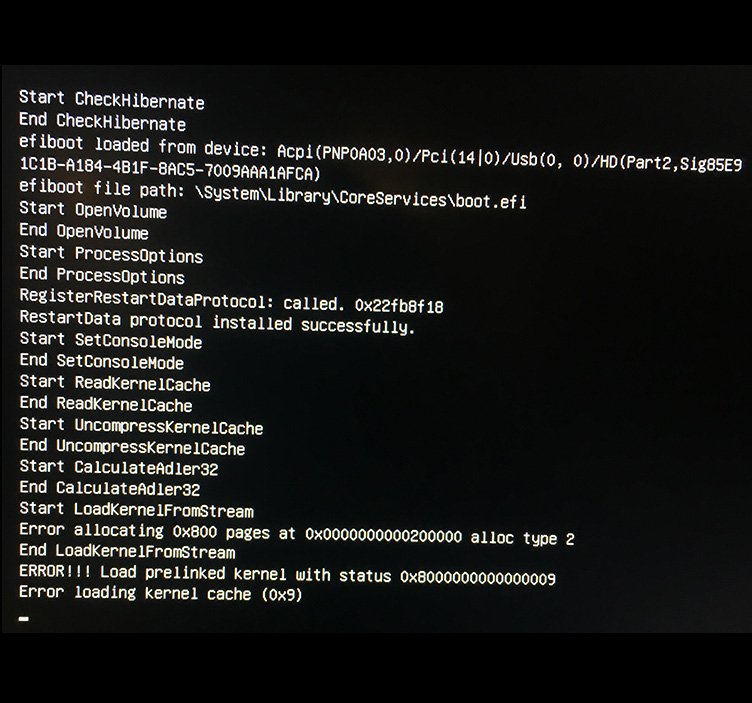

Anyways, I keep trying different things in Clover Configurator and I keep getting different errors:



[bronxteck]

well it shows you are having issues with cache and prelinked kernel maybe try repairing the partition. if you think the m.2 is causing the issue then why not remove it till after install?

[Hangten]

I have seen your error or very similar before but what solved it was using another SATA port on another controller (this motherboard has 2 additional 3rd party SATA controller) and not the intel. Later it was fixed. I then could use the intel SATA. Have you tried an external USB to SATA dongle with your SSD? See if you can install onto it using USB externally with your drive connected to that.
