nyislander Posted February 11, 2018 Share Posted February 11, 2018 I’m trying to install Snow Leopard on a HP T5740 Thin Client: Intel Atom Processor N280 1.66 GHz Intel GL40 graphics (64 MB) 32Gb IDE DOM 4Gb RAM http://parkytowers.me.uk/thin/hp/t5740/index.shtml Booting with Knoppix using the lspci command: 00:00.0 Host bridge: Intel Corporation Mobile 4 Series Chipset Memory Controller Hub (rev 09) 00:02.0 VGA compatible controller: Intel Corporation Mobile 4 Series Chipset Integrated Graphics Controller (rev 09) 00:02.1 Display controller: Intel Corporation Mobile 4 Series Chipset Integrated Graphics Controller (rev 09) 00:1a.0 USB Controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #4 (rev 03) 00:1a.1 USB Controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #5 (rev 03) 00:1a.2 USB Controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #6 (rev 03) 00:1a.7 USB Controller: Intel Corporation 82801I (ICH9 Family) USB2 EHCI Controller #2 (rev 03) 00:1b.0 Audio device: Intel Corporation 82801I (ICH9 Family) HD Audio Controller (rev 03) 00:1c.0 PCI bridge: Intel Corporation 82801I (ICH9 Family) PCI Express Port 1 (rev 03) 00:1c.4 PCI bridge: Intel Corporation 82801I (ICH9 Family) PCI Express Port 5 (rev 03) 00:1c.5 PCI bridge: Intel Corporation 82801I (ICH9 Family) PCI Express Port 6 (rev 03) 00:1d.0 USB Controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #1 (rev 03) 00:1d.1 USB Controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #2 (rev 03) 00:1d.2 USB Controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #3 (rev 03) 00:1d.7 USB Controller: Intel Corporation 82801I (ICH9 Family) USB2 EHCI Controller #1 (rev 03) 00:1e.0 PCI bridge: Intel Corporation 82801 Mobile PCI Bridge (rev 93) 00:1f.0 ISA bridge: Intel Corporation ICH9M LPC Interface Controller (rev 03) 00:1f.2 IDE interface: Intel Corporation ICH9M/M-E 2 port SATA IDE Controller (rev 03) 00:1f.3 SMBus: Intel Corporation 82801I (ICH9 Family) SMBus Controller (rev 03) 00:1f.5 IDE interface: Intel Corporation ICH9M/M-E 2 port SATA IDE Controller (rev 03) 04:00.0 Ethernet controller: Broadcom Corporation NetLink BCM57780 Gigabit Ethernet PCIe (rev 01) I used Nawcom’s OSX86_ModCD-032311-151021 with an official 10.6.3 Snow Leopard disc. Installation was successful and I updated to 10.6.7 with MacOSXUpdCombo10.6.7. The network card works after installing BCM5722D_v2.3.5_SL_UB. I did a usb roll back using M-B. My main problem is I lose mouse & keyboard (all usb) control after ~10mins of inactivity. I need to reboot to reactive the ports. Whatever boot options I use: -x; cpus=1 yields the same result. Not essential but nice to have would be: - a screen resolution of 1920x1080 - working sound card - working sata ports Please advise? Quote Link to comment Share on other sites More sharing options...
artur_pt Posted February 11, 2018 Share Posted February 11, 2018 hello use the usb kext from 10.6.3 is a know issue iosubfammily and usbmassstorage from 10.6.3 good hack Quote Link to comment Share on other sites More sharing options...
nyislander Posted February 11, 2018 Author Share Posted February 11, 2018 Thanks for your suggestion artur_pt. I extracted IOUSBFamily.kext & IOUSBMassStorage.kext from the Snow Leopard disc using Pacifist and installed with Kext Wizard to /S/L/E but it did not work. USB connectivity lost after ~10mins of inactivity. Quote Link to comment Share on other sites More sharing options...
MaLd0n Posted February 11, 2018 Share Posted February 11, 2018 ICH9 need a dsdt patch, need inject ids from ICH10 Quote Link to comment Share on other sites More sharing options...
nyislander Posted February 18, 2018 Author Share Posted February 18, 2018 Thanks for your advice MaLdOn. This is a headless thin client that I'm connecting to via Remmina, so my temporary solution is to turn off computer & display sleep in Energy Saver. Eventually I plan to edit my DSDT to get everything to work properly. Quote Link to comment Share on other sites More sharing options...
MaLd0n Posted February 18, 2018 Share Posted February 18, 2018 lets try run it and send me files RunMe.app.zip Quote Link to comment Share on other sites More sharing options...

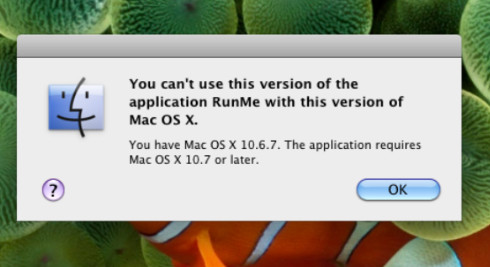

nyislander Posted February 18, 2018 Author Share Posted February 18, 2018 I tried to run your app and received the following error: 1 Quote Link to comment Share on other sites More sharing options...
MaLd0n Posted February 18, 2018 Share Posted February 18, 2018 o yes xD extract DSDT and ioreg DSDT , run it in terminal perl -e 'open(CMD, "ioreg -lw0 \| grep DSDT|") or die; while(<CMD>) { chomp; if($_ =~ /\"DSDT\.?\d?\"=<([^>]*)>/) { $buff = $1; open(PIP, "|xxd -r -p > ~/Desktop/dsdt.aml") or die; print PIP "$1"; } }' ioreg IORegistryExplorer.app.zip Quote Link to comment Share on other sites More sharing options...
nyislander Posted February 18, 2018 Author Share Posted February 18, 2018 I used the Developer/Utilities/IORegistryExplorer to obtain the ioreg and your perl script for the DSDT. Let me know if this is what you wanted. MyDSDT_files.zip Quote Link to comment Share on other sites More sharing options...
MaLd0n Posted February 18, 2018 Share Posted February 18, 2018 check DSDT.aml.zip Quote Link to comment Share on other sites More sharing options...

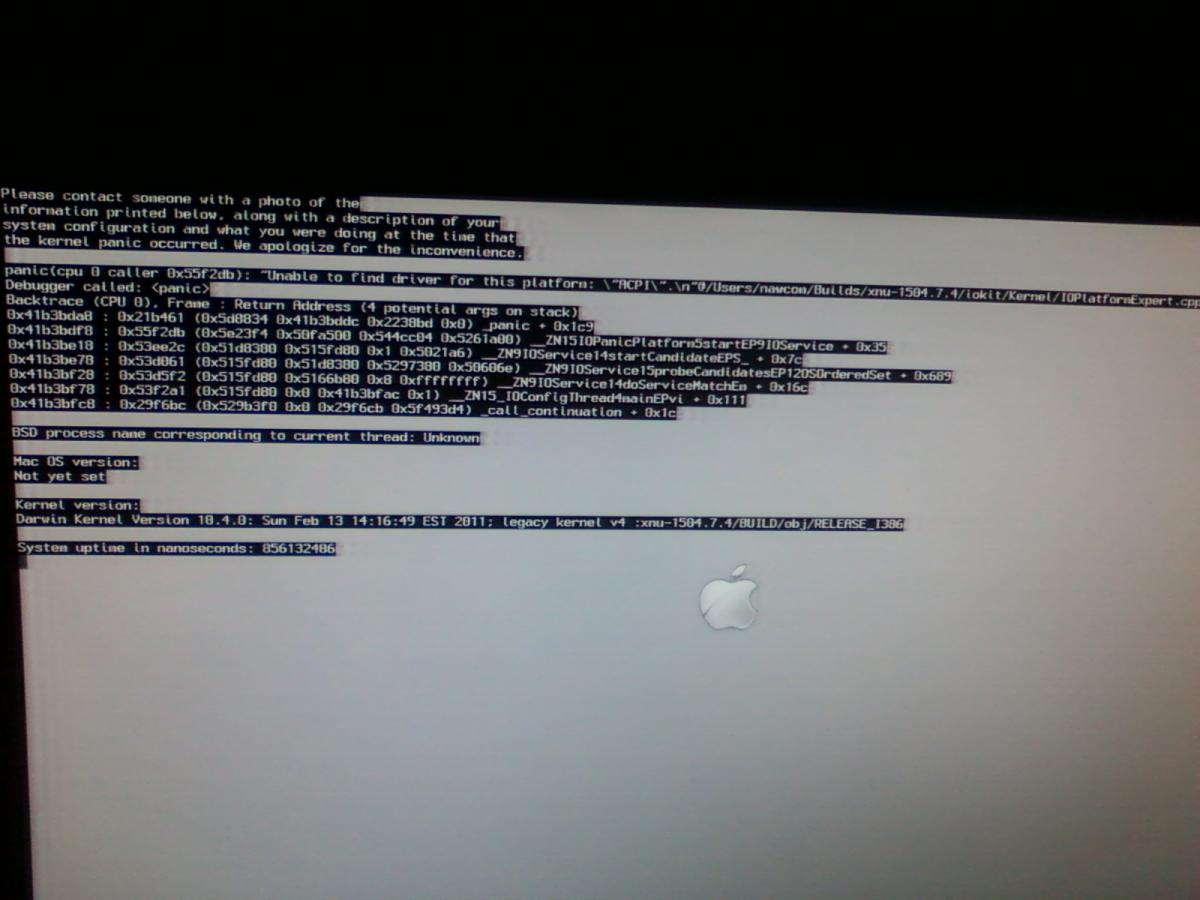

nyislander Posted February 19, 2018 Author Share Posted February 19, 2018 I put the DSDT.aml in the /Extra folder and rebooted. This is what happened. What did I do wrong and how can I fix it? 1 Quote Link to comment Share on other sites More sharing options...
MaLd0n Posted February 19, 2018 Share Posted February 19, 2018 just drop DSDT, u can try a clover DSDT patches USB Quote Link to comment Share on other sites More sharing options...
nyislander Posted February 19, 2018 Author Share Posted February 19, 2018 I used Nawcom’s cd to boot up and removed the DSDT from the /Extra folder. I need more time to learn how to edit the DSDT myself. I'll keep reading & tinkering and report back if/when I'm successful. Thanks again. Quote Link to comment Share on other sites More sharing options...
MaLd0n Posted February 19, 2018 Share Posted February 19, 2018 Use Clover and it to avoid KP Disabler.EFINVRAM.zip Clover have a KernelCPU if u processor loose support 10.6.3+ Quote Link to comment Share on other sites More sharing options...
