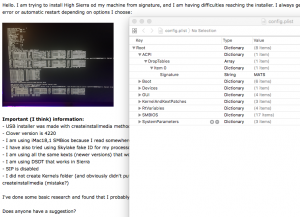

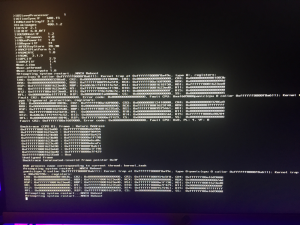

Morpheus NS Posted September 28, 2017 Share Posted September 28, 2017 Hello. I am trying to install High Sierra od my machine from signature, and I am having difficulties reaching the installer. I always get this error or automatic restart depending on options I choose: Important (I think) information: - USB installer was made with createinstallmedia method (I am new to this, until now I used "manual" method which required Disk Utility) - Clover version is 4220 - I am using iMac18,1 SMBios because I read somewhere that it supports Kaby Lake - I have also tried using Skylake fake ID for my processor - I am using all the same kexts (newer versions) that worked in Sierra - I am using DSDT that works in Sierra - SIP is disabled - I did not create Kernels folder (and obviously didn't put kernel inside) in System because I thought it wasn't necessary if I use createinstallmedia (mistake?) I've done some basic research and found that I probably need to drop MATS and DMAR tables in my config.plist - didn't help. I am stuck. Does anyone have a suggestion? Link to comment https://www.insanelymac.com/forum/topic/327646-high-sierra-mach-reboot/ Share on other sites More sharing options...
angel88 Posted September 28, 2017 Share Posted September 28, 2017 clover里面check Fix_Headers20000000就可以 try Link to comment https://www.insanelymac.com/forum/topic/327646-high-sierra-mach-reboot/#findComment-2502800 Share on other sites More sharing options...
Si Vis Pacem Posted September 28, 2017 Share Posted September 28, 2017 fix your MATS or BGRT Link to comment https://www.insanelymac.com/forum/topic/327646-high-sierra-mach-reboot/#findComment-2502886 Share on other sites More sharing options...
Morpheus NS Posted September 28, 2017 Author Share Posted September 28, 2017 clover里面check Fix_Headers20000000就可以 try Unfortunately, this did not do anything. Thanks anyway. fix your MATS or BGRT Fix them? Is there any guide on how to do this? I tried dropping them. I tried dropping BGRT only, BGRT and DMAR, DMAR only... did not see any change in behavior. There is no MATS table on my system, or at least it is not available in Clover menu. I added it to the config.plist file anyway. Link to comment https://www.insanelymac.com/forum/topic/327646-high-sierra-mach-reboot/#findComment-2503031 Share on other sites More sharing options...
Morpheus NS Posted September 28, 2017 Author Share Posted September 28, 2017 Success! Well, at least I reached the installer for now... I don't really know how I solved my problem. I think it must be CSsrActiveConfig setting in config.plist which prevented something from being loaded. It was automatically set to 0x3E7, I changed it to 0x3FF following the advice from another thread and voila! I also switched to iMac18,2 SMBios. It was actually very easy to find the right serial number for this SMBios. Link to comment https://www.insanelymac.com/forum/topic/327646-high-sierra-mach-reboot/#findComment-2503669 Share on other sites More sharing options...
xW4LK3R Posted October 17, 2017 Share Posted October 17, 2017 Guys i'm getting this exact kernel panic when trying to boot the system after installing it. Anyone has any idea about this issue? Link to comment https://www.insanelymac.com/forum/topic/327646-high-sierra-mach-reboot/#findComment-2517707 Share on other sites More sharing options...
talmazi Posted October 18, 2017 Share Posted October 18, 2017 Hello try this. Link to comment https://www.insanelymac.com/forum/topic/327646-high-sierra-mach-reboot/#findComment-2517784 Share on other sites More sharing options...

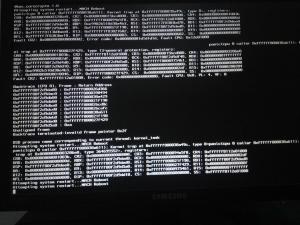

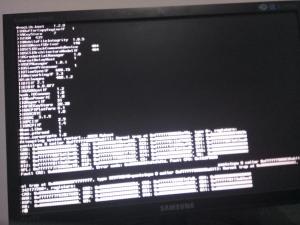

linvers Posted October 29, 2017 Share Posted October 29, 2017 hi guys, I got same problem. i tried to drop tables,and changes the smbios,and changes the system parameter. but all is not working. my cpu is celeron g3930. motherboard is biostar hm110 pro with 8g ddr3. can anyone helps me？ Link to comment https://www.insanelymac.com/forum/topic/327646-high-sierra-mach-reboot/#findComment-2524648 Share on other sites More sharing options...
