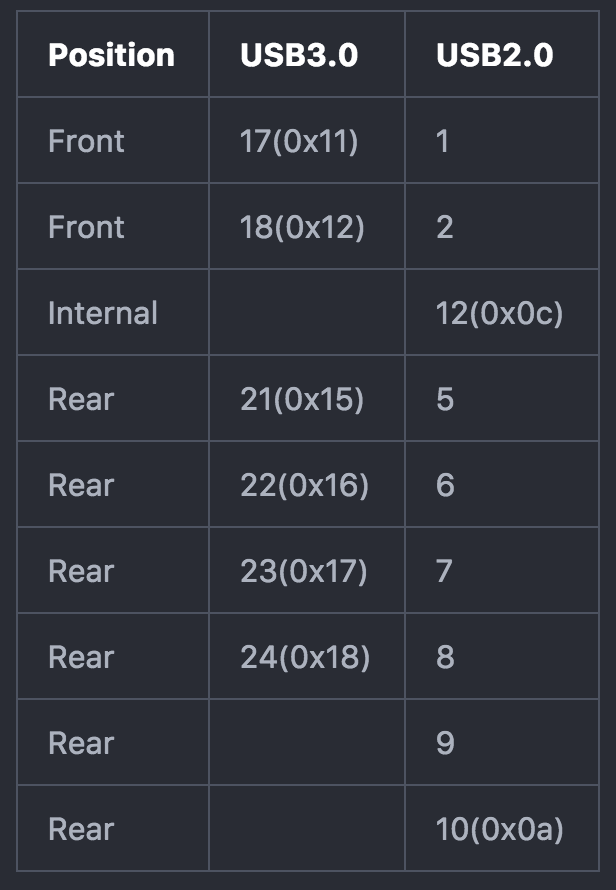

bean88 Posted April 11, 2017 Share Posted April 11, 2017 Hi mates, update: turns out I need to install "XHCI-200-series-injector.kext" in addition to "USBInjectAll.kext", thanks for all the attention anyway. I have a i7-7700k/z270(Asus Prime Z270-P) platfrom installed with 10.12.3. I can't get any USB3.0 port to work: it won't recognize any usb3.0 device except 2.0 ones.All USB port id is identified in window with "usbtreeview" and confirmed in Sierra(only USB2.0 work):| Position | USB3.0 | USB2.0 || ------ | ------ | ------ || Front | 17(0x11) | 1 || Front | 18(0x12) | 2 || Internal | | 12(0x0c) || Rear | 21(0x15) | 5 || Rear | 22(0x16) | 6 || Rear | 23(0x17) | 7 || Rear | 24(0x18) | 8 || Rear | | 9 || Rear | | 10(0x0a) |My older systems work perfectly with USBInjectAll.kext alone in /S/L/E as well as a clover patch for 15 ports. But not this one. I removed unused ports from USBInjectAll.kext->config.plist->8086_a2af, still with no luck.I also try to modify DSDT/SSDT, but is has a weird usb structure :XHC->RHUB->HS01...10,11...14,SS01..06,07...10,USR1,USR2 which is different from most tutorials that targeting pre-200 series systems.Can anyone give me a clue where to start to fixed the issue.In attachments are my DSDT and ioregistry file. Archive.zip 1 Link to comment https://www.insanelymac.com/forum/topic/322709-solvedusb30-not-work-on-z270-motherboard/ Share on other sites More sharing options...
MaLd0n Posted April 11, 2017 Share Posted April 11, 2017 Extract ur original dsdt with F4 key in Clover boot screen, files in Clover/Acpi/Patched Link to comment https://www.insanelymac.com/forum/topic/322709-solvedusb30-not-work-on-z270-motherboard/#findComment-2402348 Share on other sites More sharing options...
bean88 Posted April 12, 2017 Author Share Posted April 12, 2017 Extract ur original dsdt with F4 key in Clover boot screen, files in Clover/Acpi/Patched Thanks for the reply, but still not working... Link to comment https://www.insanelymac.com/forum/topic/322709-solvedusb30-not-work-on-z270-motherboard/#findComment-2402918 Share on other sites More sharing options...
MaLd0n Posted April 12, 2017 Share Posted April 12, 2017 -Post ur full Clover folder -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 -Run it, post files generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 Link to comment https://www.insanelymac.com/forum/topic/322709-solvedusb30-not-work-on-z270-motherboard/#findComment-2403104 Share on other sites More sharing options...
bean88 Posted April 13, 2017 Author Share Posted April 13, 2017 Ioreg is already uploaded in the first post, the rest files are in attachment. CLOVER.zip Send me System’s iMac.zip Link to comment https://www.insanelymac.com/forum/topic/322709-solvedusb30-not-work-on-z270-motherboard/#findComment-2403522 Share on other sites More sharing options...
