MaLd0n

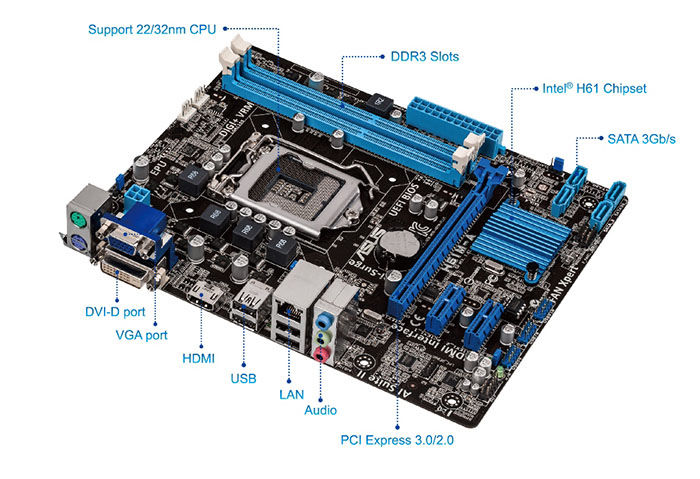

[Guide] macOS Sierra 10.12.x on ASUS H61M-A / DSDT

41 posts in this topic

Recommended Posts

Now have a Olarila app, just download app and clover folder for your Chipset!


Install MacOS with Olarila Image, Step by Step, Install and Post Install



https://olarila.com/forum/viewtopic.php?f=50&t=8685




Create a bootable copy of macOS Sierra
Check out the link

--Install Clover UEFI in USB stick

--Replace Folder

--Install Sierra and boot into system!

--Install Clover UEFI and replace with my folder

--Reboot and activate video!

Bingo!

Now you need a fine tune! I prefer DSDT way, apply all patches in one file, many people prefer many SSDTs or Clover patches!

If you need DSDT edit...
Run it

--DSDT
My DSDT

Patches
-FIX ERRORS AND WARNINGS
-HPET
-SATA
-SLPB
-DARWIN
-EHCx
-LPC
-HDEF
-RTC
-IRQs
-SBUS
-BUS1
-MCHC
-ALS0
-SHUTDOWN
-LAN
-PNLF

Clear NVRAM, Purge and Kextcache



--FakeSMC
--Audio
--USB
--LAN

Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders!

Share this post


Link to post
Share on other sites
Advertisement

Eu precisava responder o Quiz antes de postar no forum.



Segue a pergunta novamente.



Cara, encontrei esse teu post aqui e me ajudou bastante. Acabei de montar um hack com essa placa que eu tinha parada qui em casa. O DSDT que tu postastes resolveu meu problema de reboot. Mas fiquei com um quando mando repousar. A máquina entra em estado de repouso mas dois segundos depois volta sozinha :/
Não consegui resolver de jeito nenhum. Isso acontece contigo também?

Share this post


Link to post
Share on other sites

Usa o sleep, espera acontecer o problema e depois roda esse comando no terminal

log show --style syslog | fgrep "Wake reason"

se for preciso instale o "command line" primeiro

xcode-select --install

Share this post


Link to post
Share on other sites

Aqui o registro do syslog:



Apr 13 01:46:22 iMacdeLeonardo kernel[0]: Wake reason: GLAN EHC2

Apr 13 01:46:34 iMacdeLeonardo kernel[0]: full wake request (reason 1) 8147 ms
Apr 13 01:57:29 iMacdeLeonardo kernel[0]: Wake reason: GLAN EHC2
Apr 13 02:02:40 iMacdeLeonardo kernel[0]: Wake reason: GLAN EHC2
Apr 13 02:03:37 iMacdeLeonardo kernel[0]: Wake reason: GLAN EHC2
Apr 13 02:04:34 iMacdeLeonardo kernel[0]: Wake reason: GLAN EHC2
Apr 13 02:09:45 iMacdeLeonardo kernel[0]: Wake reason: GLAN EHC2
Apr 13 02:10:00 iMacdeLeonardo kernel[0]: full wake request (reason 1) 11602 ms

Share this post


Link to post
Share on other sites

Extraia o seu DSDT original com a tecla f4 na tela de boot do clover, o arquivo vai ser gerado dentro da pasta Clover/Acpi/origin.

Me envia essa pasta toda.

Share this post


Link to post
Share on other sites

Funcionou, meu velho.



Vou fazer um diff entre os três dsdt,s diferentes , original, o primeiro que tu postastes e esse, pra ver quais parches tu adicionastes e tentar entender um pouco melhor essa edição.



Valeu!

Share this post


Link to post
Share on other sites

@MaLd0n

Instalei o Sierra em um PC que não estava usando com uma Asus H61M-A/BR e um i3 3250. Tudo certo na instalação que fiz seguindo seu post mas estou com problemas no vídeo (estou usando a GPU integrada), tanto na resolução como no desempenho (está ocorrendo alguns glitches e o Lauchpad, por exemplo, demora a ser desenhado). Você teria alguma sugestão?

Share this post


Link to post
Share on other sites

@MaLd0n

Instalei o Sierra em um PC que não estava usando com uma Asus H61M-A/BR e um i3 3250. Tudo certo na instalação que fiz seguindo seu post mas estou com problemas no vídeo (estou usando a GPU integrada), tanto na resolução como no desempenho (está ocorrendo alguns glitches e o Lauchpad, por exemplo, demora a ser desenhado). Você teria alguma sugestão?

o próprio clover deve resolve o problema



tenta com InjectIntel

nao entendi na parte de instalar o clover no pendrive ... pode me explicar o passo a passo no drive maker ja deu tudo certo ...

instalar o clover no pen drive, altere o local da instalação do clover, setando para o pen drive

Share this post


Link to post
Share on other sites

o próprio clover deve resolve o problema



tenta com InjectIntel



Tentei com o Inject Intel no Clover e a tela de login aparece cheia de artefatos (impossível ver algo). Estou usando a DSDT que você postou, algum problema com o Inject Intel? A VRAM está selecionada no BIOS como 64MB.

O problema da resolução resolvi mudando a conexão de HDMI para DVI mas os glitches continuam, assim como o desempenho lento.

Share this post


Link to post
Share on other sites

obrigado pela resposta , entao cheguei a testar isso porem diz que o sistema é incompatível deu a opção de continuar mesmo assim porem não consegui fazer o boot pelo pendrive na bios a opcão uefi não aparece contida no pendrive...


tem algum tutorial pra esta placa em especifico H61M-A/BR? pois este aqui esta bem resumido, vou precisar de outro mac já funcionando ou consigo fazer o pendrive pelo windows?

Share this post


Link to post
Share on other sites

@MaLd0n

Depois de atualizar para o High Sierra, o dispositivo de áudio deixou de ser detectado. Estou usando sua DSDT e, no Sierra, era detectado nativamente o áudio. Alguma sugestão?

Share this post


Link to post
Share on other sites

No meu caso o audio com o patch não funcionou,a rede funcionou,menos o audio.

O lilu e o AppleALC estão na pasta do clover.

Maldon,poderia me ajudar??

Abraços e obrigado!

Share this post


Link to post
Share on other sites
