warscout Posted February 23, 2017 Share Posted February 23, 2017 Hello, guys! I've installed sierra on my laptop ASUS K551LB-XX249 for like two week ago and still can't solve sleeping problem. I'm using UEFI clover and here's what pmset -g assertions says: Assertion status system-wide: BackgroundTask 0 ApplePushServiceTask 0 UserIsActive 1 PreventUserIdleDisplaySleep 0 PreventSystemSleep 0 ExternalMedia 0 PreventUserIdleSystemSleep 0 NetworkClientActive 0 Listed by owning process: pid 100(hidd): [0x000000d20009804d] 00:08:41 UserIsActive named: "com.apple.iohideventsystem.queue.tickle.4294968024.3" Timeout will fire in 1798 secs Action=TimeoutActionRelease Kernel Assertions: 0x4=USB id=500 level=255 0x4=USB mod=01/01/1970, 07:00 description=com.apple.usb.externaldevice.1d100000 owner=IOUSBHostDevice id=502 level=255 0x4=USB mod=01/01/1970, 07:00 description=com.apple.usb.externaldevice.14500000 owner=USB2.0 HD UVC WebCam id=503 level=255 0x4=USB mod=01/01/1970, 07:00 description=com.apple.usb.externaldevice.14700000 owner=USB2.0-CRW id=504 level=255 0x4=USB mod=01/01/1970, 07:00 description=com.apple.usb.externaldevice.1d130000 owner=802.11n WLAN Adapter id=505 level=255 0x4=USB mod=01/01/1970, 07:00 description=com.apple.usb.externaldevice.14400000 owner=Bluetooth USB Host Controller id=506 level=255 0x4=USB mod=01/01/1970, 07:00 description=com.apple.usb.externaldevice.14100000 owner=USB Device Idle sleep preventers: IODisplayWrangler When I click on "sleep" button, my screen shuts off, sound disappears and that all. Numlock light and others doesn't turn off and when I push any key system wakes up.I guess problem is in my usb, but I patched DSDT some times, but it gave simply nothing. 1 Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/ Share on other sites More sharing options...
SavageAUS Posted February 23, 2017 Share Posted February 23, 2017 Does that laptop have a touchscreen? Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2371617 Share on other sites More sharing options...
warscout Posted February 23, 2017 Author Share Posted February 23, 2017 Does that laptop have a touchscreen? No, it doesn't 1 Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2371631 Share on other sites More sharing options...
MaLd0n Posted February 23, 2017 Share Posted February 23, 2017 extract original tables with clover boot screen and post ur full clover folder here what ur processor? Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2371760 Share on other sites More sharing options...
warscout Posted February 23, 2017 Author Share Posted February 23, 2017 extract original tables with clover boot screen and post ur full clover folder here what ur processor? Intel 4200U Clover folder: https://drive.google.com/file/d/0B5Dt_bPLvhECTzV5M0M1Zm9Id1k/view?usp=sharing 1 Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2371796 Share on other sites More sharing options...
MaLd0n Posted February 23, 2017 Share Posted February 23, 2017 CLOVER.zip for native pm use pike script to generate ur SSDT run it ssdtPRGen.command.zip https://pikeralpha.wordpress.com/ Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2371815 Share on other sites More sharing options...
warscout Posted February 23, 2017 Author Share Posted February 23, 2017 CLOVER.zip for native pm use pike script to generate ur SSDT run it ssdtPRGen.command.zip https://pikeralpha.wordpress.com/ I did what you say, but it gave me nothing. Still the same. 1 Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2371824 Share on other sites More sharing options...
MaLd0n Posted February 23, 2017 Share Posted February 23, 2017 u have a time for tests??? try a fresh install Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2371917 Share on other sites More sharing options...
warscout Posted February 23, 2017 Author Share Posted February 23, 2017 u have a time for tests??? try a fresh install Now I don't, but I tried it before for two times when I couldn't make my sound works 1 Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2371929 Share on other sites More sharing options...
MaLd0n Posted February 23, 2017 Share Posted February 23, 2017 what ur audio codec? Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2371947 Share on other sites More sharing options...
warscout Posted February 23, 2017 Author Share Posted February 23, 2017 what ur audio codec? ALC3236. It works with AppleALC, but not completely. Combo-jack is doesn't get 4-th pin and can work only with 3-pin headphones. I tried VoodooHDA, but it causes kernel panic every time even with applehdadisabler or even without applehda. One guy with name "Slice" said that i have some problems with processor interruption and I have to configure my BIOS better, but my laptop has very few configuration in BIOS. 1 Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2371953 Share on other sites More sharing options...

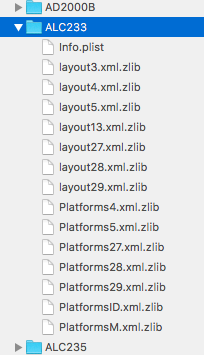

MaLd0n Posted February 23, 2017 Share Posted February 23, 2017 The codec ALC3236 is a revision of ALC233??? if yes, u try other id? i apply in ur DSDT 27 Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2371958 Share on other sites More sharing options...

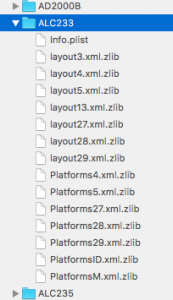

warscout Posted February 23, 2017 Author Share Posted February 23, 2017 The codec ALC3236 is a revision of ALC233??? if yes, u try other id? DaNiEl 2017-02-23 às 15.27.01.png i apply in ur DSDT 27 Yeah, I tried every of them. Now using 13, but actually they are all the same 1 Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2371967 Share on other sites More sharing options...
MaLd0n Posted February 23, 2017 Share Posted February 23, 2017 if u can time, try a fresh install for try solve sleep use it, correct information about ur codec in pci devices "Realtek ALC3236 Audio Controller" DSDT.warscout.zip Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2371977 Share on other sites More sharing options...
SavageAUS Posted February 24, 2017 Share Posted February 24, 2017 My laptop uses the ALC3236 audio as well and i use AppleHDA Patcher to make my audio work with layout id 3 and it works just fine. 1 Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2372093 Share on other sites More sharing options...
warscout Posted February 24, 2017 Author Share Posted February 24, 2017 My laptop uses the ALC3236 audio as well and i use AppleHDA Patcher to make my audio work with layout id 3 and it works just fine. Which patcher did you use? Miron's patcher? Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2372150 Share on other sites More sharing options...
SavageAUS Posted February 24, 2017 Share Posted February 24, 2017 Yes mirones applehda patched. Sent from my SM-G930F using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2372157 Share on other sites More sharing options...
warscout Posted February 24, 2017 Author Share Posted February 24, 2017 Yes mirones applehda patched. Sent from my SM-G930F using Tapatalk I patched it as you said, but nothing changed at all. Combo port doesn't work. Link to comment https://www.insanelymac.com/forum/topic/321393-laptop-cant-sleep/#findComment-2372424 Share on other sites More sharing options...
