The H370 chipset powers 8th generation Intel Core-i CPUs. Even though the name H370 rings comparable to Z370, the H370 is based on newer silicon. This it also requires some new approaches compared to the Z370. An example would be on-die USB 3.1 and WiFi support.
Since this guide is not a "hold-your-hand-every-step" guide, I assume you know:
Clover installation and configuration How to create an install medium for MacOS Access and configure the BIOS Have heard of ACPI patching (I'm a newb at this myself)
Sleep (via DSDT edits and emulated NVRAM) On-board Audio (via CloverALC script) Native power management (without any kext or patch) All USB ports (and only those present are active) iGPU for both acceleration and display dGPU (I'm running an Nvidia GTX 1080)
NIC --> I'm using WiFi only
What doesn't work
Native NVRAM via AptioMemoryFix.efi DMVT Pre-alloc higher than 64MB (but not necessary)
Changes to the guide:
22.5.18: Added SSDT hot-patching to enable sleep, replacing DSDT static patching as an alternative.
23.5.18: Add iMac18,1 as alternative SMBIOS config for those relying on the iGPU for output
This guide heavy inspired by the work of /u/corpnewt of /r/hackintosh and his (sorta) Vanilla guide
1.1 Create the install media for MacOS
Follow this, if you are using a Mac to start off with. If you are totally new to MacOS, then please check the basic guide Creation of an installer media in windows or linux
1.2 Install Clover on the install media
Using the Clover installer, ensure you are installing to the USB medium you are using for the installer.
Chose the following options:
AptioMemoryFix UEFI booting only Install to ESP You have to get your hands on an apfs.efi. A google search can help, or extracting it from the Installer package. Make sure you procure a version matching the MacOS version you are about to install. Place the apfs.efi in drivers64UEFI.
1.2 Adjust the config.plist for the installer
You can use the config.plist attached as a guideline, but take a look at it before and at least adjust the SMBIOS - otherwise it won't boot.
Attention: The attached plist contains audio patches introduced by a post-install step. If you run into problems, you might remove those. It also contains a manual slide value, which should normally not be needed, but works fine for me. It is also tuned for usage with an Nvidia Pascal dGPU as main GPU.
The config you create now should serve you nicely for install and running the system.
Take care of adding the following basics:
SMBIOS: iMac18,3 - You can generate a serial number via Clover Configurator. The creation of a proper SMBIOS is covered in many guides to good extend Note: If you aim at using the iGPU for output, a user reported that iMac18,1 works better - since iMac18,3 produces sever flicker. Look at the graphics section and adjust the injection for Intel to your situation
Kernel and Kext patches
1.3 kexts and friends
Add the supplied SSDT-UAIC.aml to "patched" - it limits the injected USB Ports to the actual number and ports valid for this board.
Required kexts on "Other":
FakeSMC.kext IntelGraphicsFixup.kext Lilu.kext When having an Nvidia card: NvidiaGraphicsFixup.kext IntelMausiEthernet.kext in case you're running Ethernet USBInjectAll.kext with the HCI-300-series-injector.kext --> These two should be installed to /L/E after install
We are leaving sound out at the moment, this is something for post-install. Please note the absence of Shiki, I don't find it necessary. Video material I tried made use of the iGPU without shiki.
1.4 Check BIOS and install
You should be ready for install. But before you reboot, please take a look at your BIOS and set it up accordingly (copied from the aforementioned guide and adapted):
Load Optimized Defaults Disable VT-d setting If your system has Secure Boot Mode, disable it Set OS Type to Windows 8/10 or OtherOS - I have not seen a difference Turn off internal Serial and Parallel port Turn off Network stack for boot Turn off wake-on-lan (for now) Set XHCI Handoff to Enabled Don't enable decode over 4G Depending on your GPU, set priority for boot Set internal GPU to enable Set DMVT pre-alloc to 64MB Set USB legacy to enabled Activate XMP profile 1 f your Ram has it (mine doesn't and I added the timings manually) Set ERP to enable, disable platform power management (I need to do more research if this could be enabled)
I've attached my current BIOS config "hack2". You can place that on a fat32 drive (the EFI partition of your install USB drive might be an idea) and see if it loads. It's made for and with the F2 BIOS.
The install itself should be like other MacOS Hackintosh installs with it several reboots and ensuring to select the correct boot device in Clover.
2.1 Install clover on target
This is a no-brainer, but install a fresh copy of Clover on your target medium.
During install select again AptioMemoryFix but also additionally
EmuVariableUefi-64.efi Install RC scripts on target volume because otherwise NVRAM doesn't seem to work
After the install, copy
config.plist contents of "Other" content of "patched" apfs.efi from drivers64UEFI to your new clover install.
2.1 Edit ACPI for slumber
Choose one option, not both. The hot-patch is experimental, but for the moment it is stable.
2.1.1 Edit DSDT
This is necessary only once on initial install and every time, you edit or upgrade the BIOS. The DSDT.aml attached to this post might work for your system or give you a file to compare to. Don't expect it to work for you, though.
I won't go into the details of DSDT extraction and patching. There are better guides (the linked guide is a rip-off of rehabman's guide from a different forum). Please follow such a guide to extract your ACPI data.
Locate and disassemble the DSDT with the newest iasl binary you can put your hands on, then open it with MacIASL in its newest version you can find (Hint: Here is a good source) You can check if the version is new enough if MacIASL doesn't throw error upon compiling a freshly extracted DSDT.aml or DSDT.dst
Add rehabmans repo (as per linked guide) and apply the following patches:
Rename _DSM to _XDSM Fix _WAK Arg0 v2 USB3 _PRW 0x6D Skylake (instant wake) Find the CNVW device and remove the _PWR function there.
Compile the DSDT and place it in "patched".
2.1.2 Use SSDT hot-patching
Instead of having to re-extract and re-patch the DSDT on every BIOS change or update, Hardware change one can also use ACPI hot-patching.
It's a combination of config.plist patches and an SSDT, which is hot-patched into the ACPI (if I understand the process correctly)
You need to add this SSDT-GPRW.aml to your Clover folder in the designated position at Clover/ACPI/patched You need to add this patch to your config.plist. It goes into the DSDT patch section
Note: This works for me, but the patch removes the _PRW method from all devices in the DSDT. This could have side-effects. So far, I have seen none. At the moment I'm also not applying any other patch, compared with the additional edits I made to the DSDT method before.
2.2 Install kexts to system
As mentioned in the install section, it's better to follow rehabman's instruction and install USBinjectAll.kext to /L/E:
sudo cp -R Release/USBInjectAll.kext /Library/Extensions sudo touch /System/Library/Extensions && sudo kextcache -u / 2.3 Enable onboard Audio
This is where I'm not so happy currently, I'd like it to work without altering AppleHDA. But currently I find no other way.
2.3.1 Install FakePCIID & FakePCIID_Intel_HDMI_Audio
Rehabman tells us to use a kext installer to install it to /S/L/E. Chose the RELEASE folder
2.3.2 Run CloverALC command
Ensure your EFI partition is mounted before running this command
Get the newest version of CloverALC command (audio_cloverALC-xxx.sh) and run it. Our Audio codec is RTL887 and I'm running with layout ID 1
2.4 Optional steps
If you have a dGPU, now it's the time to install its drivers and adjust the config.plist for it.
This is out of scope of this guide. Yet, my supplied config.plist is ready to be used with Nvidia Pascal cards and using the Nvidia web driver.
Move away from static DSDT patching to SSDT hotpatching --> requires my work Native NVRAM --> requires developer work Audio without AppleHDA patching --> requires developer work
4. Thanks to
@MaLd0nfor helping finding the right way with the DSDT
@RehabMan, for being a legend and helping me out patching
@toleda, for audio patches for the 300 series
/u/corpnewt, for his superb vanilla guide
@wmchris for his super XPS 9550 guide and introducing me to hot-patching
all the developers of clover and it's awesomeness
[Guide] Sierra / High Sierra on Intel 5, 6, 7, 8, 9 and x99 Chipset Series / Nehalem, SandyBridge, IvyBridge, Haswell, BroadwellBy MaLd0n
Nehalem, SandyBridge, IvyBridge, Haswell, Broadwell Skylake, Kabylake and Coffeelake is here http://www.insanelymac.com/forum/topic/321872-guide-sierra-on-gigabyte-mobos-serie-200-kabylake-dsdt/ First... ***Update bios to last available version!*** If you need a full patched DSDT... -Extract tables with F4 key in Clover boot screen! -Run it and send me files! RunMe.app Installation --Create a bootable copy of macOS Sierra Check out the link http://www.insanelymac.com/forum/files/file/559-flash-drive-maker/ --Create a bootable copy of macOS HighSierra Check out the link http://diskmakerx.com/ --Install Clover in USB stick https://sourceforge.net/projects/cloverefiboot/files/Installer/ --Replace with my Clover folder CLOVER Install.zip --Install Sierra/High Sierra and boot into system! Post Installation --Install Clover and replace with my folder CLOVER Post Install.zip --Reboot and activate video! Bingo! Now you need a fine tune! DSDT time! --DSDT Patches -FIX ERRORS AND WARNINGS -HPET -SATA -DMAC -SLPB -DARWIN -LPC -XHCI -PLUGIN TYPE -XXXX to HDEF -HDEF -RTC -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -LAN -USBX -PMCR -EC -PNLF -HDMI
- 1 Generation Intel Processors, use Generate P and C States in config.plist
- 2 and 3 Generations Intel Processors, Generate SSDT with Piker script and drop CpuPm and Cpu0Ist SSDTs
- 4 Generation+ Intel Processors, use PluginType=1 in DSDT, SSDT or Clover config.plist

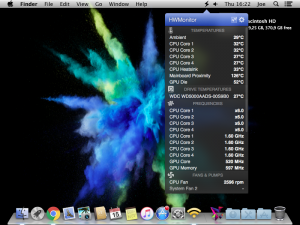

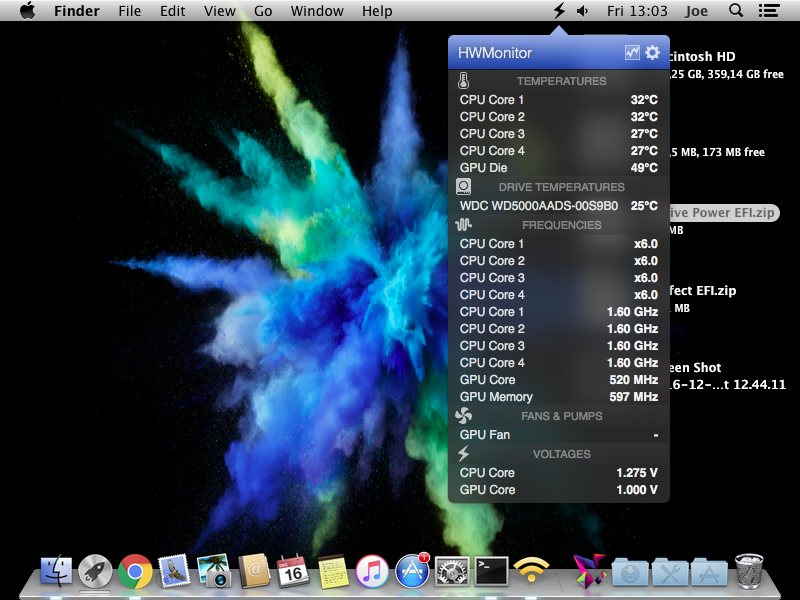

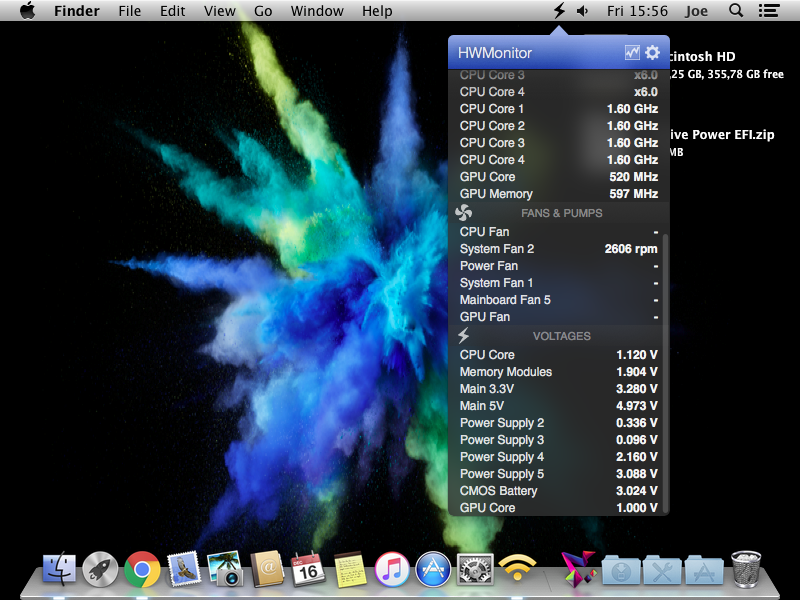

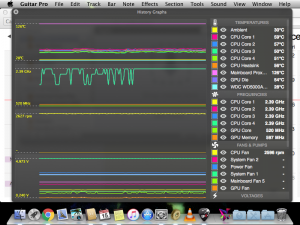

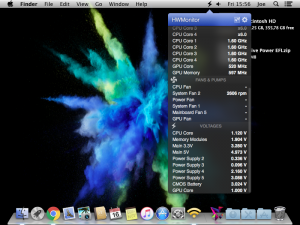

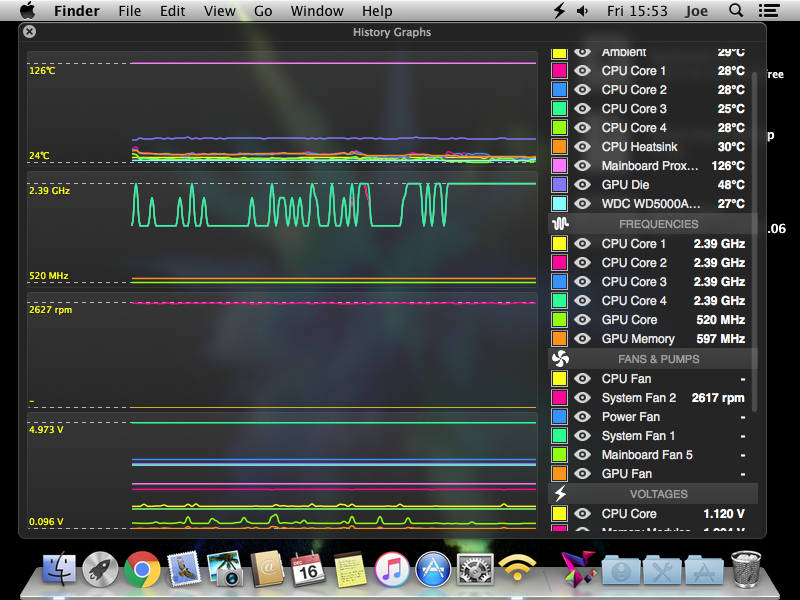

for check Power, Frequency, Temperature and Utilization, use it
Install Intel Power Gadget.pkg.zip
Install .app, select the required permission and reboot. Work in F1 / F2 keys!
*in some cases .app don't work, check patches in config.plist inside Clover folder Post Install
Use DSDT + AppleAlc
--install Lan driver by Mieze
-Atheros http://www.insanelymac.com/forum/files/file/313-atherose2200ethernet/ -Intel http://www.insanelymac.com/forum/files/file/396-intelmausiethernet/ -Realtek http://www.insanelymac.com/forum/files/file/88-realtekrtl8111-binary/ --Links -FakeSMC https://bitbucket.org/RehabMan/os-x-fakesmc-kozlek -Audio https://github.com/vit9696/AppleALC http://www.insanelymac.com/forum/topic/314406-voodoohda-289/ -USB https://bitbucket.org/RehabMan/os-x-usb-inject-all/downloads It's time to Rock -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders! Apple, Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad and many, many, many others! We're all here to have fun and learn from each other!
First... If you need DSDT edits... -Extract tables with F4 key in Clover boot screen! -Run it and send me files! RunMe.app Installation --Create a bootable copy of El Capitan and Sierra Check out the link http://www.insanelymac.com/forum/files/file/559-flash-drive-maker/ --Create a bootable copy of macOS HighSierra Check out the link http://diskmakerx.com/ --Install Clover in USB stick https://sourceforge.net/projects/cloverefiboot/files/Installer/ --Replace with my Clover folder CLOVER Install.zip --Install EL Capitan / Sierra / High Sierra and boot into system! for Sierra/High Sierra you need a Processor with SSE4.1 instruction Post Installation --Install Clover and replace with my folder CLOVER Post Install.zip --Reboot and activate video! Bingo! Now you need a fine tune! DSDT Time! -Post your full Clover folder with original tables in Origin folder(Extract with F4 in Clover boot screen) and tell me what your hardware! -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 -Run it, post files generate in your desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 My DSDT GA P35-DS3 DSDT.MaLd0n LGA775.zip Patches -FIX ERRORS AND WARNINGS -HPET -SATA -SLPB -DARWIN -LPC -HDEF -RTC -EHCI -UHCI -IRQs -SBUS -BUS1 -MCHC -ALS0 -SHUTDOWN -LAN -EC -PNLF --Native Power Management
Use Clover, check Generate P and C States
Install .app, select the required permission and reboot. Work in F1 / F2 keys!
*in some cases .app don't work, check patches in config.plist inside Clover folder Post Install
Device HDEF + AppleAlc + Lilu
--install Lan driver by Mieze
-Atheros http://www.insanelymac.com/forum/files/file/313-atherose2200ethernet/ -Intel http://www.insanelymac.com/forum/files/file/396-intelmausiethernet/ -Realtek http://www.insanelymac.com/forum/files/file/88-realtekrtl8111-binary/ --Links -FakeSMC https://bitbucket.org/RehabMan/os-x-fakesmc-kozlek -Audio https://github.com/vit9696/AppleALC http://www.insanelymac.com/forum/topic/293863-applehda-patch-requests/ -Credits and thanks to the old and new people in the community who developed patches, kexts and bootloaders! Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, RehabMan, Download-Fritz, Zenit432, cecekpawon, Intel, Apple, Oracle, Chameleon Team, crazybirdy, Mieze, Mirone, Oldnapalm, netkas, Elconiglio, artut-pt, ErmaC, Pavo, Toleda, Master Chief and family, bcc9, The King, PMheart, Sherlocks, Micky1979, vit9696, vandroiy2013, Voodoo Team, Pike R. Alpha, lvs1974, Austere.J, CVad and many, many, many others! We're all here to have fun and learn from each other! ENJOY!
I recently bought a Surface Book i5 256GB with dGPU, and I found that there's no tutorial about Hackintosh since it's released, so i am here to be the first (maybe) to try this out
This guide is not being recommended by its author, as the final performance is usually janky and unstable, most fundamental functions of your Surface will not work in Hackintosh, please always consider the consequence of proceeding, you also risk losing your data, again, please proceed with caution
******Please do not repost, thanks******
This project is deprecated (and it was only meant for 10.11 - 10.12.3) due to hardware availability on my side, no support for future OSes will be provided by me personally and support on current OSes will be limited. Your contributions, testing and guides will be appreciated by the community.
video is up at
Disclaimer: everything is on yourself, please proceed with caution and care
Keyboard & Trackpad (No Gestures)(Buggy, when you hold a key, pointer won't move),
SD card reader,
USB 3.0 ports,
Intel HD 520 Graphics works perfect on 10.11.4
DP Video output now works(don't close the lid, it lead to big problems)(after closing the lead with external monitor, when plug in the external monitor, it no longer recognize the internal display, you must unplug the monitor and reboot)
Long press power key brings up the power menu
Touch Screen (Alex's driver won't work since it's now on HID Camplg ports, which is not open source)
Wireless (Wi-Fi & Bluetooth)
What Works for 10.12
Everything for 10.11 :-)
Bugs For 10.12.3 and below
Graphics is janky and unstable. and does not work natively, driver patch is needed
Graphics will not work on 10.12.4 as reported for the built-in display, please take notice and do not upgrade
First Step: Installing a Virtual Machine
You will need a VM in order to get the thumb drive ready, please install a VM or you can use a real Mac to do this, the installation is not very hard, but do need some times for downloads and other stuff.
Download VMWare Workstation Pro 12.0 Trial Version Download VMWare Unlocker Download Python Runtime Modify Unlocker Bat file -- In the unlocker installer, there's a win-install.bat file that you can open by CMD, but don't open yet, we need to modify a path in the file, open the file using your favorite text editor, find unlocker.exe in the file, change it to unlocker.py The previous step is redundant Follow the instruction on unlocker readme file Go to a Apple Store, get a Install App from their computer and convert the BaseSytem.dmg to CDR, or you can just skip those steps to the making USB step Use the converted CDR as install media in VMware Installing OS X as normal Second Step: Prepare to install
You need an actual Mac to make the install USB or using a VM, both methods are fine, I wouldn't say more about installing a VM on your devices, you can Google that yourself
You'll need to download the 10.11.x installing App from this link For macOS 10.12 please go to this link to get the preview version You need to open Disk Utility. Select the USB Drive and format it as Mac OS X Extended (Journal-ed), Name it whatever you want, as long as you can remember the name. Now, open the terminal, enter the following text, this will cost you around 4 minutes on a USB 3.0 device and 30 minutes on a USB 2.0 device, go get yourself some drinks For 10.11 sudo /Applications/Install\ OS\ X\ El\ Capitan.app/Contents/Resources/createinstallmedia --volume /Volumes/PARTITION NAME --applicationpath "/Applicatons/Install OS X El Capitan.app" --nointeraction The previous method won't work on 10.12 anymore, you will get a USB that is not booting, use the guide below Download Clover from Clover Official Download Page Install Clover by choosing "Install UEFI Version only, install to EFI partition, Install Themes, Driver64UEFI(unselect CsmVideoDxe-64) After installing, you should see a Partition called EFI mounted, and it's your thumb drive (Copy the EFI folder from Installing OS X to the EFI Partition) only do this if it didn't do atomically DownloadSurfaceDriver.zip and follow the instruction in the ReadMe.txt to paste the files into your CLOVER folder ++++++++++Notice for 10.12 USB Creation++++++++++
The pervious way of making the 10.11 drive won't work anymore in 10.12, instead, after downloading the 10.12 install app, you'll need to follow the following steps
Show hidden files by executing this command defaults write com.apple.finder AppleShowAllFiles YES Navigate to /Application/Install macOS Sierra/Contents/SharedSupport and mount InstallESD.dmg
Open "Disk Utility", restore the USB drive with Basesystem.dmg (hidden) in the mounted DMG file.
Copy /Packages in the mounted DMG file to the restored USB's /System/Installation. Delete the old link before proceeding to the copy.
Copy basesystem.dmg and basesystem.chunklist to the root directory of your USB drive
Third Step: Installing OS X 10.11
Now, we can start installing 10.11, you should plug in an external keyboard, mouse, and your thumb drive, after you finish the booting process, you should see the welcome page, choose the language you prefer and proceed the installation
Go to Windows First, partition your drive for at least 50 GB if you want to keep using, because as I tried before, remapping disk after installing macOS or OS X is extremely HARD, don't try that unless it's necessary, you will risk the integrity of your data by doing that
Choose Disk Utility, choose your installing partition and click erase, format as OS X Extended (Journal-ed), then, exit Disk Utility and proceed the installation process, you might need to proceed the same process twice to get the full install, so if you didn't saw your OS X drive, please choose install again. (The installation will automatically continue.)
Or: Installing macOS 10.12
Please change ig-platform-id to 12345678 before installing the framebuffer kext.
Things getting a little bit tricky when you're trying to install 10.12 on Surface Book. Since there's still a little bit of problems with the NVMe driver, you will likely get a error message says: unable to unmount volume for repair
I am not sure if the error spreads largely, but, I experienced it every time I install the 10.12
The temporary workaround is that to use an external USB hard drive or a SD card, I don't recommend a USB thumb drive unless it's superfast.
Install 10.12 as normal to the external hard drive apply all the combo updates to the external hard drive system Use the recovery environment comes with the Installer (not the hard drive) Open Disk Utilities and restore the whole USB hard drive to the macOS install drive You can apply combo or delta updates as normal, but do not apply big updates that requires a standalone app download, backup and reinstall instead Problems regarding 10.12 installing has been solved, please proceed as normal
The Final Process: Make your experience better
You don't have to patch the keyboard drivers for 10.12.1 and/or above
For 10.12, please install the kexts in 10.12 "install" folder located in the driver pack
Make the keyboard works (10.11 only)
Navigate to InstallHD/System/Library/Extension Copy the IOUSBFamily Kext to your desktop or wherever you like Right click on it and choose show package content, go to /Contents/PlugIns Right click on IOUSBHIDDriver and choose show package content, go to /Contents Open Info.plist using software like: PlistEditor Pro, and xCode Navigate to IOKitPersonalities Copy Generic Keyboard and right click on IOKitPersonalities Select "Paste as a child" Expand Generic Keyboard 2 change the value of bInterfaceProtocol to 0 change the value of bInterfaceSubclass to 3 change USBCompatibilityMatch to YES (doesn't have this on 10.11) save the file and open Kext Utilities Drag and Drop the kext in to it, enter password and after it finished reboot, then you should have a working keyboard Install Clover to SSD
To install clover to ssd, you need the CLOVER PKG installer and remeber to update as a new version releases, it might contains bug fixes.
Install clover as normal, install to your HACKINTOSH INSTALL DRIVE Use UEFI Boot Version, Install theme, and Driver, unselect CsmVideoDxe PUT THE SURFACE BOOT DRIVER INTO THE DIRECTORY Use BOOTICE x64 Version under windows, mount EFI under windows, Select UEFI tab, add a new boot entry navigate to EFI:\EFI\CLOVER\CLOVERX64.efi, name it clover bootloader (or whatever you like). Go to Surface UEFI, unselect Windows Boot Manager under Boot tab, select and drag CLOVER to the first position of the UEFI boot sequence,
NOTICE: DO NOT DELETE "INTERNAL" selection in UEFI setup, or your Surface WILL NOT BOOT (won't happen on newer BIOS)
By the way, according to the feedback, there has been some problems with the AppleHDA patch, please install AppleHDA298.kext to S/L/E directly using your kext installer instead of placing it under /CLOVER/kexts, also, please use sRGB as color profile to avoid any grahpics glitch in 10.11.
You'll need a Wi-Fi dongle to get online or you can use USB Sharing on Android and iOS, don't know whether network sharing on Ubuntu Touch, Windows Phone and Blackberry will work
You'll also need a Bluetooth dongle to get BT working
and all of you
I have been having a pretty major issue with my new Hackintosh lately. It has been displaying broken link images in safari (See image 1). It has also had certain areas of artifacting such as the storyboard in Xcode (See image 2). and finally PDFs have been showing up completely blacked out (See image 3). This has been a big issue for me and I was wondering if any of you have had the same problem and have had any luck fixing it. I have already tried display calibration and switching to integrated graphics. Thanks in advance!
(See attached for config.plist)
MB: Gigabyte Z370XP SLI
GPU: ASUS 1070 Dual
RAM: 16GB Ballistix (8GB x 2)
HDD: WD Blue 1TB
