( SOLVED ) MaciASL ONE Error

35 posts in this topic

Recommended Posts

I try to compile my DSDT  for My Mobos GA Z87X-UD5H



How can fix this only one Error  with MaciASL   ??  the compiler gives me this error  :(

Someone help me please to fixing this  ;)




Share this post


Link to post
Share on other sites
Advertisement

@chris1111,



Maybe apply Toleda's 8 series clean compile patch to your native dsdt -located in his repo--->link.

Thanks  but not work   :(

Share this post


Link to post
Share on other sites

@chris1111,



Deleting all the lines with zero might work....



Pjalm had a very good patch repo for gigabyte boards (including yours) that used MaciASL.....disappeared 1-2 weeks ago :no: .



As an alternative to patching your dsdt, Rampagedev provides an optimised SSDT for the GA-Z87X-UD5H (and other Haswell motherboards) at his website.  This injects code into the native DSDT during boot to achieve the same effect as a patched DSDT.  Apparently this survives through firmware upgrades.

Share this post


Link to post
Share on other sites

Thanks  but not work   :(

See .. We will use MaciASL u can download it from here.

After download install application and run it, go to preferences and add sources like this.

Preview guiding
Do not forget to this Ad

Or to follow me anywhere.
search
Device (P0PB)
             {
                 Name (_ADR, 0x00010002)
                 Method (_PRT, 0, NotSerialized).
                 {
                     If (PICM)
                     {
                         Return (AR0B ())
                     }

                     Return (PR0B ())
                 }
             }

under the

Device (MEI)
            {
                Name (_ADR, 0x00160000)
                Method (_DSM, 4, NotSerialized)
                {
                    Store (Package (0x02)
                        {
                            "layout-id",
                            Buffer (0x04)
                            {
                                0x3A, 0x8C, 0x00, 0x00
                            }
                        }, Local0)
                    DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                    Return (Local0)
                }
            }

            Device (IGPU)
            {
                Name (_ADR, 0x00020000)
                Method (_DSM, 4, NotSerialized)
                {
                    Store (Package (0x0E)
                        {
                            "AAPL,slot-name",
                            "Built In",
                            "name",
                            "Intel Graphics Controller",
                            "model",
                            Buffer (0x17)
                            {
                                "Intel HD Graphics 4600"
                            },

                            "device_type",
                            Buffer (0x14)
                            {
                                "Graphics Controller"
                            },

                            "device-id",
                            Buffer (0x04)
                            {
                                0x12, 0x04, 0x00, 0x00
                            },

                            "AAPL,ig-platform-id",
                            Buffer (0x04)
                            {
                                0x03, 0x00, 0x22, 0x0D
                            },

                            "hda-gfx",
                            Buffer (0x0A)
                            {
                                "onboard-1"
                            }
                        }, Local0)
                    DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                    Return (Local0)
                }
            }

            Device (HDAU)
            {
                Name (_ADR, 0x00030000)
                Method (_DSM, 4, NotSerialized)
                {
                    Store (Package (0x14)
                        {
                            "AAPL,slot-name",
                            "Built In",
                            "name",
                            "High Definition Audio Controller",
                            "built-in",
                            Buffer (One)
                            {
                                0x00
                            },

                            "model",
                            Buffer (0x16)
                            {
                                "Intel Lynx Point HDMI"
                            },

                            "device_type",
                            Buffer (0x17)
                            {
                                "Intel(R) Display Audio"
                            },

                            "device-id",
                            Buffer (0x04)
                            {
                                0x0C, 0x0C, 0x00, 0x00
                            },

                            "subsystem-id",
                            Buffer (0x04)
                            {
                                0x10, 0x20, 0x00, 0x00
                            },

                            "layout-id",
                            Buffer (0x04)
                            {
                                0x01, 0x00, 0x00, 0x00
                            },

                            "PinConfigurations",
                            Buffer (Zero) {},
                            "hda-gfx",
                            Buffer (0x0A)
                            {
                                "onboard-1"
                            }
                        }, Local0)
                    DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                    Return (Local0)
                }
            }

arrive

Device (B0D4)

Share this post


Link to post
Share on other sites

@chris1111,



Deleting all the lines with zero might work....



Pjalm had a very good patch repo for gigabyte boards (including yours) that used MaciASL.....disappeared 1-2 weeks ago :no: .



As an alternative to patching your dsdt, Rampagedev provides an optimised SSDT for the GA-Z87X-UD5H (and other Haswell motherboards) at his website.  This injects code into the native DSDT during boot to achieve the same effect as a patched DSDT.  Apparently this survives through firmware upgrades.

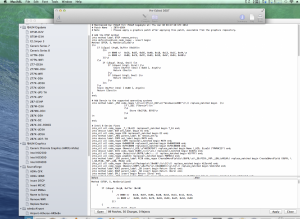

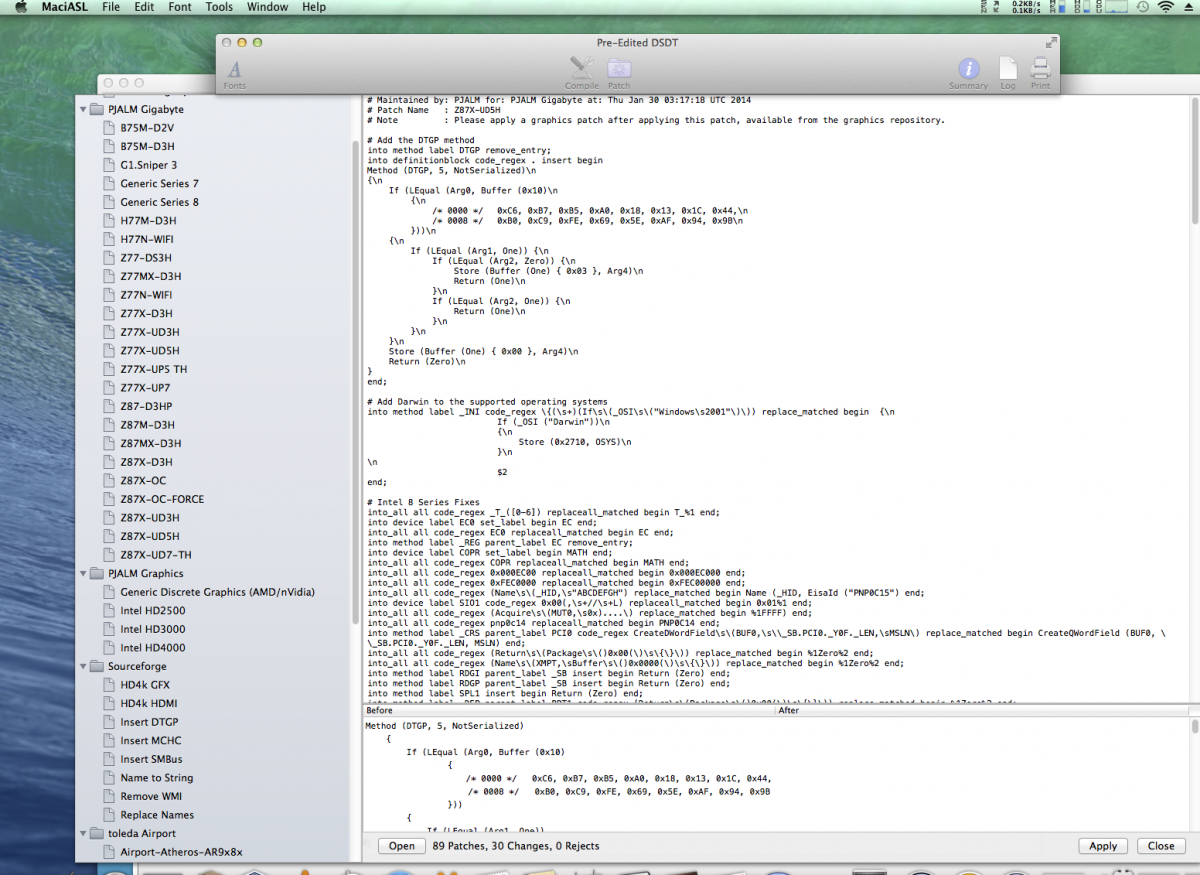

I have already used the PjALM patch for my mobos and the only one error stays



I am really bad whit DSDT  :lol:  :P I try to delete the Zero and result 38 error  :w00t:  :lol:

Share this post


Link to post
Share on other sites

I try to compile my DSDT  for My Mobos GA Z87X-UD5H

How can fix this only one Error  with MaciASL   ??  the compiler gives me this error

It is not possble to Patch a patched dsdt.

I cannot reproduce a compile with one error.  Suggest extracting the native dsdt:

1. Remove edited dsdt or boot with DSDT=null flag

2. MaciASL/File/New from ACPI/DSDT or File/Export Tableset...

Attach native dsdt.

Share this post


Link to post
Share on other sites

It is not possble to Patch a patched dsdt.

I cannot reproduce a compile with one error.  Suggest extracting the native dsdt:

1. Remove edited dsdt or boot with DSDT=null flag

2. MaciASL/File/New from ACPI/DSDT or File/Export Tableset...

Attach native dsdt.

ok thanks  I have to files  :)

Share this post


Link to post
Share on other sites

ok thanks  I have to files  :)

Hichris1111

This program AIDA64 (everest) Extreme Edition 2.0.1758 Beta.
Save Acpi then bottom right click choose Save Acpi DSDT.
The one you sent, it is not clean enough. :)  :)

http://www.youtube.com/watch?v=wK8sHsQ-76Q

Share this post


Link to post
Share on other sites

ok

Not native, Clover patched - PEG0 not correct (adds GFX0/interferes with existing GFX0), HDEF missing, No HD4600 edits.

PJALM repo down is back.



MaciASL/Patch/8series/8series-Clean Compile/Apply/Close/Compile

Three errors: Name already exists in ..., Delete each line, Compile/Save



Whatever was wrong with the dsdt in Post #1, can be fixed with the code in the successfully compiling dsdt.



Correct audio/video edits: Patch/8series:

1. Desktop-add_dsdt(PCI0/P0P2 (w/ssdt/PEGO)

2. Desktop-HD5K/AMD/Nvidia-A1

Share this post


Link to post
Share on other sites

Hichris1111

This program AIDA64 (everest) Extreme Edition 2.0.1758 Beta.
Save Acpi then bottom right click choose Save Acpi DSDT.
The one you sent, it is not clean enough. :)  :)

http://www.youtube.com/watch?v=wK8sHsQ-76Q

I dont have windows  for now  sorry   :blush:

Not native, Clover patched - PEG0 not correct (adds GFX0/interferes with existing GFX0), HDEF missing, No HD4600 edits.

PJALM repo down.



MaciASL/Patch/8series/8series-Clean Compile/Apply/Close/Compile

Three errors: Name already exists in ..., Delete each line, Compile/Save



Whatever was wrong with the dsdt in Post #1, can be fixed with the code in the successfully compiling dsdt.



Correct audio/video edits: Patch/8series:

1. Desktop-add_dsdt(PCI0/P0P2 (w/ssdt/PEGO)

2. Desktop-HD5K/AMD/Nvidia-A1

not work I give up on that  :blowup:  :fiery:

Share this post


Link to post
Share on other sites

with a linux live cd :



DSDT EXTRACT LINUX:

sudo cat /sys/firmware/acpi/tables/DSDT > dsdt.aml



cd /home/ubuntu/Desktop

sudo cat /sys/firmware/acpi/tables/SSDT > SSDT.aml

sudo cat /sys/firmware/acpi/tables/dynamic/SSDT2

Share this post


Link to post
Share on other sites

with a linux live cd :



DSDT EXTRACT LINUX:

sudo cat /sys/firmware/acpi/tables/DSDT > dsdt.aml



cd /home/ubuntu/Desktop

sudo cat /sys/firmware/acpi/tables/SSDT > SSDT.aml

sudo cat /sys/firmware/acpi/tables/dynamic/SSDT2

I have the live cd  I going try that tonight thanks   :)

Share this post


Link to post
Share on other sites

Within Clover's GUI press F3 or F4 (I don't remember that well. Read the F1 help menu) and all your tables will be dumped to the ACPI/origin folder. Be aware that if you use the OEM folder then you'll need to create the ACPI/origin sub folders for it to work. You could also check the DSDT patches you want within Clover and then dump the patched DSDT using the same method, but it's another "F" key (check the help).

Share this post


Link to post
Share on other sites

with a linux live cd :



DSDT EXTRACT LINUX:

sudo cat /sys/firmware/acpi/tables/DSDT > dsdt.aml



cd /home/ubuntu/Desktop

sudo cat /sys/firmware/acpi/tables/SSDT > SSDT.aml

sudo cat /sys/firmware/acpi/tables/dynamic/SSDT2

same error  :hysterical:  ubuntu  one more !   now have to error   :lol:

Within Clover's GUI press F3 or F4 (I don't remember that well. Read the F1 help menu) and all your tables will be dumped to the ACPI/origin folder. Be aware that if you use the OEM folder then you'll need to create the ACPI/origin sub folders for it to work. You could also check the DSDT patches you want within Clover and then dump the patched DSDT using the same method, but it's another "F" key (check the help).

Thanks for help Maniac10   :)  so now I have this  on folder origin










what I need to do with that  ? :D  sorry but I am not really good on DSDT  this is my worst nightmare  :lol:

With Clover dsdt patching, native dsdt: EFI/Clover/ACPI/origin/DSDT-or.aml

sorry   dont find  this  patching, native dsdt ?

Share this post


Link to post
Share on other sites

Now you can use that clean DSDT to add patches of your own, or through MaciASL. And as I told you before you can also obtain an already patched DSDT with Clover, just enable the necessary DSDT Fixes within Clover's menus and proceed to dump the "patched" tables. As a result you'll have a patched DSDT in ACPI/origin/patched or origin.

Share this post


Link to post
Share on other sites

sorry   dont find  this  patching, native dsdt ?

MaciASL patching:

See MaciASL Repo "general"

Add repo:

8_Series: https://raw.github.com/toleda/audio_hdmi_8series/master
PJALM Gigabyte: http://pjalm.info/repos/gigabyte

1. MaciASL/File/Open/dsdt.aml

2. MaciASL/Patch/    (select patch)

3. MaciASL/Patch/Apply

4. MaciASL/Patch/Close

5. MaciASL/Compile

6. For more patches, goto 2. MaciASL/Patch/

7. MaciASL/File/Save As... /File Format: ACPI Machine Language Binary/DSDT.aml

Share this post


Link to post
Share on other sites

Within Clover's GUI press F3 or F4 (I don't remember that well. Read the F1 help menu) and all your tables will be dumped to the ACPI/origin folder. Be aware that if you use the OEM folder then you'll need to create the ACPI/origin sub folders for it to work. You could also check the DSDT patches you want within Clover and then dump the patched DSDT using the same method, but it's another "F" key (check the help).



Just for future reference, it is F4 :).



@toleda,

thanks for the heads up re Pjalm's Gigabyte repo.  I can confirm it is now back online :thumbsup_anim:.



@chris1111,

Can you upload the DSDT.aml in the origin folder from your post #17 or the one you made from the linux live media?



Repos

Pjalm Gigabyte: http://pjalm.info/repos/gigabyte

Pjalm Graphics: http://pjalm.info/repos/graphics



You only need to apply Pjalm's Z87X-UD5H mobo patch and the Generic Discrete Graphics (AMD/nVidia) patch to your native (unpatched/untouched) DSDT - see screenshot




Share this post


Link to post
Share on other sites

MaciASL patching:

See MaciASL Repo "general"

Add repo:

8_Series: https://raw.github.com/toleda/audio_hdmi_8series/master
PJALM Gigabyte: http://pjalm.info/repos/gigabyte

1. MaciASL/File/Open/dsdt.aml

2. MaciASL/Patch/    (select patch)

3. MaciASL/Patch/Apply

4. MaciASL/Patch/Close

5. MaciASL/Compile

6. For more patches, goto 2. MaciASL/Patch/

7. MaciASL/File/Save As... /File Format: ACPI Machine Language Binary/DSDT.aml

I apply the patch and same error in the my first post   :no:    :wallbash:  :wallbash:

    I  can't compile  with one error !  whats wrong :blink:

Share this post


Link to post
Share on other sites

MaciASL patching:

See MaciASL Repo "general"

Add repo:

8_Series: https://raw.github.com/toleda/audio_hdmi_8series/master
PJALM Gigabyte: http://pjalm.info/repos/gigabyte

1. MaciASL/File/Open/dsdt.aml

2. MaciASL/Patch/    (select patch)

3. MaciASL/Patch/Apply

4. MaciASL/Patch/Close

5. MaciASL/Compile

6. For more patches, goto 2. MaciASL/Patch/

7. MaciASL/File/Save As... /File Format: ACPI Machine Language Binary/DSDT.aml

Hello toleda chris1111
MaciASL it does not, I have to use this DSDT Editor.
I try MaciASL patch it is no longer applicable.
Try DSDT Editor View
thank

Or submit a new original DSDT.aml file. Make friends and I could help you.
Do not attempt to clean the file DSDT.aml correct.

Share this post


Link to post
Share on other sites



Hello toleda chris1111
MaciASL it does not, I have to use this DSDT Editor.
I try MaciASL patch it is no longer applicable.
Try DSDT Editor View
thank



ok thanks naidb  :)  anyway its to late  !   I need to reinstall Mavericks from scratch I screwup my installation

  My fault    :P  the OS X not boot anymore ; see you next time , next Hackintosh Adventure   :lol:  :D

Share this post


Link to post
Share on other sites

I am back with my  new O S X  :lol:  sorry I try couples things in the same time

and I screw up My last Installation  :rofl:  now its ok  B)
