Uoc Nguyen

Thinkpad T430 - Mavericks 10.9.x - Yosemite 10.10

Recommended Posts

Download

http://goo.gl/qlWGgU




UPDATE




10.10.1 - Nov 18, 2014:

- Updated to 10.10.1

- Use modified Apple's IOBluetoothFamily.kext version for Bluetooth.

- Switch back to Apple's AppleHDA.kext.

- Patch on the fly using CLOVER for AppleHDA and AppleIntelFramebufferCapri

- Use NVIDIA Web Driver, URL to download from this thread: topic/301416-nvidia-web-driver-updates-for-yosemite/

- BIOS settings: set boot mode to Both (UEFI & Legacy), UEFI First to avoid problem with Optimus and NVIDIA Discrete mode




10.10 beta 5 - Oct 13, 2014:

- Updated to 10.10 beta 5

- Added package for 10.10: Bluetooth work with old IOBluetoothFamily.kext from 10.9.x. Updated DSDT for NVIDIA, Optimus and Intel only.

- Move to mega.co.nz for better hosting and versioning.




10.10 beta 3 - Sep 26, 2014:

Anyone tried 10.10 Yosemite? I tried last night and it's work with some issues, but useable. I have updated to Beta 3 also.

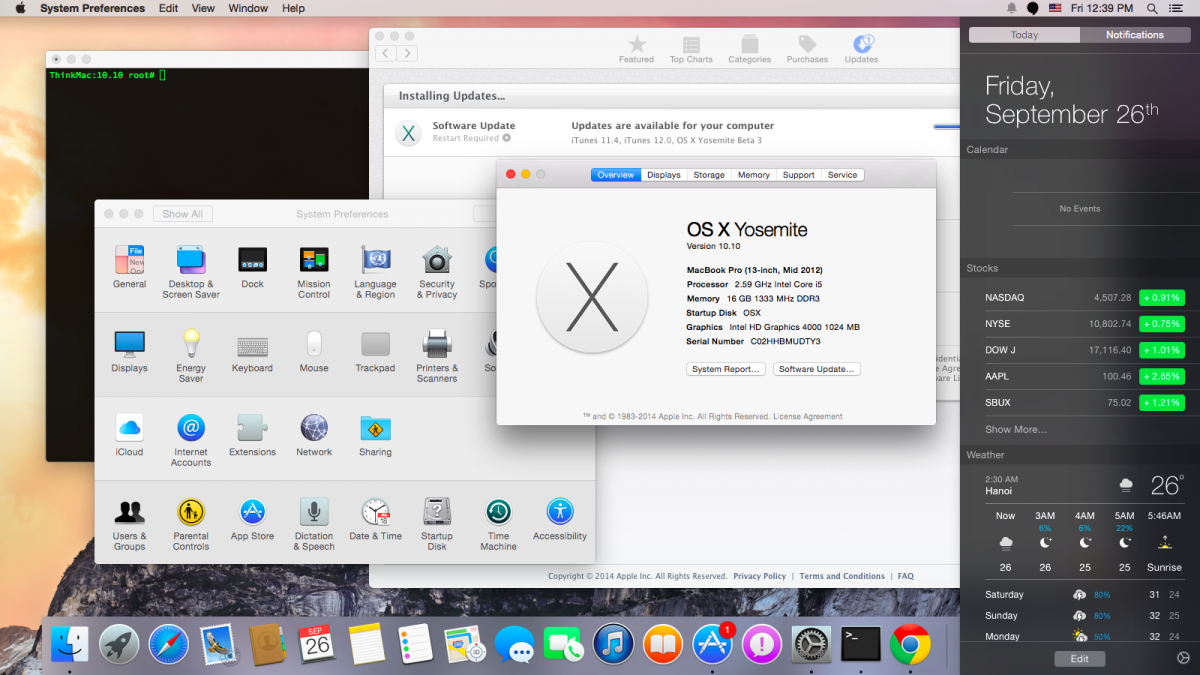

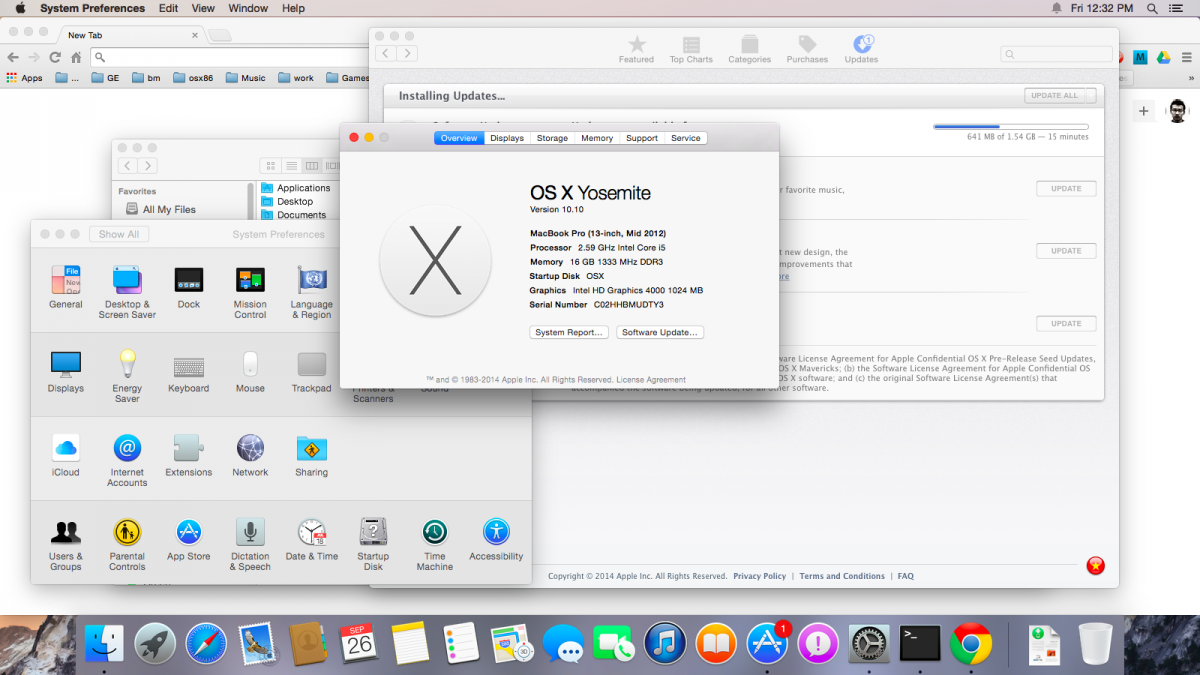

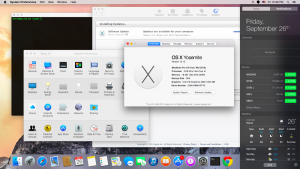

Here is some screenshots:







Short summary:



- Bluetooth

- NVIDIA not work (DP1, not tested on Beta3)

- Intel HD4000: native res but no QE/CI

- Sound: Need to patch AppleHDA.kext for layout 28

- Battery: need new patch in DSDT (use tluck's T420 DSDT work)

- Sleep / Shutdown work as Mavericks





Quick way:



- Update your CLOVER first to latest: sourceforge.net/projects/cloverefiboot/files/latest/download

- Create bootable usb or partition using this guide: http://www.insanelymac.com/forum/topic/298521-easy-yosemite-1010-usb-installer-updated-9-2-2014/

Note: you will need to copy BaseSystem.dmg (it is big as 470MB) so you will need at least 8GB USB. I have 6.5GB partition and it is fit for setup size but I don't have room for modding (kext, backup...)

- Download CLOVER package from tluck's topic then extract, backup your kexts and copy all EFI/CLOVER/kexts/10.10/*.kext to /S/L/E/

- Add kext-dev-mode=1 to CLOVER kernel argument.

- After install / upgrade you will need to re-copy all kexts.



Update 1: Never mind, NVIDIA work well after repair permission. System FAN and Thermal Sensor for NVIDIA not show (need to patch with new DSDT)

Update 2:

- System FAN, GPU and other thermal sensor work after update DSDT, updated HW Monitor and latest FakeSMC.

- NVIDIA Work but not detect / turn on built-in monitor, need to detect displays in displays settings to turn it on after boot.

- Bluetooth still not work

- Sound work with VoodooHDA

- Battery work



Look like CPU throttled too much, it is stick at 3Ghz most time and temperature is about 90oC @@, might need to generate SSDT or can be Yosemite issue. The temperature is about ~50-60oC with Intel HD4000.






10.9.3:



  • ​HWMonitor version 6.8.1307 support FAN sensor (Check for update inside app and install FakeSMC and all it's plugins)
  • NVIDIA: new version not work, replace with old working kexts (NV*.kext)
  • Intel HD 4000 Capri: patch with Platform-ID `0300 6601` - Hex: `01 00 00 00 02 00 00 00 30 02 00 00`
  • AppleHDA: patch-hda-3.1 NOT work - Work with VoodooHDA 2.8.4 (download from zip file here or pkg installer here
  • AppleIntelCPUPowerManagement.kext patch with AICPMPatch

  • Bluetooth: using modified kext from #26 (thanks @eilatuno)

  • Others old kexts: AppleACPIPlatform.kext, IOUSBFamily.kext
  • Shutdown / Restart / Sleep work well using latest CLOVER r2671




10.9.1:

  • Sound stop working as AppleHDA.kext updated for VoiceOver bug fix, re-patch with patch AppleHDA script 3.1 from this thread
  • Everything work well as 10.9.0 as last. Still have problem with Shutdown / Restart / Sleep






STATUS




* Working parts:

  • Intel HD 4000 (Capri): Full resolution: 1600x900, QE/CI
  • NVIDIA GF108M (NVS 5400M):  Full resolution: 1600x900, QE/CI
  • VGA, Display Port
  • Wired network / Ethernet
  • Think Light, Keyboard backlit (BIOS controlled)
  • Webcam
  • Mic, Speaker, Audio Jack
  • Bluetooth
  • Trackpoint, Touchpad
  • USB 3.0
  • Battery
  • UEFI with CLOVER r2366
  • Keyboard. Multimedia keys: Sleep, Prev / Play / Pause / Next (Brightness control with Fn-F8/F9 not work)
  • Shutdown / Restart / Sleep

* NOT working parts:

  • Intel Centrino Advanced-N 6205 Wireless adapter
  • Card reader




HOW TO



1. Create Mac OS X Maverick 10.9 USB installer: Google it!



2. Install CLOVER EFI bootloader or Chameleon

Use my config.plist if you install CLOVER

NOTE: need to change the SMBIOS hardware section and CustomUUID to your own hardware.



3. Backup and copy kexts from attached file



4. Option: install LCD display profile



5. Option: install HWMonitor.app



6. DSDT: Use diff tool to apply diff changes

a) I'm using 3 different DSDT file for 3 graphic config mode:

  • DSDT.d.dsl / DSDT.d.aml: for Discrete graphic only BIOS config
    • VGA, Mini-DP work well but hottest
    • Temperatures on my machine:
      • CPU: avg: 65oC, range: 60-85
      • GPU: avg: 60oC, range: 56-74
  • DSDT.o.dsl / DSDT.o.aml: for Optimus graphic BIOS config - NOTE: you will need to backup & remove  /S/L/E/NVDA* because of OS X not support Optimus mode and it caused conflict loading video driver.
  • DSDT.i.dsl / DSDT.i.aml: for Integrated graphic only BIOS config

B) Optimus & Integrated gave me much more cooler temperatures but NO VGA, Min-DP - I usually use Integrated mode for travelling and Discrete mode for work because I need extend to my external Dell monitor.



c) Temperatures when using Integrated only mode:

  • CPU: avg: 45oC, range: 40-70-80

d) I added FAN control to DSDT based on T420 / W520 guides, Thinkvantage button will be used to toggle turbo fan mode.



7. SSDT: I used auto generated P-States and C-States CLOVER's option






Hardware Specifications






- Model: Thinkpad T430 2344BMU
- lshw -numeric on Ubuntu 13.10



Hardware specs





HOSTNAME
    description: Notebook
    product: 2344BMU (LENOVO_MT_2344)
    vendor: LENOVO
    version: ThinkPad T430
    serial: [REMOVED]
    width: 64 bits
    capabilities: smbios-2.7 dmi-2.7 vsyscall32
    configuration: administrator_password=disabled chassis=notebook family=ThinkPad T430 power-on_password=disabled sku=LENOVO_MT_2344 uuid=[REMOVED]
  *-core
       description: Motherboard
       product: 2344BMU
       vendor: LENOVO
       physical id: 0
       version: Win8 Pro DPK TPG
       serial: [REMOVED]
       slot: Not Available
     *-cpu
          description: CPU
          product: Intel® Core i5-3320M CPU @ 2.60GHz
          vendor: Intel Corp.
          physical id: 1
          bus info: cpu@0
          version: Intel® Core i5-3320M CPU @ 2.60GHz
          serial: None
          slot: CPU Socket - U3E1
          size: 1200MHz
          capacity: 1200MHz
          width: 64 bits
          clock: 100MHz
          capabilities: x86-64 fpu fpu_exception wp vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx rdtscp constant_tsc arch_perfmon pebs bts rep_good nopl xtopology nonstop_tsc aperfmperf eagerfpu pni pclmulqdq dtes64 monitor ds_cpl vmx smx est tm2 ssse3 cx16 xtpr pdcm pcid sse4_1 sse4_2 x2apic popcnt tsc_deadline_timer aes xsave avx f16c rdrand lahf_lm ida arat epb xsaveopt pln pts dtherm tpr_shadow vnmi flexpriority ept vpid fsgsbase smep erms cpufreq
          configuration: cores=2 enabledcores=2 threads=4
        *-cache:0
             description: L1 cache
             physical id: 3
             slot: L1-Cache
             size: 32KiB
             capacity: 32KiB
             capabilities: internal write-through instruction
        *-cache:1
             description: L2 cache
             physical id: 4
             slot: L2-Cache
             size: 256KiB
             capacity: 256KiB
             capabilities: internal write-through unified
        *-cache:2
             description: L3 cache
             physical id: 5
             slot: L3-Cache
             size: 3MiB
             capacity: 3MiB
             capabilities: internal write-back unified
     *-cache
          description: L1 cache
          physical id: 2
          slot: L1-Cache
          size: 32KiB
          capacity: 32KiB
          capabilities: internal write-through data
     *-memory
          description: System Memory
          physical id: 7
          slot: System board or motherboard
          size: 16GiB
        *-bank:0
             description: SODIMM DDR3 Synchronous 1333 MHz (0.8 ns)
             product: CMSO8GX3M1A1333C9
             vendor: AMI
             physical id: 0
             serial: 00000000
             slot: ChannelA-DIMM0
             size: 8GiB
             width: 64 bits
             clock: 1333MHz (0.8ns)
        *-bank:1
             description: SODIMM DDR3 Synchronous 1333 MHz (0.8 ns)
             product: CMSO8GX3M1A1333C9
             vendor: AMI
             physical id: 1
             serial: 00000000
             slot: ChannelB-DIMM0
             size: 8GiB
             width: 64 bits
             clock: 1333MHz (0.8ns)
     *-firmware
          description: BIOS
          vendor: LENOVO
          physical id: c
          version: G1ET94WW (2.54 )
          date: 04/22/2013
          size: 128KiB
          capacity: 11MiB
          capabilities: pci pnp upgrade shadowing cdboot bootselect edd int13floppy720 int5printscreen int9keyboard int14serial int17printer int10video acpi usb biosbootspecification uefi
     *-pci
          description: Host bridge
          product: 3rd Gen Core processor DRAM Controller [8086:154]
          vendor: Intel Corporation [8086]
          physical id: 100
          bus info: pci@0000:00:00.0
          version: 09
          width: 32 bits
          clock: 33MHz
        *-pci:0
             description: PCI bridge
             product: Xeon E3-1200 v2/3rd Gen Core processor PCI Express Root Port [8086:151]
             vendor: Intel Corporation [8086]
             physical id: 1
             bus info: pci@0000:00:01.0
             version: 09
             width: 32 bits
             clock: 33MHz
             capabilities: pci pm msi pciexpress normal_decode bus_master cap_list
             configuration: driver=pcieport
             resources: irq:42 ioport:5000(size=4096) memory:f0000000-f10fffff ioport:c0000000(size=301989888)
           *-display
                description: VGA compatible controller
                product: GF108M [NVS 5400M] [10DE:DEF]
                vendor: NVIDIA Corporation [10DE]
                physical id: 0
                bus info: pci@0000:01:00.0
                version: a1
                width: 64 bits
                clock: 33MHz
                capabilities: pm msi pciexpress vga_controller bus_master cap_list rom
                configuration: driver=nvidia latency=0
                resources: irq:16 memory:f0000000-f0ffffff memory:c0000000-cfffffff memory:d0000000-d1ffffff ioport:5000(size=128) memory:f1000000-f107ffff
        *-display
             description: VGA compatible controller
             product: 3rd Gen Core processor Graphics Controller [8086:166]
             vendor: Intel Corporation [8086]
             physical id: 2
             bus info: pci@0000:00:02.0
             version: 09
             width: 64 bits
             clock: 33MHz
             capabilities: msi pm vga_controller bus_master cap_list rom
             configuration: driver=i915 latency=0
             resources: irq:46 memory:f1400000-f17fffff memory:e0000000-efffffff ioport:6000(size=64)
        *-usb:0
             description: USB controller
             product: 7 Series/C210 Series Chipset Family USB xHCI Host Controller [8086:1E31]
             vendor: Intel Corporation [8086]
             physical id: 14
             bus info: pci@0000:00:14.0
             version: 04
             width: 64 bits
             clock: 33MHz
             capabilities: pm msi xhci bus_master cap_list
             configuration: driver=xhci_hcd latency=0
             resources: irq:43 memory:f3920000-f392ffff
        *-communication:0
             description: Communication controller
             product: 7 Series/C210 Series Chipset Family MEI Controller #1 [8086:1E3A]
             vendor: Intel Corporation [8086]
             physical id: 16
             bus info: pci@0000:00:16.0
             version: 04
             width: 64 bits
             clock: 33MHz
             capabilities: pm msi bus_master cap_list
             configuration: driver=mei_me latency=0
             resources: irq:48 memory:f3935000-f393500f
        *-communication:1
             description: Serial controller
             product: 7 Series/C210 Series Chipset Family KT Controller [8086:1E3D]
             vendor: Intel Corporation [8086]
             physical id: 16.3
             bus info: pci@0000:00:16.3
             version: 04
             width: 32 bits
             clock: 66MHz
             capabilities: pm msi 16550 bus_master cap_list
             configuration: driver=serial latency=0
             resources: irq:19 ioport:60b0(size=8) memory:f393c000-f393cfff
        *-network
             description: Ethernet interface
             product: 82579LM Gigabit Network Connection [8086:1502]
             vendor: Intel Corporation [8086]
             physical id: 19
             bus info: pci@0000:00:19.0
             logical name: eth0
             version: 04
             serial: [REMOVED]
             size: 100Mbit/s
             capacity: 1Gbit/s
             width: 32 bits
             clock: 33MHz
             capabilities: pm msi bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt-fd autonegotiation
             configuration: autonegotiation=on broadcast=yes driver=e1000e driverversion=2.3.2-k duplex=full firmware=0.13-3 ip=192.168.0.101 latency=0 link=yes multicast=yes port=twisted pair speed=100Mbit/s
             resources: irq:44 memory:f3900000-f391ffff memory:f393b000-f393bfff ioport:6080(size=32)
        *-usb:1
             description: USB controller
             product: 7 Series/C210 Series Chipset Family USB Enhanced Host Controller #2 [8086:1E2D]
             vendor: Intel Corporation [8086]
             physical id: 1a
             bus info: pci@0000:00:1a.0
             version: 04
             width: 32 bits
             clock: 33MHz
             capabilities: pm debug ehci bus_master cap_list
             configuration: driver=ehci-pci latency=0
             resources: irq:16 memory:f393a000-f393a3ff
        *-multimedia
             description: Audio device
             product: 7 Series/C210 Series Chipset Family High Definition Audio Controller [8086:1E20]
             vendor: Intel Corporation [8086]
             physical id: 1b
             bus info: pci@0000:00:1b.0
             version: 04
             width: 64 bits
             clock: 33MHz
             capabilities: pm msi pciexpress bus_master cap_list
             configuration: driver=snd_hda_intel latency=0
             resources: irq:49 memory:f3930000-f3933fff
        *-pci:1
             description: PCI bridge
             product: 7 Series/C210 Series Chipset Family PCI Express Root Port 1 [8086:1E10]
             vendor: Intel Corporation [8086]
             physical id: 1c
             bus info: pci@0000:00:1c.0
             version: c4
             width: 32 bits
             clock: 33MHz
             capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
             configuration: driver=pcieport
             resources: irq:16 ioport:4000(size=4096) memory:f3100000-f38fffff ioport:f1800000(size=8388608)
           *-generic
                description: System peripheral
                product: MMC/SD Host Controller [1180:E822]
                vendor: Ricoh Co Ltd [1180]
                physical id: 0
                bus info: pci@0000:02:00.0
                version: 07
                width: 32 bits
                clock: 33MHz
                capabilities: msi pm pciexpress bus_master cap_list
                configuration: driver=sdhci-pci latency=0
                resources: irq:16 memory:f3100000-f31000ff
        *-pci:2
             description: PCI bridge
             product: 7 Series/C210 Series Chipset Family PCI Express Root Port 2 [8086:1E12]
             vendor: Intel Corporation [8086]
             physical id: 1c.1
             bus info: pci@0000:00:1c.1
             version: c4
             width: 32 bits
             clock: 33MHz
             capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
             configuration: driver=pcieport
             resources: irq:17 memory:f3000000-f30fffff
           *-network DISABLED
                description: Wireless interface
                product: Centrino Advanced-N 6205 [Taylor Peak] [8086:85]
                vendor: Intel Corporation [8086]
                physical id: 0
                bus info: pci@0000:03:00.0
                logical name: wlan0
                version: 34
                serial: [REMOVED]
                width: 64 bits
                clock: 33MHz
                capabilities: pm msi pciexpress bus_master cap_list ethernet physical wireless
                configuration: broadcast=yes driver=iwlwifi driverversion=3.11.0-12-generic firmware=18.168.6.1 latency=0 link=no multicast=yes wireless=IEEE 802.11abgn
                resources: irq:47 memory:f3000000-f3001fff
        *-pci:3
             description: PCI bridge
             product: 7 Series/C210 Series Chipset Family PCI Express Root Port 3 [8086:1E14]
             vendor: Intel Corporation [8086]
             physical id: 1c.2
             bus info: pci@0000:00:1c.2
             version: c4
             width: 32 bits
             clock: 33MHz
             capabilities: pci pciexpress msi pm normal_decode bus_master cap_list
             configuration: driver=pcieport
             resources: irq:18 ioport:3000(size=4096) memory:f2800000-f2ffffff ioport:f2000000(size=8388608)
        *-usb:2
             description: USB controller
             product: 7 Series/C210 Series Chipset Family USB Enhanced Host Controller #1 [8086:1E26]
             vendor: Intel Corporation [8086]
             physical id: 1d
             bus info: pci@0000:00:1d.0
             version: 04
             width: 32 bits
             clock: 33MHz
             capabilities: pm debug ehci bus_master cap_list
             configuration: driver=ehci-pci latency=0
             resources: irq:23 memory:f3939000-f39393ff
        *-isa
             description: ISA bridge
             product: QM77 Express Chipset LPC Controller [8086:1E55]
             vendor: Intel Corporation [8086]
             physical id: 1f
             bus info: pci@0000:00:1f.0
             version: 04
             width: 32 bits
             clock: 33MHz
             capabilities: isa bus_master cap_list
             configuration: driver=lpc_ich latency=0
             resources: irq:0
        *-storage
             description: SATA controller
             product: 7 Series Chipset Family 6-port SATA Controller [AHCI mode] [8086:1E03]
             vendor: Intel Corporation [8086]
             physical id: 1f.2
             bus info: pci@0000:00:1f.2
             version: 04
             width: 32 bits
             clock: 66MHz
             capabilities: storage msi pm ahci_1.0 bus_master cap_list
             configuration: driver=ahci latency=0
             resources: irq:45 ioport:60a8(size=8) ioport:60bc(size=4) ioport:60a0(size=8) ioport:60b8(size=4) ioport:6060(size=32) memory:f3938000-f39387ff
        *-serial UNCLAIMED
             description: SMBus
             product: 7 Series/C210 Series Chipset Family SMBus Controller [8086:1E22]
             vendor: Intel Corporation [8086]
             physical id: 1f.3
             bus info: pci@0000:00:1f.3
             version: 04
             width: 64 bits
             clock: 33MHz
             configuration: latency=0
             resources: memory:f3934000-f39340ff ioport:efa0(size=32)
     *-scsi:0
          physical id: 0
          logical name: scsi0
          capabilities: emulated
        *-disk
             description: ATA Disk
             product: HITACHI HTS72505
             vendor: Hitachi
             physical id: 0.0.0
             bus info: scsi@0:0.0.0
             logical name: /dev/sda
             version: GH2Z
             serial: [REMOVED]
             size: 465GiB (500GB)
             capabilities: gpt-1.00 partitioned partitioned:gpt
             configuration: ansiversion=5 guid=583f6577-bf94-48b1-a9be-67462968b84f sectorsize=4096
           *-volume:xxx [REMOVED]
     *-scsi:1
          physical id: 3
          logical name: scsi1
          capabilities: emulated
        *-cdrom
             description: DVD-RAM writer
             product: DVD RW AD-7740H
             vendor: Optiarc
             physical id: 0.0.0
             bus info: scsi@1:0.0.0
             logical name: /dev/cdrom
             logical name: /dev/sr0
             version: 1.S1
             capabilities: removable audio cd-r cd-rw dvd dvd-r dvd-ram
             configuration: ansiversion=5 status=nodisc
  *-battery
       product: 45N1007
       vendor: SANYO
       physical id: 1
       slot: Rear
       capacity: 93240mWh
       configuration: voltage=11.1V



Big thanks for everyone who has involved in this thread and who created stuffs, guides, tools...

Thanks for @tluck & experts in this thread to provide related update and information which I used in my package.



Feel free to ask and discussion here about Mac OS X on T430 series, I will try to help if I can in my spared time.

Edited by Uoc Nguyen

Share this post


Link to post
Share on other sites
Advertisement

Hi,  when do you plan on posting kexts?  I've recently install 10.9 on my T430 however am yet to get USB3 or the webcam working.  I've used myhack/chameleon, should I instead be using clover to ensure success?



Aside from the Nvidia chipset, my hardware seems to be identical to yours.

Share this post


Link to post
Share on other sites

Hi,



I bought a Thinkpad T430 last year and would like to install OS X Mavericks.  The H/W configuration is similar to you guys.  Could you guys please share the steps and procedures?



Many Thanks.

Share this post


Link to post
Share on other sites

Just to notify that I updated #1



Sorry for lately update, I was very busy and I can not find any spare time to collect changes, package them together and update guide.

Share this post


Link to post
Share on other sites

Thanks Uoc Nguyen.  I'm new to hackintosh and I probably will have other questions be posted later.



Thanks again for your help.

Share this post


Link to post
Share on other sites

Uoc Nguyen



I have T430 Model 2347-A82



Could you please post or MSG me the screen shots of your bios settings? I also would like to know if you used any switches to allow Mavericks to install I am currently getting the spinning loader to a black screen. If it helps to see my specs I can get these for you your help would be appreciated.



Also I was able to get Mountain Lion to work with some of the files you posted so I believe I am just missing something simple with Mavericks install.



Thank You

Share this post


Link to post
Share on other sites

@techitch: My BIOS config is normal, I enabled almost everything. You can see boot switches in CLOVER/config.plist file inside my attachment in post #1.



Let's post your screenshot of your boot progress with switch '-v' without quote.

Share this post


Link to post
Share on other sites

@Uoc Nguyen thank you for your response I think thats where I went wrong I used another method to boot because it was more straight forward for my new skills. May I ask how to find my SMBIOS and CUSTOMUUID? I found these values in your config.plist but I don't know how to get these values. I will work on using CLOVER in the morning to see if I get further installing OS X M. If it still hangs I will upload screen shot using -v switch


@ Uoc Nguyen: Found UUID in bios dough GOOGLE helps a lot!! working on SMBIOS now

Share this post


Link to post
Share on other sites

You can download Clover Configurator from here: http://mackie100.webwacemaster.altervista.org/ -> generate new SMBIOS for you and copy it back to your config.plist

You can use SMBIOS MacBookPro 9.2 like me, it is for IvyBridge Core i5/i7.



About CUSTOMUUID, you can remove it if you can not found, find it in your BIOS main screen (BIOS / Main UUID)

Share this post


Link to post
Share on other sites

@Uoc Nguyen I'm stuck @ Clover step I was able to update config but can figure out how to boot to Clover.



1. How should I format clover usb drive?



Thanks for any help you can provide.



Scott

Share this post


Link to post
Share on other sites

@uoc-nguyen



So I have created mavericks USB bootable disk using this command



sudo /Applications/Install\ OS\ X\ Mavericks.app/Contents/Resources/createinstallmedia --volume /Volumes/Untitled --applicationpath /Applications/Install\ OS\ X\ Mavericks.app --nointeraction



I have modified config.plist

I have clover installed



I am stuck on configuring clover to boot so I can install mavericks

Share this post


Link to post
Share on other sites

  You must create a GPT UEFI compatible disk (Follow this instruction to create it: https://wiki.archlinux.org/index.php/UEFI#EFI_System_Partition)



  In short, you must have an ESP (EFI partition), it is a small FAT 32 partition (about >= 128M depend your need) with EFISYS flag. It used to store CLOVER or any EFI firmware / bootloader, Linux kernel, config file, theme...

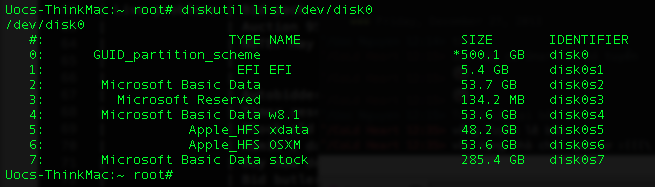

  After created a GPT partition you can verify it by command `sudo diskutil list /dev/diskX` with diskX is your USB disk, usually is disk1 as disk0 is your internal HDD, and you will see something like this:




I use some live Linux distro for some reasons, that's why my partition number 1 (EFI) is large.



  Since EFI partition is a system partition so Operating System usually hide it. You can mount it by command `sudo disk mount /dev/diskXsY` (if your EFI is first partition of your USB disk then diskXsY should be disk1s1). Now you can install CLOVER and copy config files... to this partition and create your Mac Installer Bootable USB.



  Hint: Press F12 to select boot from USB after reboot



Happy hacking!

Share this post


Link to post
Share on other sites

Finally, got wireless work with 7$ USB Wifi dongle with 150MB/s - http://www.comfast.cn/product1/product168_en.html



Look like Realtek fault, the device show as ethernet instead of wireless and need to use Wireless Network Utilities to connect to AP.



Download Mac OS X 10.8 install package from this page. It work well for 10.9.1.

Share this post


Link to post
Share on other sites

I own a T430 Type 2347A39.



After install your kexts I got everything working except the audio and the restart, sleep etc. I was working before the kexts installs...

But how did you got the fn-F9 to work for increase brightness?? My screen is too dark and I have no option to increase...

Share this post


Link to post
Share on other sites

I own a T430 Type 2347A39.



After install your kexts I got everything working except the audio and the restart, sleep etc. I was working before the kexts installs...

But how did you got the fn-F9 to work for increase brightness?? My screen is too dark and I have no option to increase...

  • Audio: you will need to patch AppleHDA and edit DSDT to use it, I'm patched and using the layout 28, you can use my patched AppleHDA version 2.5.3 from 10.9.1 AppleHDA.kext-10.9.1.zip
  • For brightness, currently I'm using the _Q14, _Q15 (Fn-K, Fn-P) in DSDT to control the brightness. If you want to use Fn+F8/F9, you need to find out which Keycode used and will need to edit the DSDT or `/System/Library/Extensions/VoodooPS2Controller.kext/Contents/PlugIns/VoodooPS2Keyboard.kext/Contents/Info.plist`
  • IFAIK, Shutdown / Restart / Sleep may caused by UEFI CLOVER, I take some work around but it still not stable to use, it is needed to edit the DSDT _PTS, _WAK method, try to use some code from this thread http://www.insanelymac.com/forum/topic/285678-lenovo-thinkpad-t420-with-uefi-only/page-25?do=findComment&comment=1952283 as reference. I tried a lots but still no luck.
Edited by Uoc Nguyen

Share this post


Link to post
Share on other sites

My hardware is almost the same as yours. I using no UEFI for now, I'm booting with legacy.

I've installed all the kexts and display and was working as I wrote in the first post. After that, I added your DSDT without diff and got appleintelcpupowermanagement panic at the boot beginning.

I'll try again adding the DSDT first.

I'll try to use the fn-P K for brightness and your patched audio.

Thanks

Share this post


Link to post
Share on other sites
  • Can you boot with single user safe mode?
  • Did you repair the permission for kexts you copied from my attachment? if not, you can boot up with the install USB/DVD and repair it use this command:
    chown -R root:wheel /Volumes/OSXROOT/System/Library/Extensions
    chmod -R 755 /Volumes/OSXROOT/System/Library/Extensions
    kextcache -u /Volumes/OSXROOT/


    replace OSXROOT with your mounted installed OSX volume

Share this post


Link to post
Share on other sites

Using DSDT.i I could boot but Audio not working even with the patched kext and Video only VGA. Keyboad, TrackPad, Bluetooth, Ethernet Working.

Using DSDT.d Nvidia looks loads correct but blank screen after the boot.

Share this post


Link to post
Share on other sites

Now I got almost everything working, thank you. Just the brightness of the screen is still annoying me. Altough I move to maximum, it still draker than I got in Windows... How to try to increase? DSDT edit? where exactly?

Share this post


Link to post
Share on other sites

Very interesting: I did a ctrl-alt-del and just after the logout the screen got the real max brightness!!! The question now is how to fix that?

Share this post


Link to post
Share on other sites

I have same problem with the NVIDIA backlight control, the baclight slider and sun OSC icon show and response to Fn-K / Fn-P but the backlight not change. Tried many way but not success. There are 2 things you may interesting:

  • It is reflect with NVIDIA's pwm-info parameter, I tried to remove and the backlight slider / sun OSC gone, tried with W520 but same problem, I think it can be calculate / export from video rom file.
  • You may try something in T420 topic

Share this post


Link to post
Share on other sites

Sometime I see a flickering happening with some colors contrasts. It's bothering me.

For the brightness issue I installed the rehabman blinkscreen hack but no success here.

Share this post


Link to post
Share on other sites

@uoc-nguyen

hi, I used your kext to install my T430,It is ok for driver, but ethernet card can't build-in, so I can't login app store. Do you have this problem?

ps. I don't use your dsdt file because it was always made me can't start my apple system.

I use the clover to load the mac os.

Share this post


Link to post
Share on other sites

Hey,



i managed to get everything working except BT and Mic.

Can you please tell me what you have done to get it work?

Thanks!



//EDIT:

Sound working

BT working

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.



  • Similar Content

    • By partha.slg123
      Hackintosh High Sierra 10.13.3 USB Installer Boot Into USB DIrectly Enter Exit Option Menu. Clover Boot Menu Not Showing. Plz Help .................



      My System Specification :

      CPU : Core i5 6400
      MB : Asus H110M-CS
      RAM : 8GB DDR 4
      HDD : WD 1TB For Windows And WD 500 GB For Hackintosh
      Bootloader : Clover
    • By Ssking
      Hello...
      i am ssking....
      Now i am using
      Asus n43jf laptop
      1st generation core i 5 460m
      4gb ddr 3 ram
      500 gb harddisk
      Intel  graphics 1650 mb and Nvidia geforce gt 425m 1gb ddr3
      now i am using yosemite 10.10.5 nicely
      but how to disable intel gpu and use nvidia 425m 1gb gpu?
      Is there any way to use nvidia gpu from my dual graphics laptop?
    • By zeg66
      Please help me with this 10.9.5 system. Motherboard: Gigabyte 965p-s3 rev3.3, gpu: Ati Radeon HD6450 (dvi/hdmi/vga).
      Using any of the 3 ports on the 6450 (dvi, hdmi, vga), I see all the white letters on black background during boot but when they complete and it's time for the graphics to start I get a black screen and sometimes a restart after that. Using Clover 4411. Is there any way to get past this?
    • By jsione
      Hello everyone.
      I'm trying to get . work my H5321gw WWAN card on High Sierra.
      I have a patched kext (in attachment) and unclear info from logs:


      Mon Apr  2 13:30:18 2018 : Initializing device: AT&FE0Q0V1 Mon Apr  2 13:30:18 2018 : Initializing PDP context: AT+CGDCONT=1,"IP","otk.msk" Mon Apr  2 13:30:18 2018 : Dialing: ATD*99***1# Mon Apr  2 13:30:18 2018 : Waiting for connection Mon Apr  2 13:30:19 2018 : Connection established Mon Apr  2 13:30:22 2018 : Serial connection established. Mon Apr  2 13:30:22 2018 : Using interface ppp0 Mon Apr  2 13:30:22 2018 : Connect: ppp0 <--> /dev/cu.wwan Mon Apr  2 13:30:56 2018 : LCP: timeout sending Config-Requests Mon Apr  2 13:30:56 2018 : Connection terminated. Mon Apr  2 13:31:06 2018 : Serial link disconnected. Mon Apr  2 13:50:48 2018 : publish_entry SCDSet() failed: Success! Mon Apr  2 13:50:48 2018 : publish_entry SCDSet() failed: Success! Mon Apr  2 13:50:49 2018 : Apple Base Script.ccl Version 3.3 Mon Apr  2 13:50:49 2018 : Initializing device: AT&FE0Q0V1 Mon Apr  2 13:50:49 2018 : Initializing PDP context: AT+CGDCONT=1,"IP","otk.msk" Mon Apr  2 13:50:49 2018 : Dialing: ATD*99***1# Mon Apr  2 13:50:49 2018 : Waiting for connection Mon Apr  2 13:50:50 2018 : Connection established Mon Apr  2 13:50:54 2018 : Serial connection established. Mon Apr  2 13:50:54 2018 : Using interface ppp0 Mon Apr  2 13:50:54 2018 : Connect: ppp0 <--> /dev/cu.usbmodem Mon Apr  2 13:51:28 2018 : LCP: timeout sending Config-Requests Mon Apr  2 13:51:28 2018 : Connection terminated. Mon Apr  2 13:51:37 2018 : Serial link disconnected.
      Please help me to resolve  my problem.
      Laptop specs: ThinkPad x230 2325-78G
      CellPhoneHelper.kext.zip
    • By zeg66
      Could you please help me enable the VGA port on the GT710 in 10.9.5 13F34 ?
      It is currently booting fine through its HDMI port, web driver 334.0103f01 and config.plist arguments checked: Verbose (-v), npci=0x2000, dart=0, nvda_drv=1
      The nvidia GT710 works fine through its VGA port and web drivers on a friend's Mac Pro 3,1
      I must soon return this borrowed HDMI monitor, mine only has a VGA port so I'd appreciate your input.
×
