badaxe2 Posted May 11, 2013 Share Posted May 11, 2013 I got my 7950 working on a fresh install with latest clover and graphicsenabler=no and using sleep method.. Only problem I have is OpenGL valley benchmark is giving me grief.... Anybody have a solution ? Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/ Share on other sites More sharing options...
artur_pt Posted May 11, 2013 Share Posted May 11, 2013 hello u can see.. something in screen.. but u graphics is all wrong... see again what u do for graphics.. OpenGL only errors... but u achieved something... u can see in monitor... http://www.insanelymac.com/forum/topic/284779-amd-7970-working-with-full-qe/ good hack Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914437 Share on other sites More sharing options...
k3nny Posted May 11, 2013 Share Posted May 11, 2013 This is a known bug (1, 2) and will be fixed in 10.8.4. Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914439 Share on other sites More sharing options...
Rampage Dev Posted May 11, 2013 Share Posted May 11, 2013 No framebuffer is loaded. Hence 7xxx. Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914440 Share on other sites More sharing options...
badaxe2 Posted May 11, 2013 Author Share Posted May 11, 2013 Thanks for the replies guys, are there any threads on getting the frabuffer to work ? Search brings nothing or it isnt working... Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914443 Share on other sites More sharing options...
Rampage Dev Posted May 12, 2013 Share Posted May 12, 2013 Thanks for the replies guys, are there any threads on getting the frabuffer to work ? Search brings nothing or it isnt working... I was the first to get it working under mac. Here is my guide: http://rampagedev.wordpress.com/2012/12/04/about-amd-7970-working-with-full-qe/ Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914456 Share on other sites More sharing options...
badaxe2 Posted May 12, 2013 Author Share Posted May 12, 2013 I'm a bit bewildred here because accroding to these screengrabs my framebuffer is working fine ? my 7950 is a reference pcb and only seems to be having problems with OpenGL 4 . OpenCL is working and OpenGL below version 4, Quartz and all desktop animations seem to be working fine.. Here is a few screen grabs and a copy of my clover config.plist - <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>SystemParameters</key> <dict> <key>boot-args</key> <string>npci=0x2000 slide=0 -v</string> <key>prev-lang:kbd</key> <string>en:0</string> <key>InjectSystemID</key> <string>Yes</string> <key>LegacyBoot</key> <string>PBR</string> </dict> <key>Graphics</key> <dict> <key>GraphicsInjector</key> <string>No</string> <key>PatchVBios</key> <string>Yes</string> </dict> <key>Pointer</key> <dict> <key>Speed</key> <string>8</string> <key>DoubleClickTime</key> <string>500</string> </dict> <key>RtVariables</key> <dict> <key>MLB</key> <string>11111111111111111</string> </dict> <key>PCI</key> <dict> <key>PCIRootUID</key> <string>0</string> <key>StringInjector</key> <string>No</string> <key>DeviceProperties</key> <string></string> <key>USBInjection</key> <string>Yes</string> <key>USBFixOwnership</key> <string>Yes</string> <key>InjectClockID</key> <string>Yes</string> <key>LpcTune</key> <string>No</string> <key>HDAInjection</key> <string>No</string> </dict> <key>PCI</key> <dict> <key>PCIRootUID</key> <string>0</string> <key>StringInjector</key> <string>No</string> <key>DeviceProperties</key> <string></string> <key>USBInjection</key> <string>Yes</string> <key>USBFixOwnership</key> <string>Yes</string> <key>InjectClockID</key> <string>Yes</string> <key>LpcTune</key> <string>No</string> <key>HDAInjection</key> <string>No</string> </dict> <key>SMBIOS</key> <dict> <key>BiosVendor</key> <string>Apple Inc.</string> <key>BiosVersion</key> <string>IM131.88Z.010A.B05.1210121459</string> <key>BiosReleaseDate</key> <string>10/12/2012</string> <key>Manufacturer</key> <string>Apple Inc.</string> <key>ProductName</key> <string>iMac13,2</string> <key>Version</key> <string>1.0</string> <key>Family</key> <string>iMac</string> <key>SerialNumber</key> <string>C02K1K81DNM</string> <key>BoardManufacturer</key> <string>Apple Inc.</string> <key>BoardSerialNumber</key> <string>C02K1K81DNMP</string> </dict> <key>KernelAndKextPatches</key> <dict> <key>Debug</key> <string>No</string> <key>KernelCpu</key> <string>No</string> <key>AsusAICPUPM</key> <string>No</string> <key>AppleRTC</key> <string>No</string> </dict> </dict> </plist> Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914499 Share on other sites More sharing options...
gils83 Posted May 12, 2013 Share Posted May 12, 2013 hello , tu as de la chance que la tienne fonctionne , la mienne=écran blanc et la méthode veille ne fonctionne pas pour moi you're lucky that yours works, mine = white screen and method saver does not work for me Asus M5A97pro/FX 8350/Asus 7950 CUII V2 Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914500 Share on other sites More sharing options...
Rampage Dev Posted May 12, 2013 Share Posted May 12, 2013 Nothing that you showed shows a framebuffer loaded. Post a IOreg. Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914510 Share on other sites More sharing options...
gils83 Posted May 12, 2013 Share Posted May 12, 2013 Par contre en -x avec GraphicsInjector=Yes ou No , la carte graphique est parfaitement reconnu avec 7mo de mémoire . By cons in-x GraphicsInjector=Yes or No, the graphics card is well recognized with 7mo memory. Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914512 Share on other sites More sharing options...
fau7i Posted May 12, 2013 Share Posted May 12, 2013 Par contre en -x avec GraphicsInjector=Yes ou No , la carte graphique est parfaitement reconnu avec 7mo de mémoire . By cons in-x GraphicsInjector=Yes or No, the graphics card is well recognized with 7mo memory. With Clover, use GraphicsInjector=Yes, unless you inject everything through DSDT. Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914513 Share on other sites More sharing options...
badaxe2 Posted May 12, 2013 Author Share Posted May 12, 2013 I have attached my ioreg - ioreg.zip Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914514 Share on other sites More sharing options...
Rampage Dev Posted May 12, 2013 Share Posted May 12, 2013 Just as I have been saying. No framebuffer is loaded: Please follow my guide: http://rampagedev.wordpress.com/2012/12/04/about-amd-7970-working-with-full-qe/ Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914516 Share on other sites More sharing options...
xpamamadeus Posted May 12, 2013 Share Posted May 12, 2013 Nothing that you showed shows a framebuffer loaded. Post a IOreg. I think that is where he showed loaded framebuffer ? Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914517 Share on other sites More sharing options...
badaxe2 Posted May 12, 2013 Author Share Posted May 12, 2013 Just as I have been saying. No framebuffer is loaded: Please follow my guide: http://rampagedev.wo...g-with-full-qe/ Gotcha, do you know of a decent guide that I can follow to create a dsdt, at the moment I use clover with no dsdt... Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914521 Share on other sites More sharing options...

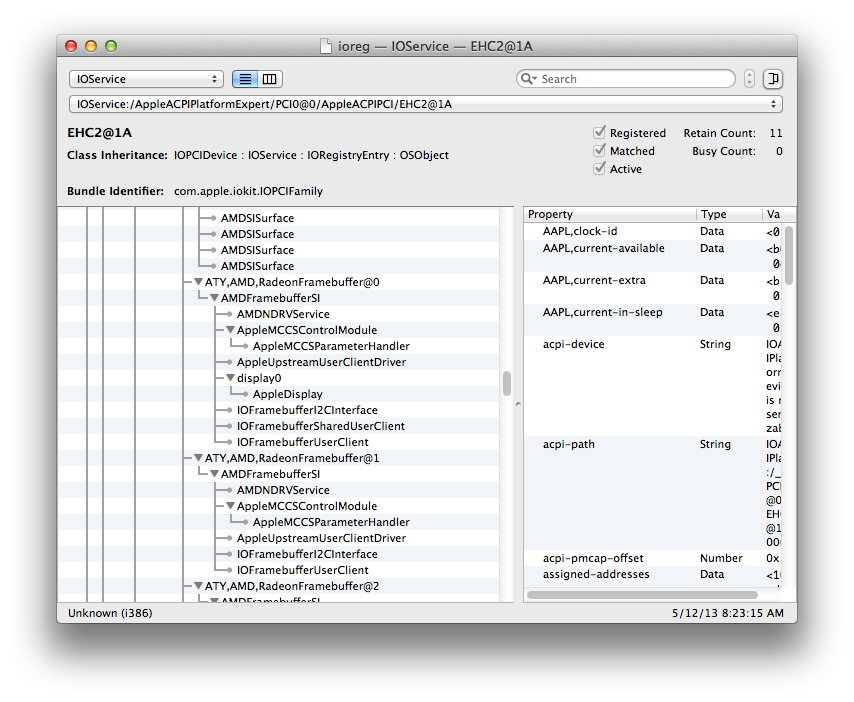

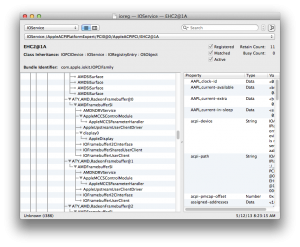

k3nny Posted May 12, 2013 Share Posted May 12, 2013 Each port is recognized with ATY,AMD,RadeonFramebuffer. According to the name it is a framebuffer and apparently everything seems to work fine without injecting a specific FB. I don't see the problem here. Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914522 Share on other sites More sharing options...
Rampage Dev Posted May 12, 2013 Share Posted May 12, 2013 I think that is where he showed loaded framebuffer ? No, that has absolutely nothing to do with this. That is device ID driven and nothing more. Its not being told what FB to load. Each port is recognized with ATY,AMD,RadeonFramebuffer. According to the name it is a framebuffer and apparently everything seems to work fine without injecting a specific FB. I don't see the problem here. Really? Do you understand how AMD/ATI cards work because I think you do not. The card has no framebuffer. ATY,AMD,RadeonFramebuffer is not a framebuffer! Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914524 Share on other sites More sharing options...
k3nny Posted May 12, 2013 Share Posted May 12, 2013 I never said I understand it fully. What is it then, can you explain it please? Also what difference does it make in the end if he uses one of the known framebuffers? Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914527 Share on other sites More sharing options...
Rampage Dev Posted May 12, 2013 Share Posted May 12, 2013 I never said I understand it fully. What is it then, can you explain it please? Also what difference does it make in the end if he uses one of the known framebuffers? http://en.wikipedia.org/wiki/Framebuffer Framebuffer on a AMD card enables OpenCL. Not loading a framebuffer means the card is not working. Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914528 Share on other sites More sharing options...
badaxe2 Posted May 12, 2013 Author Share Posted May 12, 2013 @rampage dev im following the guide on your blog and i am creating a new dsdt, I have extracted dsdt but I am having problems now finding a patch for z77a-gd65... My card in on pci0 Any ideas where how I can do this as the usual places to get patches from dont have one for my motherboard ? Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914530 Share on other sites More sharing options...
k3nny Posted May 12, 2013 Share Posted May 12, 2013 http://en.wikipedia....iki/Framebuffer Framebuffer on a AMD card enables OpenCL. Not loading a framebuffer means the card is not working. His card is obviously working, including video acceleration and OpenCL. Can you show an example of what does not work? Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914532 Share on other sites More sharing options...
badaxe2 Posted May 12, 2013 Author Share Posted May 12, 2013 My card is working fine apart from OpenGL 4,0 Fans are ramping up with fur mark, but its just OpenGL 4 giving me a hard time Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914534 Share on other sites More sharing options...
xpamamadeus Posted May 12, 2013 Share Posted May 12, 2013 @rampage dev im following the guide on your blog and i am creating a new dsdt, I have extracted dsdt but I am having problems now finding a patch for z77a-gd65... My card in on pci0 Any ideas where how I can do this as the usual places to get patches from dont have one for my motherboard ? easy way to do it. http://sourceforge.n.../maciasl/files/ add this link to your rep od MACIASL PJALM Intel7 http://repo.pjalm.info/intel7 Credits for patch goes to user PJALM Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914536 Share on other sites More sharing options...
Rampage Dev Posted May 12, 2013 Share Posted May 12, 2013 @rampage dev im following the guide on your blog and i am creating a new dsdt, I have extracted dsdt but I am having problems now finding a patch for z77a-gd65... My card in on pci0 Any ideas where how I can do this as the usual places to get patches from dont have one for my motherboard ? You just need to remove the errors thats all. His card is obviously working, including video acceleration and OpenCL. Can you show an example of what does not work? It is obviously not working. He has not tested OpenCL. Its not working. If you can not understand that the framebuffer is not loaded then I just do not know what to tell you. End of discussion. Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914537 Share on other sites More sharing options...
fau7i Posted May 12, 2013 Share Posted May 12, 2013 I do remember first couple days with my ATI card. It worked just fine with generic framebuffer (AMD Radeon 7xxx in System Information). I didn't test OpenCL though. Link to comment https://www.insanelymac.com/forum/topic/288486-7950-success-almost/#findComment-1914541 Share on other sites More sharing options...
