gabrielsdn

Ajuda com Asus P5KPL-AM SE

Recommended Posts

Olá,



Estou tentando fazer hackintosh no meu PC faz um mês e sem sucesso. Já vi em outros fóruns um pessoal que já conseguiu fazer ele funcionar..



Minha configurações:



Motherboard: Asus P5KPL-AM SE

Processor: Intel® Core™2 Duo CPU E7400 @ 2.80GHz

Memory: 2GB DDR2 SDRAM

Graphics: Intel® G33/G31 Express Chipset Family (256 MB)

Accelerator : Intel GMA 3100

Sound: Realtek ALC887 @ Intel 82801GB ICH7 - High Definition Audio Controller

BIOS version: 0506

HD: Samsug SATA 500GB

Wifi adapter: TP-Link TL-WN722N

My display is an AOC Spectrum 5En, 15' velho, 15' e de caixona ainda, não sei se isso influencia a

resolução máxima dele é 1024x768



Já tentei com vários bootflags como: -v -x -f -s cpus=1 busratio=20 GraphicsEnabler=No , etc.

Também tentei com os seguintes bootloaders :

LegacyBootCD, BootCD, iBootLegacy and iBoo*



e 3 diferentes sistemas editados: Mac OS X Client Server SS2_SS3 10.6 by Hazard, Mac OS X 10.6 SS2_SS3 by Hazard e com o iDeneb 10.5.8, Eu não consigo no Leopard também...



No verbose mode dá sempre um dos 3 seguintes erros:



As vezes trava em:

ACPI: System State [ S0 S3 S4 S5 ] (S3)

e

BSM auditing present



e kernel panic no:

From path: "uuid", Waiting on <dict ID="0"><key>IOProviderClass</key><string ID="1">IOResources</string><key>IOResourceMatch</key><string ID="2">boot-uuid-media</string></dict>

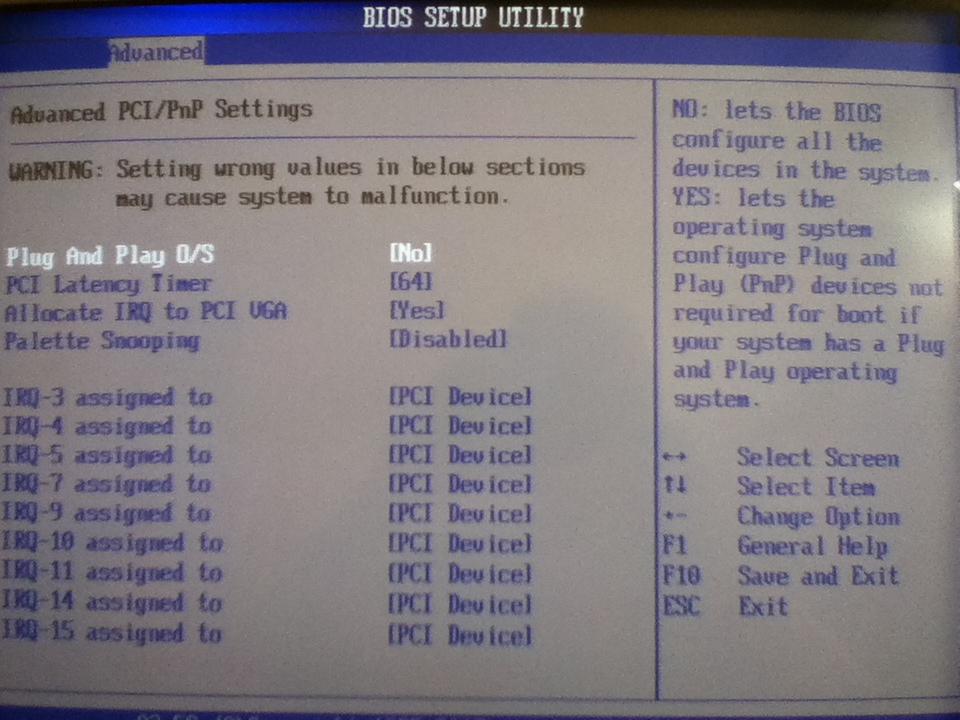

Minha BIOS não tem a opção pra mudar pra AHCI, todas as opções de ACPI estão ativadas, Plug and Play OS ta ativado e o Suspend mode já ta em "Only S3". Tem mais alguma opção pra mudar? Ou tem algo errado com a minha configuração?



Além disso, eu não consigo instalar com o DVD original pois não tenho DVD Dual-Layer e não sei como instalar via pen drive.



Já consegui fazer funcionar em uma máquina virtual no VmWare, mas fica muito lento, queria instalar direto no pc.



Alguém tem uma solução aí?



Abraço...

Share this post


Link to post
Share on other sites
Advertisement

Olá amigo,

entao, consegui criar um pen drive com o retail.

tentei com o nawcom bootcd e com o hackboot tambem. tentei com -x -v -f e sempre para em ACPI:System State [s0 S3 S4 S5] (S3) .



Quando desativei o APIC Support na bios, depois que bootei ele parou em algo parecido como:

"Trying to change dependencies on..."

e em baixo um monte de IO kexts

apareceu isso duas vezes. nao sei se a instalação iria continuar, não esperei pra ver.



ACPI Support continua habilitado em minha bios.



Algo mais que eu possa mudar em minha bios ou testar com alguma outra kernel flag?



Obrigado.. aguardo resposta.

Share this post


Link to post
Share on other sites

olá

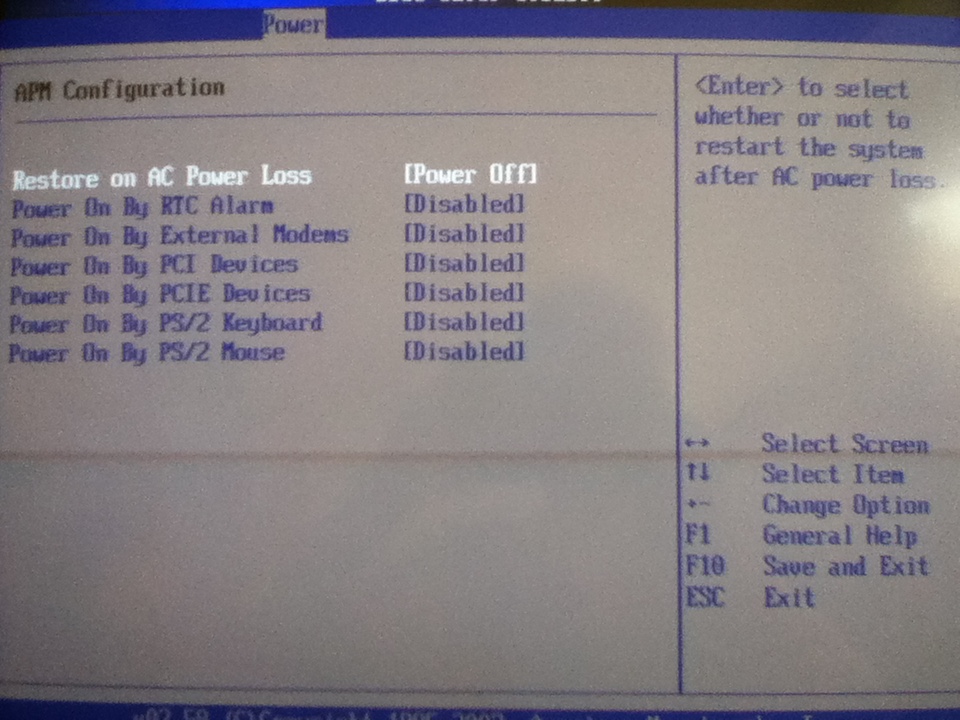

tua bios tem alguma coisa para habilitar o gerenciamento de energia ?



tenta fazer um bios default



tem habilitado o disable bit ?



essa placa devia funcionar, tens alguma coisa mal na bios



tenta aplicar o patch para teres dsdt



http://www.olarila.com/forum/viewtopic.php?f=7&t=646



se n conseguires extrai da tua bios e posta aki, para aplicar o patch



bom hack

Share this post


Link to post
Share on other sites

Então, sobre o gerenciamento de energia eu não sei...

Disable bit está habilitado.

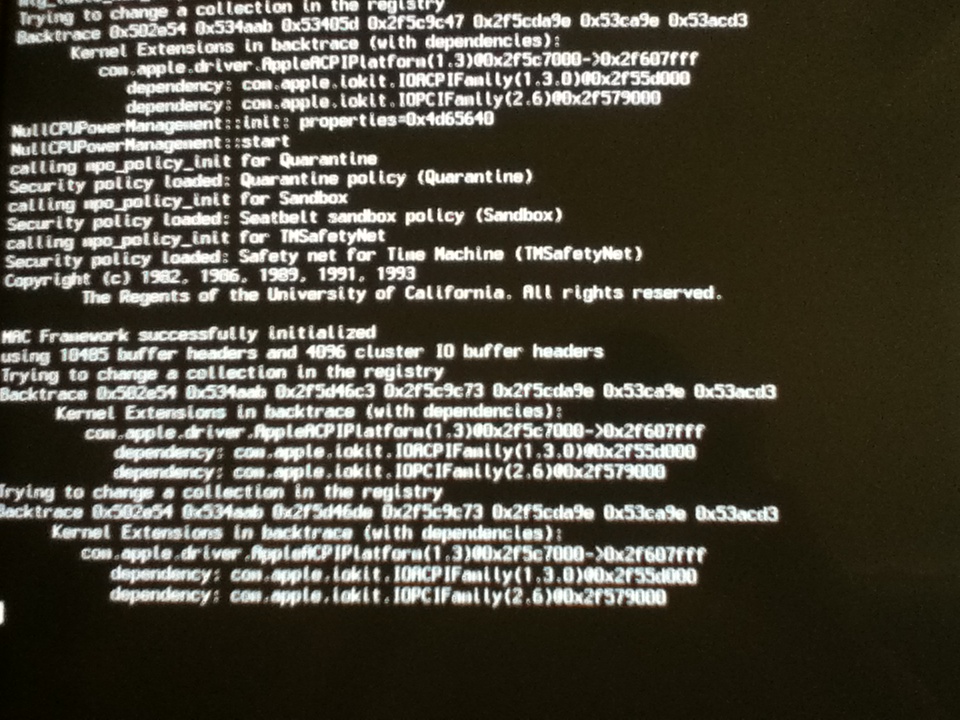

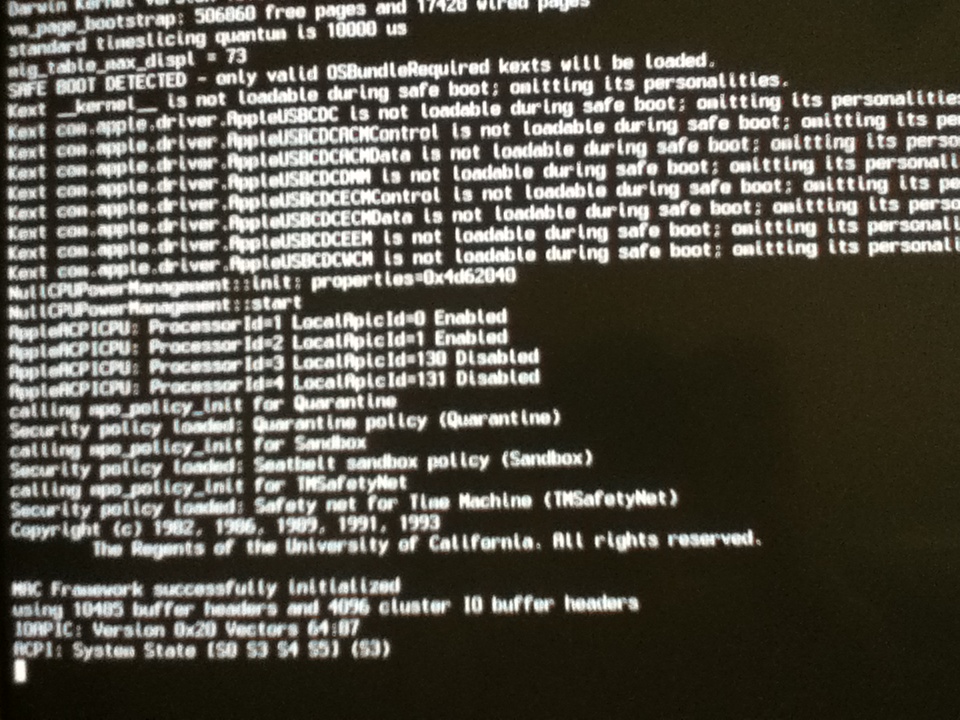

No modo verbose só há diferença quando desativo o modo APIC Support, quando ativado, trava no ACPI: System State (S0 S3 S4 S5) (S3). Quando desativado, aparece "Trying to change "alguma coisa" in registry, e logo abaixo com umas kexts do ACPI.

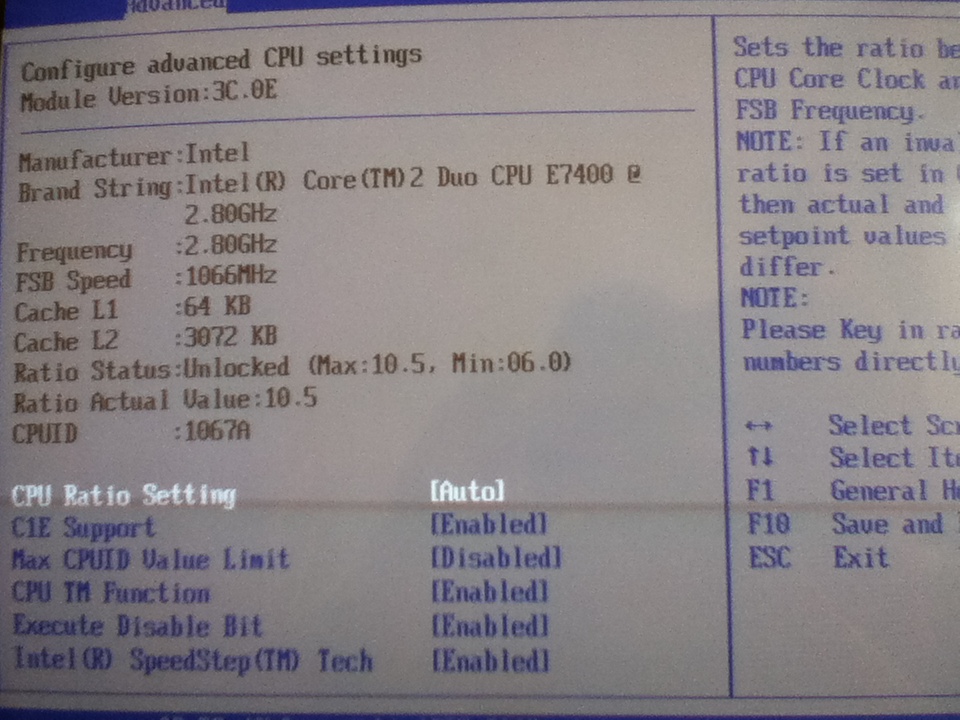

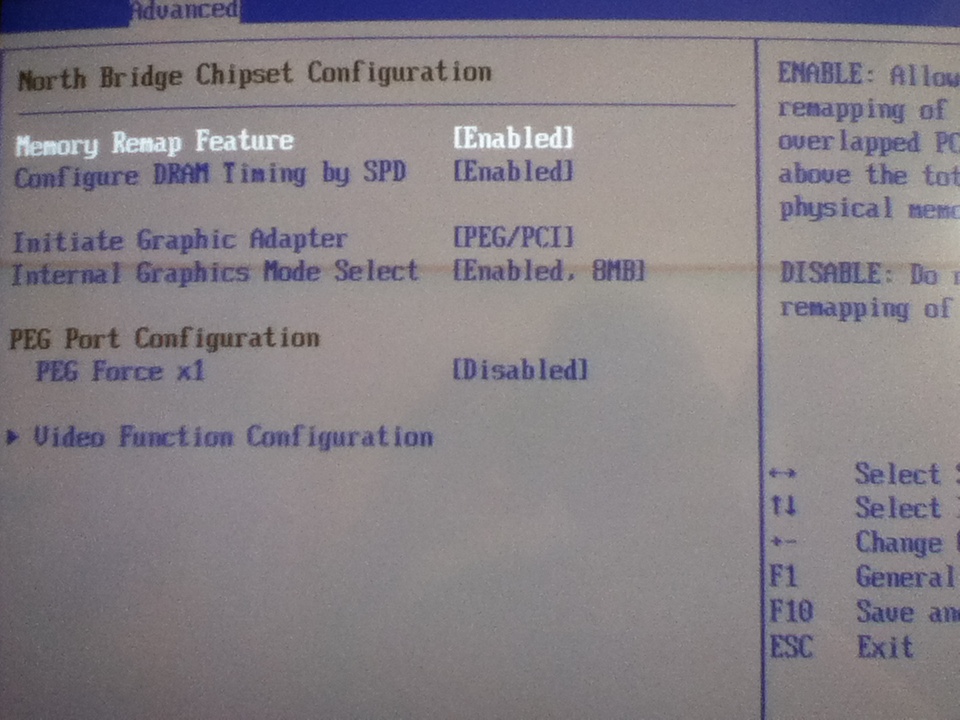

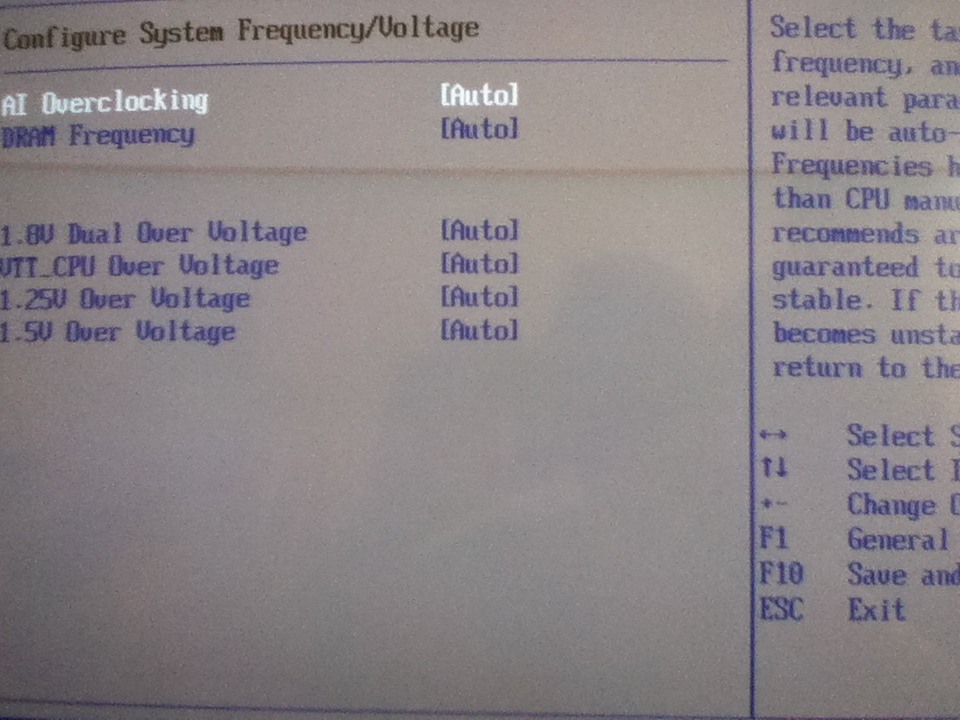

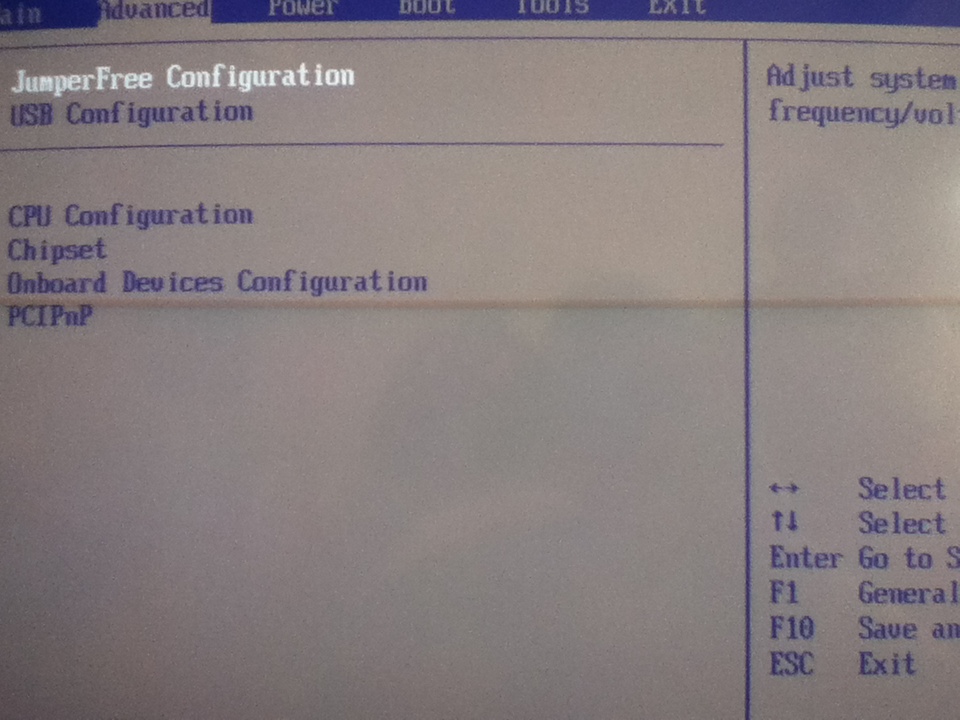

Lhe envio algumas imagens do boot e da bios default por attachment. Dê uma olhada e me diga o que é possivel ser feito.. Vou tentar aplicar o patch por aqui enquanto isso.



Obrigado desde já.



ATUALIZAçãO 1: Estou tentando dar um extract DSDT aqui pelo Windows, porém quando aperto, ele abre um console com a mensagem "Cannot run program iasl.exe" , há alguma restrição pra Win7, tem que rodar com administrador ou compatibilidade?



ATUALIZAçãO 2: Consegui, vou compilar e publicar pra ti

Qual patch queres que eu aplique para minha DSDT? Vejo vários aqui na pasta..



ATUALIZAçãO 3: Dei um compile e um fix errors na DSDT gerada aqui e salvei o .aml, estarei postando pra você ver.



ATUALIZAçãO 4: Não é possível upar como attachment, há outra maneira que eu possa postar pra você ver?











Share this post


Link to post
Share on other sites

olá

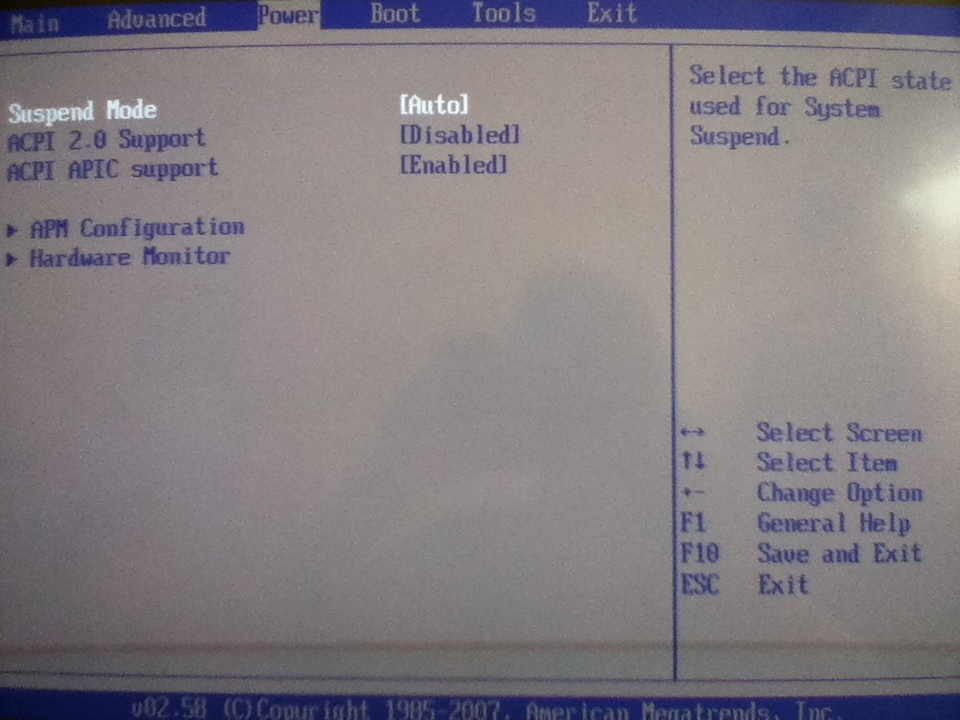

experimenta meter na bios acpi suport 2.0 enable



e vê as opções na controladora de hd



ahci , sata mode ??



bom hack

Share this post


Link to post
Share on other sites

não há opção pra mudar pra AHCI, acpi support enable com apic disable dá naquela imagem do "trying to change collection in registry"

se o apic está ativado ele para na tela do ACPI System State. (S0 S3 S4 S5) (S3)

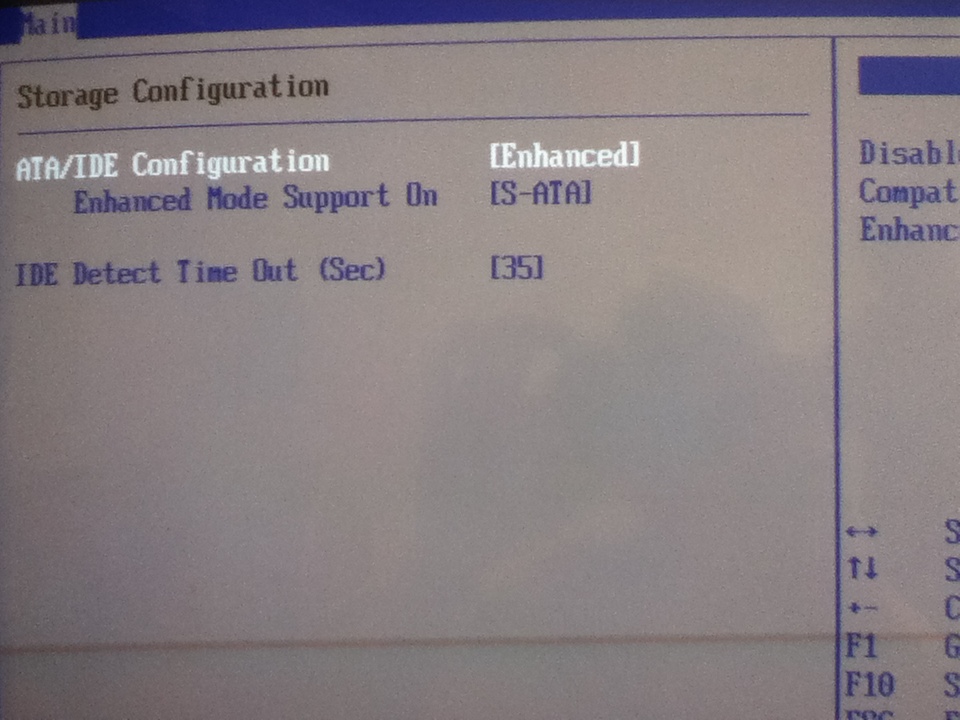

minha bios mostra apenas ATA/IDE. postei o log da DSDT do DSDT Editor pra você ver no que podes me ajudar..

Share this post


Link to post
Share on other sites

olá



n sei k estás a fazer mal, mas alguma coisa é, tem muita gente com essa board a correr hack



e de certeza k é na tua bios



fizeste o bios default ?



bom hack

Share this post


Link to post
Share on other sites

o bios default é o que postei as imagens pra ti.

só não sei aonde usar esta dsdt que você me passou pra eu testar?

aonde tenho que colocá-la? e como fazer isso?

Share this post


Link to post
Share on other sites

olá



só por pen mas para isso precisas de preparar a pen num mac ou num hack







bom hack



olá



http://olarila.com/forum/viewtopic.php?f=26&t=1682



ve ai este tuto mesma mobo com mountain lion



e este video como configurar a bios, tens a tua bios atualizada ?





bom hack

Edited by artur-pt

Share this post


Link to post
Share on other sites

tens algum tutorial de como preparar o pen drive de boot no hack com a dsdt que me mandou?



meu problema não está relacionado a PCI ou Placa de vídeo?

você acha que o mountain lion roda mesmo com vídeo onboard?

Share this post


Link to post
Share on other sites

ok, vou fazer os testes conforme aquela bios do video.

o video é da placa p5kpl-am EPU e a minha é p5kpl-am SE. deve dar no mesmo, vou reconfigurar aqui e te digo a resposta.

vou tentar testar com uma placa de video offboard tambem. depois te dou a resposta.



obrigado.



e minha bios esta na ultima versão sim: 0708 ou 0702 se eu não me engano.

Share this post


Link to post
Share on other sites

olá



rodar roda, mas essa onboard é 32 bit, por isso n vai funcionar com aceleração gráfica.



unica solução k vejo é comprares uma offboard



bom hack

Share this post


Link to post
Share on other sites

olá Artur,

vou instalar uma placa de video hoje ná entrada pci do meu computador, configurar a bios e tentar instalar o hack

depois te mando o resultado, obrigado pela ajuda.

Share this post


Link to post
Share on other sites

cara, muito obrigado pela ajuda..

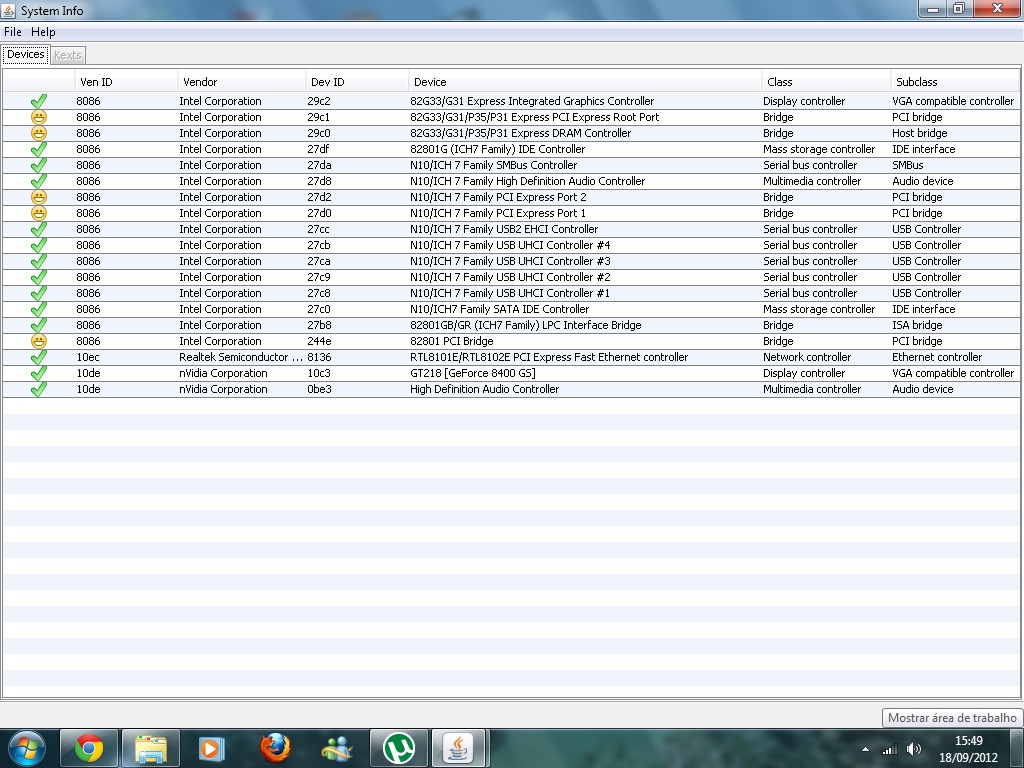

instalei uma placa nvidia 8400gs aqui no meu computador, configurei minha bios como no vídeo e consegui bootar com o nawcom mod cd!



agradeço pelo tempo que você se disponibilizou pra ajudar... qualquer dúvida estamos aí, obrigado...



quais kexts devo instalar para minha placa?

Share this post
