Conroe Mac Posted September 8, 2006 Author Share Posted September 8, 2006 I would us @bios, but they only have F4. F5 is the latest Bios version. I have the F5 on my computer, but I'm a little leery about the application they send with it for flashing. Link to comment Share on other sites More sharing options...
Conroe Mac Posted September 8, 2006 Author Share Posted September 8, 2006 Sorry to hear about the card SABR.. It happens to all of us trying to build hackintoshes... I might have to pick up a different graphics card if I don't get this card working... For others looking for the proper type of converter, Here is the one I used from newegg: http://www.newegg.com/Product/Product.asp?...N82E16822998001 bofh_de: This thread is for Gigabyte boards which use 965 Express. If you are looking for support on a board that is Intel, I suggest you start your own thread. Link to comment Share on other sites More sharing options...
Sabr Posted September 8, 2006 Share Posted September 8, 2006 SABR: Do us all a favor and edit your other post showing the hw629 to avoid people thinking that works, please. I edited mine already. I must have misread your post because I thought you said that the 629 did work. Yup, all done. I'll get the HW-628 by tomorrow, and then let you all know how I get on. It should work this time... Link to comment Share on other sites More sharing options...
Conroe Mac Posted September 8, 2006 Author Share Posted September 8, 2006 The converter I linked to is the one I am currently using in my system... so yes.. it works for me. It should work for everyone, but it might depend on your DVD-rom drive. Update: I installed new Bios F5, still no luck with my video card. Link to comment Share on other sites More sharing options...
thedguy Posted September 9, 2006 Share Posted September 9, 2006 Anyone try modifying any of the VIAATA kext's to get the Jmicron chip working? I was digging around and found that there is some similarities in the Jmicron jmb360 on an ASROCK board and JMB363 on our Gigabyte DS3's. Perhaps someone would like to be a guinea pig and modify the "AppleVIAATA.kext" and "AppleACHIPort.kext" with the hardware ID from our boards in the SATA section? I would give it a shot but I don't have a board ATM to try it on. Take a look at post 11,15,16,19,24,29, 60, and 66. http://forum.osx86project.org/index.php?showtopic=2188 Hey Man, I got SATA and SATAII working on my 939-Dual (JMB360). All you have to do is copy the AppleVIAATA.kext from 10.4.4. Add your DevIDs to the PCI match section of Generic SATA in AppleAHCIPort.kext/contents/info.plist as well as AppleVIAATA.kext/contents/info.plist. If any of that works perhaps this will be needed http://forum.insanelymac.com/index.php?act...=18&t=22400 There's also a post on modifying the ISO's to possibly work. Damn it! I wish I didn't rma my board today. Link to comment Share on other sites More sharing options...
Conroe Mac Posted September 9, 2006 Author Share Posted September 9, 2006 I will try that out once I get my video card sorted out.. I'm about to give up and sell this card so I can get a different one.. Link to comment Share on other sites More sharing options...
jp266one Posted September 9, 2006 Share Posted September 9, 2006 I will try that out once I get my video card sorted out.. I'm about to give up and sell this card so I can get a different one.. have you tried the borisdadenov method for your video card? it should work for the x1600, it works for x1900gt Link to comment Share on other sites More sharing options...
Conroe Mac Posted September 10, 2006 Author Share Posted September 10, 2006 I've tried the following: Neophus Installer Boris Badenov method on 10.4.6 Boris Badenov method on 10.4.7 Half Boris method (modifying only ATINDRV.kext) VGA and DVI 10.4.5 kexts with Boris Method on OS 10.4.7 Link to comment Share on other sites More sharing options...
splintah Posted September 10, 2006 Share Posted September 10, 2006 thanks everybody very interesting thread Link to comment Share on other sites More sharing options...
Sabr Posted September 12, 2006 Share Posted September 12, 2006 Hmmm, I can't seem to get the converter to work... What are the settings I need to change in the BIOS? EDIT: Ok, SATA Port 0-3 Native: Disabled SATA/IDE Control Mode: AHCI When I set it to that, when the PC tries to post, it detects the SATA HDD, and then says "Detecting IDE Drives", and stays like that for ages. I left it for about 5 mins and it did nothing. How long do I have to wait? I know you said it was slow, but it can't be THIS slow... Link to comment Share on other sites More sharing options...
thedguy Posted September 12, 2006 Share Posted September 12, 2006 If I'm not mistaken the SATA/Ide Control Mode is for the Gigabyte IDE/Sata controller, not the Intel one that works in osx. If it's the one with "AHCI"/"IDE"/"RAID" as the options then it is. If thats the case, just shut it off, or set it to "raid" it detects much faster that way. Link to comment Share on other sites More sharing options...
Sabr Posted September 12, 2006 Share Posted September 12, 2006 If I'm not mistaken the SATA/Ide Control Mode is for the Gigabyte IDE/Sata controller, not the Intel one that works in osx. If it's the one with "AHCI"/"IDE"/"RAID" as the options then it is. If thats the case, just shut it off, or set it to "raid" it detects much faster that way. I have tried every possible combination of this... (i think ) Can someone who uses a SATA - PATA converter please tell me their settings? This is getting painfully frustrating... Link to comment Share on other sites More sharing options...
thedguy Posted September 12, 2006 Share Posted September 12, 2006 Just disable the entire IDE system, it's not needed anyway. In "integrated peripherals" set "Onboard SATA/IDE Device" to disabled. should solve the problem of detecting ide devices. The Converter needs to have the drive hooked up to it set as master I've got a converter, but haven't tried it on my DS3 yet, but got it to somewhat work on my temporary setup. Link to comment Share on other sites More sharing options...
Conroe Mac Posted September 13, 2006 Author Share Posted September 13, 2006 All the settings I used were default settings. Try going into BIOS and setting it to default. Try different jumper settings. Sorry I can't be more helpful immediately. I'm very busy lately. Have faith. It will work. Link to comment Share on other sites More sharing options...
Sabr Posted September 13, 2006 Share Posted September 13, 2006 Hmmm, ok, I'll disable the Onboard SATA/IDE thing. Now I have to figure out how to set my jumers on the DVD-RW to master... Thanks for the help you guys, much appreciated! Link to comment Share on other sites More sharing options...
Sabr Posted September 13, 2006 Share Posted September 13, 2006 YES! Ok, I figured out which jumper is Master, and it boots!! However, it isn't detecting any partitions :S What do I do?!? And it thinks my drive is 128 GB when it's actually 250 GB... Link to comment Share on other sites More sharing options...
chelhydra Posted September 13, 2006 Share Posted September 13, 2006 YES! Ok, I figured out which jumper is Master, and it boots!! However, it isn't detecting any partitions :S What do I do?!? And it thinks my drive is 128 GB when it's actually 250 GB... Free some space and create a new osx partition Link to comment Share on other sites More sharing options...
rainman01 Posted September 13, 2006 Share Posted September 13, 2006 Anyone tryout the GA-965G-DS3? This is pretty much the same as the 965P-DS3 except with the onboard GMA X3000 integrated graphics. If the X3000 works in OS X, that would save us some money getting another graphics card! Currently the 965G and P are about the same price. Link to comment Share on other sites More sharing options...
aberracus Posted September 13, 2006 Share Posted September 13, 2006 Im running now from my GA-945p-S3 with my Conroe 6400 not overclocked yet buy i will soon, everything is working perfect, except spund the UAA BUS device id is a mistery for me... probably will have to install windows to check it, what a shame... Link to comment Share on other sites More sharing options...

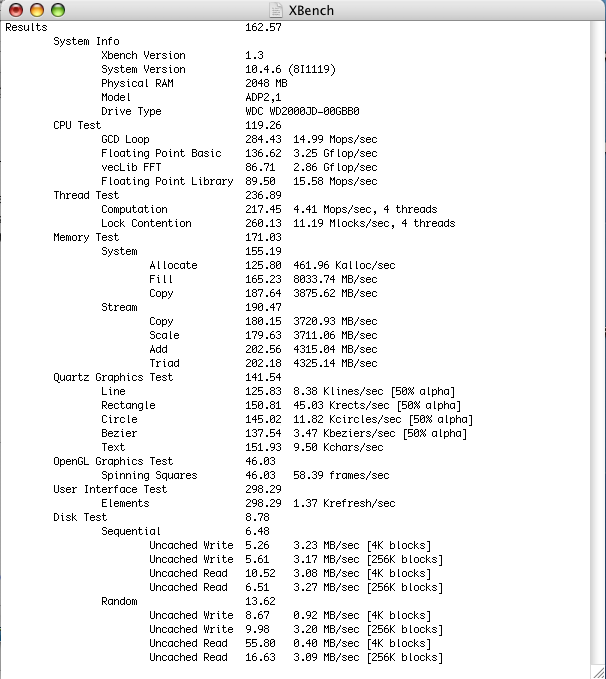

Sabr Posted September 14, 2006 Share Posted September 14, 2006 Wooohoo!! All working fine and dandy! As soon as I got to the desktop, I ran the Borisbadenov instaler, restarted and I have full graphics support! It seems that OSx86 has straight away detected my Built-In Ethernet, but I don't know if it is working as I use a PCI NIC Card. I have a feeling I wiped all my Windows files when I installed this. I am not sure what has happened to my other 100 GB partition as of yet, but OSx86 is only detecting one (128 GB). Boot-up time: about 1 minute-ish... General performance: Very good. Haven't really experienced any sluggishness. In XBench, I get 190 without the Disk Test, and with it selected, it drops down to 48 On-Board Sound isn't working yet, but I'm sure I will get it working with what you have said to do, Conroe Mac. That's all I have to do to get this working as a fully functional Mac Workbox! System Specs: Intel Allendale E6300 Gigabyte GA-965P-DS3 (obviously ) 2 x 1 GB Corsair XMS2 677 DDR2 RAM SAPPHIRE ATi Radeon X1800XT (full support with Borisbadenov method, haven't seen any artifacts yet...) Thanks for all the help guys, I'm sure we can all work together to get the 965 Chipsets fully working with OSx86 is we try hard enough! We have to look into getting it to work with the JMicron thingy-majig SABR. Link to comment Share on other sites More sharing options...
Sand Dog Posted September 14, 2006 Share Posted September 14, 2006 Hey Guys! Ive managed to get 10.4.6 JaS running on my machine nicely. A few bugs here and there but thanks to you guys and this thread ive managed to fix most of the bugs First things first: 1. IDE channel doesnt work, so i installed using a usb dvd drive. no problems, a little slow tho. Waiting for a fix for it may just get the IDE to SATA converter for my dvd drive. 2. It would hang on restart, but would shut down fine. Thanks to Conroe Mac for his post, making everything easy for us all 3. The sound was not working. Thanks again to Conroe Mac n his post, works fine now, n saved me having to work out the vendor ids myself 4. LAN worked straight away and even detected my internet settings automatically 5. The Hard drive when detected could only go as high as 128GB to install onto, even tho its a 200GB hard drive (No drama cuz im using the other 70GB in windows anyways) 6. It seems tho the hard drive is running slower than usual (Maybe not but it feels like it) 7. I dont know how the graphics card is going to go in games but ive been able to change the resolution after patching it with the nvidia patch somewhere in the forums Apart from those problems (which most are fixed) everything is running sweet, and im enjoying the mac osx operating system once again (was formally a mac man till i got a pc for gaming, now i can have best of both worlds ) I ran XBench on my system to see how everything performed, i dont know wat any of it means compared to others that have ran it but ill attach the screen shot of the resuts for you all to see Anyhow, thanks all for the help with everything, ill b keeping an eye on this post and helping out whenever i can to return the favour Link to comment Share on other sites More sharing options...
thedguy Posted September 14, 2006 Share Posted September 14, 2006 I never thought to mention it, but I also experienced the 128gig issue with my 160gig Sata drive. For you guys that have other data on the other partitions, don't expect it to be good, especially if you partitioned it with the system only thinking it's a 128 gig drive, my brother lost lots of data because of a drive reporting problem. I wonder if we can fix the HD access issue if that will correct the drives showing up with no more than 128g's Link to comment Share on other sites More sharing options...
aberracus Posted September 14, 2006 Share Posted September 14, 2006 every problem you guyz are having with your hard disk is related to ICH8, THIS ISNT REALLY A COMPATIBLE MOBO. without OC im running now at 133.33 xbench result (with hard disk), i paste it here for more info: Results 133.33 System Info Xbench Version 1.2 System Version 10.4.7 (8J2135a) Physical RAM 2048 MB Model ADP2,1 Drive Type WDC WD3200KS-00PFB0 CPU Test 104.32 GCD Loop 254.26 13.40 Mops/sec Floating Point Basic 121.78 2.89 Gflop/sec vecLib FFT 73.01 2.41 Gflop/sec Floating Point Library 79.98 13.93 Mops/sec Thread Test 206.57 Computation 189.87 3.85 Mops/sec, 4 threads Lock Contention 226.49 9.74 Mlocks/sec, 4 threads Memory Test 125.88 System 115.01 Allocate 84.77 311.31 Kalloc/sec Fill 156.03 7586.60 MB/sec Copy 126.91 2621.25 MB/sec Stream 139.03 Copy 131.28 2711.63 MB/sec Scale 132.52 2737.85 MB/sec Add 146.17 3113.67 MB/sec Triad 147.78 3161.44 MB/sec Quartz Graphics Test 170.22 Line 130.25 8.67 Klines/sec [50% alpha] Rectangle 158.48 47.32 Krects/sec [50% alpha] Circle 153.19 12.49 Kcircles/sec [50% alpha] Bezier 140.48 3.54 Kbeziers/sec [50% alpha] Text 574.78 35.96 Kchars/sec OpenGL Graphics Test 159.31 Spinning Squares 159.31 202.09 frames/sec User Interface Test 381.46 Elements 381.46 1.75 Krefresh/sec Disk Test 63.48 Sequential 80.80 Uncached Write 80.45 49.40 MB/sec [4K blocks] Uncached Write 77.61 43.91 MB/sec [256K blocks] Uncached Read 76.40 22.36 MB/sec [4K blocks] Uncached Read 90.07 45.27 MB/sec [256K blocks] Random 52.28 Uncached Write 20.25 2.14 MB/sec [4K blocks] Uncached Write 126.17 40.39 MB/sec [256K blocks] Uncached Read 90.19 0.64 MB/sec [4K blocks] Uncached Read 123.03 22.83 MB/sec [256K blocks] As you can see the hard Disk work as they supposed to... Link to comment Share on other sites More sharing options...
Sabr Posted September 14, 2006 Share Posted September 14, 2006 As you can see the hard Disk work as they supposed to... Yeah, but you have a different motherboard than us, so of course it works properly...ß Link to comment Share on other sites More sharing options...
aberracus Posted September 14, 2006 Share Posted September 14, 2006 That was the point, 965 chipset should be avoided... Link to comment Share on other sites More sharing options...
